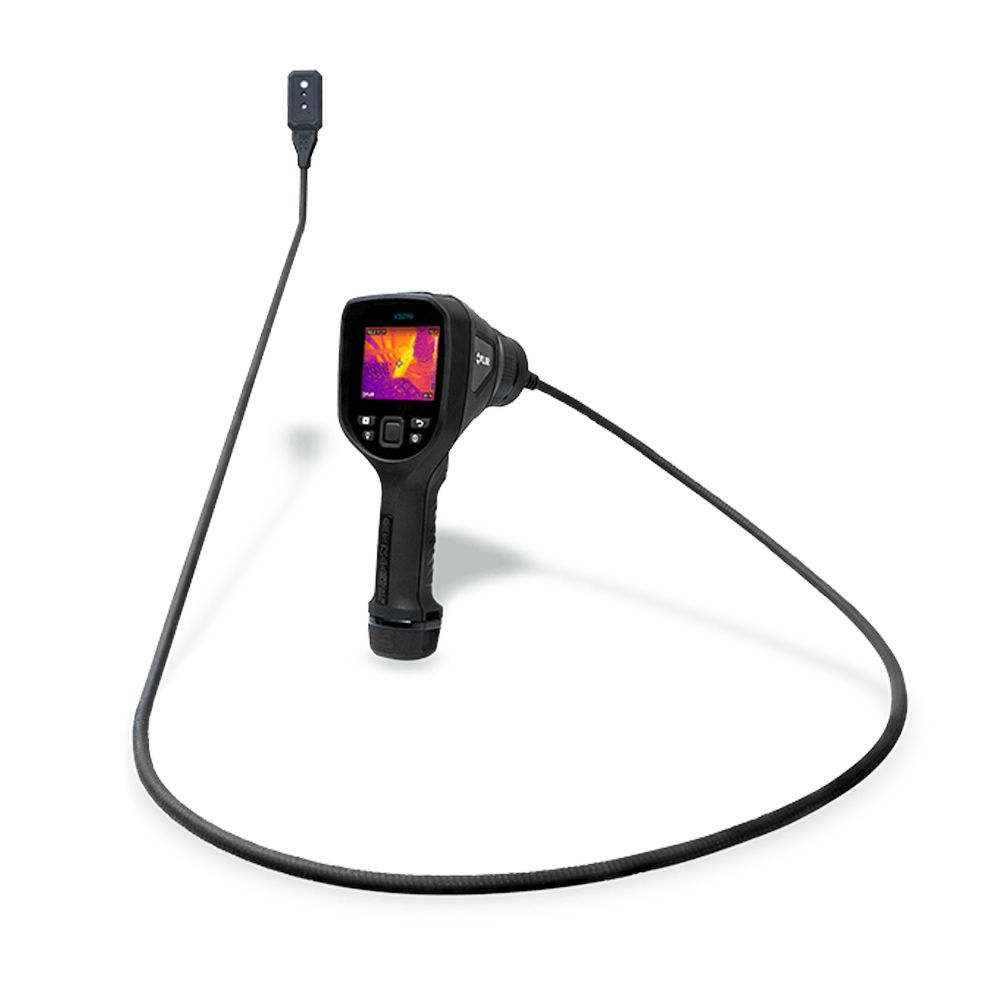

FLIR VS290-32 160 x 120 Pixel 2m Probe Thermal Videoscope Kit

FLIR VS290-32 160 x 120 Pixel 2m Probe Thermal Videoscope Kit

The FLIR VS290-21 Thermal Videoscope Kit combines a 160 × 120 infrared sensor with a long 2-metre probe, allowing detailed thermal inspection inside confined, hazardous or difficult-to-access spaces. Designed for building, electrical, mechanical and industrial diagnostics, it provides clear thermal and visual feedback to help identify hotspots, moisture issues, blockages, leaks and component failures without dismantling equipment.

Features:

• 160 × 120 thermal resolution for clear, reliable temperature imaging
• Extended 2m probe for deep access into restricted or enclosed areas
• Ideal for electrical, HVAC, mechanical, plumbing and building inspections
• Detects hotspots, faults, moisture intrusion, air leaks and thermal anomalies
• Non-destructive inspection tool for preventative maintenance
• Rugged, portable design suitable for field use

Specifications:

• Imaging & Optical
  • IR Resolution: 160 × 120 pixels
  • Built-In Digital Camera: Yes
  • Colour Palettes: Iron, Rainbow, Grey, Below Alarm and Above Alarm
  • Detector Pitch: 12µm
  • Detector Type: Focal Plane Array (FPA), uncooled microbolometer
  • Field of View: 57° × 44°
  • Focus: Focus-free
  • Gallery: Yes
  • Image Frequency: 8.7Hz
  • Image Modes: IR only, visual only and MSX®
  • Minimum Focus Distance: 0.15m
  • MSX: Embosses visual details onto the full-resolution thermal image
  • Spectral Range: 8–14µm
  • Thermal Sensitivity/NETD: <100mK
• Measurement & Analysis
  • Object Temperature Range: -10°C to 400°C
  • Colour Alarm (Isotherm): Above and below
  • Emissivity Correction: 3 preset and 1 custom emissivity setting
  • Measurement Presets: No measurement, centre spot, hot spot and cold spot
  • Spot Meter: 1 in live mode
    • Dimensions
    • Complete Kit with Case: 118 × 45 × 16cm
    • Display: 26.4 × 11 × 11cm
    • Probe: 212.2 × 0.69cm
    • Probe Tip: 71.71 × 40.52 × 11mm
• Weight
  • Complete Kit with Case: 13kg
  • Display: 640g
  • Probe: 470g
  • Communication & Data Storage
  • Memory: Removable 16GB SD card included
  • Saved Image Format: Radiometric JPEG
• User Interface

  • Display: 3.5" RGB TFT LCD, 320 × 240 pixels
• Power

  • Battery Runtime: More than 5 hours with full LCD brightness and work light on
  • Battery Type: Rechargeable 3.7V Li-ion battery
  • Charging: In-camera or with a separate charger
