Name: FLIR VS290-21 160 x 120 Pixel 1m Probe Thermal Videoscope Kit
Brand: FLIR
SKU: 16322522
Price: 6995 AUD

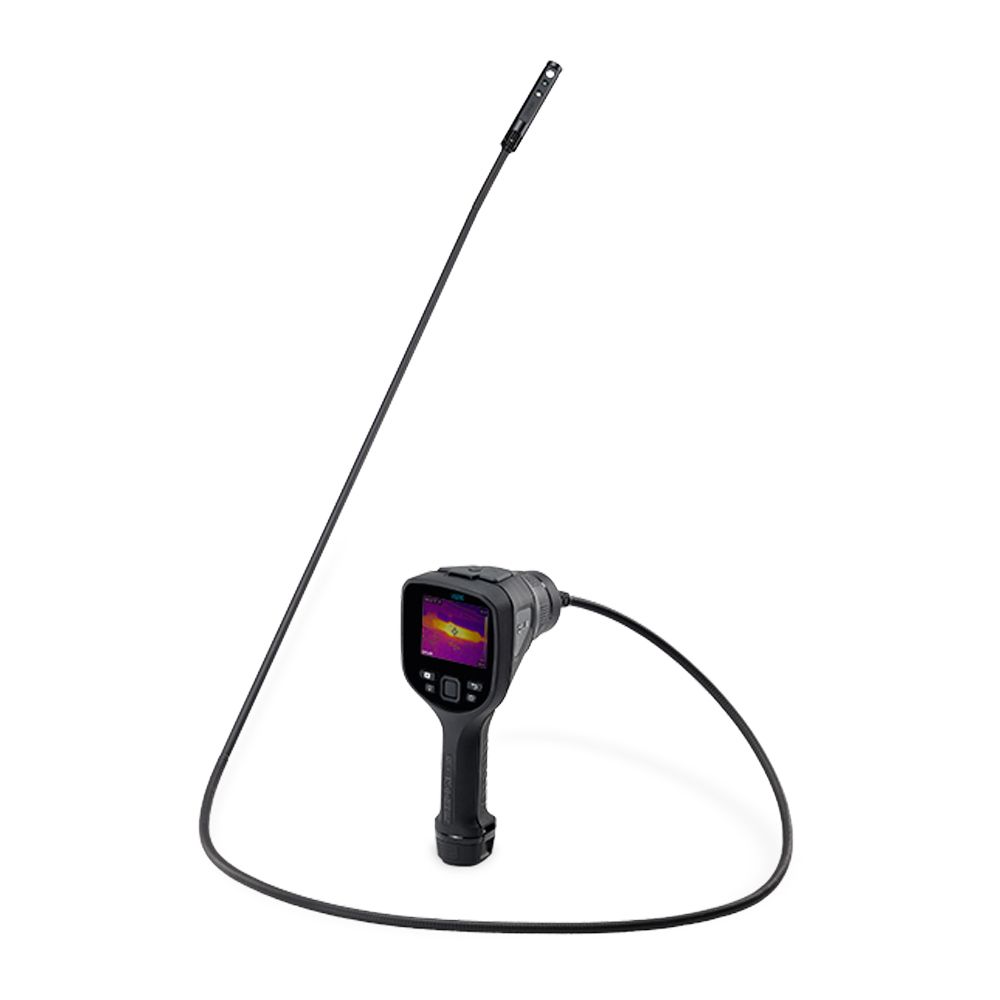

FLIR VS290-21 160 x 120 Pixel 1m Probe Thermal Videoscope Kit

The FLIR VS290-21 is a compact thermal videoscope kit featuring a 160×120 pixel infrared sensor and a 1 m probe. It’s built for inspection and diagnostics work in hard-to-reach areas, enabling users to capture thermal imagery inside ducting, walls, machinery, or confined spaces. Its portability and ease of use make it suitable for building inspections, maintenance checks, HVAC work, electrical inspections and general problem-spotting where visibility is limited.

Features:

160×120 pixel thermal sensor for thermal imaging and temperature detection

1 m probe length, ideal for accessing confined or hard-to-reach areas

Compact and portable design for easy transport and field use

Provides visual and thermal feedback to help locate hot spots, leaks or faults

Suitable for building inspections, HVAC systems, machinery maintenance, and electrical diagnostics

Enables non-destructive inspections inside spaces not accessible to conventional cameras

Specifications:

Imaging & Optical
- IR Resolution: 160 × 120 pixels
- Built-In Digital Camera: No
- Colour Palettes: Iron, Rainbow, Grey, Below Alarm and Above Alarm
- Detector Pitch: 12 µm
- Detector Type: Focal Plane Array (FPA), uncooled microbolometer
- Field of View: 57° × 44°
- Focus: Focus-free
- Gallery: Yes
- Image Frequency: 8.7Hz
- Image Modes: IR only
- Minimum Focus Distance: 0.15m
- MSX: N/A
- Spectral Range: 8–14µm
- Thermal Sensitivity/NETD: <100mK
Measurement & Analysis:
- Accuracy:
- 0–100°C: ±3°C, at an ambient temperature of 15–35°C
- 100–400°C: ±3%
- Object Temperature Range: -10°C to 400°C
- Colour Alarm (Isotherm): Above and below
- Emissivity Correction: 3 preset and 1 custom emissivity setting
- Measurement Presets: No measurement, centre spot, hot spot and cold spot
- Spot Meter: 1 in live mode
Dimensions
- Complete Kit with Case: 53 × 33 × 16.5cm
- Display: 26.4 × 11 × 11cm
- VSC-IR21 Probe: 111.5 × 0.69cm
- Probe Tip Diameter: 19mm
Weight
- Complete Kit with Case: 4.8kg
- Display: 640g
- Probe: 490g
Communication & Data Storage
- Memory: Removable 16GB SD card included
- Saved Image Format: Radiometric JPEG
User Interface
- Display: 3.5" RGB TFT LCD, 320 × 240 pixels
Power
- Battery Runtime: More than 5 hours with full LCD brightness and work light on
- Battery Type: Rechargeable 3.7V Li-ion battery
- Charging: In-camera or with a separate charger
General
- Form Factor: Forward-viewing camera
- Probe Length: 1m without probe tip
