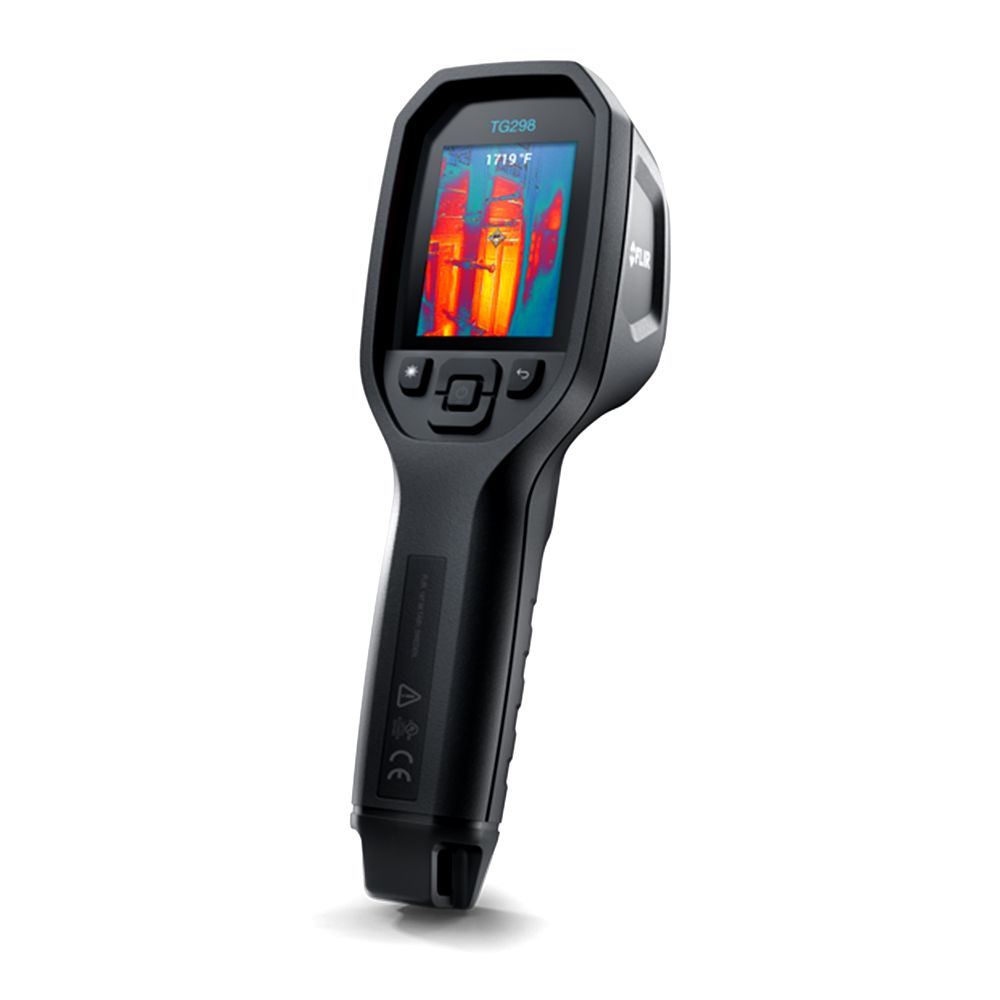

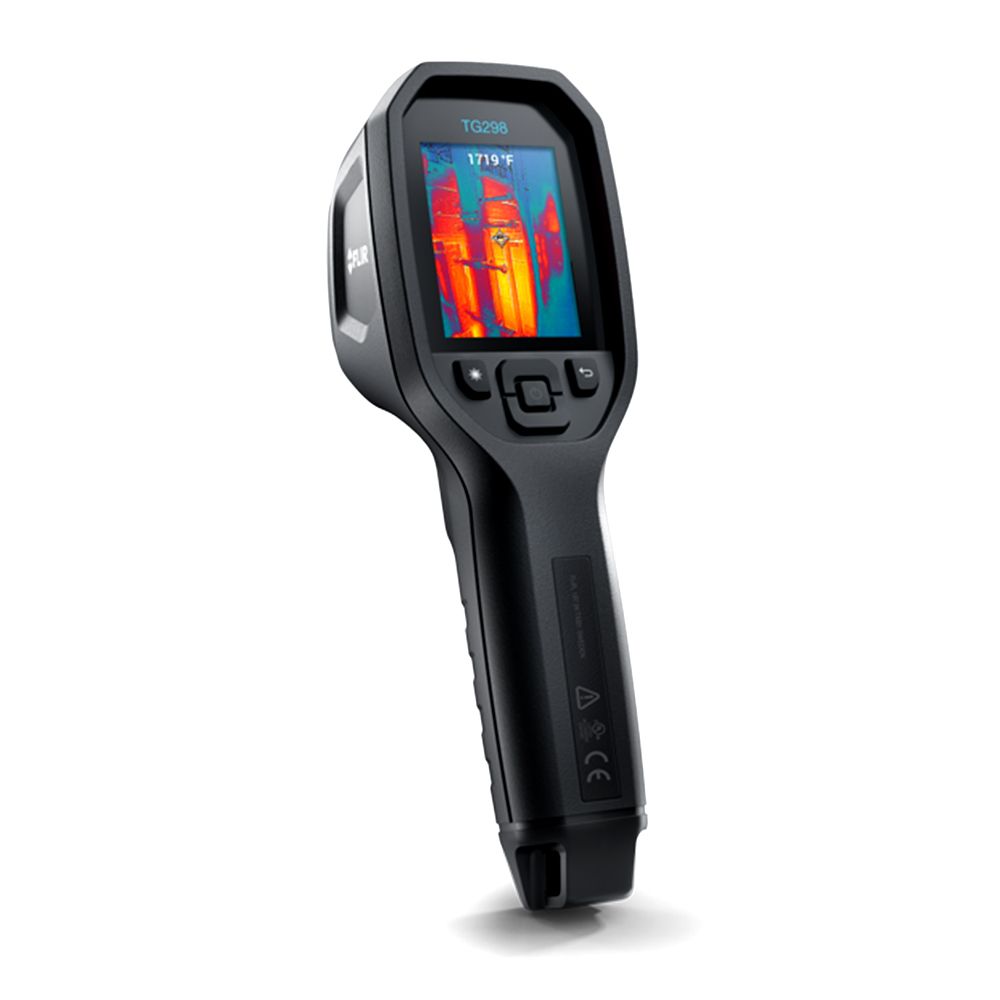

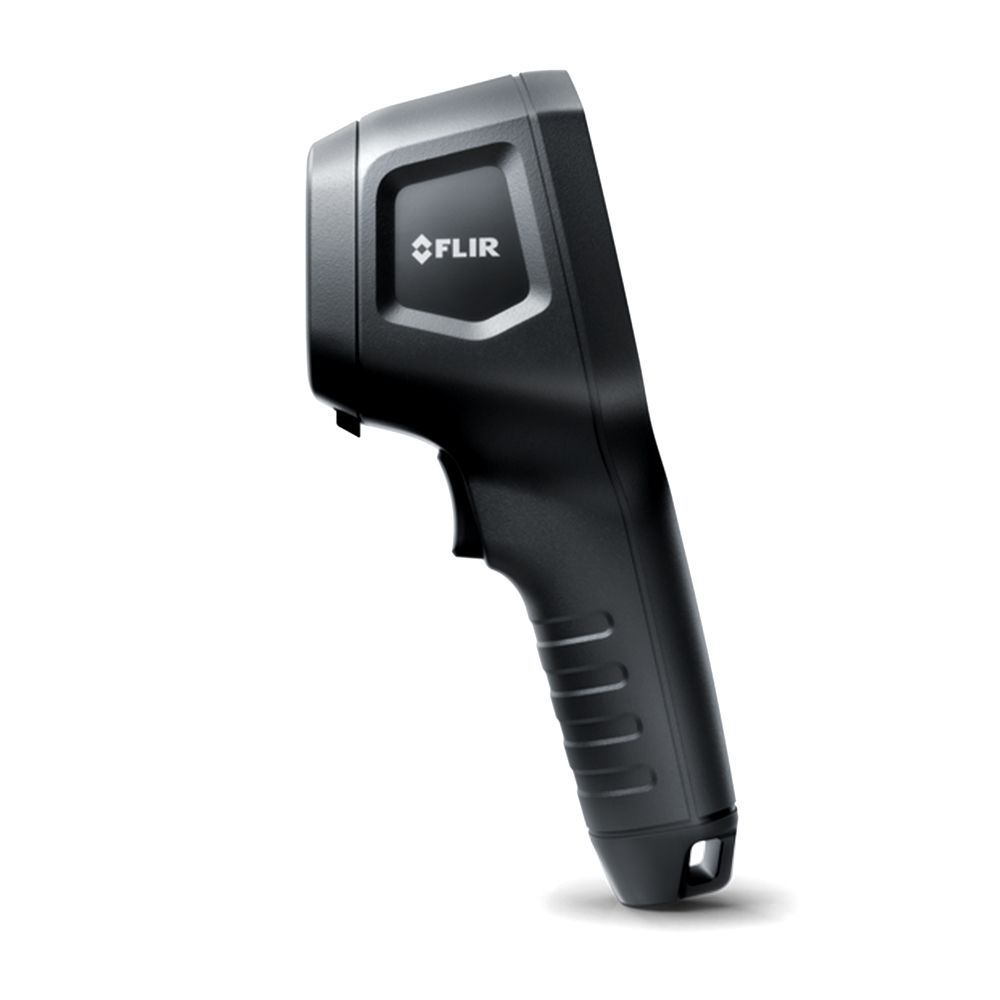

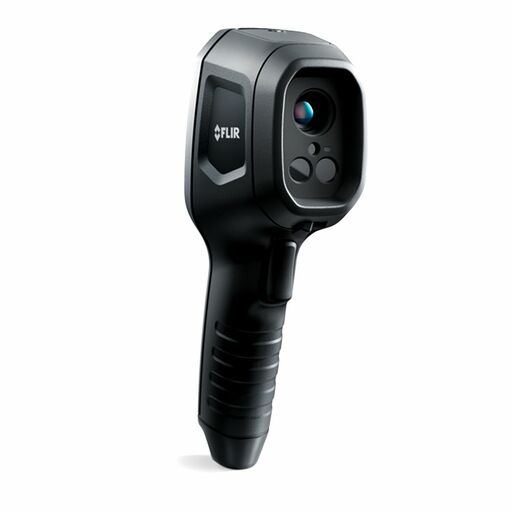

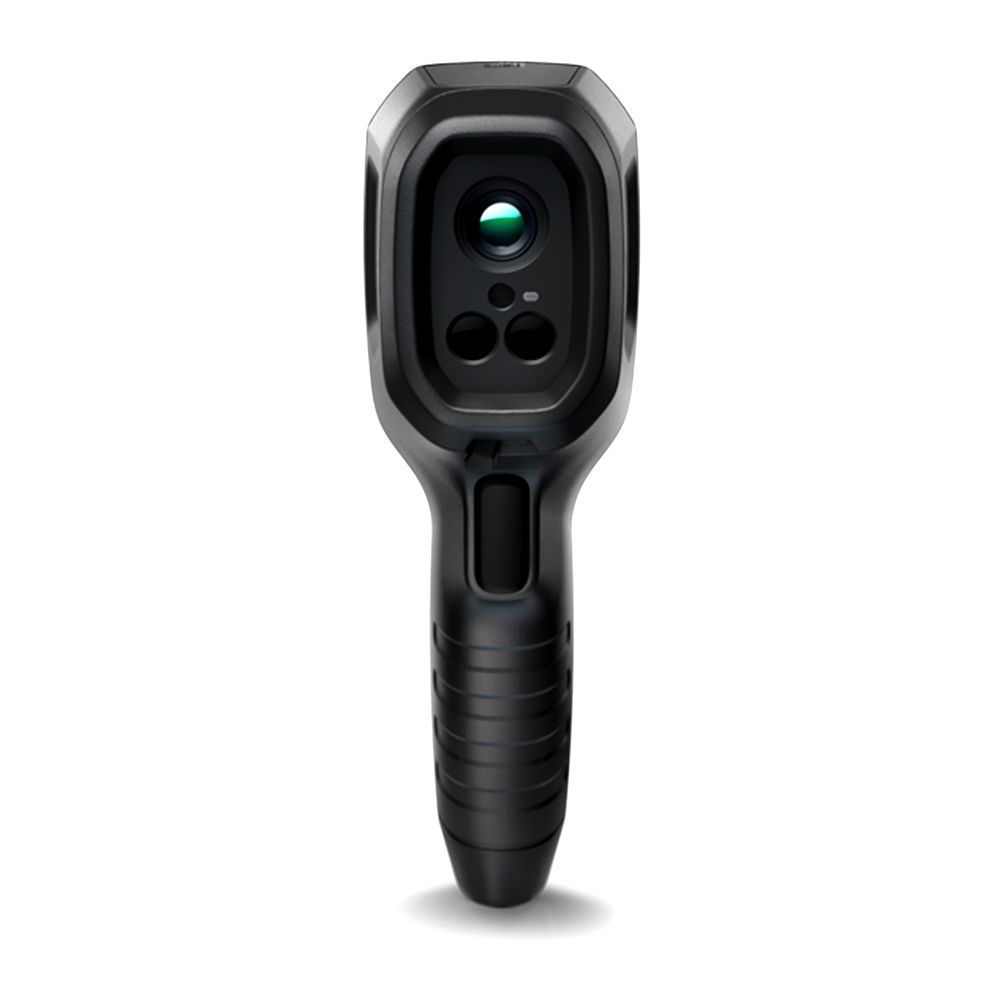

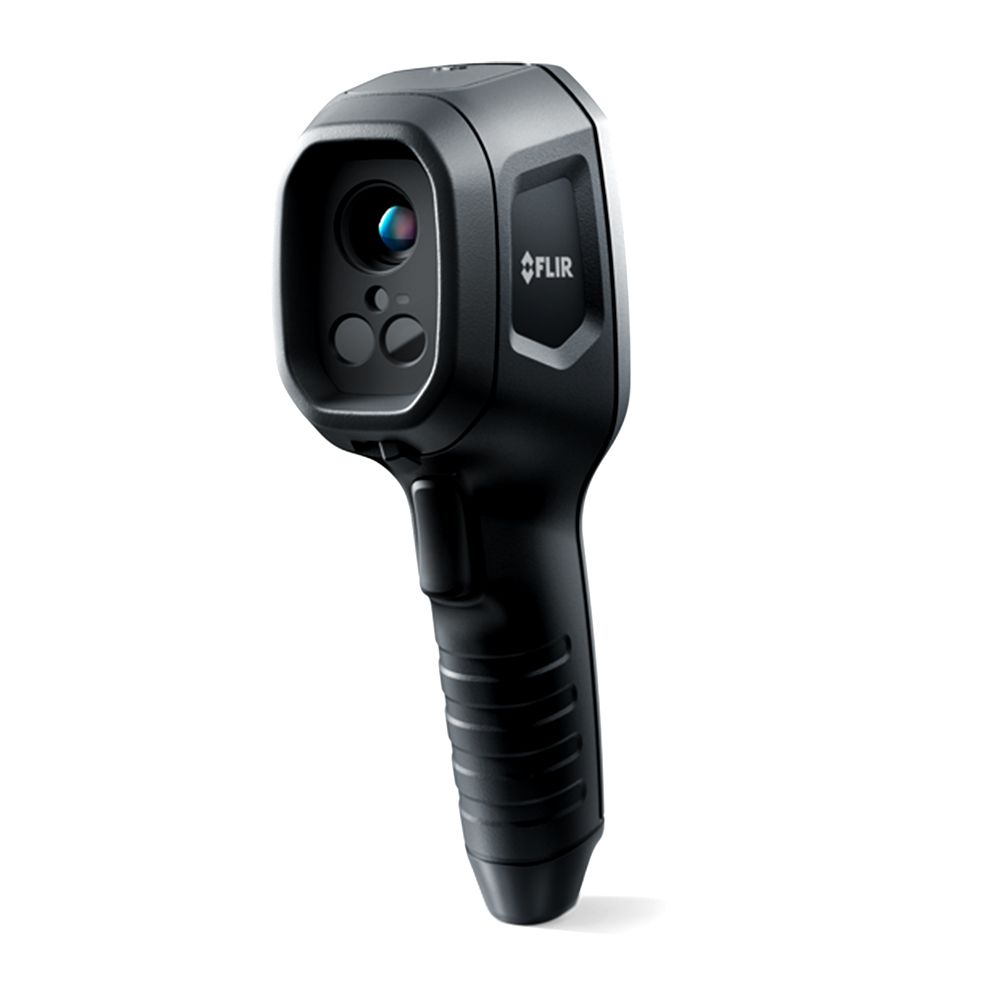

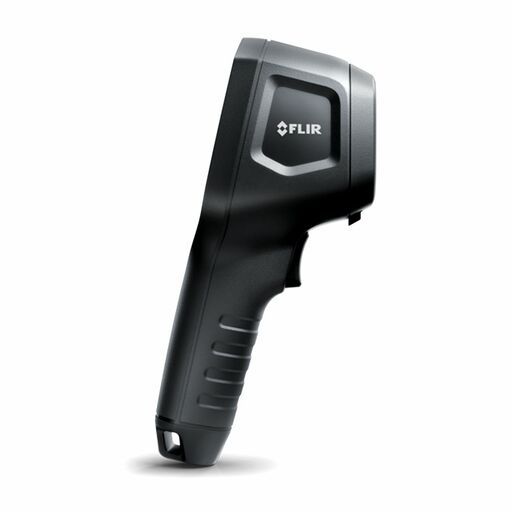

FLIR TG298 (87506-0606) 30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser

FLIR TG298 (87506-0606) 30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser

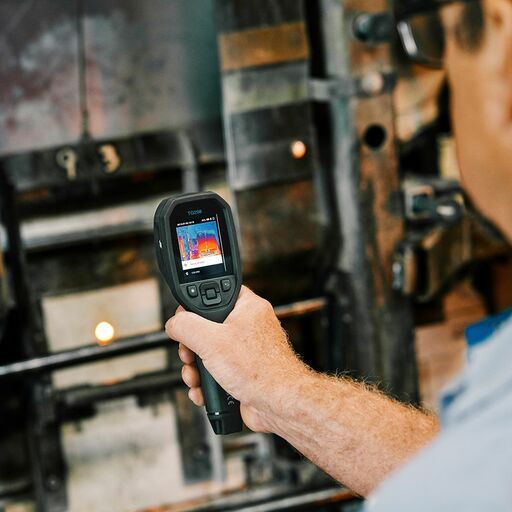

The FLIR TG298 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1080°C (1976°F). Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail. The FLIR TG298 is ideal for high-temperature industrial uses such as measuring the heat of glass furnaces, kilns, and forges as well as manufacturing applications, allowing you to accurately target potential faults, troubleshoot repairs, and monitor processes. Additionally, the METERLiNK® App enables remote monitoring of measurements and seamless documentation of inspection data, making it simple to produce comprehensive reports while in the field.

Includes:

• 1 x Wrist Strap Lanyard
• 1 x Pouch
• 1 x USB Type-C cable

Features:

• Identify Problems Quickly: Accurately measure temperatures up to 1080°C (1976°F) with a 30:1 spot size ratio and bullseye laser pointer
• High-quality images and performance: Diagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320×240 (76,800 pixels) resolution

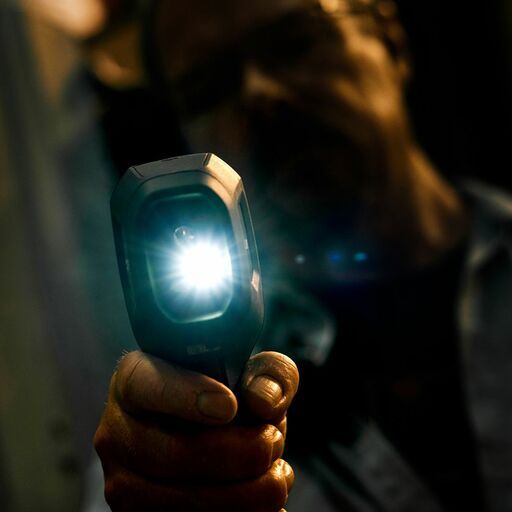

• Work with Confidence in Rugged Environments: The IP54 rated FLIR TG298 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, and a 2 m drop test rating for durability

Specifications:

• Display: 320 × 240, 2.4 in colour LCD
• IR Resolution:
  • 160 × 120
  • Super Resolution 320 × 240
• Thermal Sensitivity/NETD: <70 mK
• Accuracy:
  • ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F ) and 100°C to 400°C (213°F to 752°F)
  • ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F) and >400°C (>752°F)
• Field of view (FOV): 57° × 44°
• Image Modes:
  • MSX® (Multi Spectral Dynamic Imaging)
  • Visual with temperature reading
• Storage Media: 8 GB
• Center Spot: Yes
• Measurement Option: Non-contact surface / contact with Type-K
• Object Temperature Range: −25°C to 400°C (−13°F to 752°F)
• Imaging & Optical:
  • Built-in Digital Camera: Yes
  • Color Palettes: Iron, Rainbow, White hot, Black hot, Arctic, Lava
  • Detector Pitch: 12 µm
  • Detector Type: Focal plane array (FPA), uncooled microbolometer
  • Digital image enhancement: Yes
  • Field of view (FOV): 57° × 44°
  • Focus: Focus free
  • Image Frequency: 8.7 Hz
  • Laser: Class 1 laser indicates the temperature measurement area; button-activated
  • Minimum Focus Distance: 0.3 m (0.98 ft)
  • Minimum Measurement Distance: 0.26 m (0.85 ft)
  • Non-radiometric IR video recording: Yes
  • Spectral Range: 7.5 - 14 µm
  • Thermal Sensitivity/NETD: <70 mK
• Power:
  • Battery operating time: 5 hours continuous scanning, 4.5 hours with laser on
  • Battery type: Rechargeable Li ion battery
  • Battery voltage: 3.7 V
  • Charging system: Battery is charged inside the camera
  • Charging Temperature: 0°C to 45°C (32°F to 113°F)
  • Charging Time: 3 hours to 90%, 4 hours to 100%
• Environmnetal & Certifications:
  • Certifications: CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
  • Drop test: Designed for 2 m (6.6 ft)
  • EMC
    • EN 61000-6-3
    • EN 61000-6-2
    • FCC 47 CFR Part 15 Class B
  • Encapsulation: IP 54 (IEC60529)
  • Humidity (Operating and Storage): 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
  • Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
  • Radio Spectrum:
    • ETSI EN 300 328
    • FCC Part 15.249
    • RSS-247 Issue 2
    • EN 301 489-1:2011
    • EN 301 489-17:2009
  • Safety: CE/CB/EN61010/UL
  • Shock: 25 g (IEC 60068-2-27)
  • Storage Temperature Range: −30°C to 55°C (−22°F to 131°F)
  • Tripod Mounting: 1/4 in.-20 on handle bottom
  • Vibration: 2 g (IEC 60068-2-6)
• Dimensions (L x W x H): 210mm x 64mm x 81mm
• Weight: 0.394kg

Warranty:

• FLIR 2-10 Warranty Covered by Flir
