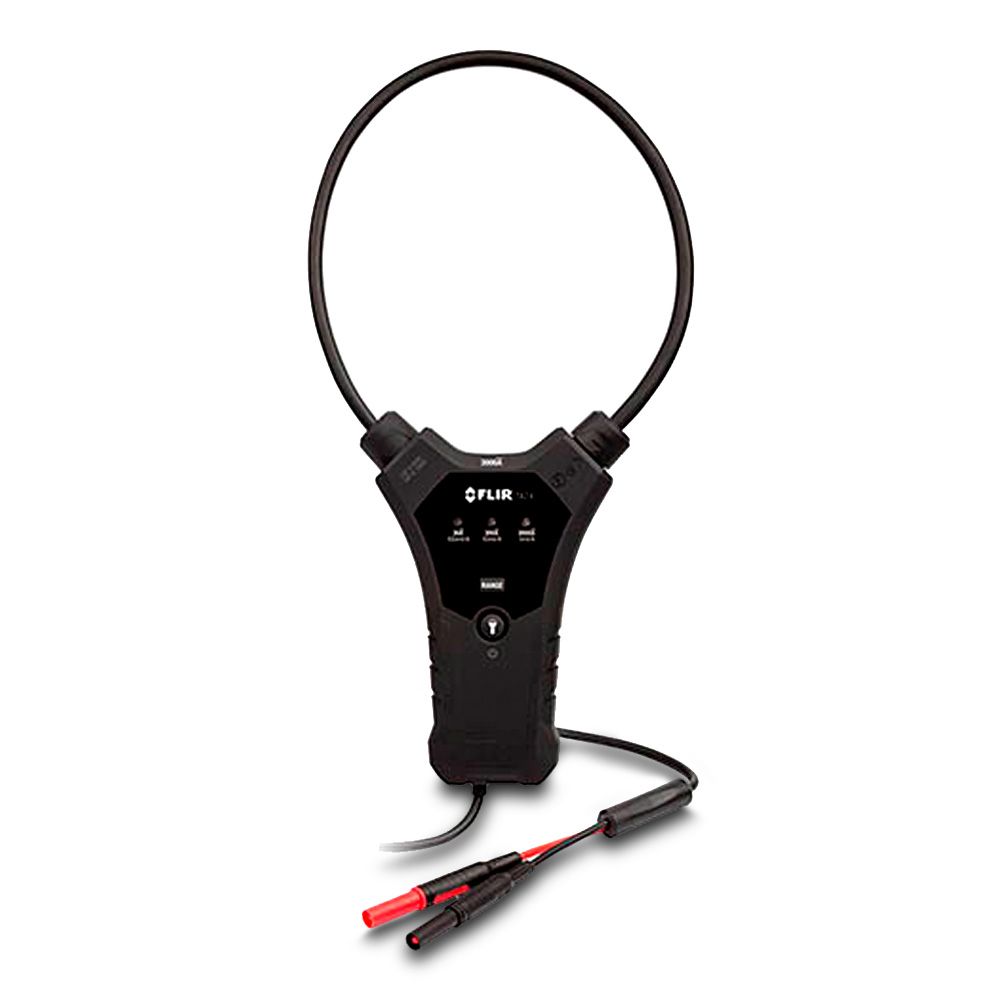

FLIR TA74 45cm (18") 3000A CAT IV Universal Flex Clamp Probe Accessory

FLIR TA74 45cm (18") 3000A CAT IV Universal Flex Clamp Probe Accessory

Features:

• Narrow 18-inch flexible coil clamp with locking mechanism allows easy current measurements in tight or awkward locations where traditional clamp meters can’t fit
• Switchable AC current ranges of 30A, 300A, and 3000A for versatile measurement applications, including multiple conductors and double-wrap requirements
• Standard banana plug connection with voltage output signal ensures compatibility with most digital multimeters (DMMs) and clamp meters, regardless of brand

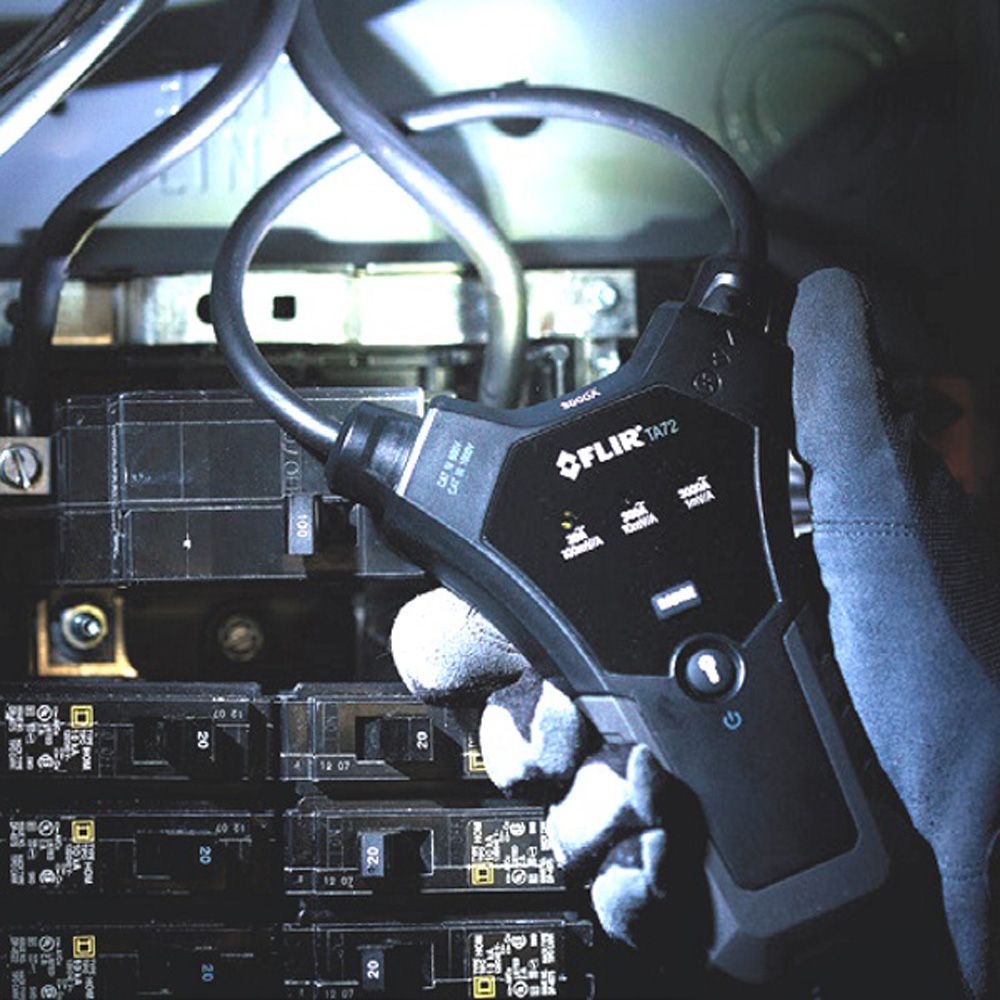

• Ideal for measuring current in confined spaces, deep panels, cable bundles, and hard-to-reach conductors without disconnecting cables
• Adds flexible current measurement capability to existing meters without the need for a dedicated flexible clamp meter
• Designed to deliver accurate and reliable readings in challenging measurement environments
• Lightweight, flexible design simplifies setup and improves efficiency in the field

Specifications:

• Maxiumu AC Current: 3000A
• AC current ranges: 30.00A, 300.0A, 3000A
• Basic AC Current Accuracy (Full Scale): ± 3.0% + 5 digits
• Measurement Rate: 1.5 Samples per Second, Nominal
• AC Current Bandwidth: 45Hz - 500Hz (Sine Wave)
• Positional Error (Distance from Optimum): 1.4" (35mm) ± 1.0%, 2.0" (35mm) ± 1.5%, 2.4" (35mm) ± 2.0%
• Worklight: 2 x White LEDs
• Safety Rating: CAT IV 600V, CAT III 1000V
• Standards: EN61010-1, EN61010-2-032, EN61326-1
