FLIR SV89-KIT Vibration Monitoring Solution Kit

FLIR SV89-KIT Vibration Monitoring Solution Kit

The FLIR SV89™ Vibration Monitoring Kit helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With its Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 Vibration Monitoring Solution Kit allows you to make critical data-driven decisions that alert you to potential issues and extend the life of your valuable equipment.

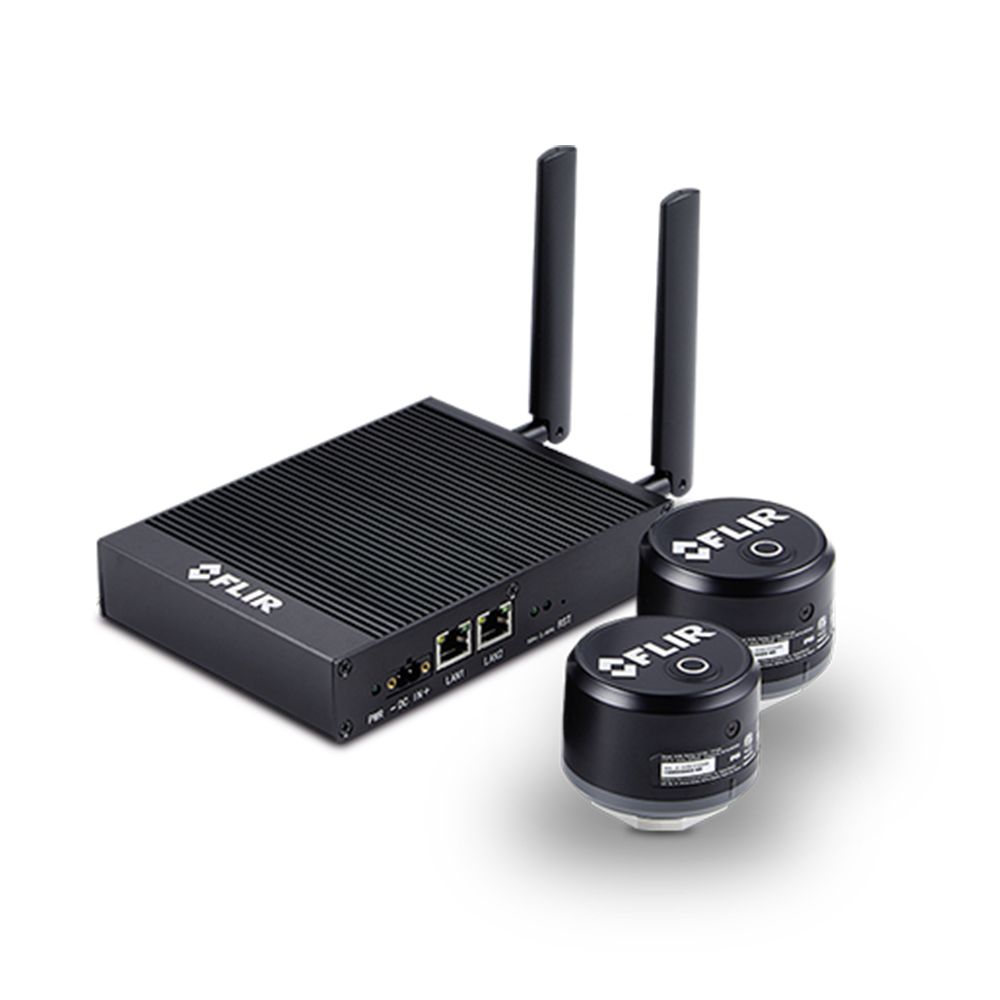

Includes:

• 1 x Gateway
• 2 x Vibration sensors

Features:

• Assure reliability
  Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - Averting costly downtime
• Quick, simple deployment
  Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments The SV88 seamlessly integrates with advanced analysis tools through communication protocols such as Modbus, MQTT, and OPC UA.
• Secure data control
  Web based GUI for accessing vibration data, deploying sensors, and managing integrations, all performed on Gateway, ensuring you have complete control over your vibration solution.

• Measurement & Analysis:
  • AC Input: TA87 universal power adaptor: 100 V to 240 V AC, 50/60 Hz (optional)
  • Capture Rate: Configurable: 1 min (minimum) - 1 day (maximum)
  • Frequency Range: 10 Hz to 10 kHz
  • Sensitivity Range: ±50 g
  • Temperature Range: Display measurement trend of contact temperature -20°C to 80°C (-4°F to 176°F)
  • Vibration Analysis Data: Grms, Vrms, (ISO10816) Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT
• Communication & Data storage:
  • Communication Protocol:
    • Sensor: TCP Socket;
    • Gateway: MQTT, Modbus, OPC UA
  • Memory:
    • Sensor: 1 MB Flash;
    • Gateway: DDR3L 512 MB
  • Output Data:
    • Sensor: 10 KHz, Z: 12,800 raw data;
    • Gateway: Vibration analysis data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard Deviation, FFT
  • Range (During A Session): Up to 50 m (160ft), line of sight
  • Wi-Fi Type: IEEE 802.11n
• Power
  • Battery life: LS17500 3.6 V 3600 mAh Li battery (replaceable)
  • Battery type: -20° to 80°C (-4°F to 149°F)
  • LED Indicators:
    • Sensor: Low battery LED;
    • Gateway: WAN, LAN, 2.4 GHz, 5 GHz dual band dual concurrent
  • PoE: 802.3 at standard PoE (PD) @ WAN port
  • Power Input: 12 VDC
• Environmental & Certifications
  • Altitude: 2000m (6,562 ft)
  • Certifications: ETL/FCC/IC/CE/UKCA/RCM
  • Drop test: 1m (3ft)
  • Humidity (Operating and Storage): 10% - 95% relative humidity, non-condensing
  • IP Rating:
    • Sensor: IP66
    • Gateway: IP40
  • Operating Temperature Range: -20° to 80°C (-4°F to 149°F)
  • Relative Humidity: 10% - 95% relative humidity, non-condensing
  • Storage Temperature Range:-20° to 80°C (-4°F to 149°F)
• General
  • Operating System: Built-in webserver (Linux)
  • Dimensions (L x W x H):
    • Sensor: 29 x 25 x 14mm
    • Gateway: 57.3 x 39.3 x 46.1mm
  • Weight:
    • Sensor: 187g
    • Gateway: 645g
    • Total: 0.832kg

• 3 year Warranty Covered by FLIR
