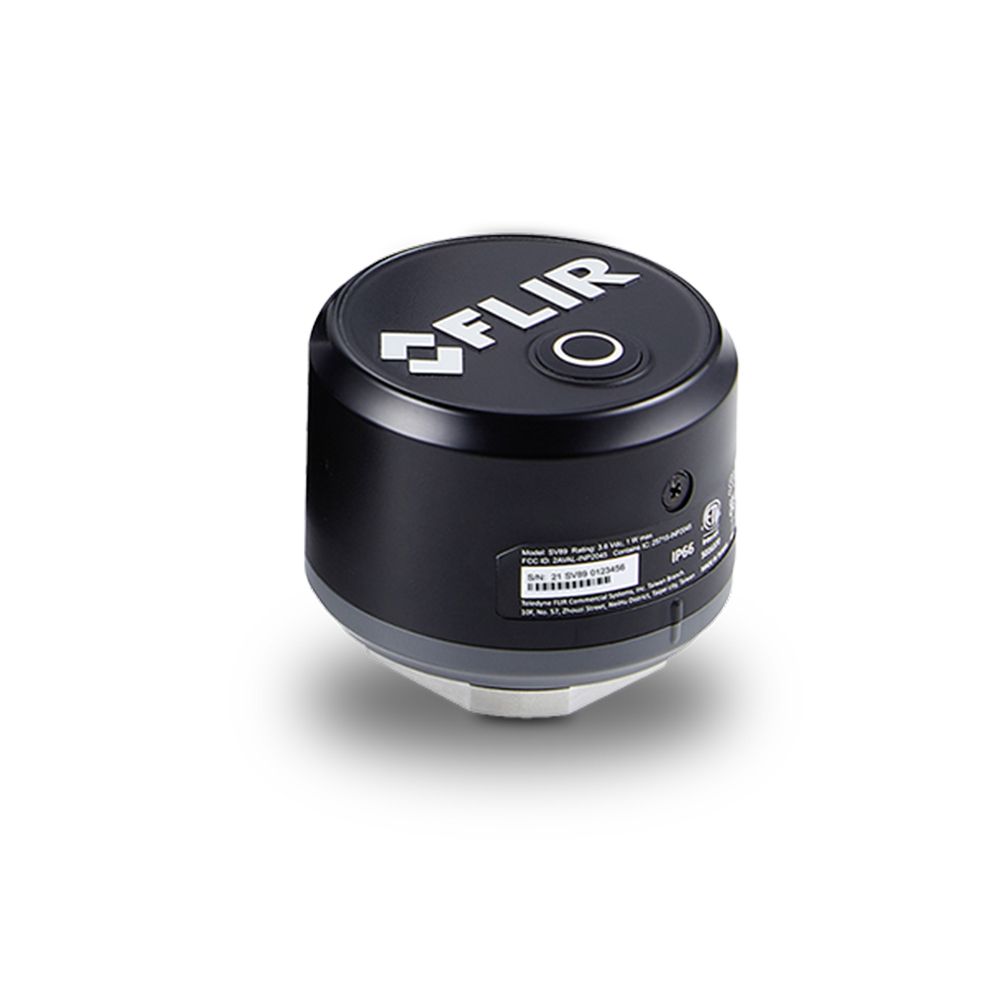

FLIR SV89 Vibration and Temperature Remote Sensor

FLIR SV89 Vibration and Temperature Remote Sensor

The FLIR SV89™ Vibration Monitoring and Temperature Sensor helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With it’s Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV89 allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets.

Includes:

• 1 x FLIR SV89 Sensor

Features:

• Assure reliability
  Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - Averting costly downtime
• Quick, simple deployment
  Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments The SV88 seamlessly integrates with advanced analysis tools through multi-communication protocols such as Modbus, MQTT, and OPC UA.
• Secure data control

Specifications:

• Measurement & Analysis:
  • Capture Rate: Configurable: 1 min (minimum) - 1 day (maximum)
  • Frequency Range: 10 Hz to 10 kHz
  • Sensitivity Range: ±50 g
  • Temperature Range: Display measurement trend of contact temperature -20°C to 80°C (-4°F to 176°F)
  • Vibration Analysis Data: Grms, Vrms (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT
• Communication & Data Storage
  • Communication Protocol: TCP Socket
  • Memory: 1 MB Flash
  • Output Data: 10 KHz, Z: 12,800 raw data
  • Range (During A Session):    Up to 50 m (160 ft), line of sight
  • Wi-Fi Type: IEEE 802.11n
• Power
  • Battery life: Min 2 years subject to sampling rate and installation environments
  • Battery type: LS17500 3.6 V 3600 mAh Li battery (replaceable)
  • LED Indicators: Low battery LED
• Environmental & Certifications
  • Altitude: 2000 m (6,562 ft)
  • Certifications: ETL/FCC/IC/CE/UKCA/RCM
  • Drop test: 1 m (3 ft)
  • Humidity (Operating and Storage): 10% to 95% relative humidity, non-condensing
  • IP Rating: IP66
  • Operating Temperature Range: -20° to 80°C (-4°F to 149°F)
  • Relative Humidity: 10% to 95% relative humidity, non-condensing
  • Storage Temperature Range: -20° to 80°C (-4°F to 149°F)
•  General
  • Dimensions (L x W x H): 29 x 25 x 14mm
  • Weight: 0.187kg

• 3 Year Warranty Covered by FLIR

Suitable for:

• FLIR GW66 Remote Monitoring Gateway
