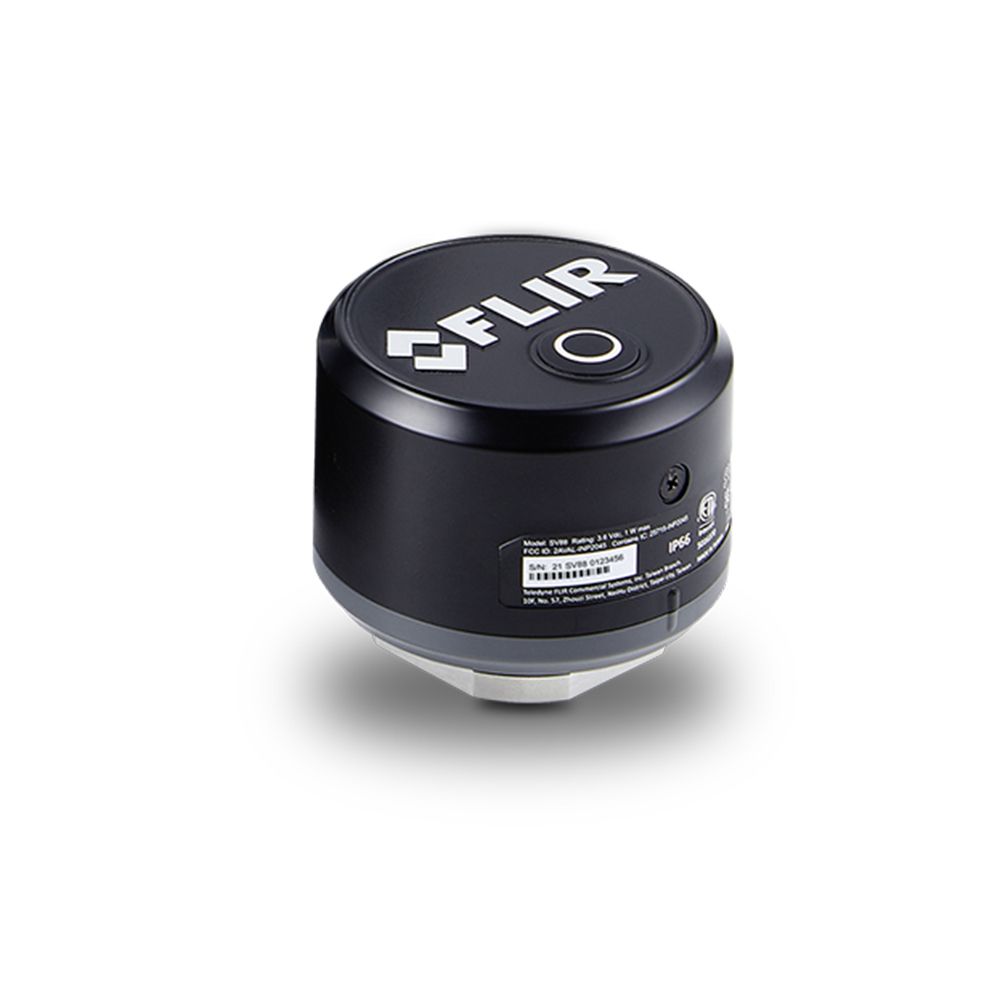

FLIR SV88 Remote Vibration and Temperature Monitoring Sensor

FLIR SV88 Remote Vibration and Temperature Monitoring Sensor

The FLIR SV88™ vibration and temperature sensor helps you monitor critical equipment by continuously analyzing vibrations from rotating equipment, detecting faults, and alerting you to potential defects and future problems. With it’s Multi-communication protocols, rugged, IP66 rating and wireless capability, the SV88 allows you to make critical data-driven decisions that alert you to potential issues to aid in extending the life of your valuable assets.

Includes:

• 1 x FLIR SV88 Sensor

Features:

• Assure Reliability
  Get comprehensive insights to identify patterns, trends, potential failure modes, and the severity of detected issues in your equipment - Averting costly downtime
• Quick, simple deployment
  Wireless capability enhances installation flexibility, enabling easy deployment in a range of industrial environments The SV88 seamlessly integrates with advanced analysis tools through multi-communication protocols such as Modbus, MQTT, and OPC UA.
• Secure Data Control

Specifications:

• Measurement & Analysis:
  • Capture Rate: Configurable: 1 min (minimum) 1 day (maximum)
  • Frequency Range: 10 Hz to 5 kHz
  • Sensitivity Range: ±16 g
  • Temperature Range: Display measurement trend of contact temperature -20°C to 80° C (-4°F to 176°F)
  • Vibration Analysis Data: Grms, Vrms, (ISO10816), Peak, Crest Factor, Kurtosis, Skewness, Standard deviation, FFT
• Communication & Sata Storage:

  • Communication Protocol: TCP Socket
  • Memory: 1 MB Flash
  • Output Data: 5 KHz, (X/Y/Z): 19,200 raw data
  • Range (During A Session): Up to 50 m (160 ft), line of sight
  • Wi-Fi Type: IEEE 802.11n
• Power:
  • Battery life: Min 2 years subject to sampling rate and installation environments
  • Battery type: LS17500 3.6 V 3600 mAh Li battery (replaceable)
  • LED Indicators: Low battery LED
• Environmental & Certifications:
  • Altitude: 2000m (6,562ft)
    Certifications: ETL/FCC/IC/CE/UKCA/RCM
    Drop test: 1m (3 ft)
    Humidity (Operating and Storage): 10% to 95% relative humidity, non-condensing
    IP Rating: IP66
    Operating Temperature Range: -20° to 80°C (-4°F to 149°F)
    Relative Humidity: 10% to 95% relative humidity, non-condensing
    Storage Temperature Range: -20° to 80°C (-4°F to 149°F)
• General:
  • Dimensions (L x W x H): 29 x 25 x 14mm
  • Weight: 0.187kg

• 3 Year Warranty Covered by FLIR

Suitable for:

• FLIR GW66 Remote Monitoring Gateway
