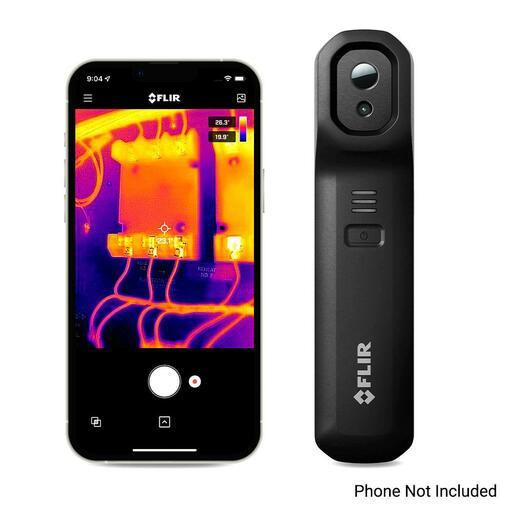

FLIR ONE Edge Pro (11002-0201) Thermal Camera with Wireless Connectivity for iOS & Android Smart Devices

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. Combining VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging), you can take crisp thermal images from any angle. Improved battery time and ruggedness makes sure the camera is ready to use in more industrial environments. The wireless connection allows the same camera to be used with both Android and iOS devices so you can easily share tools with your friends and colleagues. All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use. Connecting to FLIR Ignite™ allows you to instantly upload your files to the cloud where you can create reports as well as organize, store, and share data for a more efficient workflow.

Features:

• Compatible with Apple and Android devices

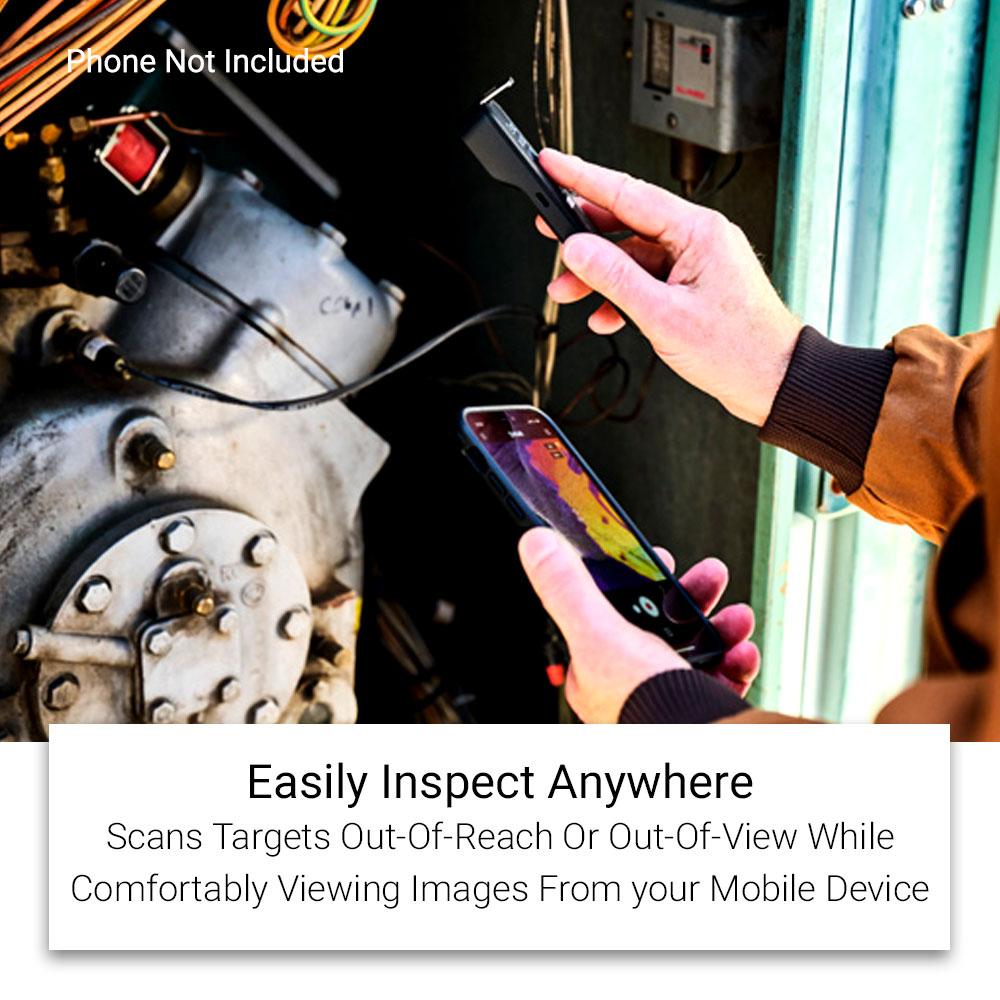

• Easily Inspect Anywhere: Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the FLIR ONE Edge Pro to your smart device for one-handed operation with a natural grip
• High-Quality Images & Performance: Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution
• A Professional Tool: With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge Pro is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters
• MSX® Image Enhancement: The FLIR ONE Edge Series features FLIR's unique Multi Spectral Dynamic Imaging (MSX), which adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an all-in-one, undiluted thermal picture with visible light features that lets you instantly recognize where the problematic heat pattern is. MSX is real time so you can see its results immediately in the camera's LCD

Specifications:

• Thermal Resolution: 160 x 120 (19,200 pixels)
• Battery Life: Approximately 2 Hours 30 Mintues
• Object Temperature Range: -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
• Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
• Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
• Spot Meter: Hottest, Coldest and 3 spot measurement
• Imaging & Optical:
  • Adjustable MSX Distance: 30 cm — Infinity
  • Focus: Fixed 30 cm — Infinity
  • Frame Rate: 8.7 Hz
  • HFOV/VFOV: 54° ±1° / 42° ±1°
  • Image Modes: Infrared, visual, MSX
  • Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
  • Shutter: Automatic/Manual
  • Thermal Resolution: 160 × 120 (19,200 pixels)
  • Thermal Sensitivity/NETD: 70 mK
  • Thermal Sensor: Pixel size 12 µm, 8 — 14 µm spectral range
  • Visual Resolution: 640 × 480
  • VividIR: Yes
• Power:
  • Battery Charge Time: 60–90 min for fully charged, 15 min charging, from empty battery, gives 40 min operating time
  • Battery Life: Approximately 2 hours 30 minutes
  • Charging Method: Female USB-C (5V/1A)
• Measurement & Analysis:
  • Accuracy: ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
  • Measurement Corrections: Emissivity; Reflected apparent temperature (22°C / 72°F)
  • Object Temperature Range: -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
  • Spot Meter: Hottest, Coldest and 3 spot measurement
• Environmental & Certifcations:
  • Certifications: RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
  • Drop Test: Drop from 2 m (6.56 ft)
  • Emissivity Settings: Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
  • Non-Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Temperature: -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
• Communication & Data Storage:
  • Bluetooth: Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
  • Capture Modes: Video, Still image
  • Charging: Female USB-C (5V/1A)
  • File Formats: Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
  • WiFi: IEEE 802.11 a/b/g/n
• General:
  • Battery Charge Monitor: 0 — 100%
  • Compatible with FLIR Software: FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
  • Device Compatibility: iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
  • Remote Operation: Up to 5 m (16.4 ft) from smart device via Wi-Fi
  • Dimensions (L x W x H): 37.5 mm × 35 mm × 149 mm
  • Weight: 153g
