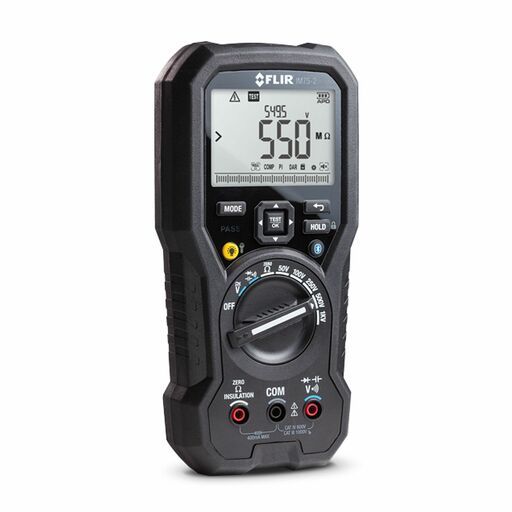

FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK

FLIR IM75-2 Insulation Tester and Digital Multimeter with METERLiNK

The FLIR IM75-2 is a premium-grade insulation tester and true RMS digital multimeter designed for electricians, maintenance professionals, and system installers who demand accurate, reliable diagnostics. Built with advanced insulation testing modes, fast response times, and integrated METERLiNK® wireless data transfer, the IM75-2 streamlines troubleshooting and documentation across residential, commercial, and industrial environments.

Features:

• 2-in-1 tool: Insulation tester + True RMS digital multimeter
• Multiple insulation test modes for comprehensive electrical system analysis
• METERLiNK® wireless connectivity for transferring measurements directly to FLIR cameras or mobile apps
• High-accuracy measurement functions including voltage, resistance, frequency, capacitance, and continuity
• VFD mode for accurate readings on variable-frequency drive outputs
• Low-impedance mode (LoZ) helps eliminate ghost voltage
• Backlit display and built-in worklight for dark or tight environments
• Rugged, drop-tested design ideal for field conditions

Specifications:

• Insulation Resistance: 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
• Insulation Test Voltages:
  • 50 V for max. 50.0 MΩ
  • 100 V for max 100.0 MΩ
  • 250 V for max. 250.0 MΩ
  • 500 V for max. 500.0 MΩ
  • 1000 V for max.20 GΩ
• Category Rating: CAT IV-600 V, CAT III-1000 V
• AC Voltage: 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits)
• Capacitance: 1000 µF ± (1.2% + 2 digits) / 10.00 mF ± (1.2% + 20 digits)
• Category Rating: CAT IV-600 V, CAT III-1000 V
• Continuity: 400.0 Ω ± (0.5% + 2 digits)
• DC Voltage: 1000.0 V ± (0.1% + 5 digits)
• Earth Bond Resistance:
• 40.00 Ω ± (1.5% + 5 digits)
• 400.0 Ω ± (1.5% + 3 digits)
• 4000 Ω ± (1.5% + 3 digits)
• 40.00 kΩ ± (1.5% + 3 digits)
• Frequency [ACV]:
  • 400.0 Hz ± 5 digits
  • 4.000 kHz ± 5 digits
  • 40.00 kHz ± 5 digits
• Insulation Resistance: 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)
• Insulation Test Voltages:
  • 50 V for max. 50.0 MΩ
  • 100 V for max 100.0 MΩ
  • 250 V for max. 250.0 MΩ
  • 500 V for max. 500.0 MΩ
  • 1000 V for max.20 GΩ
• VFD AC Voltage:
  • 1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits)
  • 61 Hz to 400 Hz, ± (5.0% + 5 digits)
• Bluetooth Range Max: 10m
• Memory: 99 Storage Locations
• Battery Type: 6 x 1.5 V AAA Alkaline Batteries
• Certifications: FCC Class B, CE, UL, UKCA, RCM
• Drop Test: 3m
• IP Rating: IP54 dust-protected and splash-resistant
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
