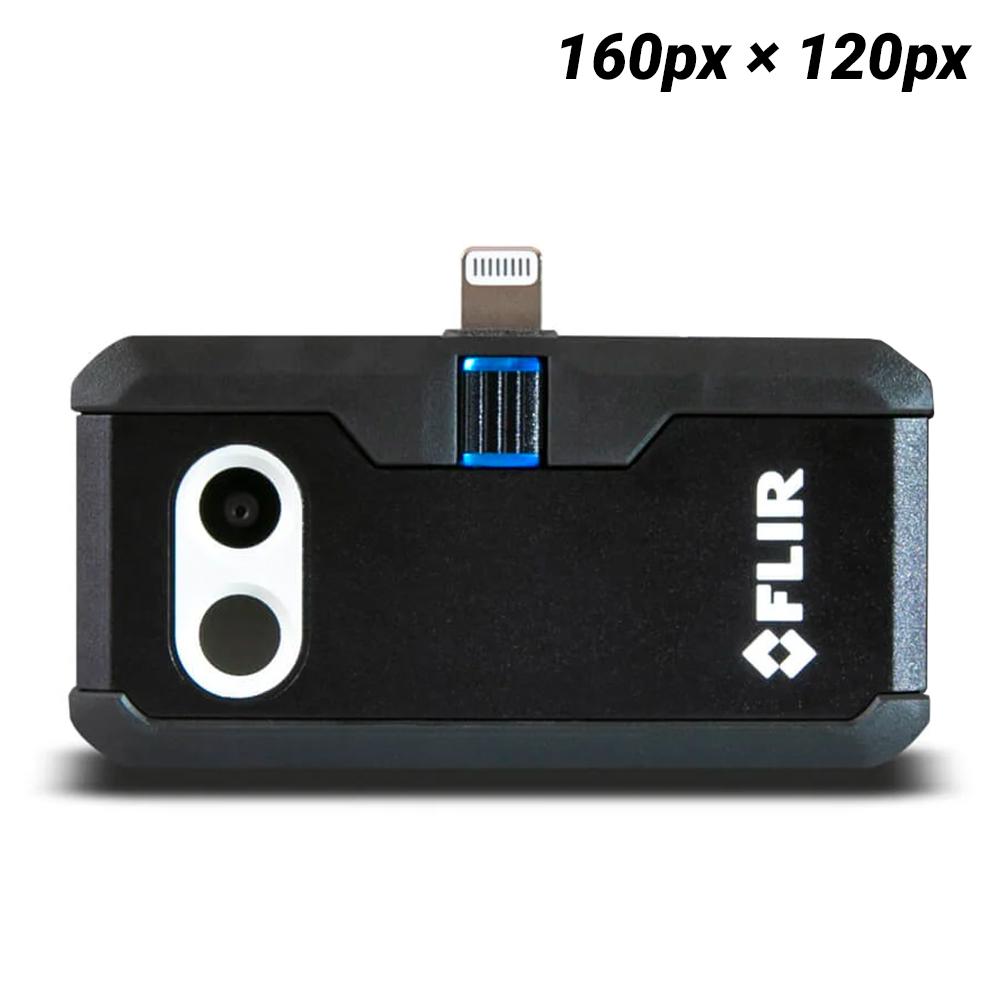

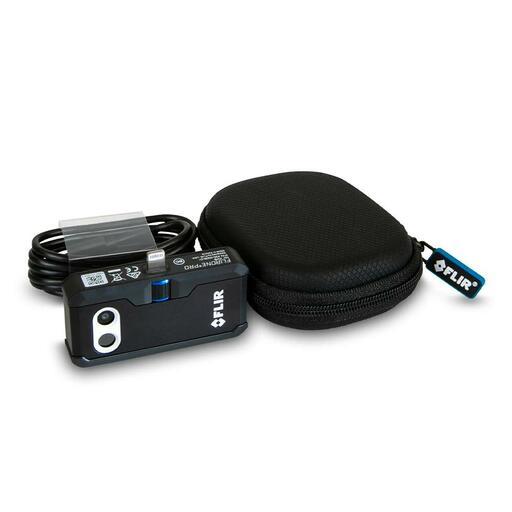

FLIR FLIR ONE PRO-iOS (435-0006-03) 160px × 120px Pro-Grade Thermal Camera for iOS

FLIR FLIR ONE PRO-iOS (435-0006-03) 160px × 120px Pro-Grade Thermal Camera for iOS

The FLIR ONE Pro helps you find invisible problems faster than ever, whether you're inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that's further enhanced by the revolutionary FLIR VividIR. Measure temperatures more than 3x higher than any FLIR ONE model—up to 400°C (752°F)—with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do.

Features:

• With its 19,200 pixel resolution—a 4x improvement over the FLIR ONE Pro LT—and VividIR, FLIR ONE Pro gives you the ability to see more detail when it matters most
• Measure temperatures between up to 400°C (752°F)—compared with a maximum of 120°C (248°F) for the FLIR ONE Pro LT—with up to three spot temperature meters and six temperature regions of interest
• Built to take the abuse that working on a jobsite dishes out every day, FLIR One Pro is rated to take a drop from 1.8 meters and is built to last

Specifications:

• Phone: iOS
• Imaging and Optical:
• Adjustable MSX distance: 0.3 m — Infinity
• Focus: Fixed 15 cm — Infinity
• Frame Rate: 8.7 Hz
• General Description: Thermal and Visual Cameras with MSX
• HFOV/VFOV: 50° ±1° / 43° ±1°
• Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
• Shutter: Automatic/Manual
• Thermal Resolution: 160 × 120
• Thermal Sensor: Pixel size 12 µm, 8 — 14 µm spectral range
• Video and Still Image Display/Capture: Saved as 1440 × 1080
• Visual Resolution: 1440 × 1080
• Power:
• Battery charge time: 40 min
• Battery life: Approximately 1 hr
• Measurement and Analysis:
• Accuracy: ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C.
• Object Temperature Range: -20°C - 120°C (–4°F - 248°F) and 0°C - 400°C (32°F - 752°F)
• Spot Meter:Hottest, Coldest and 3 spot measurement
• Environmental and Certifications:
• Certifications: MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
• Emissivity Settings: Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
• Non-Operating Temperature: -20°C - 60°C (-4°F - 140°F)
• Operating Temperature: 0°C - 35°C (32°F - 95°F) , battery charging 0°C - 30°C (32°F - 86°F)
• Communication and Data Storage:
• Capture modes: Video, Still image
• Charging: Female USB-C (5V/1A)
• Connector: OneFit™ connector, adjustable height
• File Formats: Radiometric JPG, MPEG-4 (file format MOV)
• Video: Male Lightning
• Dimensions (H x W x D): 68mm × 34mm × 14 mm
• Weight: 36.5g
