FLIR EV KIT-2 EV Charger Test Kit with EV45-T2, DM286, and Test Leads

FLIR EV KIT-2 EV Charger Test Kit with EV45-T2, DM286, and Test Leads

The FLIR EV-KIT-2 EV charger tester adapter is equipped with a built-in IEC 62196-2 Type 2 plug, making it ideal for Type 2 charging stations or AC wall connectors. Designed for Level 1 and Level 2 electric vehicle AC charging stations (EVSEs), it is perfectly suited for both residential and commercial use. Test residual current device (RCD) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks with the included FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth® FLIR METERLiNK® technology in the DM286 allows you to connect wirelessly to the METERLiNK app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.

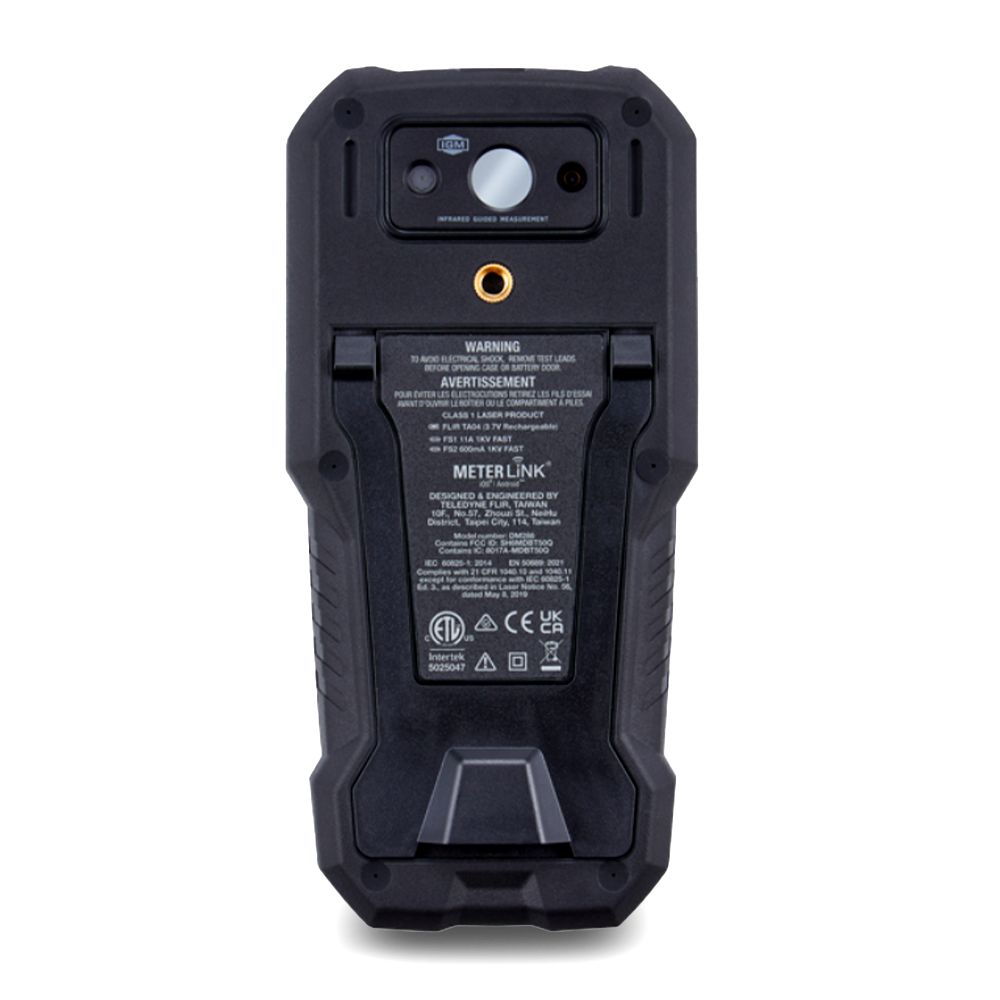

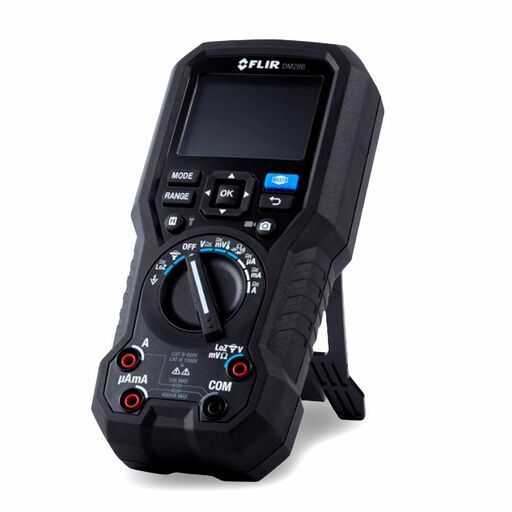

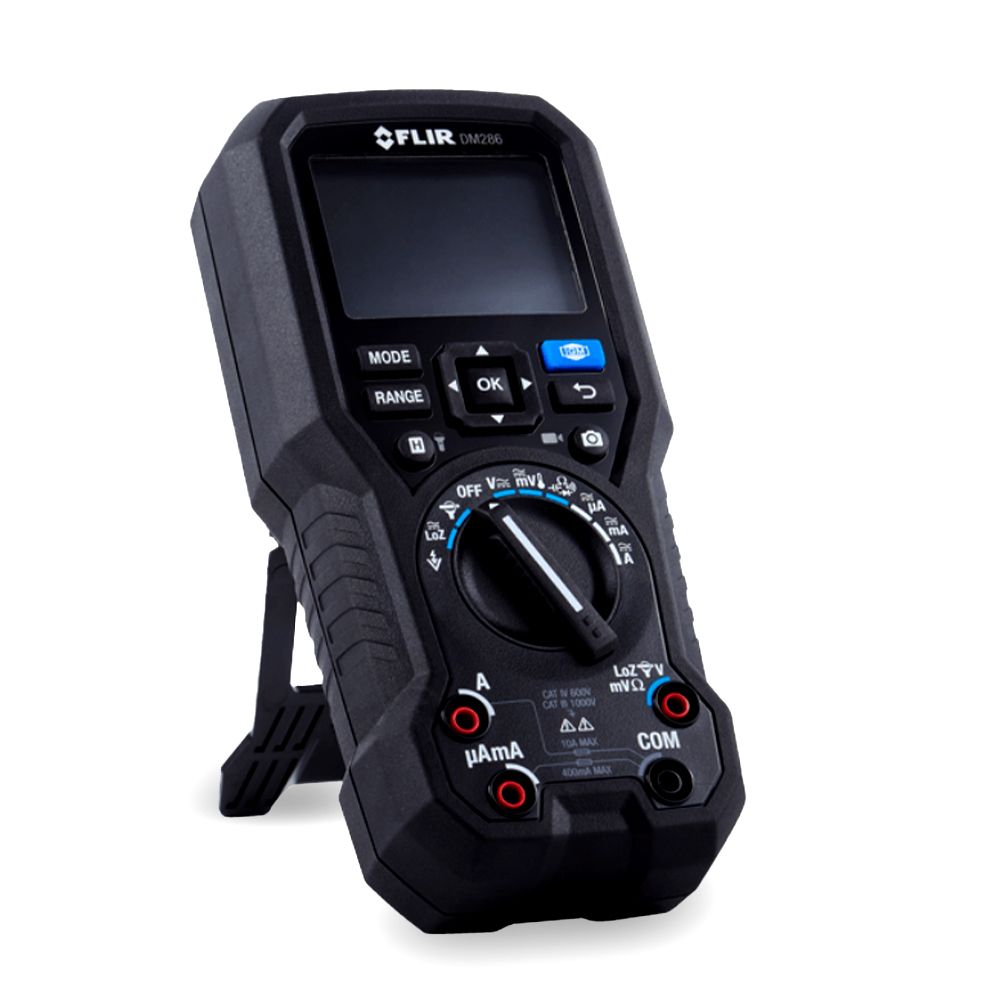

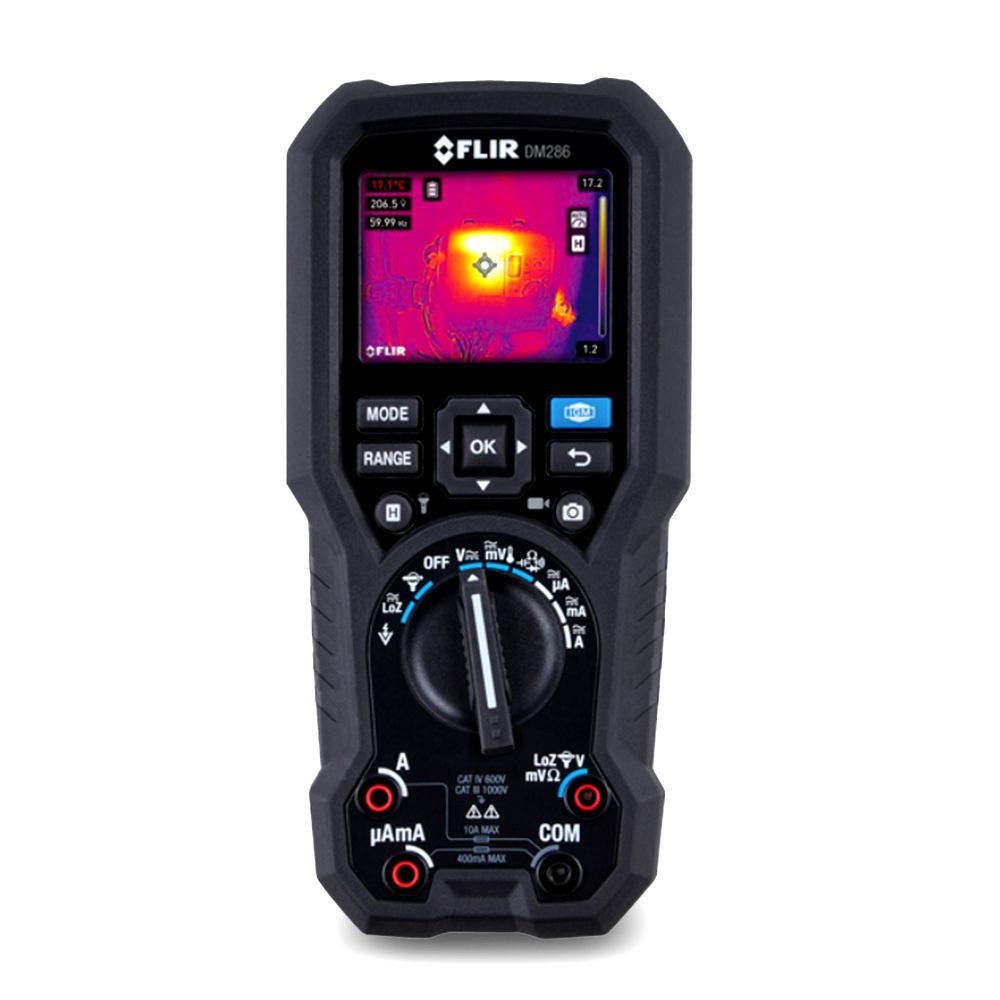

The FLIR DM286 industrial imaging multimeter is the ultimate tool for electrical inspectors seeking a safe, accurate, and efficient way to identify, document, and share findings. With IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), you can safely identify where hazards might be before contact is ever made. The powerful multimeter can capture and store up to 30,000 images and 100 log files, with the ability to record thermal and visual video clips. Stream live data in real time from the DM286 to your mobile device. Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

Includes:

• 1 x  set of CATIV 600V Test Lead
• 1 x set of CATIV 600V Alligator Clip
• 1 × Type-A to Micro-USB Cable
• 1 × K-type Thermocouple (-30°C to 260°C)
• 1 × Soft-sided Carrying Case
• 1 × FLIR Quick Start Guide
• 1 × FLIR Warranty Card
• 2 × TA04 Rechargeable Battery Cell

Features:

• IGM™ (Infrared Guided Measurement) for safer non-contact thermal inspections
• Unrivaled thermal image clarity with MSX® (Multi-Spectral Dynamic Imaging)
• Seamless integration with METERLiNK® App

Applications:

•  Identifying hot spots in electrical components
• Diagnosing intermittent electrical problems
• Data logging and tracking changes in electrical systems

Specifications:

• Static Datalogging and Storage:
  • Data storage interval, configurable: 1 to 99 seconds
  • Readings per memory set: 40,000
• Thermal Image Storage:
  • Storage media: eMMC 4 GB
  • Image file format: Radiometric
  • Maximum number of images: Up to 30,000
  • Video recording: 50 minutes maximum duration 20 seconds max duration for file transmission
• Connectivity:
  • Wireless technology: Bluetooth BLE
  • Communications protocol: METERLiNK
  • Bluetooth range: 10 m (32 ft)
• Thermal Imaging:
  • Thermal imaging dectector: FLIR Lepton® microbolometer
  • Infrared (IR) imaging resolution: 160 × 120 (19,200 pixels)
  • IR imaging field of view (V × H): 57° × 44°
  • IR imaging spectral response: 8 μm to 14 μm
  • Thermal sensitivity: 150 mK (0.15°C)
  • IR image capture frequency: 9 Hz
  • IR image colour palettes: Iron, rainbow, arctic, white hot, and black hot
  • Laser pointer type: Class I (red)
  • Laser pointer power: ≤0.39 mW
  • Laser wavelength: 640 nm to 660 nm
  • IR temperature measurement range: -5°C to 300°C (23°F to 572°F)
  • Temperature reading stabilisation: Dashes are displayed for approximately 30 seconds while the temperature reading stabilises
  • IR temperature resolution: 0.1°C (0.1°F)
  • IR temperature accuracy:
    • ±3°C (5.4°F) or ±3% of the reading (whichever is greater) for temperatures >25°C (77°F)
    • ±5°C for temperatures -10°C to 25°C (14°F to 77°F)
  • Emissivity adjustment: 0.10 to 1.00 (default is 0.95); select from four presets or set manually
  • Scanning and targeting: Continuous scan. Crosshairs and laser pointer targeting.
  • Data hold: The displayed reading is suspended
  • Image modes:
    • Thermal MSX (Multi Spectral Dynamic Imaging)
    • Thermal Camera only
    • Digital Camera only
  • Worklight: 1 × LED
• Dimensions (L x W x H): 200mm x 96mm x 56mm
• Weight: 0.569kg

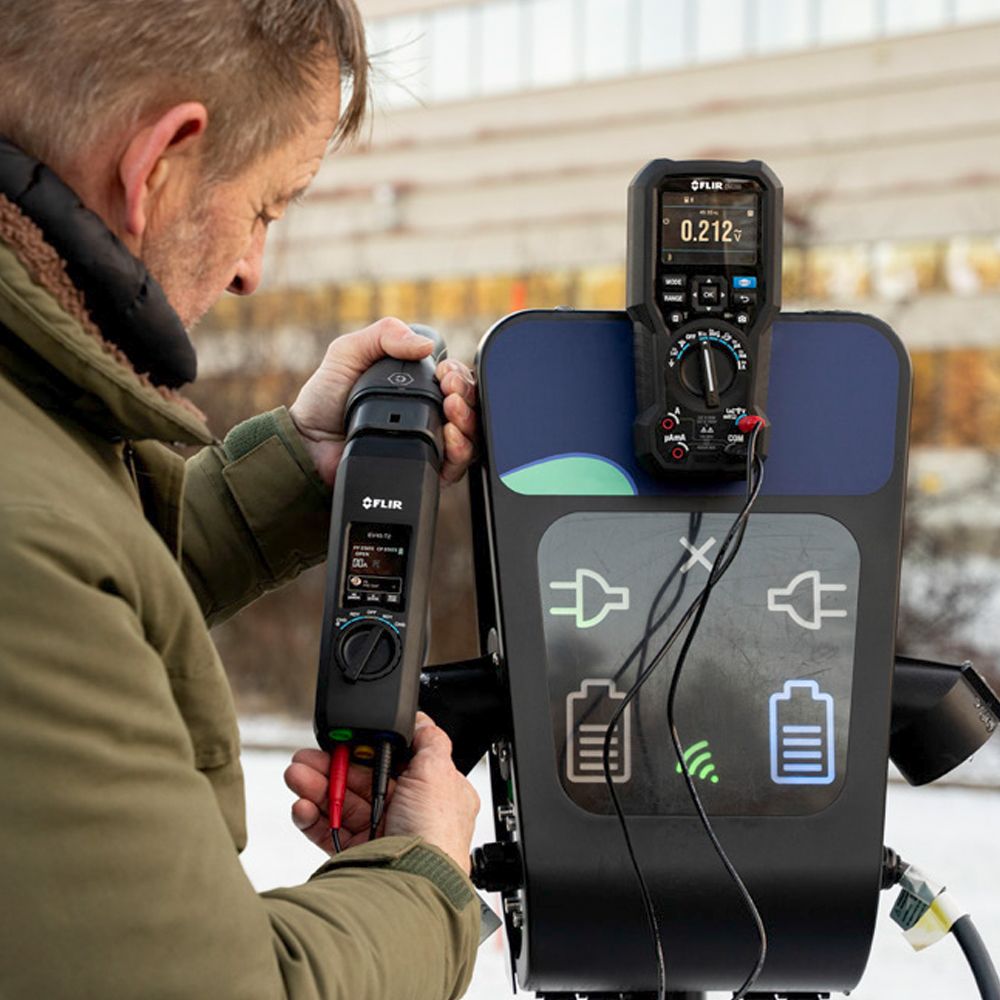

The FLIR EV45-T2 EV charger test adapter is equipped with a built-in IEC 62196-2 Type 2 plug, making it ideal for Type 2 charging stations or AC wall connectors. Designed for Level 1 and Level 2 electric vehicle AC charging stations (EVSEs), it is perfectly suited for both residential and commercial use. Maintain EV charging station safety by checking Protective Earth (PE) and electrical wiring, Test charge current interrupt device (CCID) to ensure electrical safety, Verify EV Charger maximum current output, Output charging voltages and frequency for further performance and safety checks, with the option to use the FLIR DM286 IGM multimeter for a comprehensive kit solution. The Bluetooth® FLIR METERLiNK® technology in the DM286 allows you to connect wirelessly to the METERLiNK® app on mobile devices, enabling instantaneous documentation, reporting, and sharing of results.

Includes:

• 1 x Converter for Type 1
• 1 x Carrying Pouch
• 1 x Test Leads
• 4 × AA Batteries
• 1 x User Manual

Features:

• Ensures EV charging station safety by verifying Protective Earth (PE) and electrical wiring integrity
• Tests residual current device (RCD)
• Indicates the maximum current output of EV chargers
• Designed for Type 2 and compatible with Type 1 connectors
• Measures charging voltage and frequency when used with an optional FLIR digital multimeter
• Complies with CAT II 300 V and IEC 61851-1 EV safety standards

Applications:

• Providing safe and reliable EV charging stations
• Installing and maintaining public and private EV chargers
• Diagnosing and troubleshooting EVSEs

Specifications:

• Electrical Measurement:
  • PE pre-test: Pass / Fault (>50 V AC/DC between PE conductor and touch sensor)
  • PP State indication: Open, 13 A, 20 A, 32 A, 63 A
  • CP State simulation: A (Disconnected) , B (Cconnected) , C (Charging), D (Charging w/ ventilation), E (Error)
  • Voltage phase indication: L1, L2, L3
  • CP Error (E state) simulation: Pass / Fault (CP signal short-circuited to PE)
  • PE Error simulation: Pass / Fault (interruption of PE conductor)
  • RCD/CCID Trip test: Pass / Fault (Test RCD/CCID activation once tripped)
• Outputs (For Test Purpose Only):
  • Measuring terminals L1, L2, L3, PE, N: Max. 250 V (Single Phase) / 430 V (3 phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A
• Outputs (Optional Meters):
  • Connect to DMM (DM286): CP State C / D for AC Voltage with Hz measurement
  • Connect to insulation tester (IM75-2): CP State B for EV cable Insulation Test
• Power System:
  • Battery: 4 × AA Alkaline batteries
  • Battery life: Approx. 100 hours, with alkaline batteries
• Certifications:
  • Certifications: ETL, CE, RCM
  • Safety standards: IEC 61010-1 CAT II-300 V
  • EMC standards: EN61326-1
• Environmental Data:
  • Operating ambient temperatures and relative humidity (RH):
    • −10°C to 30°C (14°F to 86°F), <85% RH
    • 30°C to 40°C (86°F to 104°F), <75% RH
    • 40°C to 50°C (104°F to 122°F), <45% RH
  • Storage temperature and RH: −20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries)
  • Operating altitude: 2000 m (6560 ft)
  • Pollution degree: 2
• Type 2 connector (Built-in): IEC 62196-2 Type 2 socket
• Accessory adaptor: IEC 62196-2 Type 2 to SAE J1772 Type 1
• Category rating: CAT II-300 V
• Dimensions (L x W x H): 237mm x 65mm x 56mm
• Weight: 0.600kg

Warranty:

• Limited 3-Year Warranty Covered by FLIR
