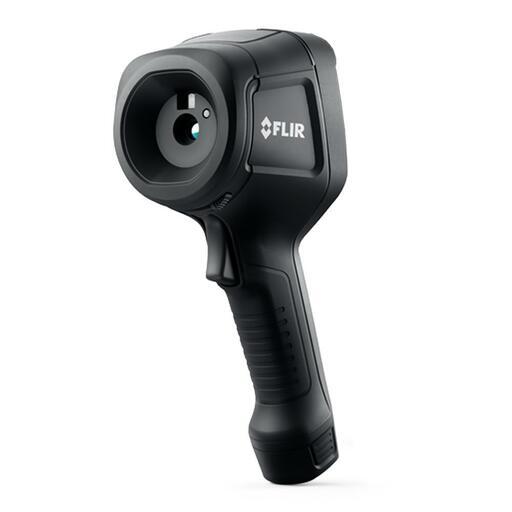

FLIR E8 Pro (13303-0302) 640px x 480px Pro-Series Thermal Camera with Ignite Cloud

FLIR E8 Pro (13303-0302) 640px x 480px Pro-Series Thermal Camera with Ignite Cloud

The FLIR E8 Pro is your must-have tool for locating and diagnosing electrical, mechanical, and building problems. Quickly pinpoint hot spots and easily identify problems with vibrant thermal imagery supported by FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement. Your inspections will be more efficient because you can do all your work from the touchscreen: organise your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device. When you’re ready to share images and create client reports, your images and notes are already available for your use in FLIR Ignite or FLIR Thermal Studio for the most streamlined experience.

1-Touch Level/Span allows you to choose a small area of focus in a thermal image - with one touch of the screen - and the camera will auto-adjust the level and span based on the thermal contrast at that spot in the image. The result: time saved on manual adjustments.

Featuring a 3.5-inch touchscreen, the FLIR E8 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.

Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio.

Features:

• 3.5-inch Touchscreen
• Highly detailed thermal images
• Upload images directly to FLIR Ignite cloud
• Desktop Sync eliminates issues created by damaged or missing SD cards and USB cables
• Secure Data Sharing to trusted team for easy collaboration and reporting
• Edit Anywhere allows you or coworkers to create reports on mobile devices, on a browser or desktop
• Ignite Cloud connection
• High visual camera resolution of 5 MP
• High display resolution (640 x 480)
• Modern touchscreen design
• Built-in flashlight
• Improved User Interface

Specifications:

• IR Resolution: 320 × 240 (76,800 pixels)
• Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
• Field of view (FOV): 33°
• Digital Camera: 5 MP
• Image Modes: Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera
• Display: 3.5 in, 640 × 480 colour LCD
• Storage Media: Internal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
• Colour Palettes: Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
• Detector Type: Uncooled microbolometer
• Focus: Fixed focus
• Image Frequency: 9 Hz
• IR Resolution: 320 × 240 (76,800 pixels)
• Minimum Focus Distance: 0.36 m (1.18 ft)
• Spectral Range: 7.5 µm to 13 µm
• Measurements correction: Emissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
• Object Temperature Range: -20°C to 550°C (-4°F to 1022°F) in two ranges
• Spot Meter: Center spot; box with min/max
• Text: Text annotation on image using onscreen keyboard
• Touchscreen: Capacitive touch
• Battery operating time: 4 hours
• Battery type: Rechargeable Lithium-ion battery
• Charging system: Battery is charged inside the camera or in specific charger
• Charging Time: 2 h
• Power Management: Automatic shut-down
• Certifications: UL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
• EMC:
• EN 301 489-1
• EN 301 489-17
• EN 61000-6-3
• EN 61000-6-2
• FCC 47 CFR Part 15 Class B
• Operating Temperature Range: -15°C to 40°C (5°F to 122°F)
• Shock: 25 g (IEC 60068-2-27)
• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)
• Vibration: 2 g (IEC 60068-2-6)
