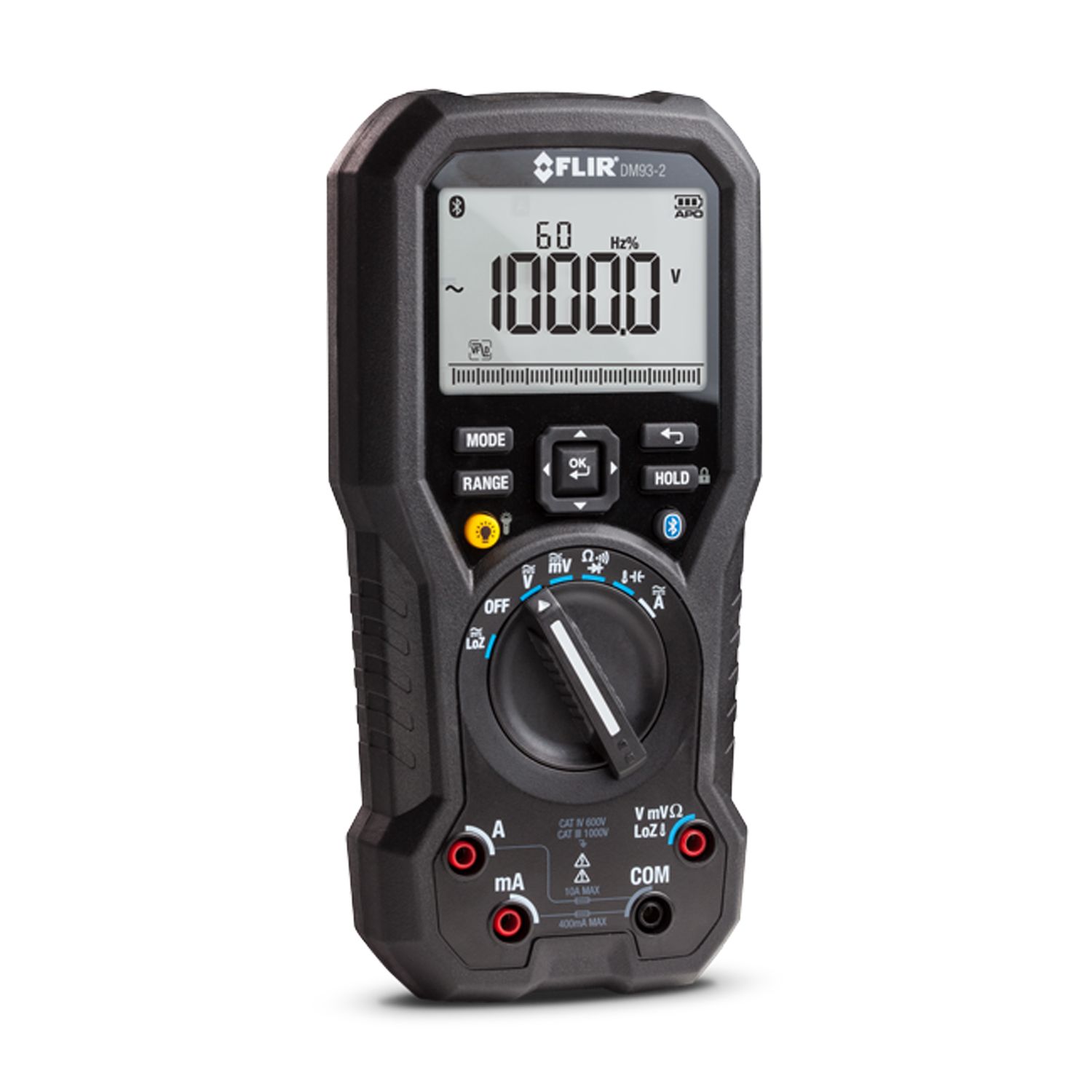

FLIR DM93-2 True RMS Digital Industrial Multimeter with Metrelink

FLIR DM93-2 True RMS Digital Industrial Multimeter with Metrelink

The Flir DM93-2 is a world-class digital multimeter with advanced variable-frequency drive (VFD) filtering to help you accurately analyze non-traditional sine waves and noisy signals found in VFD-controlled equipment. No matter what electrical challenge you’re up against, the DM93-2’s powerful lighting and durable design is up to the job. Use the Meterlink app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing.

Features:

• Clearly analyze non-traditional sine waves and noisy signals
• Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
• True RMS voltage and current measurements
• Low Impedance (LoZ) Mode eliminates ghost voltage error readings
• Constructed to make any electrical problem easier to troubleshoot
• Powerful LED worklights eliminate the need for a flashlight in dim lighting
• Durable, double-molded construction with IP54 rating and 3 m drop tested
• Large, easy-to-read digits, backlit display and analog bar graph
• Wireless communication with the Flir Meterlink App
• Capture readings, create reports and easily share them with your team
• Perform measurement comparisons over time
• Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures

Specifications:

• Display Counts: 40,000
• AC Current: Range 10.000 A / Basic Accuracy ±1.0%
• AC Voltage: 1000.0 V ± 0.5%
• Capacitance: Range 40.00 mF / Basic Accuracy ±0.9%
• Category Rating    CAT IV-600 V, CAT III-1000 V
• Continuity Threshold: Range 30 Ω / Basic Accuracy ±0.2%
• DC Current: Range 10.000 A / Basic Accuracy ±0.2%
• DC Voltage: Range 1000.0 V / Basic Accuracy ±0.5%
• Diode Test: Range 2 V / Basic Accuracy ±1.5%
• Frequency: Range 100.00 kHz / Basic Accuracy ±5 Digits
• Measuring Rate: 10 samples per second
• Resistance: Range 40.00 MΩ / Basic Accuracy ±0.2%
• Temperature: Range -200°C to 1200°C (-328°F to 2192°F) ±1.0%
• Temperature Type K thermocouple: Yes
• VFD Voltage: Range 1000.0 V / Basic Accuracy ±0.5%
• Bluetooth Range Max: 10m
• Data Recording: 10,000 records with METERLiNK
• Memory: 99 internal storage locations
• AC Voltage: Range 1000.0 V / Basic Accuracy ±0.5%
• Auto Power Off: Default: 10 minutes
• Battery Type: 6 x 1.5 V AAA alkaline batteries
• Battery Life: ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off)
• Dimensions (L x W x H): 207.1mm x 98.1mm x 60.7mm
• Weight: 0.6kg
