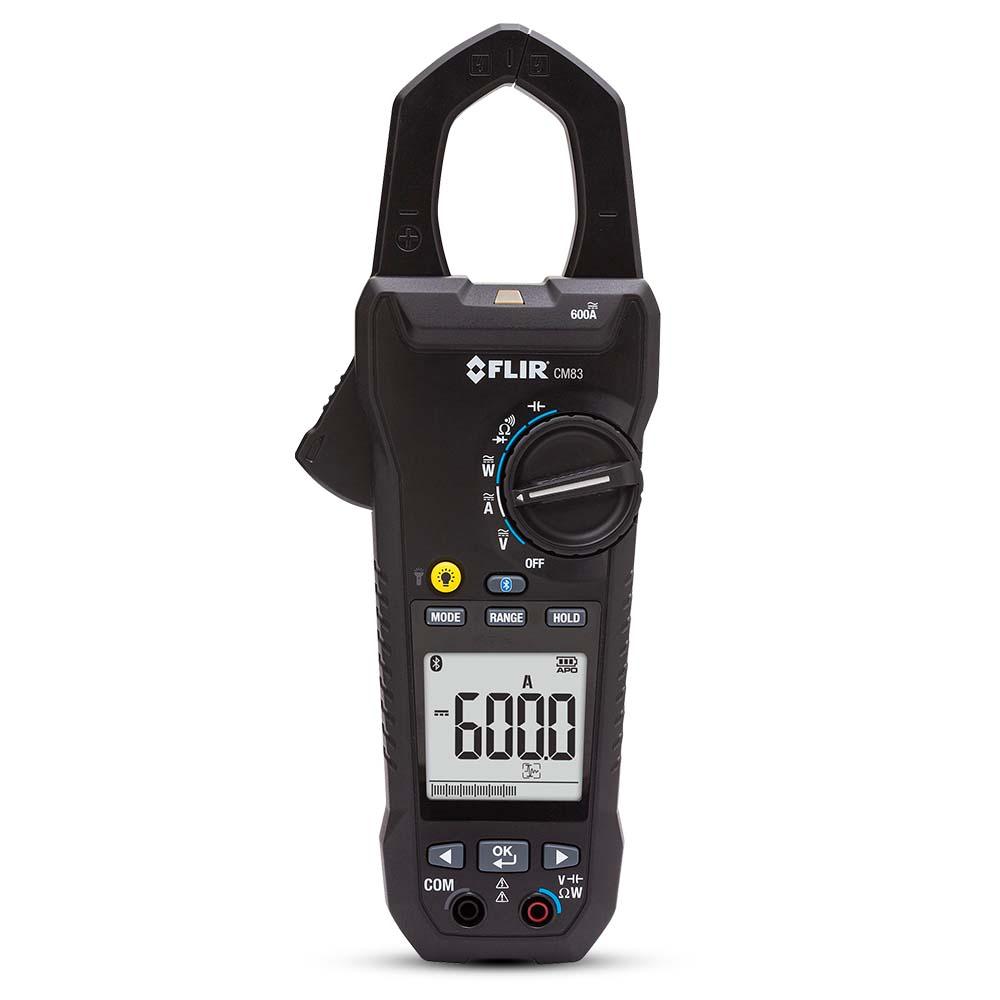

FLIR CM83 True RMS Wireless Power Clamp Meter

FLIR CM83 True RMS Wireless Power Clamp Meter

The FLIR CM83 is an industrial-grade power clamp meter engineered with advanced power analysis, harmonics measurements, and variable frequency drive (VFD) filtering functions to meet the needs of electrical troubleshooters. The meter features Bluetooth® technology to connect compatible mobile devices for remote viewing and sharing, and METERLiNK® technology to wirelessly embed electrical readings into radiometric infrared images on compatible FLIR thermal cameras.

Features:

• The True RMS clamp meters provide VFD Mode for superior accuracy while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis
• Features Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment
• View readings from your mobile device via Bluetooth; METERLiNK technology wirelessly embeds data into thermal images on compatible FLIR cameras

Specifications:

• Jaw Opening: 37 mm (1.45", 1500MCM)
• AC/DC Voltage: Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
• AC VFD Voltage: Range 1000 V / Basic Accuracy +/- 1%
• AC/DC Current: Range 599.9 A Max / Basic Accuracy +/- 2%
• AC/DC Voltage: Range 999.9 V Max / Basic Accuracy +/- 1% / 0.7%
• Active Power: Range 9.999 kW to 599.9 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
• Capacitance: Range 3.999 mF Max / Basic Accuracy +/- 1.9%
• Category Rating: CAT IV-600V, CAT III-1000V
• Continuity Threshold: Range 30 Ω / Basic Accuracy +/- 1%
• Diode Test: Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
• Frequency: Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
• Harmonics: Range 1st-25th Order / Basic Accuracy +/- 5%
• Inrush Current: Range 599.9 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
• Resistance: Range 99.99 kΩ Max / Basic Accuracy +/- 1%
• Total Harmonic Distortion: Range 0.0 to 99.9% / Basic Accuracy +/- 3%
• Bluetooth Range Max: 10m
• Battery Type: 6 x AAA
