FLIR CM276 Clamp Meter and Thermal Imaging Camera with Meterlink

FLIR CM276 Clamp Meter and Thermal Imaging Camera with Meterlink

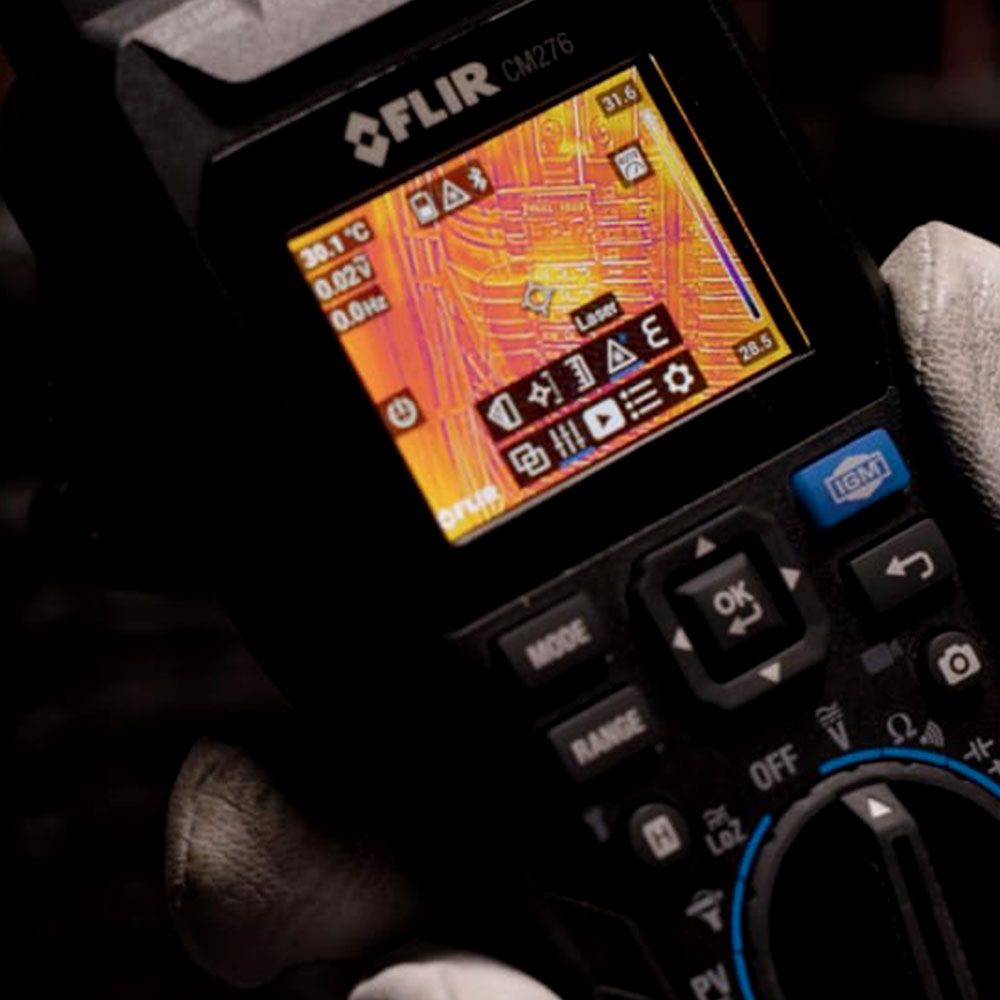

The FLIR CM276 combines a professional-grade clamp meter with advanced thermal imaging technology for fast, safe, and accurate electrical diagnostics. Featuring FLIR IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), it helps you pinpoint hotspots, overloaded circuits, and hidden electrical issues from a safe distance. With Bluetooth® Meterlink app compatibility, the CM276 allows easy data capture, analysis, and reporting—ideal for electrical inspections, solar maintenance, and industrial troubleshooting.

Features:

• FLIR IGM™ (Infrared Guided Measurement) helps identify hot spots and overloaded circuits without direct contact
• FLIR MSX® adds visible detail to thermal images for unmatched clarity and context
• Thermal and visual imaging modes for flexible inspections (thermal only, MSX, and digital camera)
• Built-in dual LED worklights for clear visibility in dark environments
• Bluetooth® Meterlink app enables easy logging, sharing, and analysis of up to 30,000 images and videos
• True RMS ensures accurate readings on complex loads
• Drop tested to 2 m (6.5 ft) for durability in field conditions
• Rechargeable lithium polymer battery for full-day operation
• Wide measurement range including AC/DC voltage, current, capacitance, resistance, and temperature
• Ideal for solar, HVAC, electrical, and industrial maintenance applications

Specifications:

• Thermal Imaging
  • IR Resolution: 160 × 120 (19,200 pixels)
  • Detector Type: FLIR Lepton® microbolometer
  • Field of View: 57° × 44°
  • Focus: Fixed
  • Spectral Response: 8–14 µm
  • Thermal Sensitivity: <150 mK
  • Temperature Range (IR): -10°C to 300°C (14°F to 572°F)
  • Temperature Accuracy: ±3°C (5.4°F) or ±3% of reading
  • Color Palettes: Iron, Rainbow, Arctic, White Hot, Black Hot
  • Image Modes: Thermal, MSX®, Digital
• Electrical Measurement
  • AC/DC Current: 600.0 A ±2.0%
  • AC/DC Voltage: 1000 V ±1.0%
  • VFD AC Current: 600.0 A ±2.0%
  • VFD AC Voltage: 1000 V ±1.0%
  • Capacitance: 1000 µF ±1.0%
  • Resistance: 60 kΩ ±1.0%
  • Continuity: ≤30 Ω beeper on / ≥150 Ω beeper off
  • Diode Test: 1.5 V ±1.5%
  • Inrush AC Current: 600.0 A ±3.0%
  • PV DC Voltage: 1000 V ±2.0% (TA82) / 1500 V ±2.0% (TA85/TA86 optional)
  • PV DC Power: 900 kVA ±2.0%
  • Frequency Counter: 10.00 kHz ±0.1%
  • LoZ Mode: 60–1000 V ±1.0%
  • Auto Range: Yes (manual option)
  • True RMS: Yes
• Connectivity & Data Storage
  • Connectivity: Bluetooth® (Meterlink App)
  • Data Logging: 10 sets of 30K scalar measurements, 100 images
  • Storage Capacity: eMMC 8 GB
• General
  • Display: 2.4" TFT screen
  • Jaw Opening: 35 mm (1.37 in)
  • Worklights: 2 × White LED
  • Laser Pointer: Class 1 (≤0.39 mW, 640–660 nm)
  • Size (L × W × H): 272 × 100 × 51.5 mm (10.7 × 3.94 × 2.0 in)
  • Weight: 560 g (19.8 oz)
  • Power: Rechargeable Li-polymer battery
  • Drop Test: 2 m (6.5 ft)
• Environmental & Safety
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Emissivity: 0.10–1.00 (default 0.95, manual or preset options)
  • IP Rating: IP40

Warranty:

• 10 Years warranty covered by FLIR
