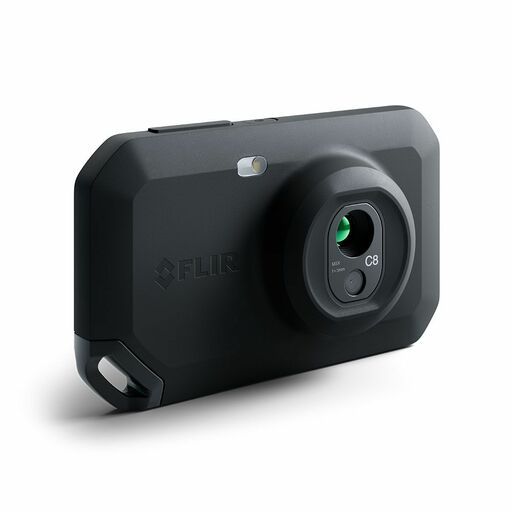

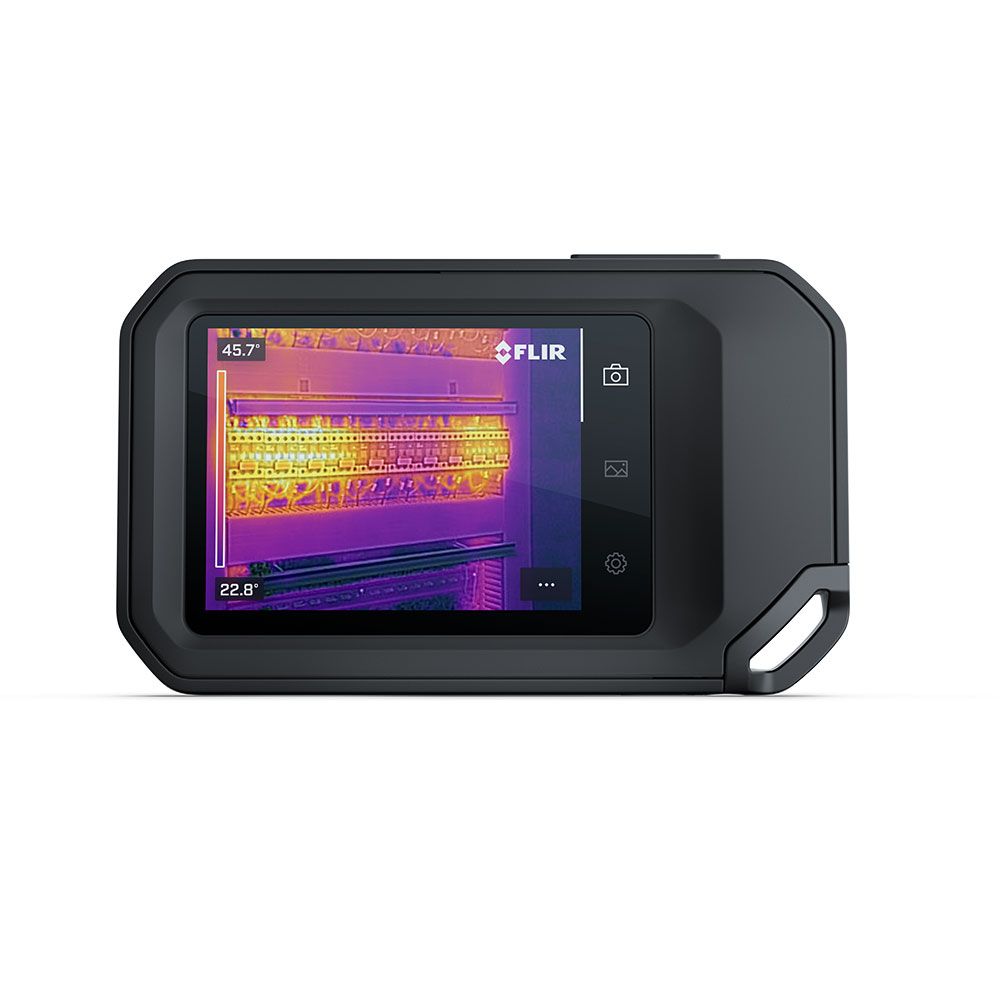

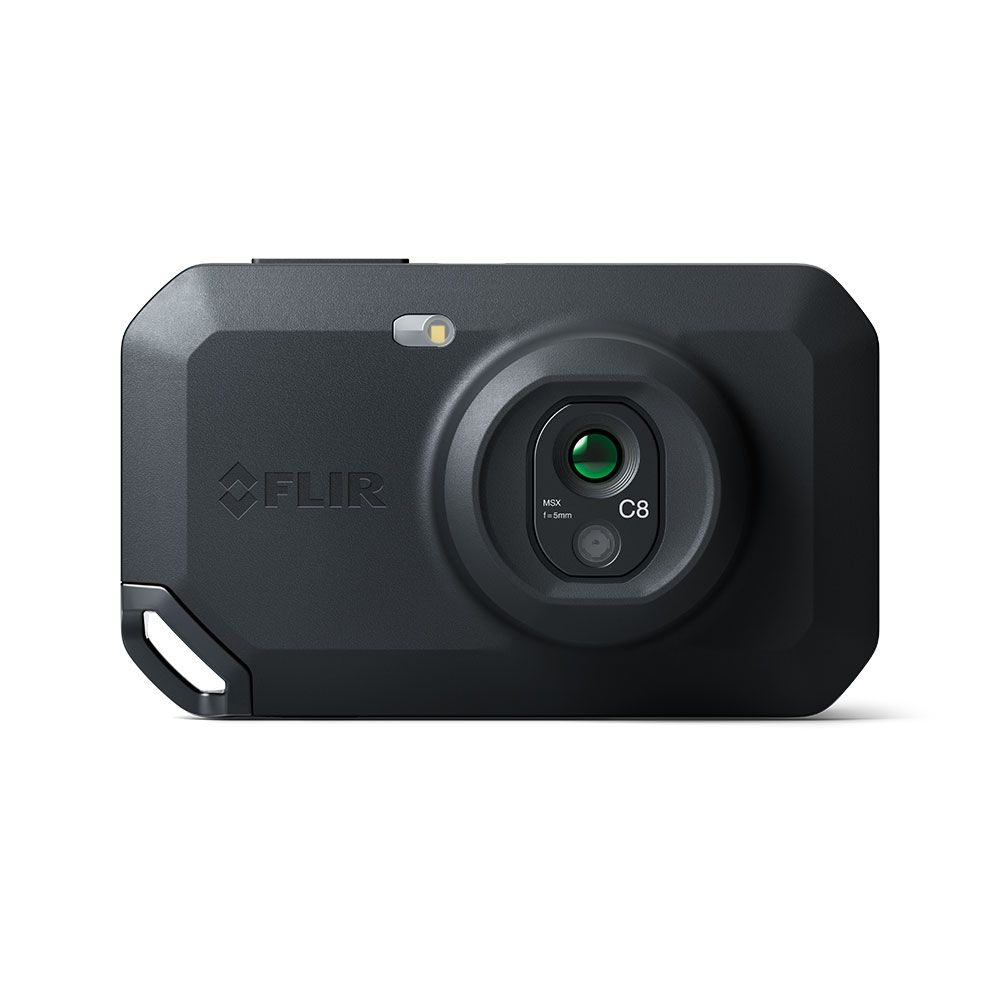

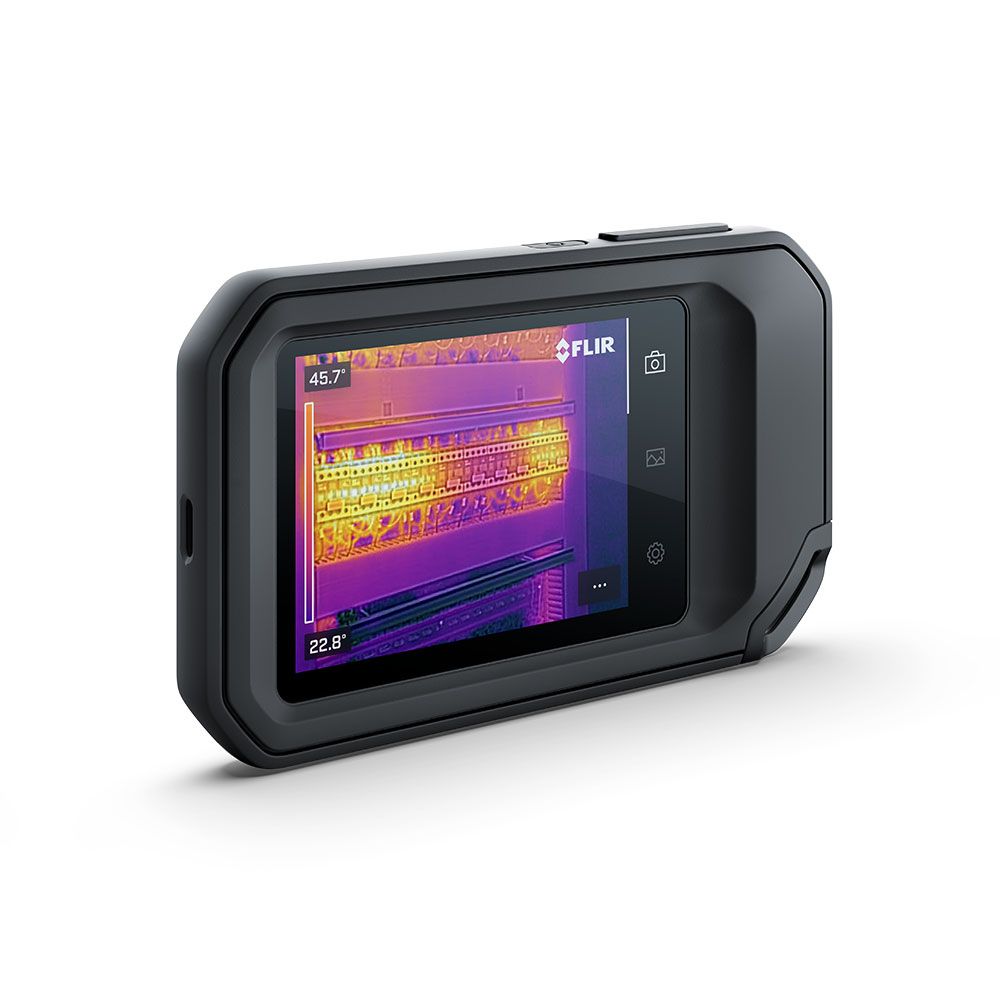

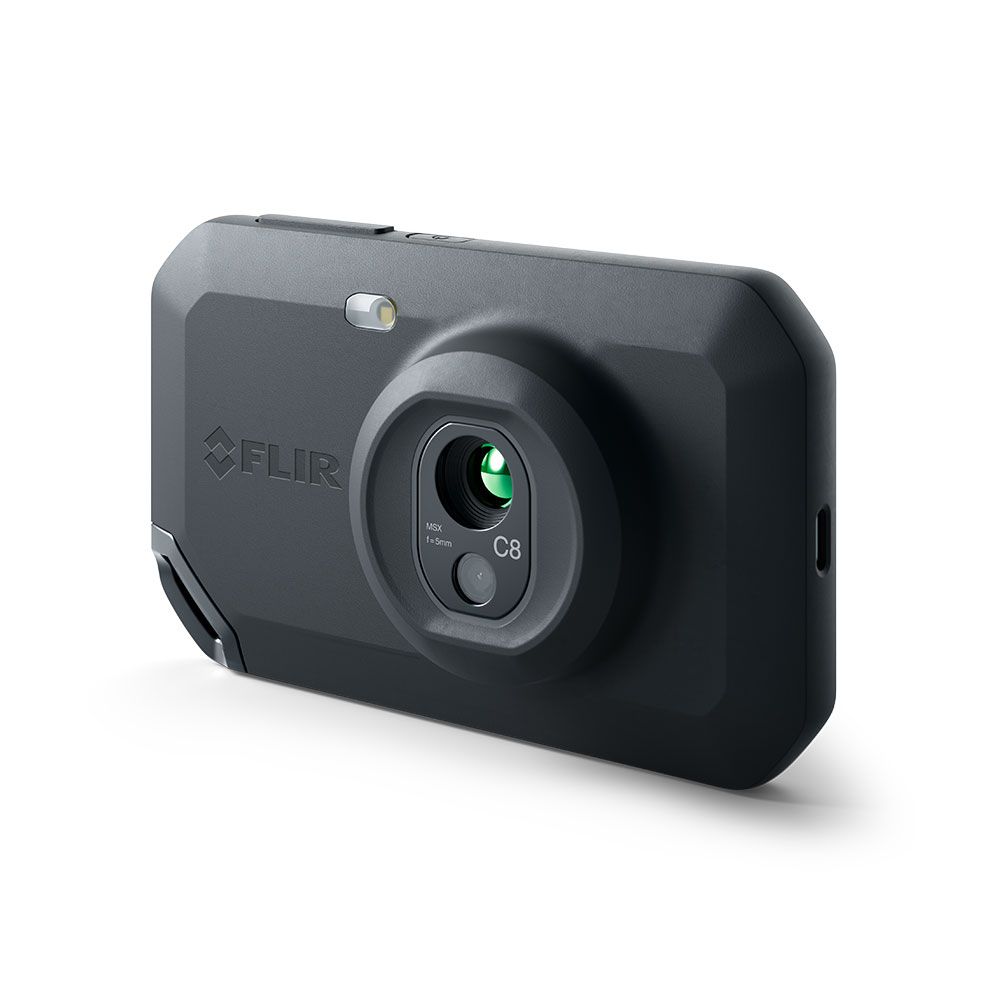

FLIR C8 (18801-0101) Compact 320 x 240px Thermal Camera

FLIR C8 (18801-0101) Compact 320 x 240px Thermal Camera

The Flir C8 redefines efficiency in thermal inspections by delivering high-resolution imaging, seamless cloud connectivity, and rugged portability. Traditional inspections can be slow, unclear, and hard to document. The C8 solves these challenges with 320 × 240 thermal resolution, MSX® detail enhancement, and Flir Ignite cloud integration, helping teams identify issues faster, cut downtime, and standardize reporting across industries.From electrical maintenance to building diagnostics and automotive inspections, the Flir C8 ensures faster, clearer, and more reliable results—all in a compact, rugged form factor built to withstand tough environments.

Features:

• Superior thermal imaging with 320 × 240 (76,800 pixels) true thermal resolution for accurate diagnostics
• MSX® detail enhancement overlays visible details onto thermal images for quick fault identification
• Isotherm alarms instantly highlight equipment exceeding set thresholds
• Seamless connectivity with automatic image uploads to Flir Ignite cloud for secure storage and collaboration
• Simplified reporting using prebuilt templates that reduce reporting time by 20–40%
• Compact and rugged design with IP54 rating and 2 m drop-tested durability for demanding worksites
• Fast and reliable inspections with improved thermal sensitivity (<50 mK) for precise results in any environment

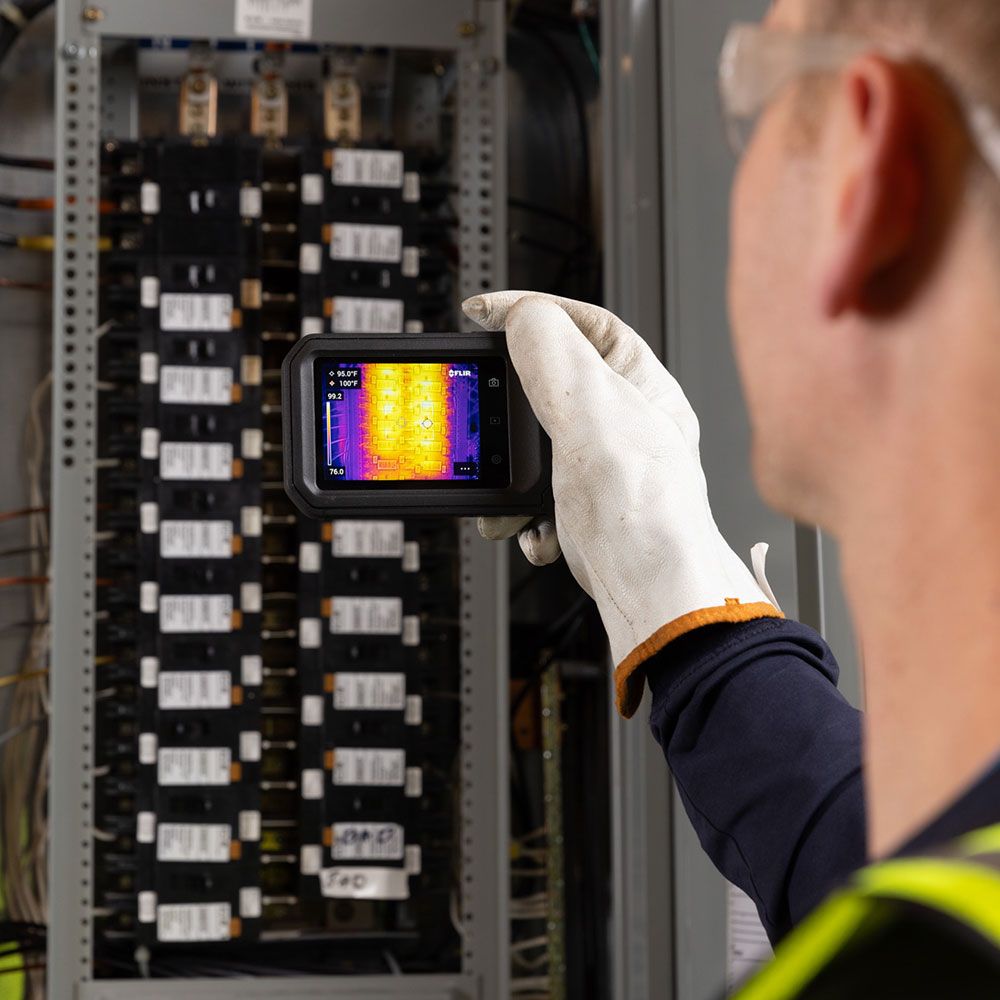

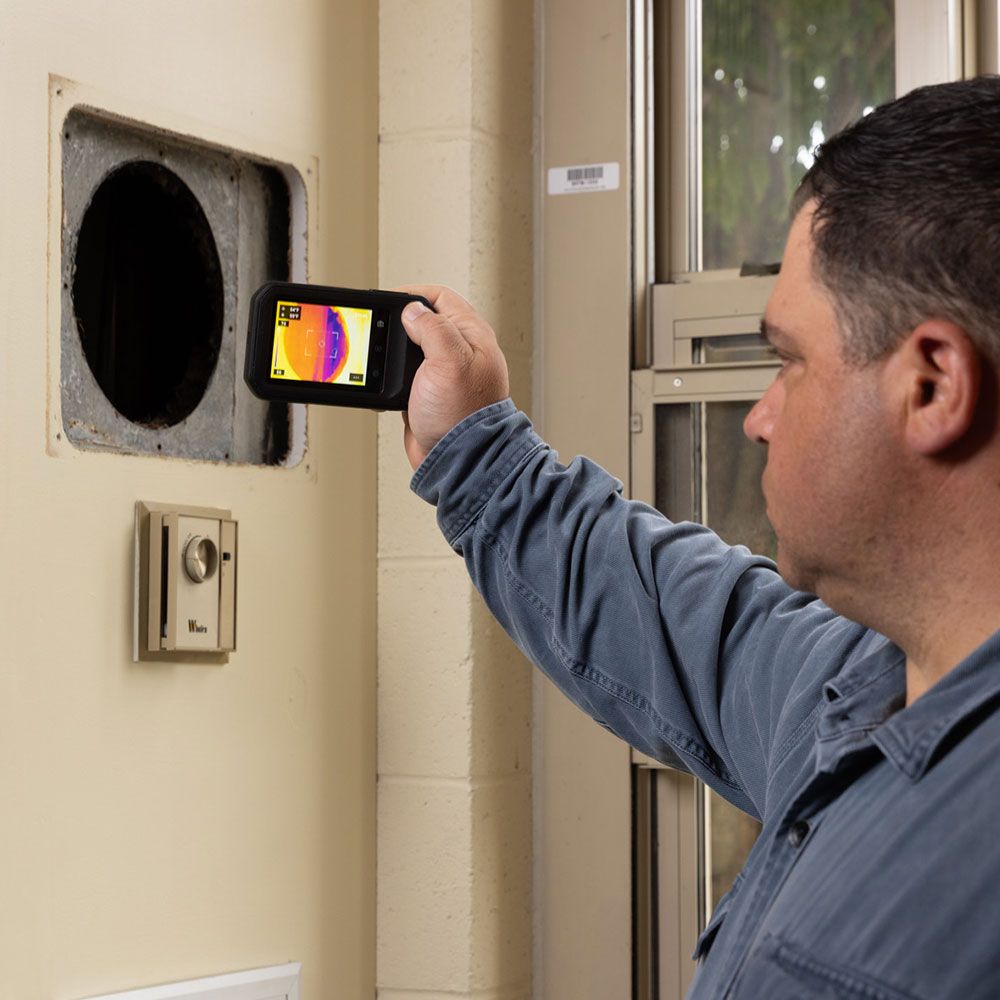

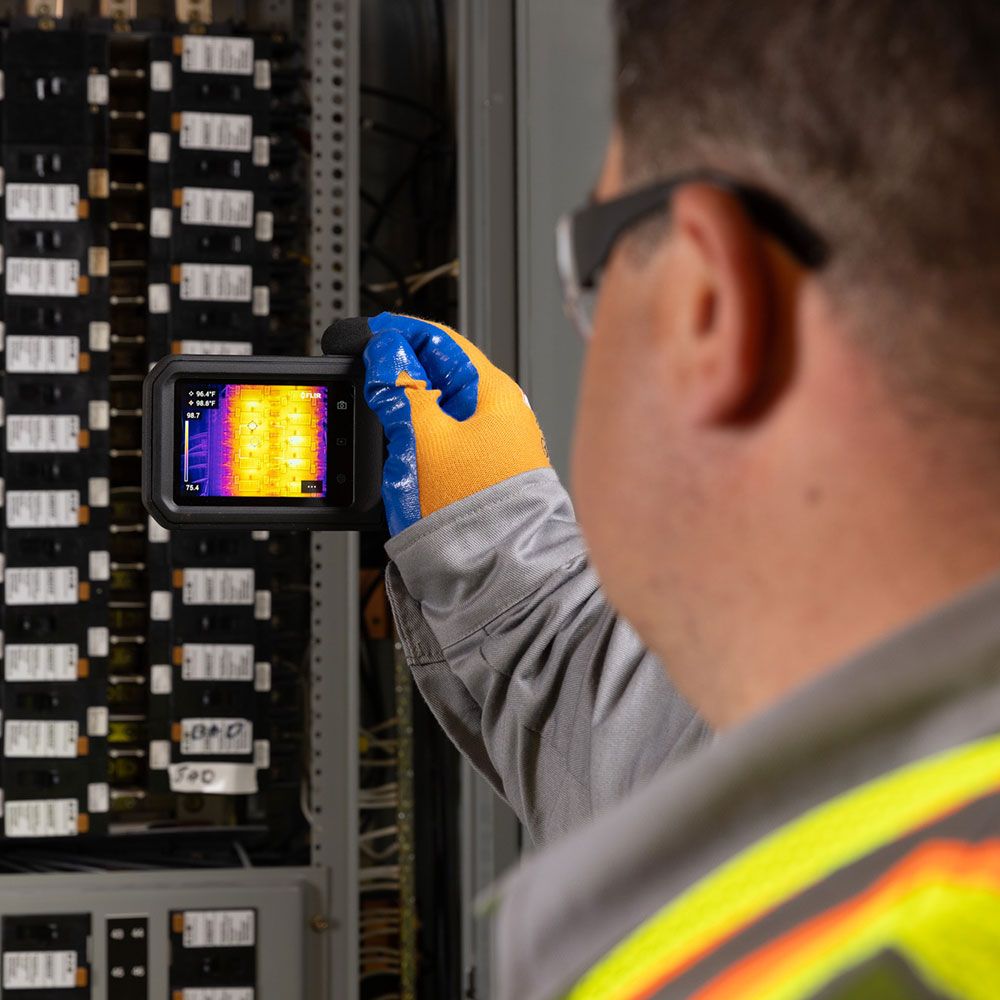

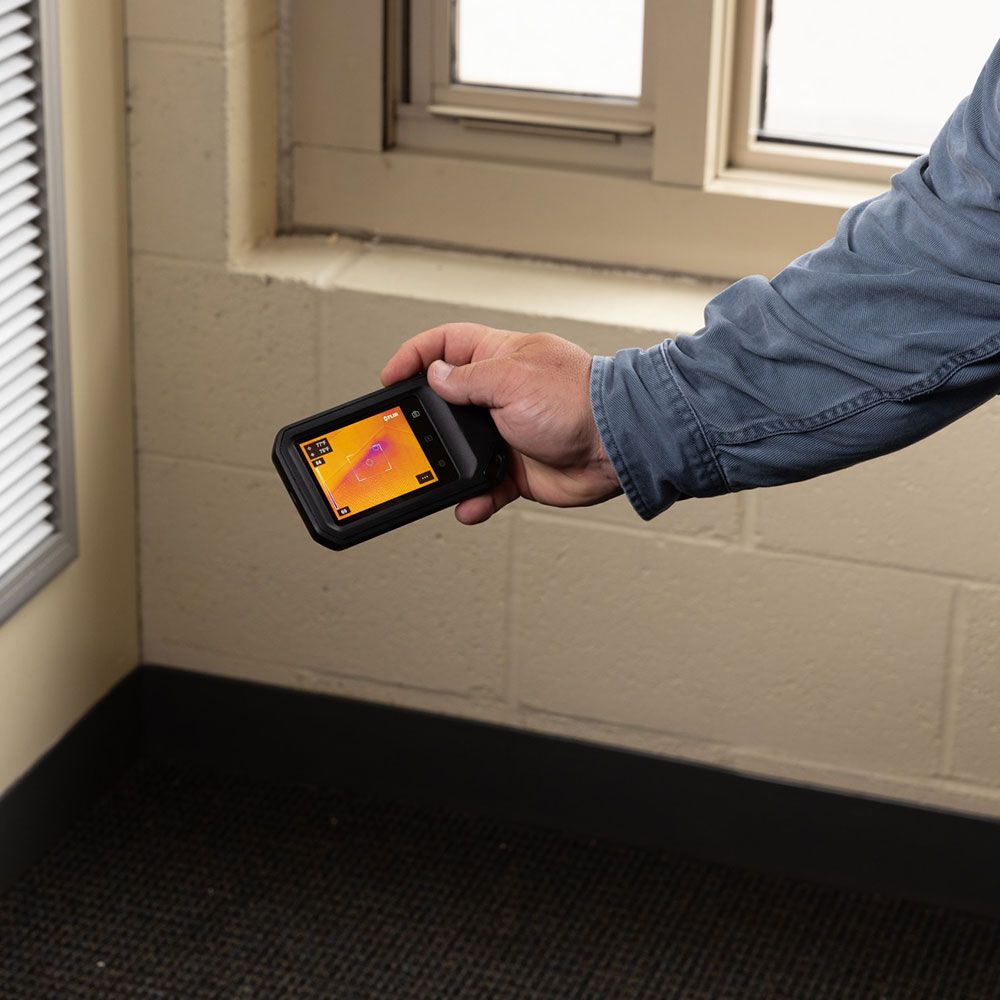

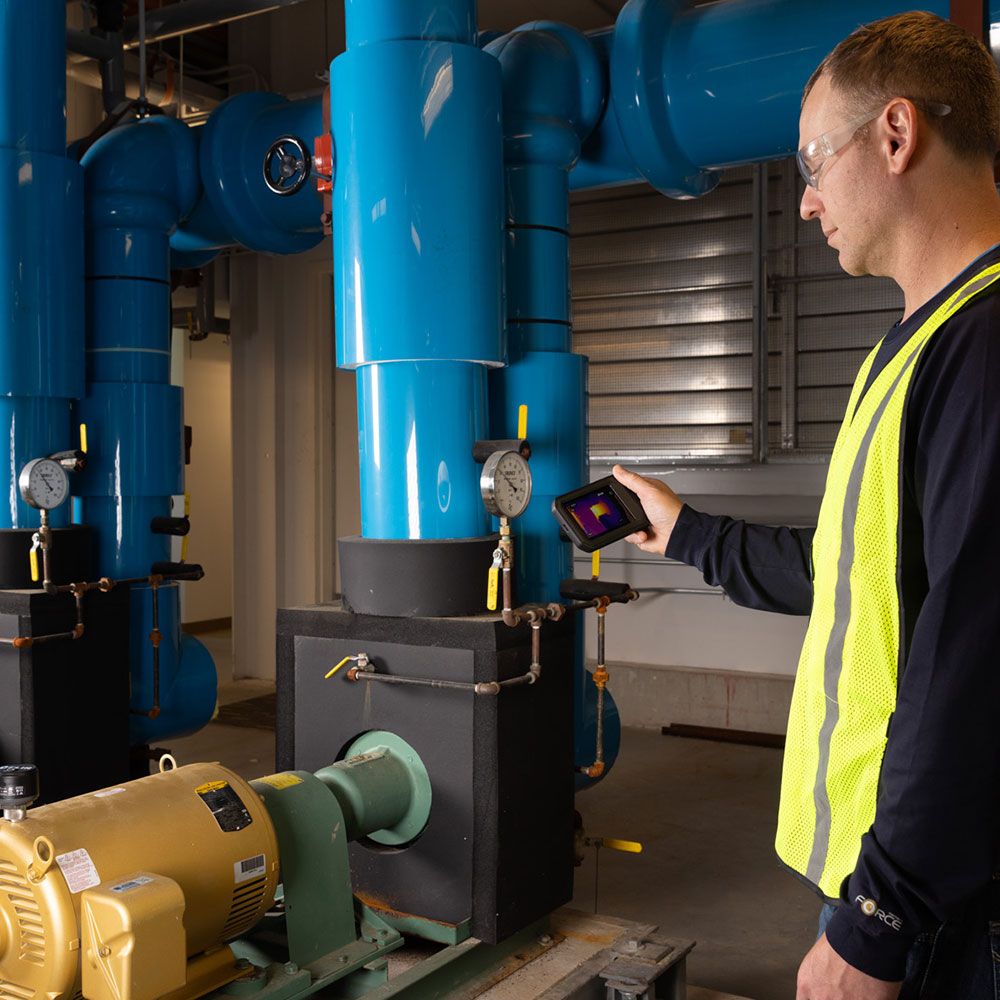

• Multi-application use ideal for electrical, mechanical, building, and vehicle inspections

Specifications:

• Imaging & Optics
  • IR Resolution: 320 × 240 (76,800 pixels)
  • Thermal Sensitivity (NETD): <50 mK
  • Field of View: 35° × 27°
  • Focus: Focus-free
  • Digital Zoom: 1–4× continuous
  • Imaging Modes: MSX®, Visual, Infrared, Picture-in-Picture
• Measurement
  • Temperature Range: -20°C to 450°C (-4°F to 842°F)
  • Accuracy: ±2°C (0–100°C) / ±2% (100–450°C)
  • Functions: Spot, Box (Max/Min), Isotherm
• Display & Interface
  • Screen: 3.5" IPS touchscreen, 640 × 480 resolution
  • Auto Orientation: Yes
  • Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
  • Image Storage: >5000 sets on internal memory (JPEG with 14-bit measurement data)
• Connectivity
  • Wi-Fi: 2.4 and 5 GHz

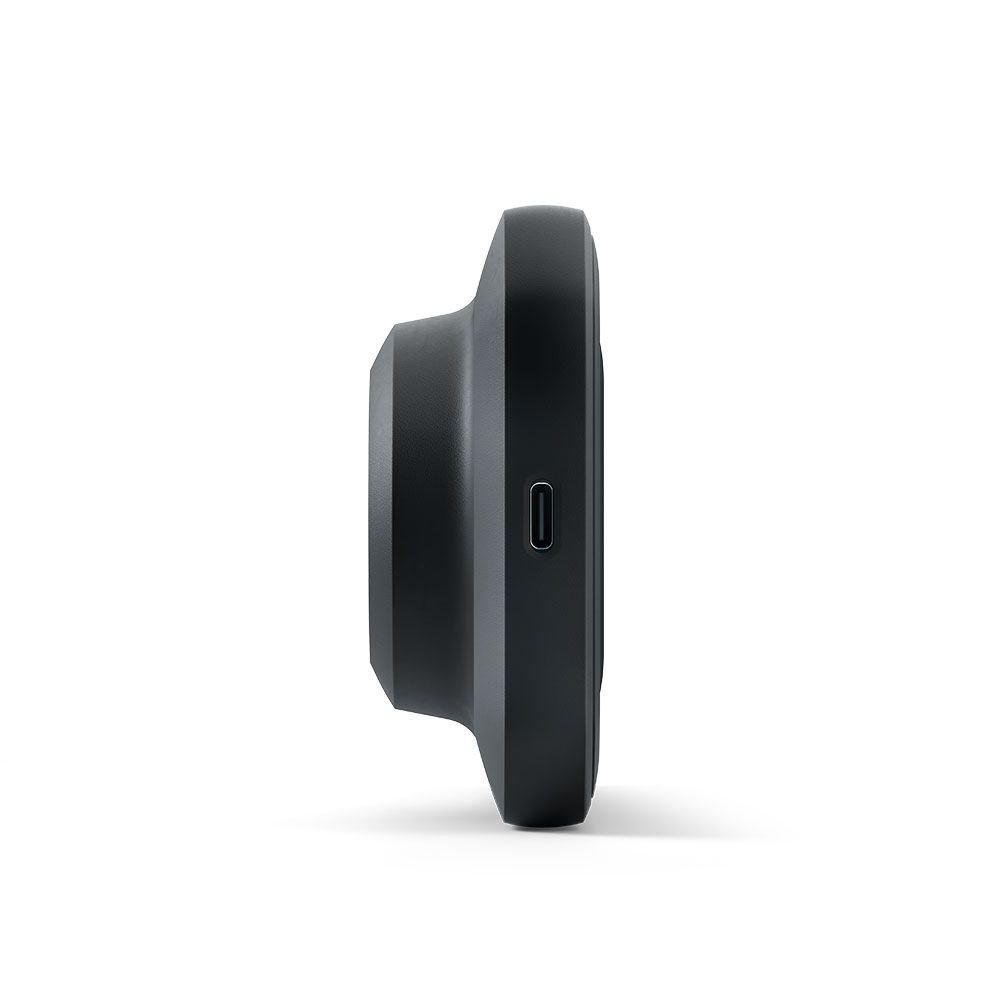

  • USB: Type-C, USB 2.0
  • Bluetooth: Yes
  • Video Streaming: Thermal, Visual, MSX, Picture-in-Picture
• Digital Camera
  • Resolution: 5 MP
  • FOV: 71.5° × 56° (84° diagonal)
  • Video Lamp: Yes
• Power
  • Battery: Built-in rechargeable Li-ion
  • Operating Time: 3 hours
  • Charging: USB-C, 2 hours
• Environmental
  • Operating Temp: -10°C to 50°C (14°F to 122°F)
  • Storage Temp: -40°C to 70°C (-40°F to 158°F)
  • Encapsulation: IP54 rated
  • Drop Tested: 2 m (6.56 ft)
• Physical
  • Dimensions: 138 × 84 × 34 mm (5.4 × 3.3 × 0.94 in)
  • Weight: 0.19 kg (0.42 lb)
  • Housing: PC/ABS with TPE and aluminum
  • Tripod Mount: UNC ¼″-20
