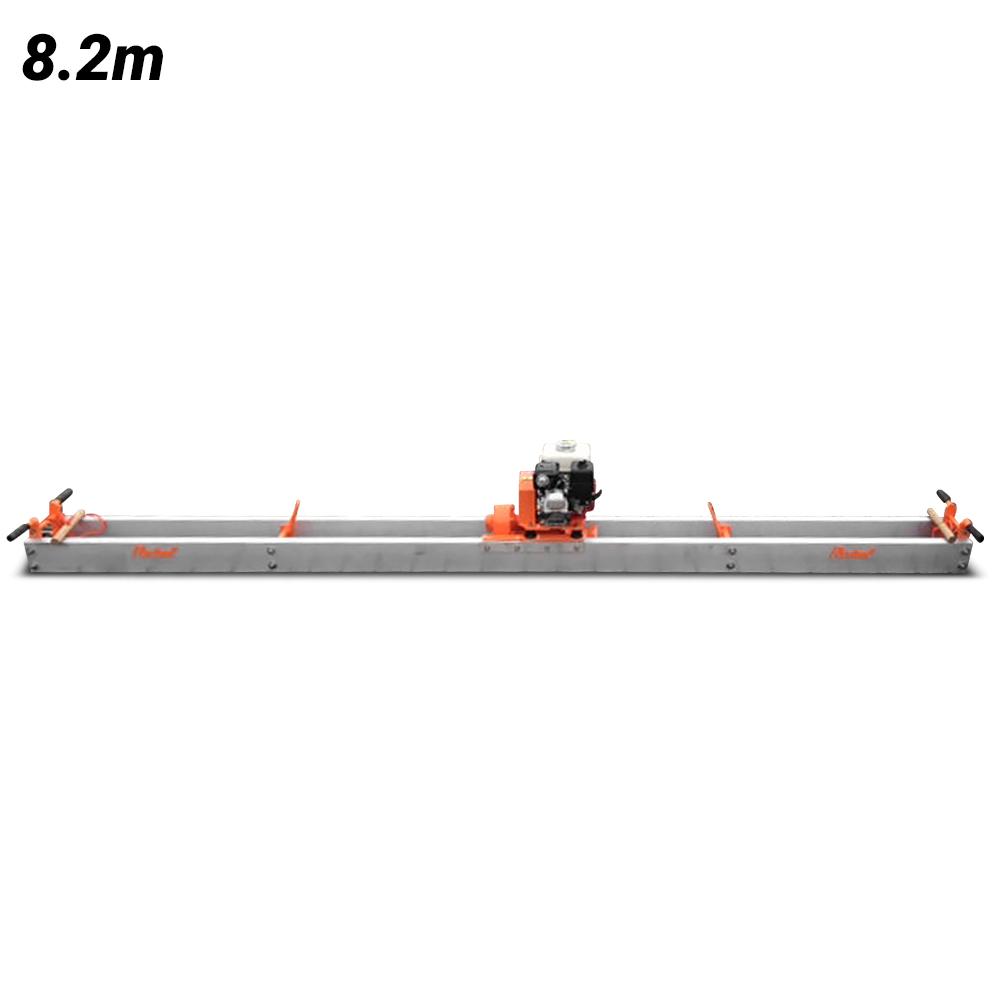

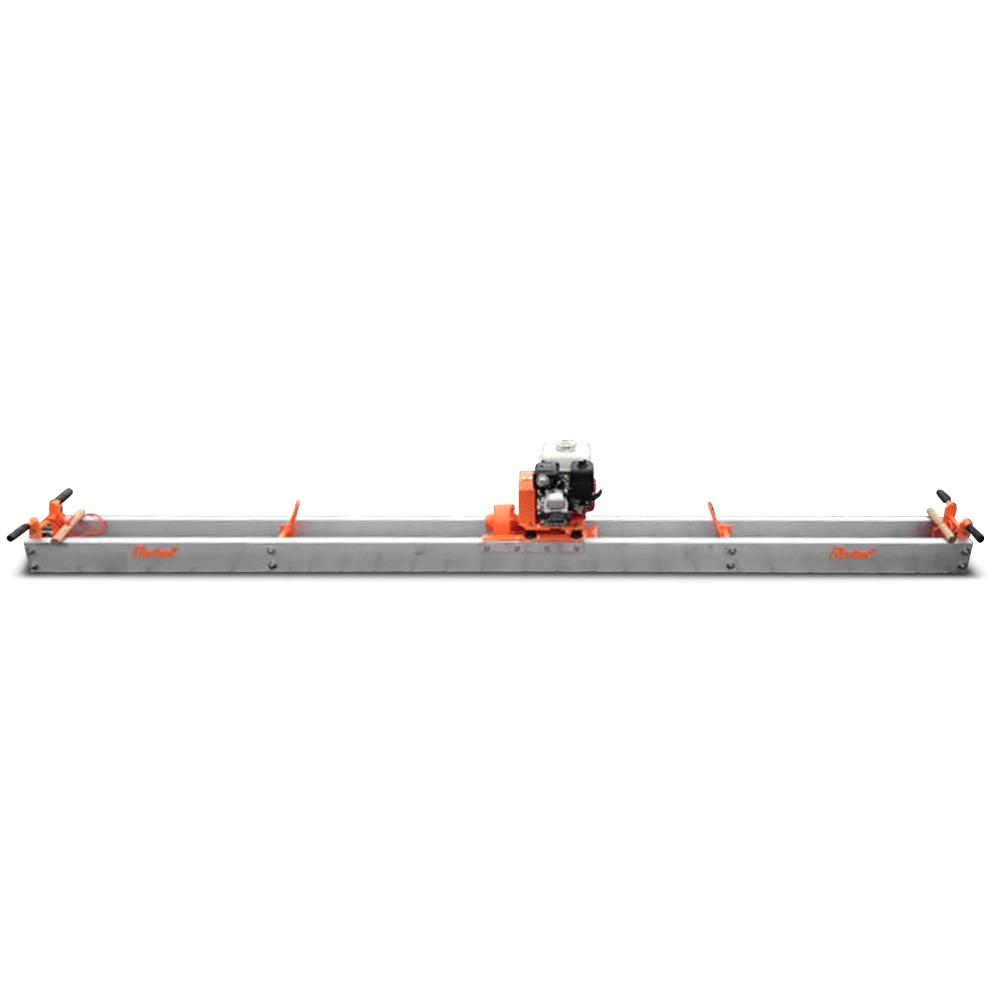

Flextool FT202050-UNIT + FT201611-UNIT 5.5HP Double Beam Screed Petrol Engine Kit with 8.2m Double Beam Screed

Flextool FT202050-UNIT + FT201611-UNIT 5.5HP Double Beam Screed Petrol Engine Kit with 8.2m Double Beam Screed

Flextool Double Beam Screeds are an efficient means of levelling and compacting large areas of concrete. Contractors can save labour and increase placement rates as a vibrating screed strikes and compacts concrete in one pass. The vibratory motion of the beams imparts a self-propelling motion to the screed assisting it to travel over the concrete. Pre-tensioned beams on both 6.5m and 8.2m models allow the surface flatness to be controlled by adjusting beam pretension and are recommended for precision finishing. Pull ropes & handles are provided for directional control along with two lifting eyes to facilitate safe and easy onsite handling.

Features:

• Efficient means of levelling and compacting large areas of concrete
• Contractors can save labour and increase placement rates as a vibrating screed strikes and compacts concrete in one pass
• The vibratory motion of the beams imparts a self-propelling motion to the screed assisting it to travel over the concrete

Applications:

• Roadways
• Airport aprons
• Tilt & precast panels
• Warehouse floors
• Rail construction
• Bridge decks

Specifications:

• Vibration depth: 200mm

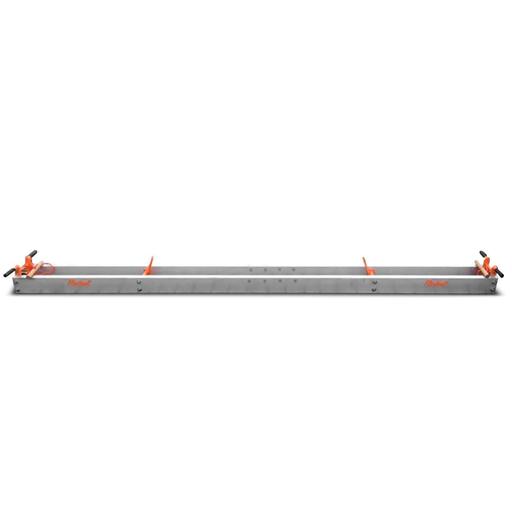

Flextool Double Beam Screeds are an efficient means of levelling large areas of concrete. Pull ropes & handles are provided for directional control along with two lifting eyes to facilitate safe and easy onsite handling.

Features:

• Pre-tensioned beams for precision finishing
• Lifting/crane points for safe and easy onsite handling
• Non-corrosive aluminium beams for reduced weight and easy cleaning
• Efficient means of levelling large areas of concrete
• Pull ropes & handles for directional control

Applications:

• Roadways
• Airport aprons
• Tilt & precast panels
• Warehouse floors
• Rail construction
• Bridge decks

Specifications:

• Length: 8.2m
• Pre-tensioned: Yes
• Weight: 94kg

This Double Beam Screed Engine Kit is suitable for the Flextool double beam screeds, which are an efficient means of levelling large areas of concrete.

Features:

• Honda GX160 engine for reliability
• Heavy duty bearings and oil bath lubrication for maintenance free operation
• Powerful sealed vibrator

Suits:

• Flextool FT201320-UNIT 4.1m Double Beam Screed
• Flextool FT201532-UNIT 6.5m Double Beam Screed
• Flextool FT201611-UNIT 8.2m Double Beam Screed

Specifications:

• Max rated power: 5.5HP
• Engine: Honda GX160
• Fuel type: Petrol
• Operating weight: 37kg
