ESAB E400800200 54V 12.0Ah Li-ion Cordless Renegade VOLT ES 200i STICK/TIG Welder Combo Kit

ESAB E400800200 54V 12.0Ah Li-ion Cordless Renegade VOLT ES 200i STICK/TIG Welder Combo Kit

ESAB Renegade VOLT ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode. This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.* Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.

In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input. Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.

This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.

Includes:

• 1 x ESAB Renegade Volt ES200i STICK / LIVE TIG Welder

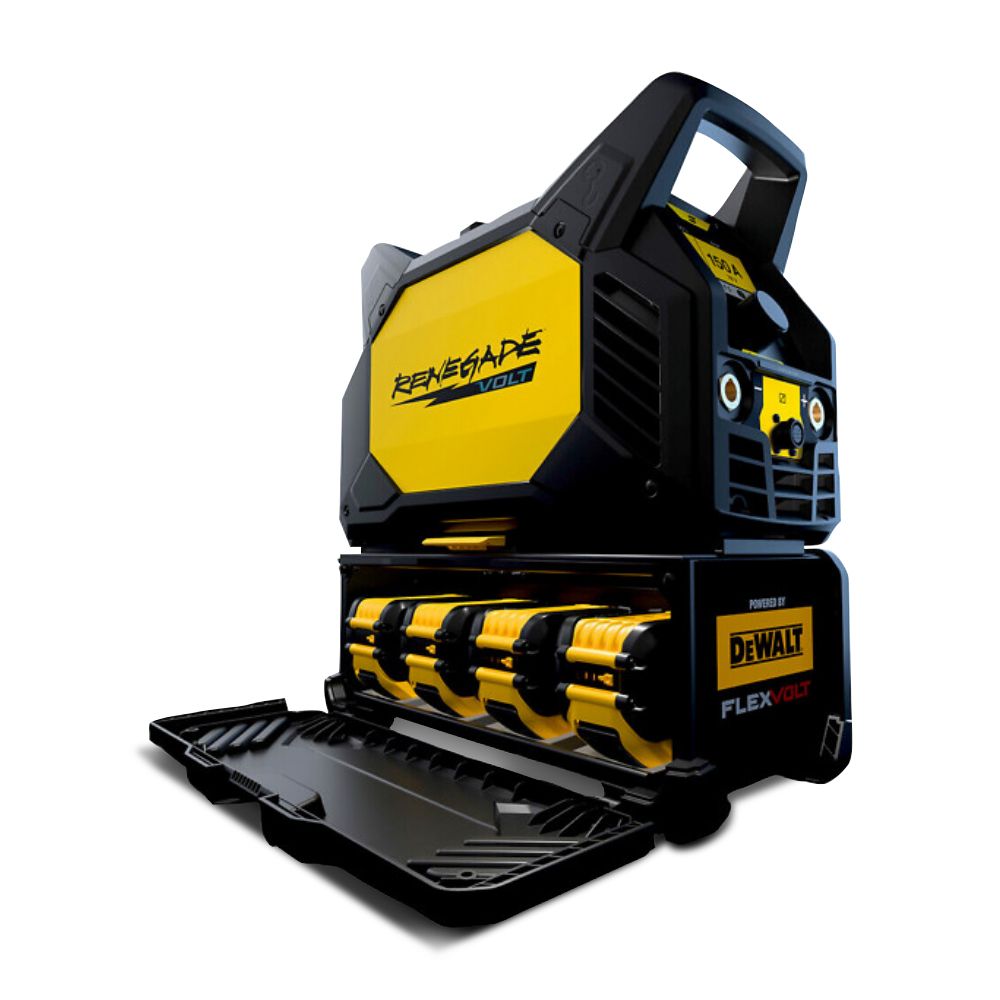

• 1 x ESAB Battery Box
• 4 x DEWALT FLEXVOLT 12.0AH Batteries
• 1 x DEWALT FLEXVOLT 4-port faster charger
• 1 x Electrode holder
• 1 x Ground clamp
• 1 x Shoulder strap

Features:

• 200 A output on AC mains (230V)
• Up to 140 A output on battery power
• Includes (4) DEWALT FLEXVOLT 20V/60V max 12 Ah batteries
• AMP+ hybrid mode for extra power
• Lightweight and portable battery powered welder
• Durable, impact-resistant housing
• Sun-friendly, intuitive user interface
• Memory storage for welding parameters

Suitable for:

• Mining
• Repair and Maintenance
• Railcars
• Agricultural Equipment
• Ship and Offshore Yards
• Marine and Offshore
• Civil Construction
• Transportation
• Food and Beverage
• Power Generation

Specifications:

• Input Voltage: 120/230 VAC 15 %, 1, 50/60 Hz
• Open Circut Voltage: 80VDC
• Power Factor at Max. Current: 0.99
• Efficency at Max. Current: 80%
• Fuse Slow: 16A
• Energy Save Mode: <50W
• Supply Plug: NEMA 6-50P (CSA)
• Operating Temp: -10-+40ºC
• SMAW/MMA (Stick)
• GTAW (TIG)
• Dimensions: 480mm x 220mm x 485mm
• Weight: 24.5kg

Warranty:

• 3 Year Limited Warranty
