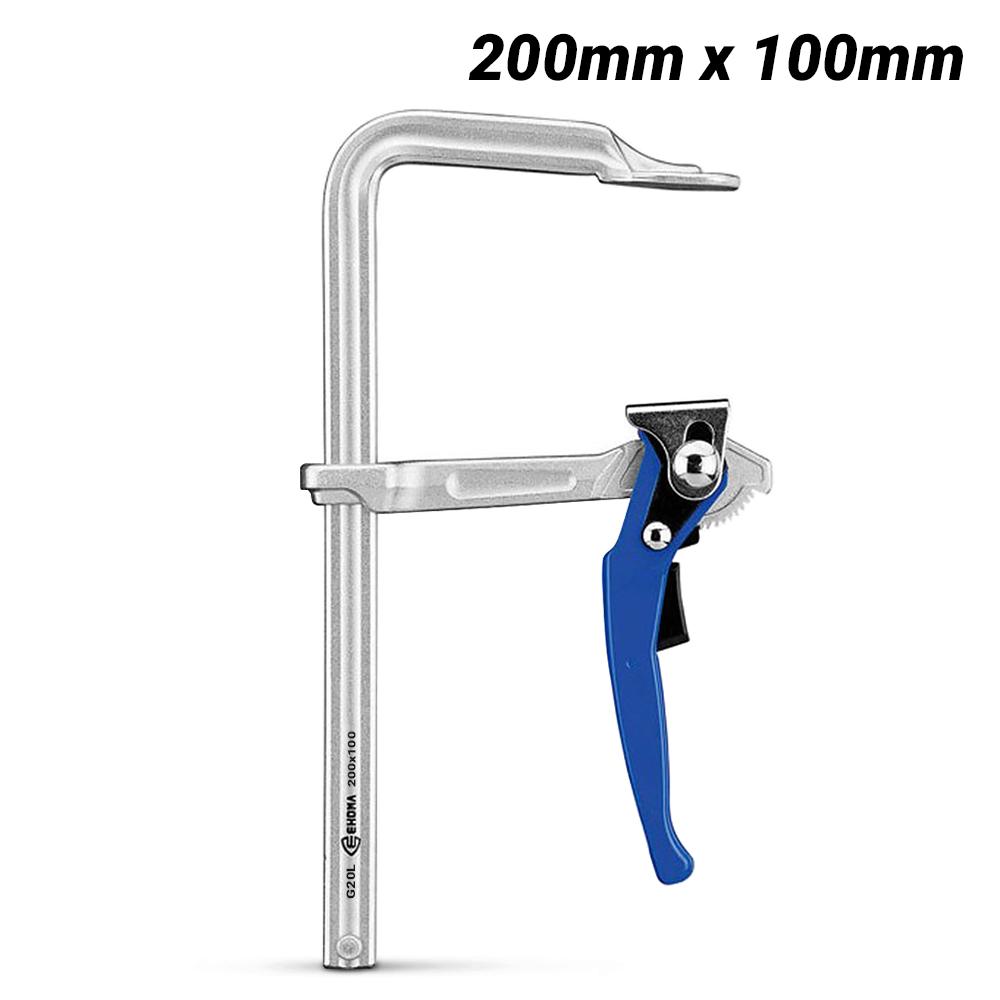

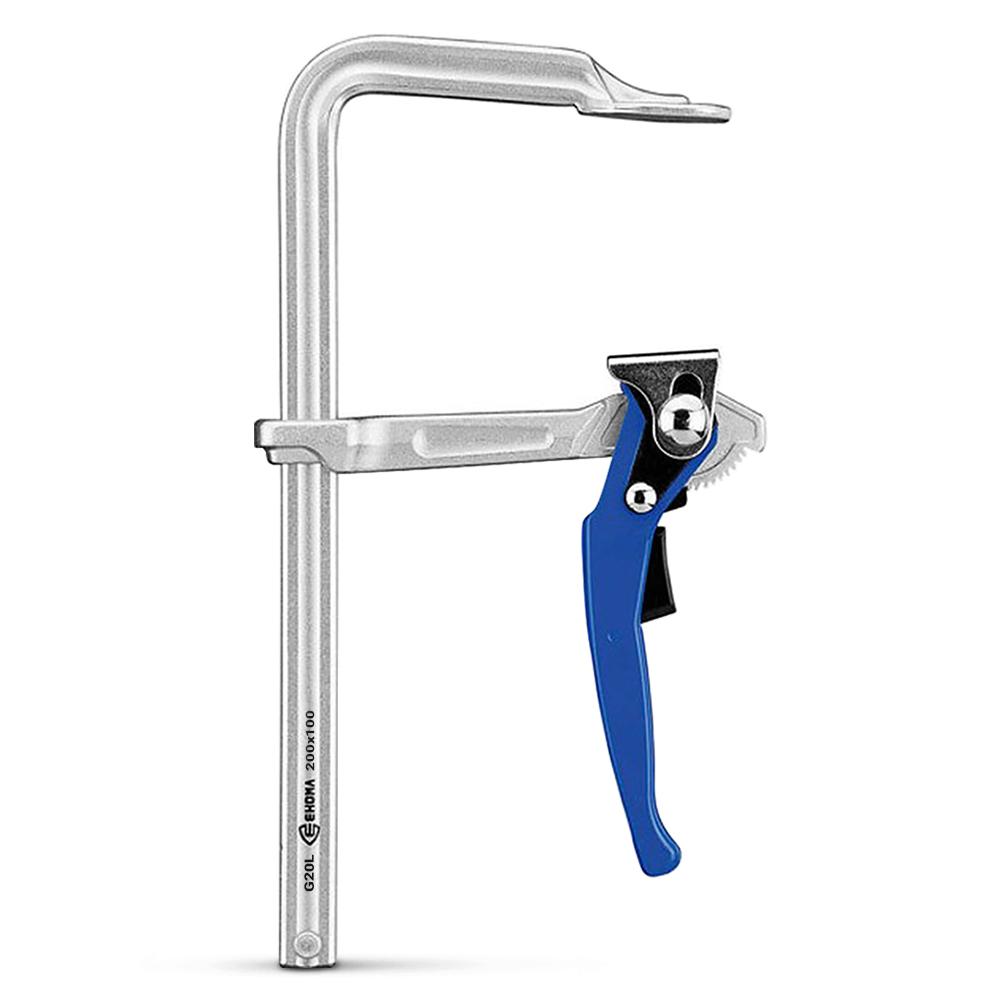

Ehoma EC-G20L 200mm x 100mm Quick Action Lever Clamp

Ehoma EC-G20L 200mm x 100mm Quick Action Lever Clamp

This Trademaster Quick Action Clamp features a ratchet type lever that prevents overloading & resists vibration. The tempered and hot forged steel construction increases rigidity, with controlled hardening and tempering across the whole clamp body provides strength for high clamping force.

Features:

• Ratchet type lever prevents overloading & resists vibration
• For high pressure, fast action clamping purposes
• Tempered and hot forged steel for rigidity
• Cold drawn profiled steel. Precisely controlled hardening and tempering process over the whole clamp body gives strength for high clamping force
• Nickel and chrome plating for high corrosion resistance

Specifications:

• Max. Clamping Force: 350kg
• Span: 200mm
• Depth: 100mm
• Rail Size: 19.5mm x 9.5mm
• Weight: 1.15kg
