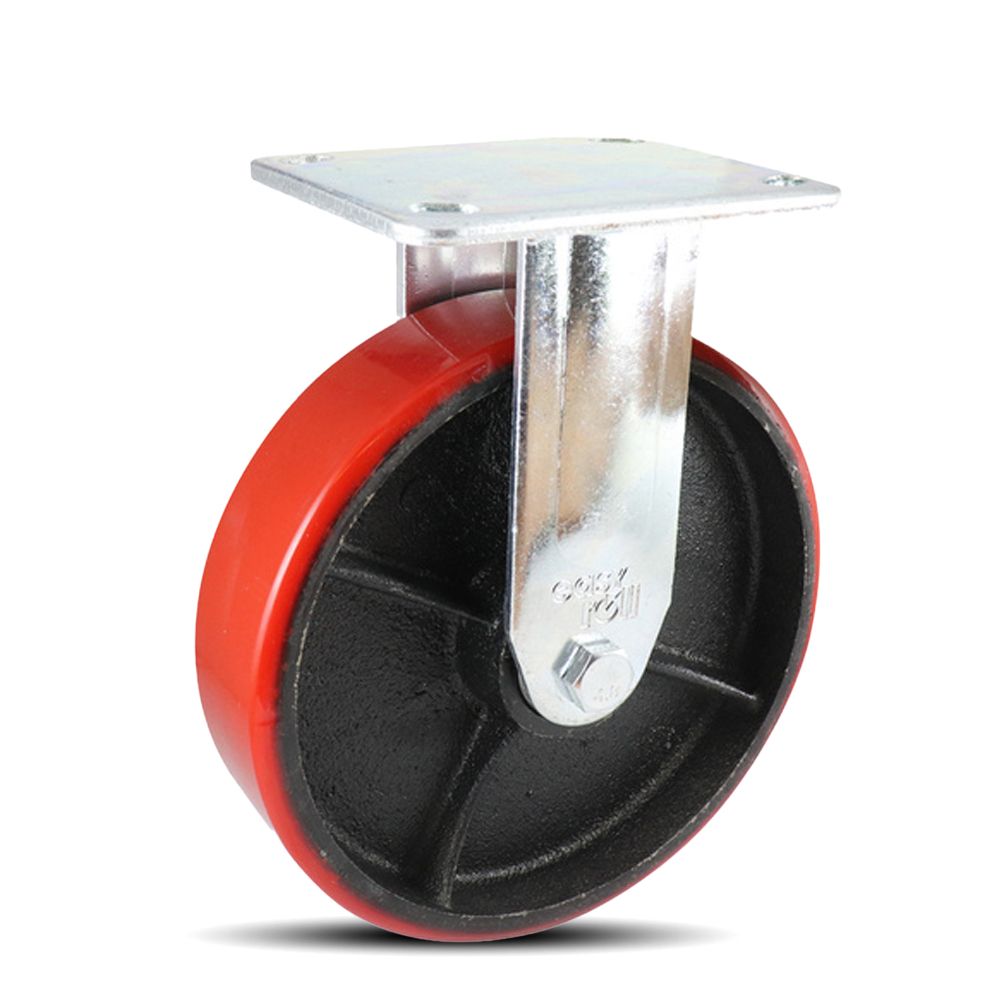

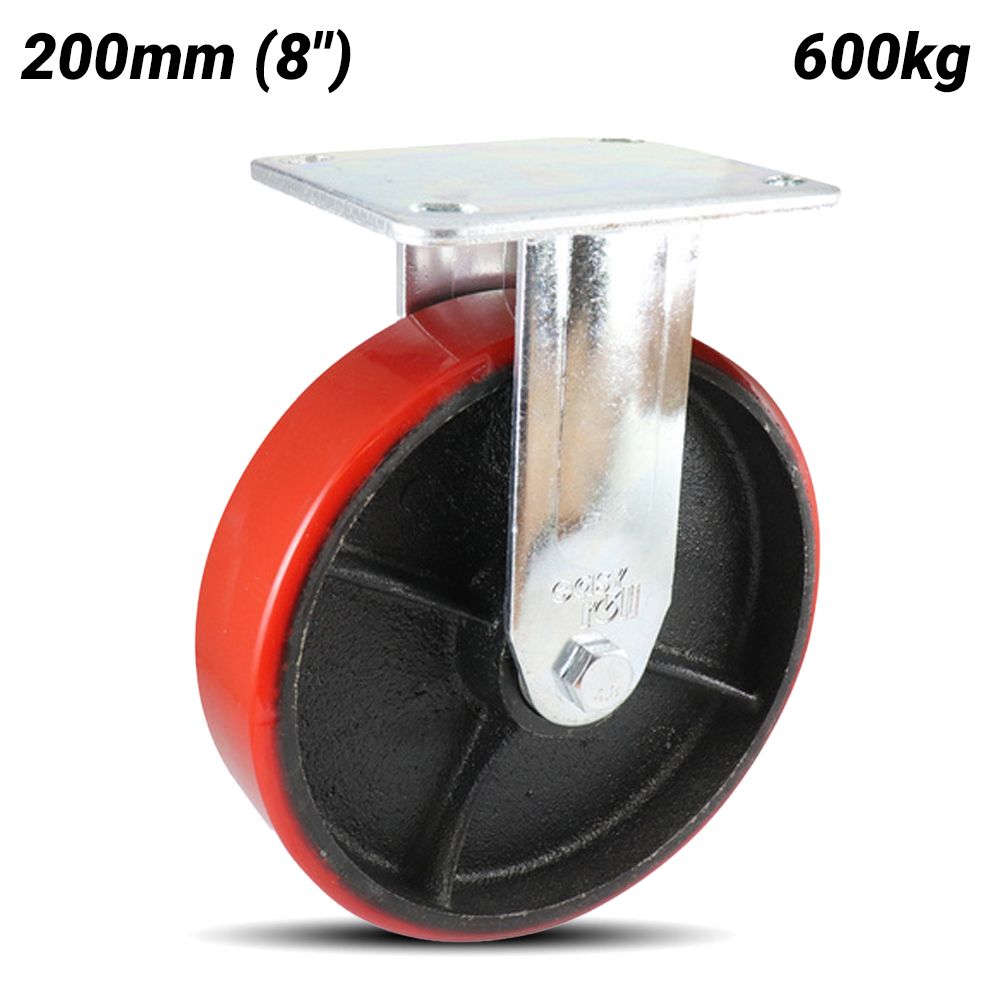

EHI J33AZ85K200H 200mm (8") 600kg J3 Series Heat Treated Steel Plate Fixed Plate Castor Wheel

EHI J33AZ85K200H 200mm (8") 600kg J3 Series Heat Treated Steel Plate Fixed Plate Castor Wheel

The EHI J33AZ85K200H 200mm (8") 600kg J3 Series Heat Treated Steel Plate Fixed Plate Castor Wheel is designed for heavy-duty applications, offering exceptional durability and performance. Featuring dust sealing rings to extend bearing life and a grease nipple for easy maintenance, this castor is built to withstand high-impact loads. It comes with precision bearings for smooth motion and a robust brake assembly with adjustable features for added safety. Ideal for use with general trolleys, dollies, catering, and industrial laundry equipment, it boasts a 600kg capacity and is suitable for both indoor and outdoor environments. The zinc alloy frame and urethane on cast iron wheels provide long-lasting reliability in demanding settings.

Features:

• Dust sealing rings to increase the life of the bearings
• Heavy duty fabricated construction allows castor to withstand high impact loads
• Grease nipple to headset bearings
• All wheels come with precision bearings
• Robust brake assembly with adjustable brake

Suitable For:

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Specifications:

• Wheel Diameter: 200 mm
• Capacity: 600kg
• Tread Width: 41mm - 50mm
• Bearing Type: Precision Bearings
• Plate Size: 135mm x 110mm
• Working Height: 241mm
• Finished Height: 241mm - 260mm
• Hole Centres: 105mm x 80mm
• Weight Category: 600kg - 699kg
• Group Code: J3
• Type: Fixed Plate Castor
• Colour: Red
• Motion: Fixed
• Frame/Hub Material: Zinc Alloy
• Indoor Use: Yes
• Outdoor Use: Yes
• Fork Material: Zinc Plated Welded Steel
• Fitting Type: Plate Mount Castors
• Tyre/Wheel Material: Urethane on Cast Iron
• Castor Type: Fixed
