East West Engineering SGB249 500kg Load Limit Gas Cylinder Storage Cage - Flatpack

East West Engineering SGB249 500kg Load Limit Gas Cylinder Storage Cage - Flatpack

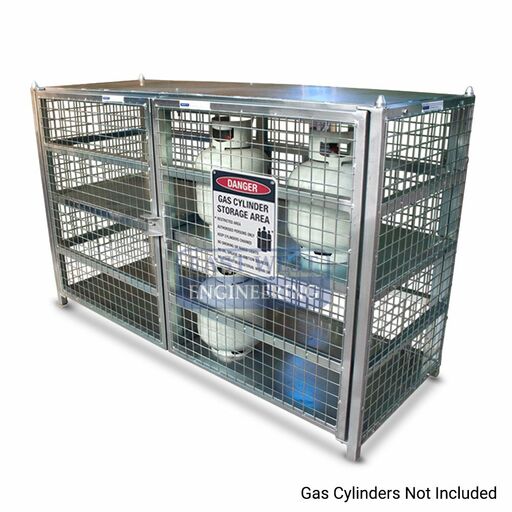

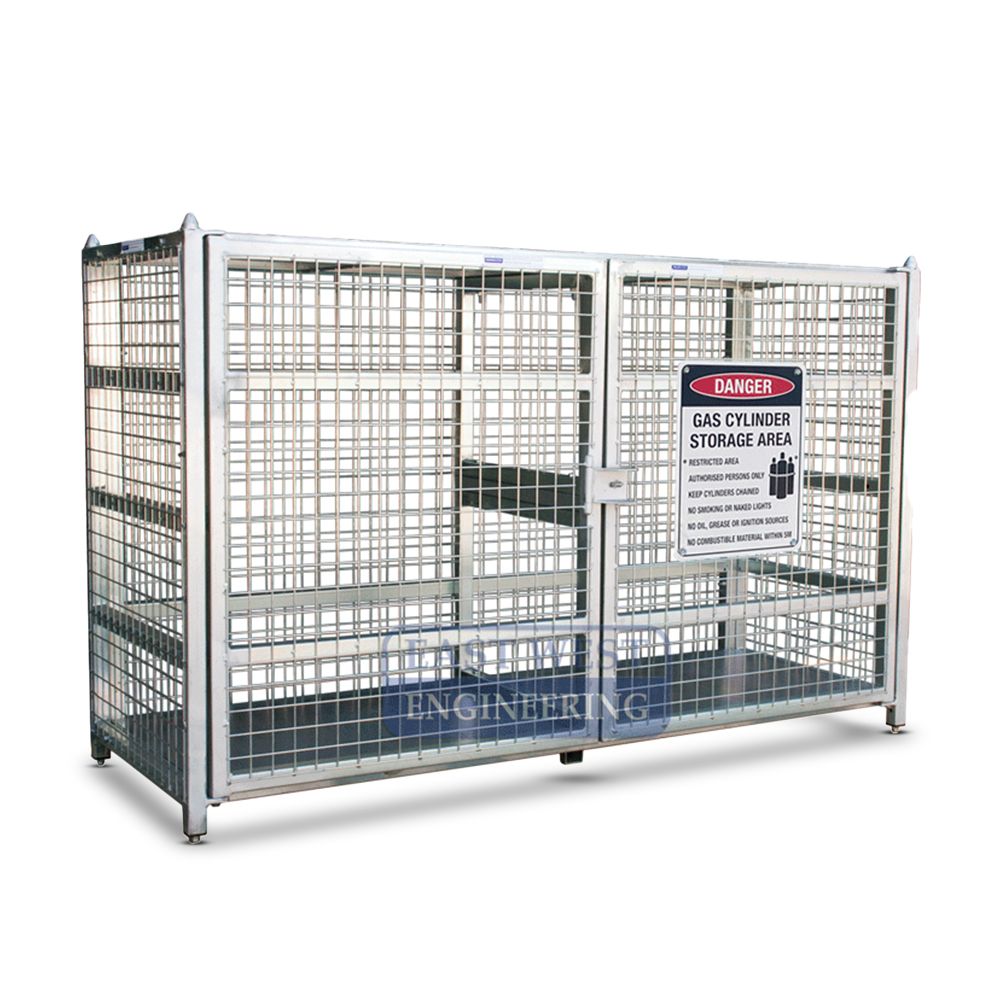

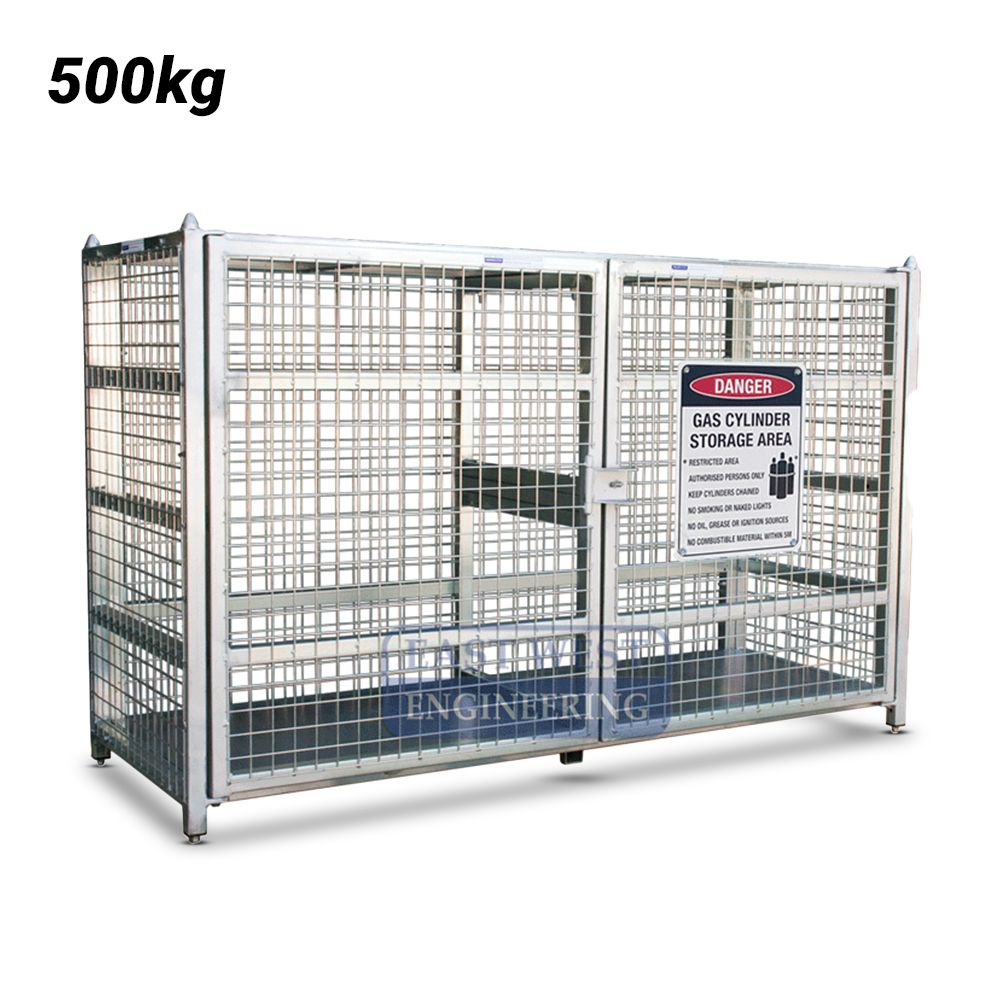

The SGB249 Gas Cylinder Storage Cage is a heavy duty lockable cage ideally suited for storage of up to 24 x 9kg BBQ gas bottles.  The bolted centre shelf and vertical supports can be excluded during construction for storage of up to 12 x forklift gas cylinders.  This stoage cage is also suitable for other uses like firewood storage in service stations where easy access and excellent security is a requirment.

Features:

• Stores up to 24 x 9kg BBQ gas bottles

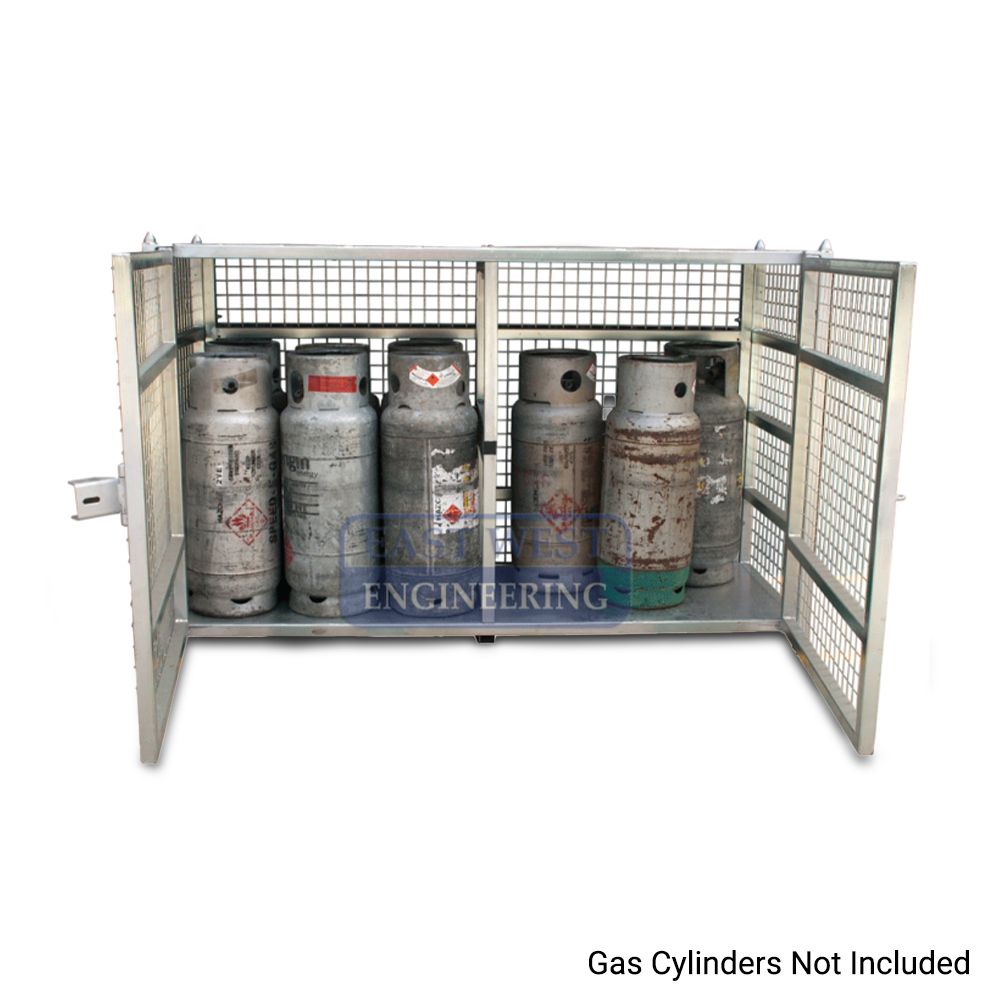

• Stores up to 12 x 18kg forklift gas bottles when mid shelf is excluded
• Tamper-proof lock guard prevents cutting of the padlock by bolt cutters, along with anti-tamper gate hinges
• Sturdy construction with bump rails to protect the high visibility mesh sides
• Stack 3 high when empty and 2 high when fully loaded
• Sheet metal shelves allow easy sliding of cylinders to the back of the cage
• Sheet metal roof provides weather protection
• Forklift provision is provided under the cage for transport around the worksite
• Zinc finish for long life corrosion protection

Specifications:

• No. of Bottles (With Mid Shelf): 24 x 9kg
• No. of Bottles (Without Mid Shelf): 12 x 18kg
• Working Load Limit (WLL): 500kg
• Dimensions (L x W x H): 2040mm x 760mm x 1285mm
• Unit Weight: 200kg

Warranty:

• 12 Months Warranty as Covered by East West Engineering
