East West Engineering AWH30 Welding Boom

East West Engineering AWH30 Welding Boom

The AWH30 Welding Boom is designed to increase welding productivity and safety by extending coverage of the welding area and removing trip hazards and floor clutter.

Features:

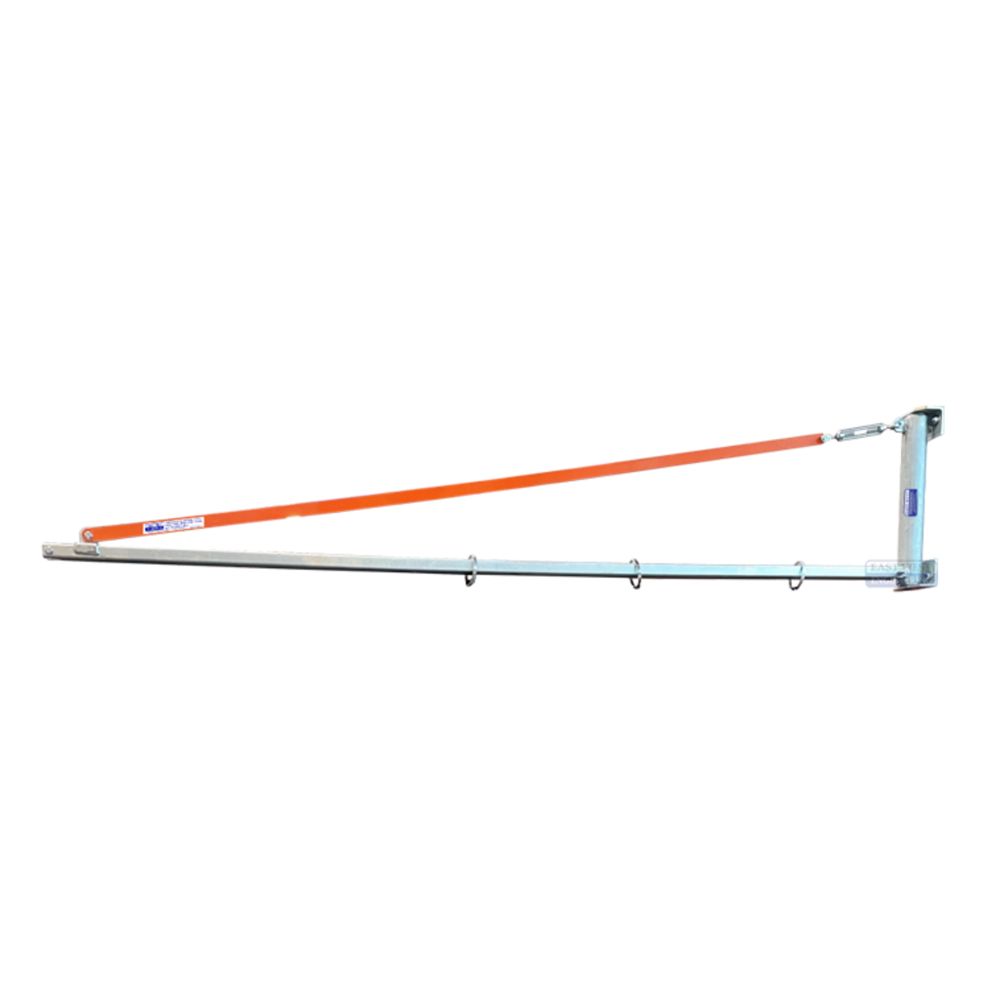

• 3.1m boom
• 180° bi-directional rotation of boom arm
• 4 wheel trolley fitted to hang wire feeder
• Top strut fitted with turn buckle to allow leveling of assembly
• Hangers slide freely along beam to support cabling
• Wall mount brackets supplied
• Reduces welder fatigue, strain and non-arc time welding related activities
• Optional post (AW-POST) available for floor mounting

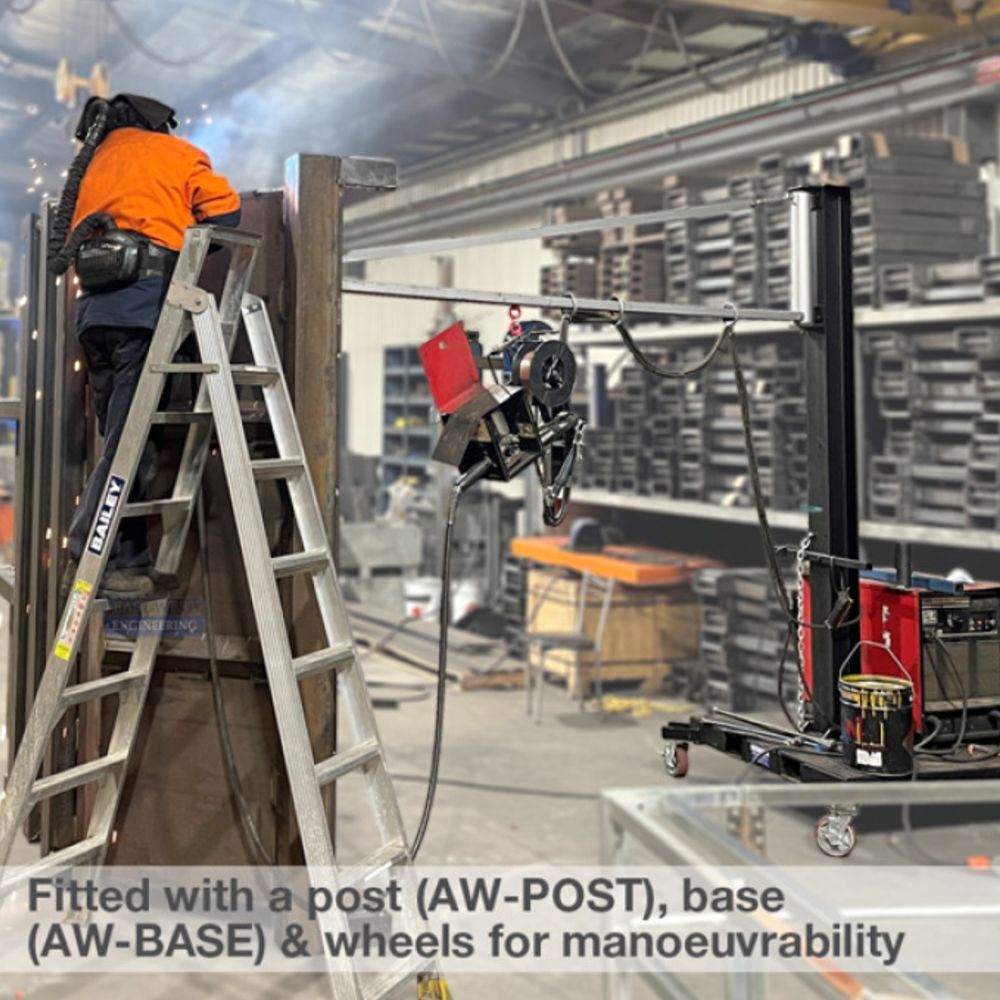

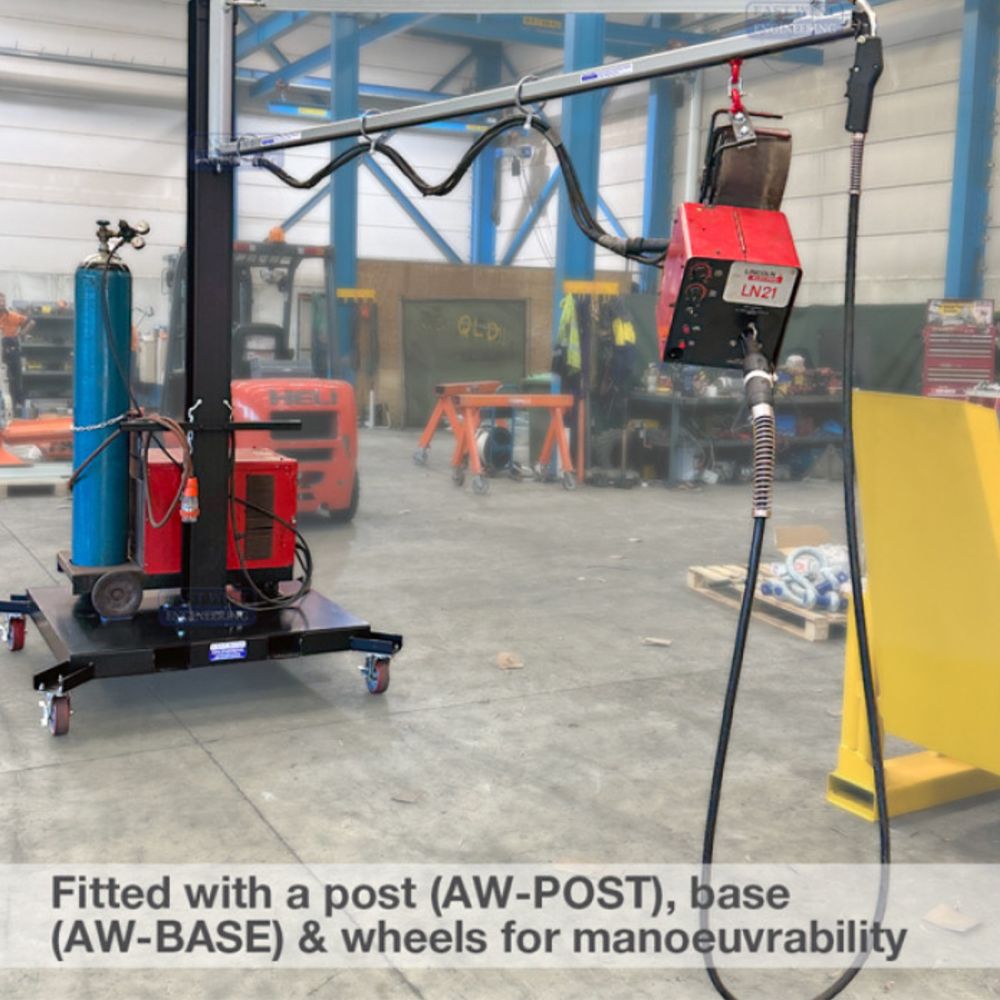

• Optional base (AW-BASE) allows unit to be floor mounted or fit with optional wheel kit for manoeuvrability
• AW-BASE is fitted with fork pockets and cranable when used with AW-POST
• Design & engineered to relevant Australian Standards
• Enamel paint finish

Specifications:

• Boom Length: 3115 mm
• Working Load Limit (WLL): 50 kg
• Arm Rotation: 180° bi-directional
• Trolley Range: 2800 mm
• Construction: Heavy-duty steel with enamel paint finish
• Mounting Options: Wall mount brackets supplied; optional floor mount post (AW-POST) and base (AW-BASE) available
• Mobility: Optional wheel kit (SC60006-006) for maneuverability
• Cable Management: Sliding hangers along beam to support cabling

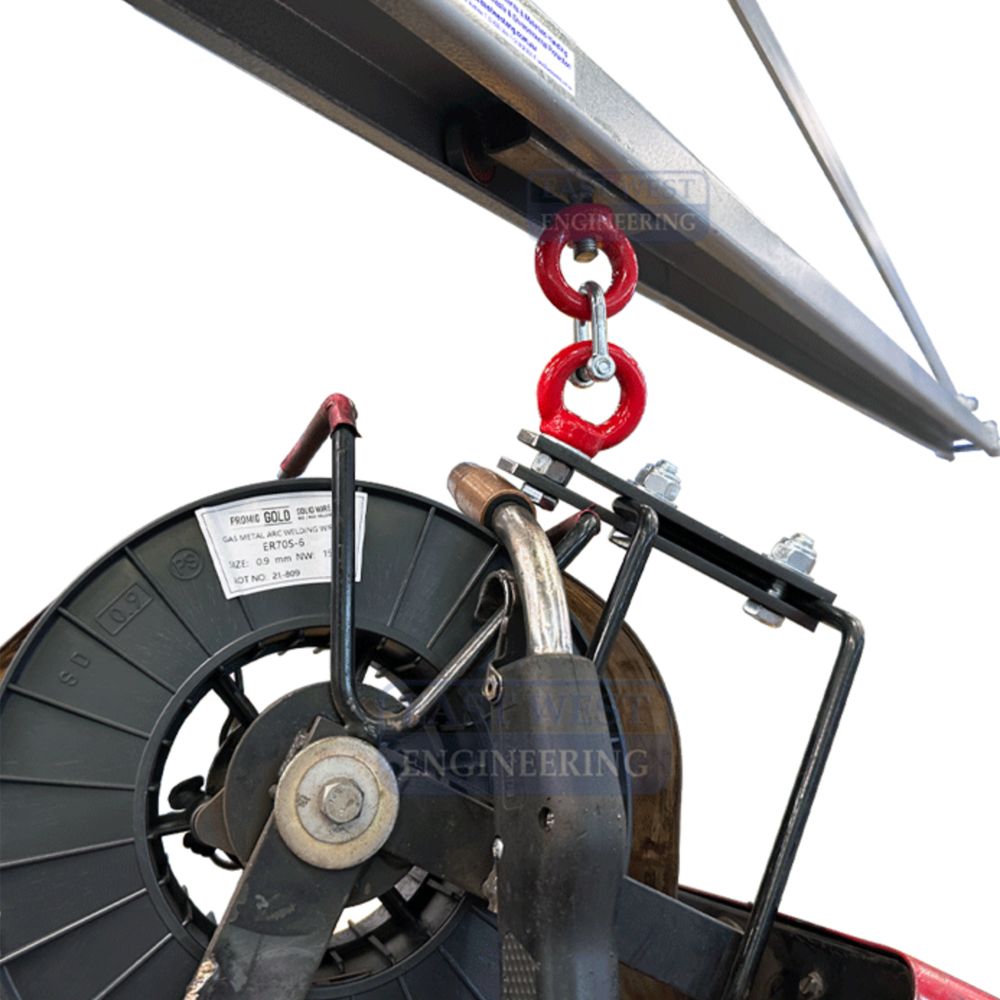

• Wire Feeder Support: 4-wheel trolley fitted to hang wire feeder
• Weight: 32 kg
• Dimensions (L x W x H): 3115mm x 155mm x 680 mm

Warranty:

• 12 Months Warranty Covered by East West Engineering
