Dustlight R23003.3 Personal Dust and Fume Monitor

Dustlight R23003.3 Personal Dust and Fume Monitor

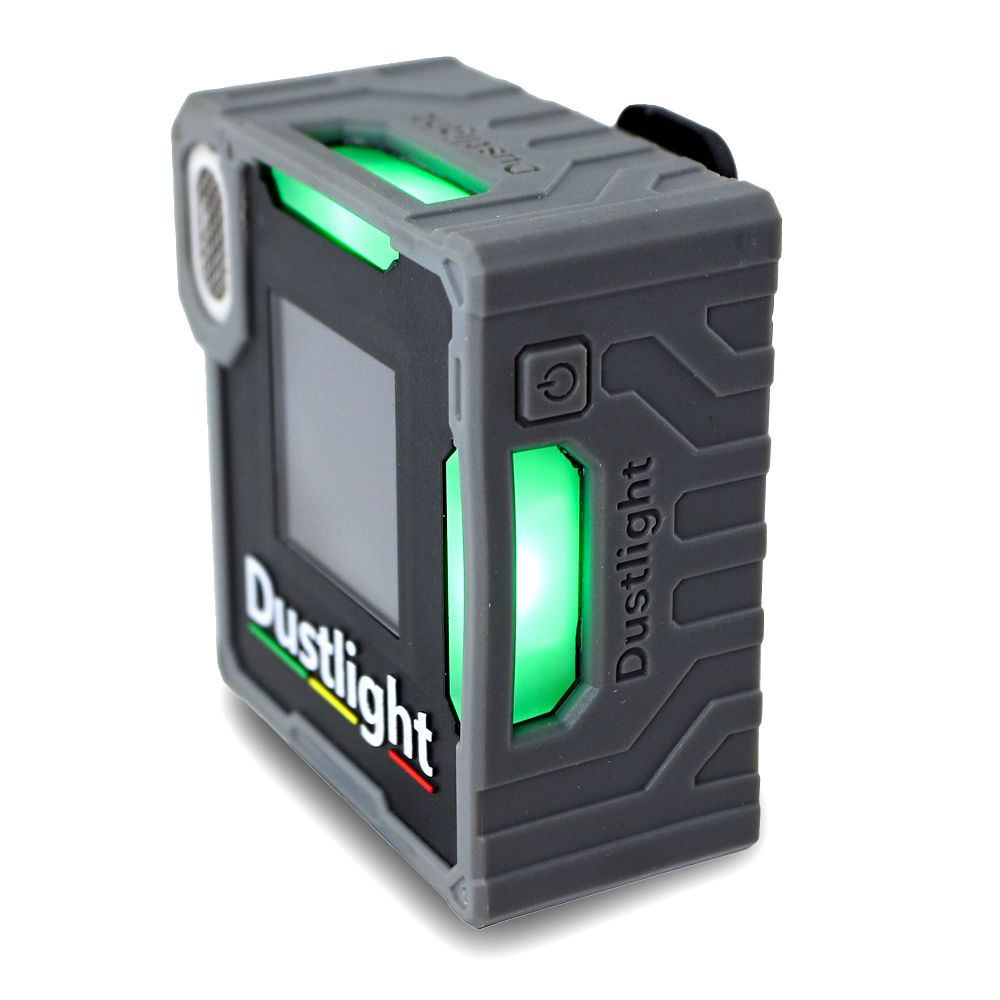

The Dustlight is a compact, hand-held dust monitor designed to provide real-time monitoring of airborne particles in any environment where dust exposure is a concern. Built for durability and ease of use, the Dustlight measures respirable dust, including PM1, PM2.5, and PM10 fractions, ensuring that workers know their surroundings and can take immediate action to protect their health.

Features:

• Specially designed to measure alveolar dust (A dust)
• Captures particles with an aerodynamic diameter of less than 4 μm
• Monitors PM1, PM2, and PM10 particle matter

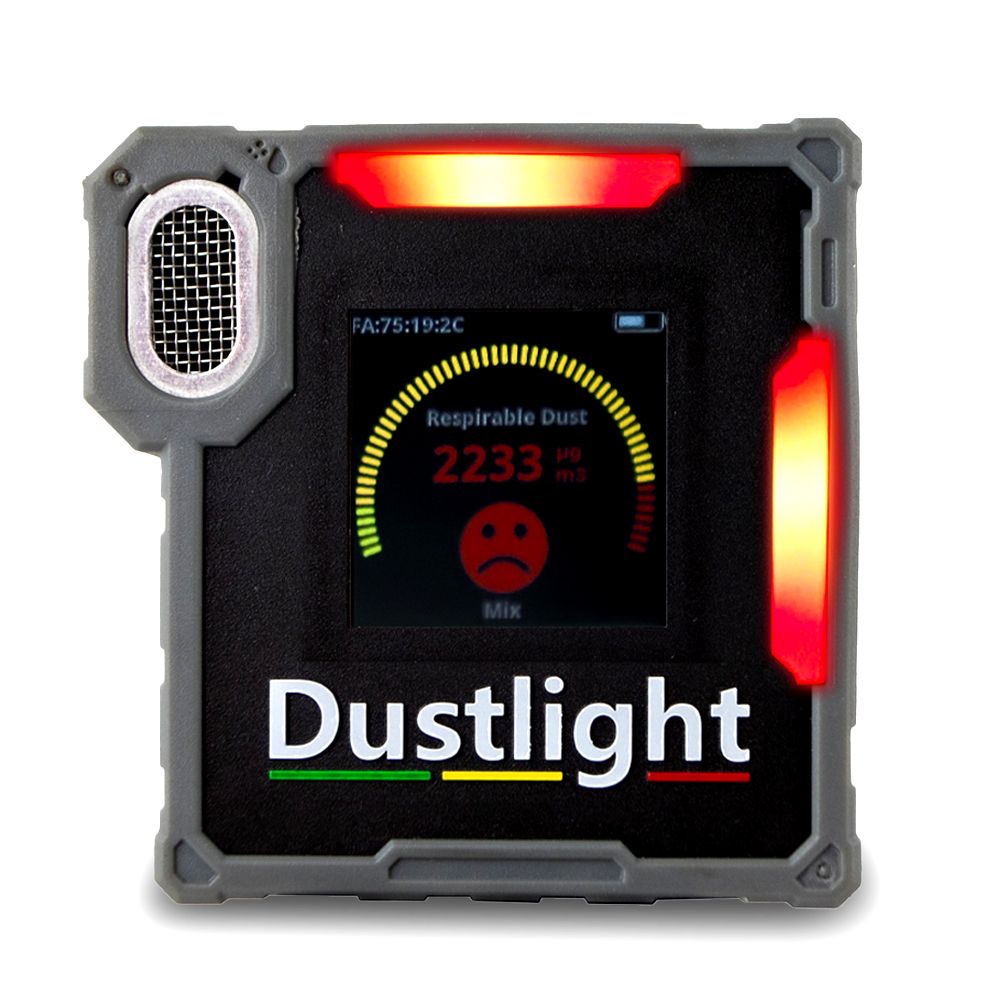

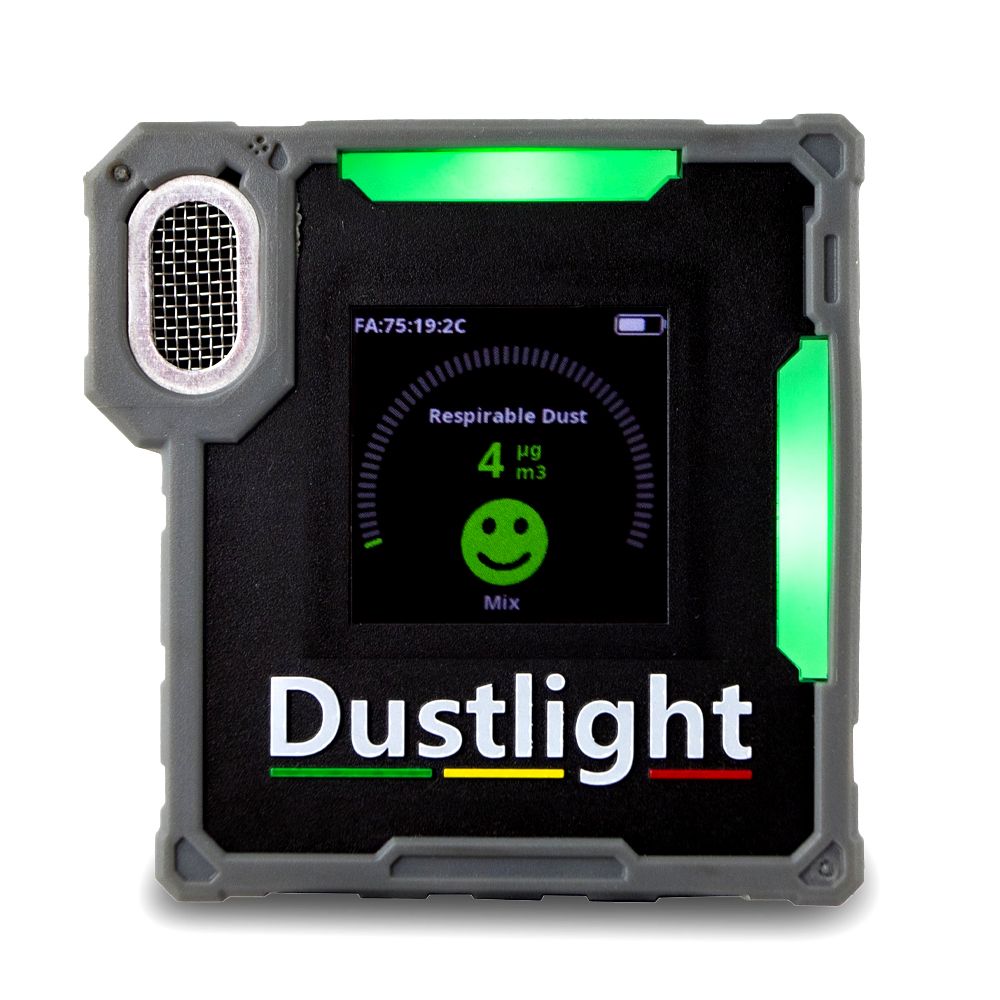

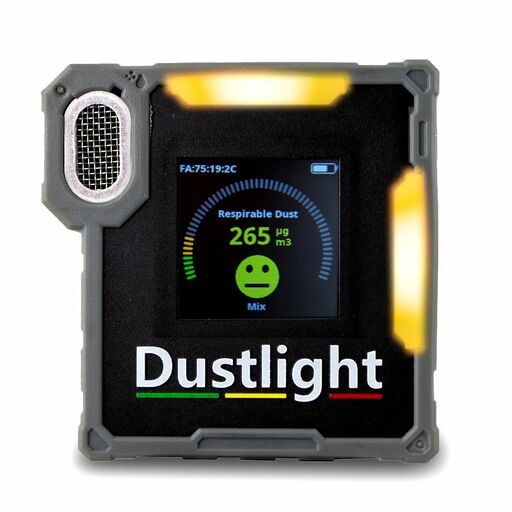

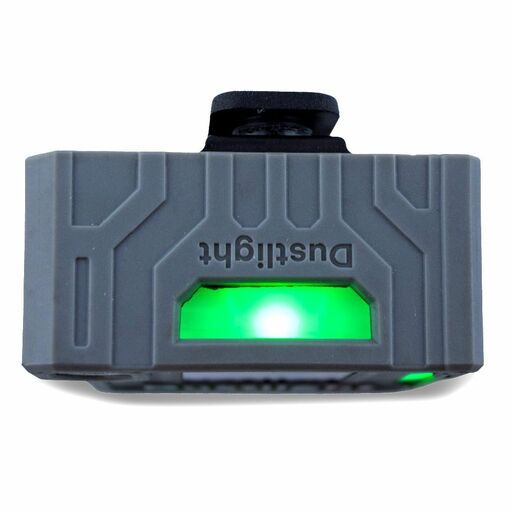

• Colour-coded alerts for quick response - simple green, amber, red system
• Easy viewing of current and average dust concentrations
• Attaches easily to belts and clothing
• Long Battery Life - up to 40 hours in eco mode
• Shock-resistant, ideal for tough environments
• Built with precision and quality in Germany

Application:

The use of the limit values from TRGS 900 serves to categorise the dust levels for the user. Measurements with the Dustlight are to be understood as indicative measurements; they cannot be used as proof of compliance with occupational exposure limits. In terms of prevention, the Dustlight warns users if the dust concentration in the ambient air rises unnoticed to a critical level. In terms of measurement technology, for example, it can be used to continuously monitor the effectiveness of protective measures. By observing the temporal progression of the dust concentration, qualitative statements about the release behaviour of various work processes or the localisation of dust sources are also conceivable applications.

Specifications:

• Power Supply: via enclosed USB cable with dust-protected magnetic coupling
• Battery supply:  Lithium-ion battery, 1700 mAh, runtime depends on operating
  • mode and usage:
    • Continuous: up to 7 hours
    • Standard: up to 20 hours
    • Eco: up to 40 hours
• Measuring Method: Photometric (laser-based)
• Fastening:

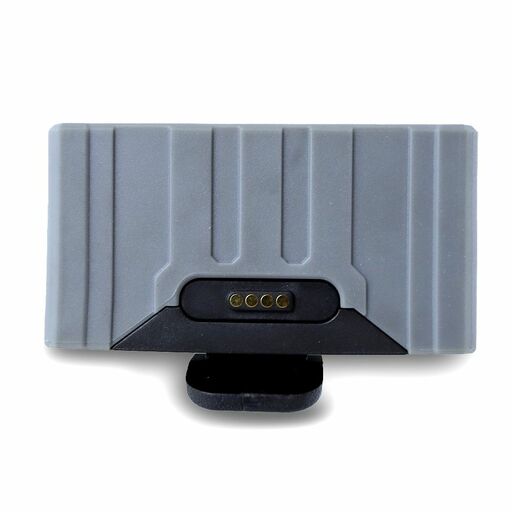

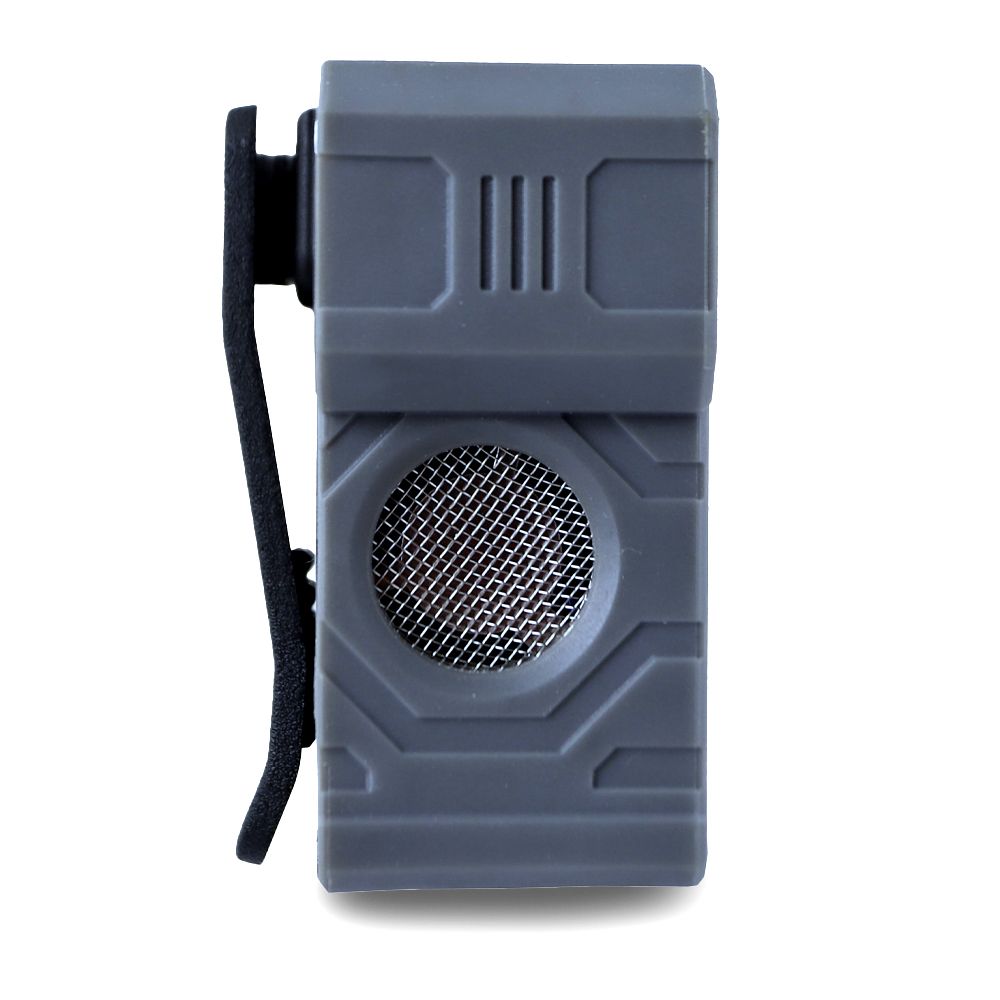

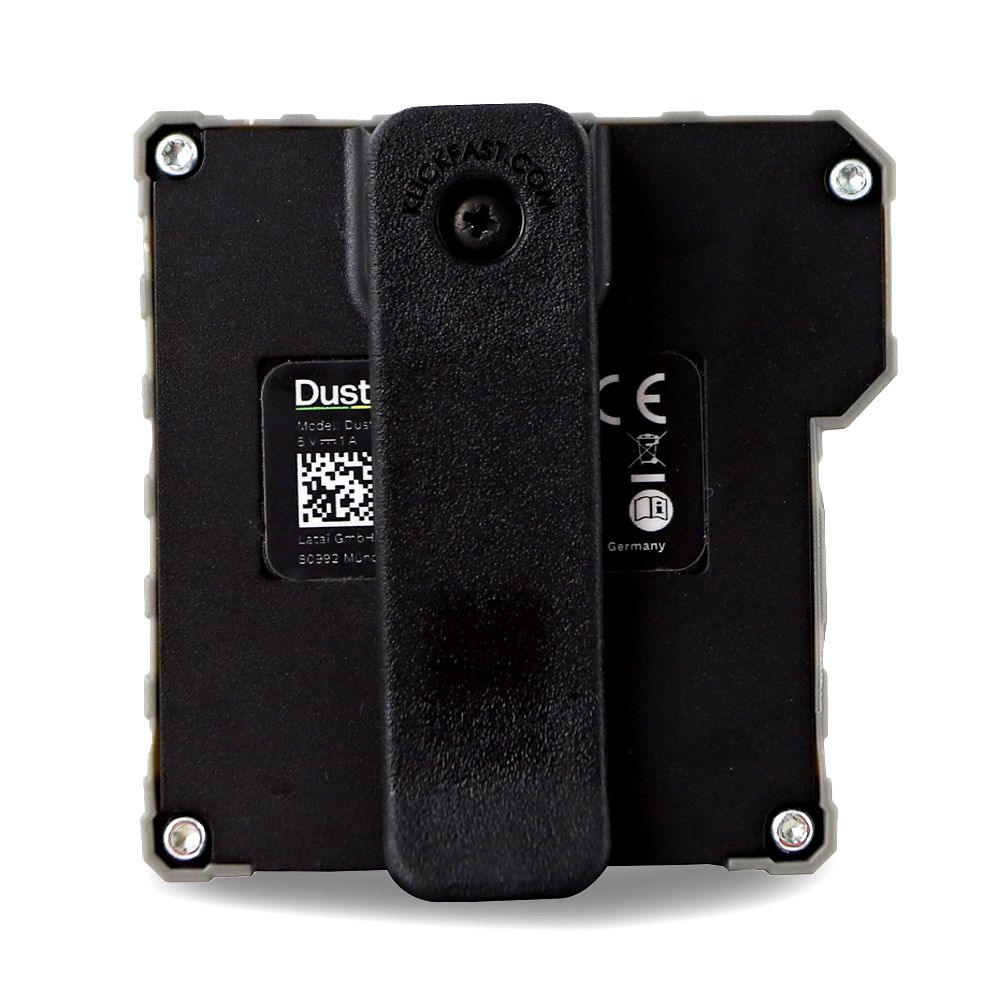

  • Modular Click Fast fastening system on the back of the device for attachment to belt clip
  • Velcro fastener/patches on clothing
  • Carrying strap
• Storage Temperature:  - 20 to + 40 °C
• Operating Temperature Range: - 10 to + 50 °C
• Operating Humidity Range: 0 - 80 % RH

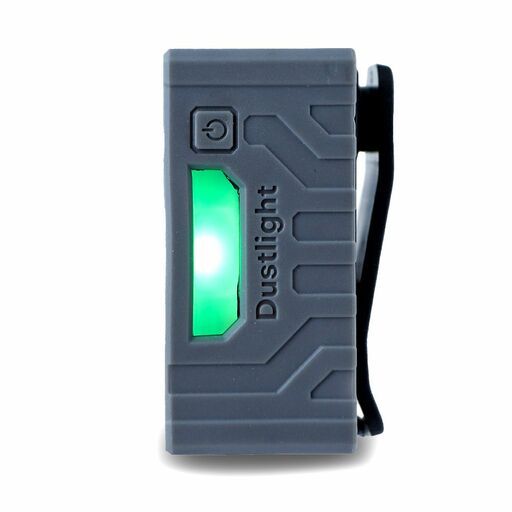

• Alerting: LED display with good visibility, LCD colour display, acoustic    signal, app notifications
• Dimensions (L x W x H): 690mm x 690mm x 32.5mm
• Weight: 0.149kg
