DJI DJIPOWERMOD Solar Panel Adapter Module (MPPT)

DJI DJIPOWERMOD Solar Panel Adapter Module (MPPT)

When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series.

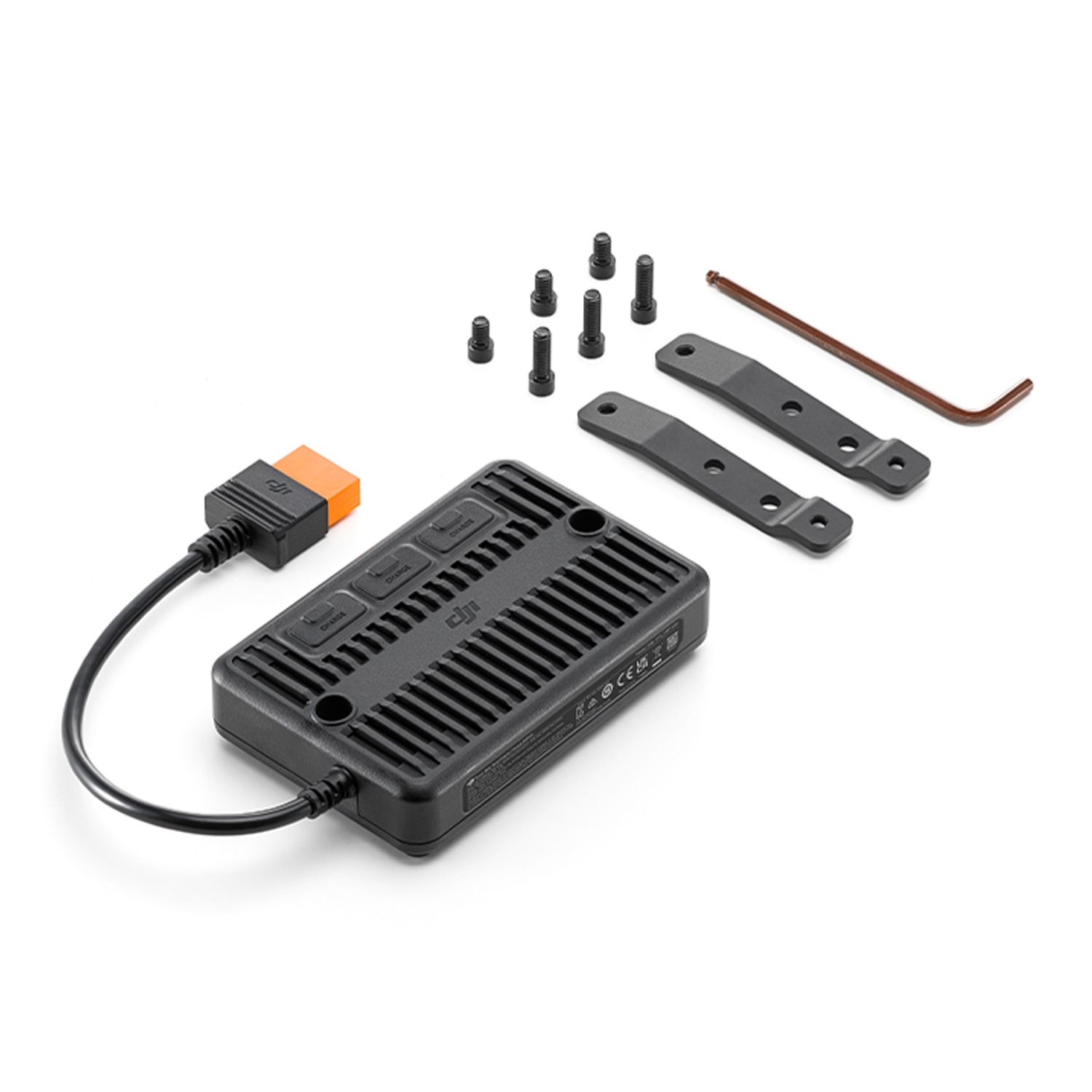

Includes:

• 2 x Metal Heat Dissipation Bracket
• 1 x Ball-End Hex Key
• 3 x 10mm Screw
• 3 x 20mm Screw

Specifications:

• Total Output:
  • Single Channel:
    • Max 200 W
  • Triple Channels:
    • Max 400 W (with DJI Power 1000)
    • Max 300 W (with DJI Power 500)
• Input Voltage: 12-30 V, DC
• Max Input Current:
  • Single Channel: 10 A
  • Triple Channels: 16 A
• Operating Temperature: -10° to 45° C (41° to 113° F)

Warranty:

• 2 Years Standard Warranty covered by DJI Australia.
