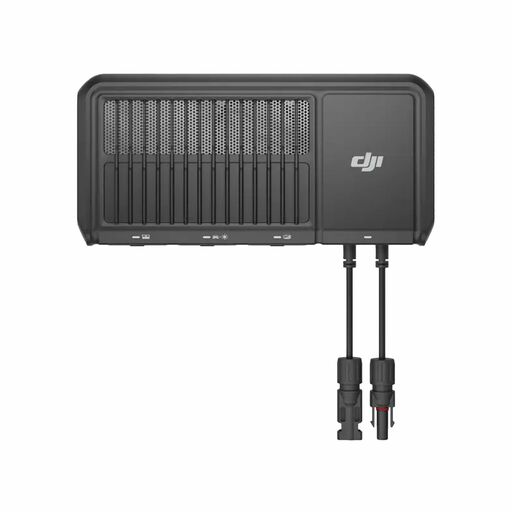

DJI DJIPOWERCARCHAR 1.8kW Solar/Car Super Fast Charger

DJI DJIPOWERCARCHAR 1.8kW Solar/Car Super Fast Charger

The DJI Power 1.8kW Solar/Car Super Fast Charger supports simultaneous connection to solar panels and the RV's alternator, together providing up to 1200 W of solar power and 600 W of continuous car power to quickly recharge DJI Power 1000/2000/1000 V2  and expansion battery, reaching 1024 Wh of power during a drive of approximately 40 minutes, and 2048 Wh in 75 minutes, expanding the capacity of your car's electrical system

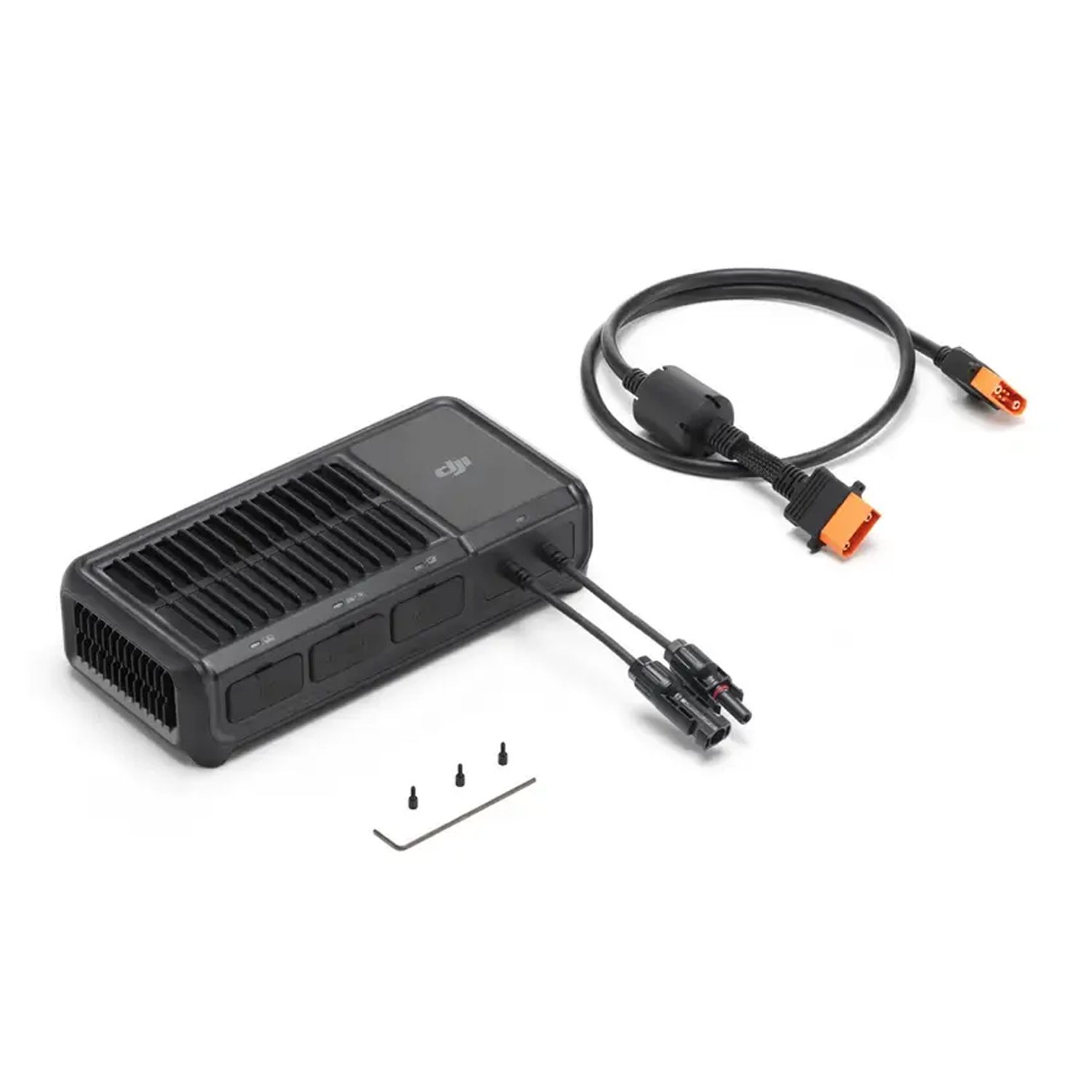

Includes:

• DJI Power 1.8kW Solar/Car Super Fast Charger × 1
• DJI Power SDC to SDC Adapter Cable (30A) × 1
• M2.5 Hex Socket Screw × 3
• M2.5 Hex Key × 1

Specifications:

• Weight: Approx. 1.2 kg
• Dimensions (L×W×H):
• 260×126×63 mm
• Ports/cables:
  • SDC Port × 1
  • Car/Solar Charging Port × 1
  • MC4 Solar Panel Cable × 1
• Input:
  • MC4 Solar Panel Cable (Input):
  • Rated: 12-60 V, max current: 20 A, max power: 1200 W*
  • XT90 Car/Solar Charging Port (Input):
  • Rated: 12-45 V
  • Max current: 43 A, max power: 600 W*
• SDC Port (Output):

  • 40-58.4 V
  • * Measured in an ambient environment of 25° C (77° F) when being recharged at 60 V and 20 A.
  • ** Measured at an ambient temperature of 25° C (77° F) when connected to a 12V car system with an input of 14 V and 43 A.
  • *** When using with DJI Power 1000/2000/1000 V2, achieving the 1800W max recharging power requires connecting the power station to a DJI Power Expansion Battery 2000.
  • Output (Power Supply with Solar Power)
  • SDC Port (Input):
  • 40-58.4 V
• Output (Power Supply with Car Power):

  • SDC Port (Input):
  • 40-58.4 V
• XT90 Car/Solar Charging Port (Output):

  • 12V Car System: 11-14.4 V, 600W max power*
  • 24V Car System: 22-28.8 V, 600W max power*
• * At temperatures between 0° to 45° C (32° to 113° F), it can continuously recharge DJI Power 1000 at 600 W via the car's alternator.
• Charging Temperature: 0° to 45° C (32° to 113° F)
• Power Supply Temperature: -10° to 45° C (14° to 113° F)

Warranty:

• 2 Years Standard Warranty covered by DJI Australia
