Daytona DMFG2P 2pce Metric & Imperial Multifunction Gauge

Daytona DMFG2P 2pce Metric & Imperial Multifunction Gauge

The Daytona 2pce Metric & Imperial Multifunction Gauge is a quick and efficient measuring tool for precise and exact identification of drill bits, fasteners, nuts and threads. The gauge is easy to use, saves time and helps to eliminate sizing errors.

Features:

• Drill bit gauge measures in both metric and imperial
• Drill sharpening point angle gauge for accuracy
• Bolt or screw size can be measures by the shaft or head in metric sizes M2.5-M20 and in imperial sizes #2-3/4"
• Nut internal thread gauge for course or fine threads, metric M4-M12 and imperial #8-1/2"

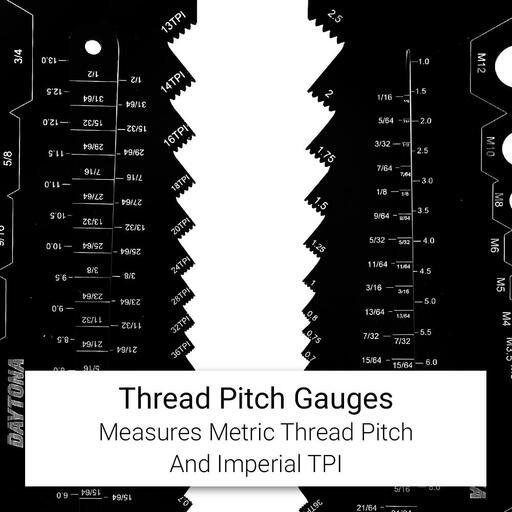

• Thread pitch gauge reads in both metric and imperial

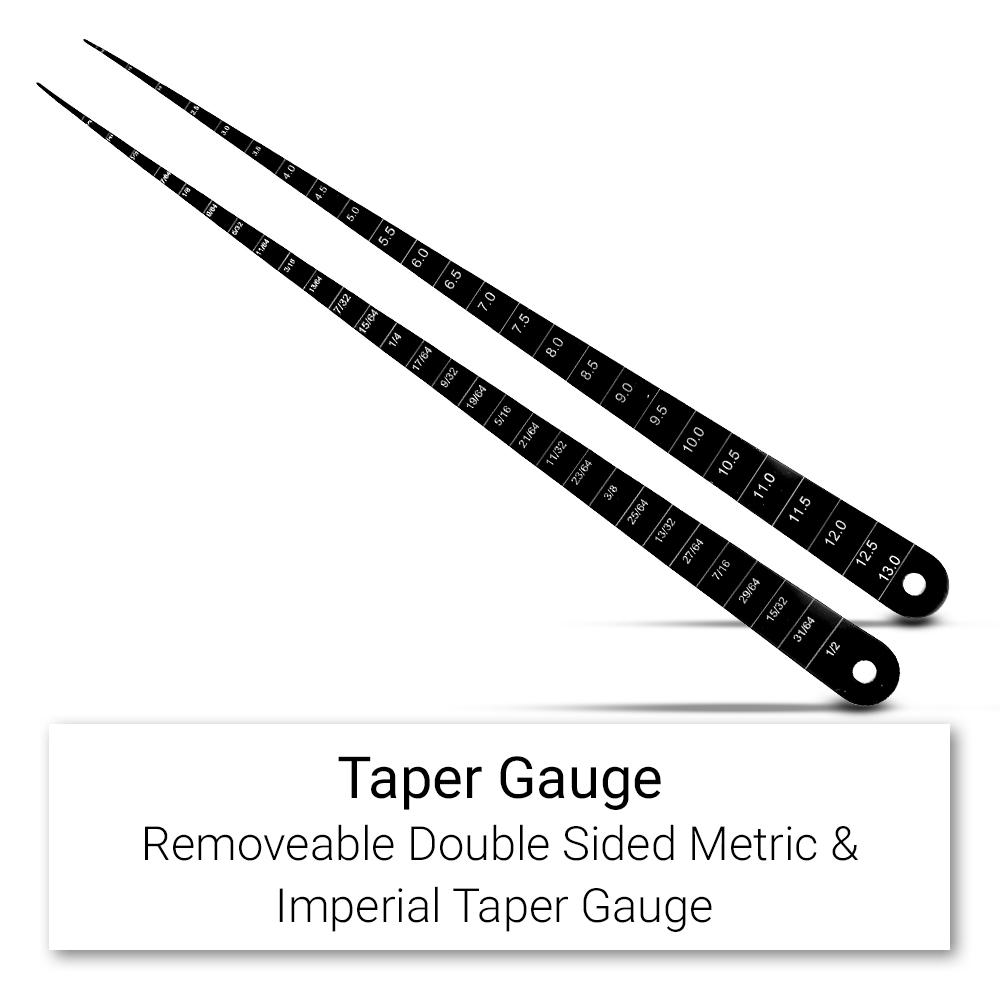

• Removeable double sided metric and imperial taper gauge

Specifications:

• Material: Stainless Steel
• Bolt & Screw Gauge:

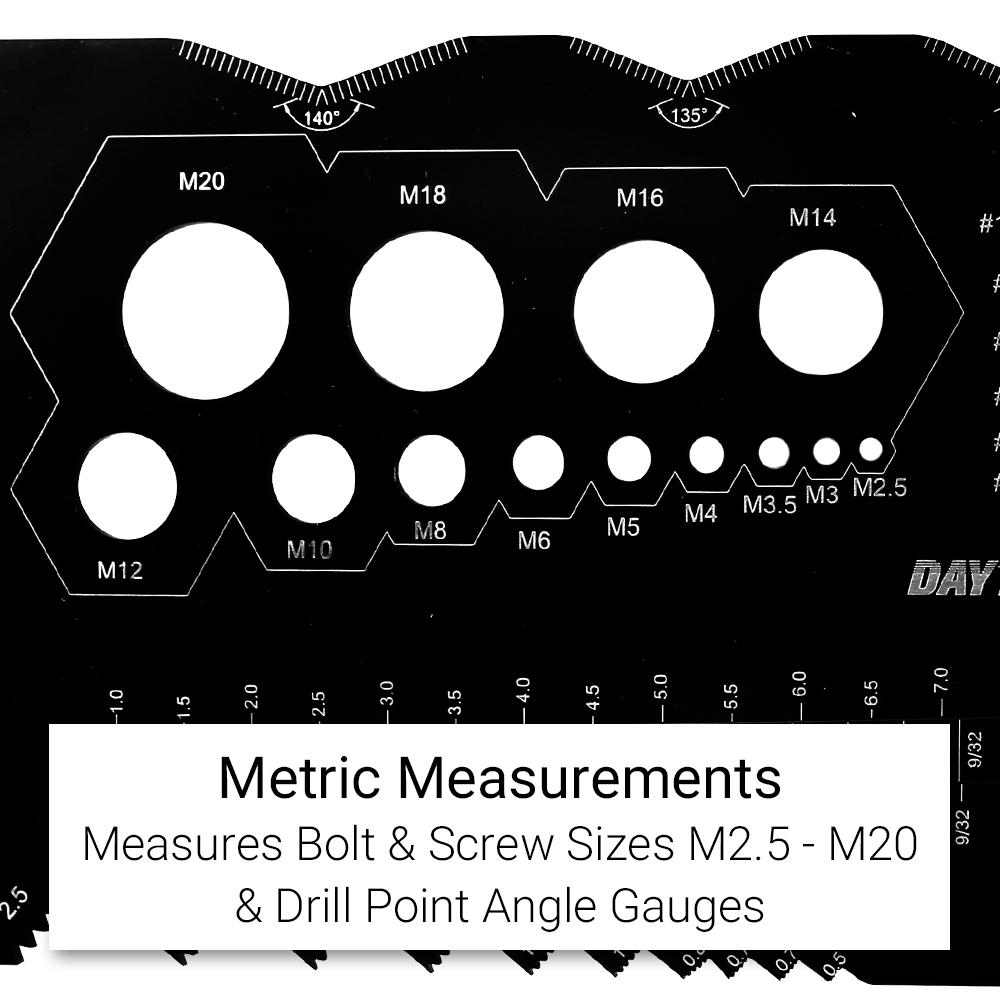

  • Metric: M2.5, M3, M3.5, M4, M5, M6, M8, M10, M12, M14, M16, M18,M20

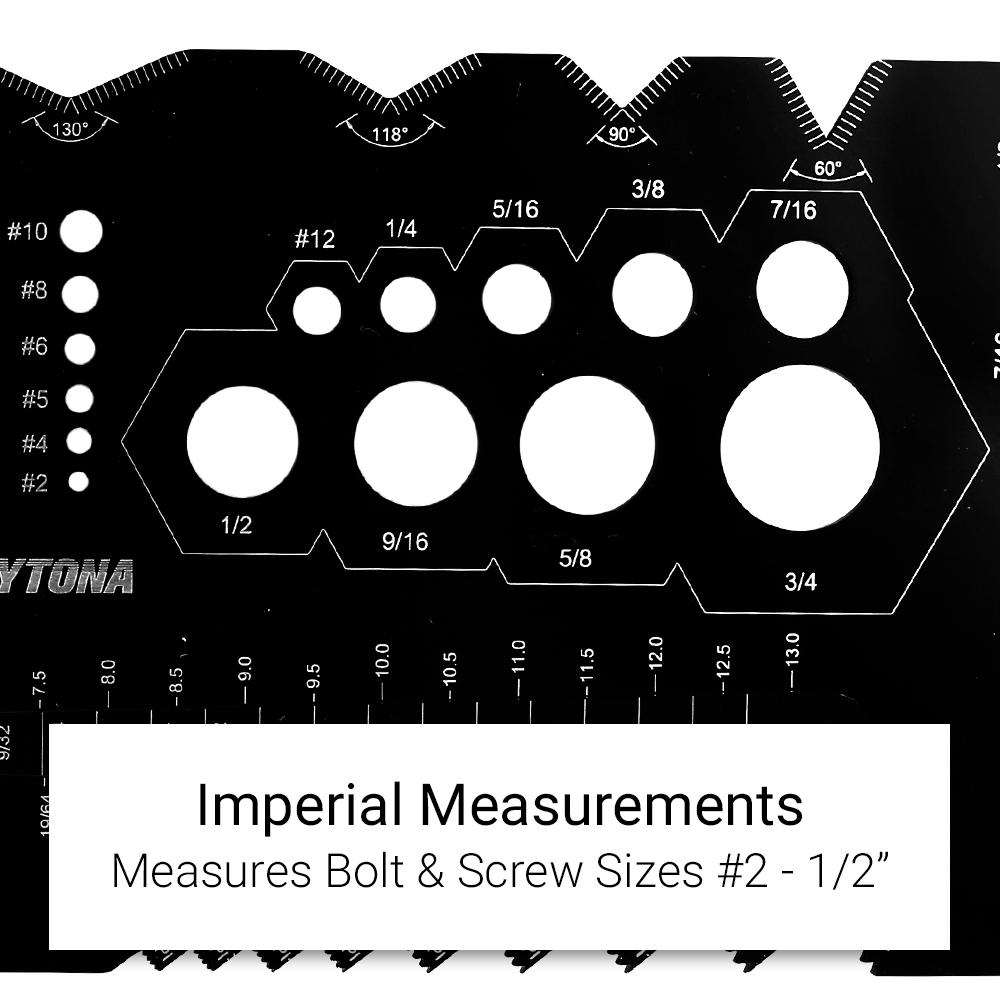

  • Imperial: #2, #4, #5, #6, #8, #10, #12, 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4"
• Nut Internal Thread Gauge:
  • Metric: M4, M5, M6, M8, M10, M12
  • Imperial: #8, #10, 1/4", 5/16", 3/8", 7/16", 1/2"
• Drill Point Angle: 140°, 135°, 130°, 118°, 90°, 60°
• Thread Pitch:
  • Metric: 0.5, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5
  • Imperial: 36TPI, 32TPI, 28TPI, 24TPI, 20TPI, 18TPI, 16TPI, 14TPI, 13TPI
• Taper Gauge:
  • Metric:1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0, 10.5, 11.0, 11.5, 12.0, 12.5, 13.0
  • Imperial: 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"
• Units: Metric & Imperial
• Overall Length: 200mm
• Overall Width: 100mm
