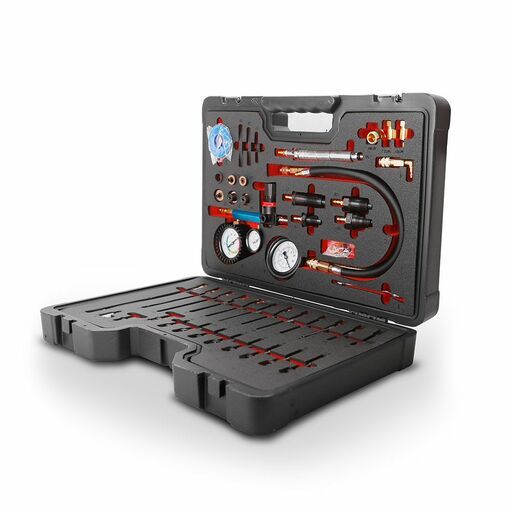

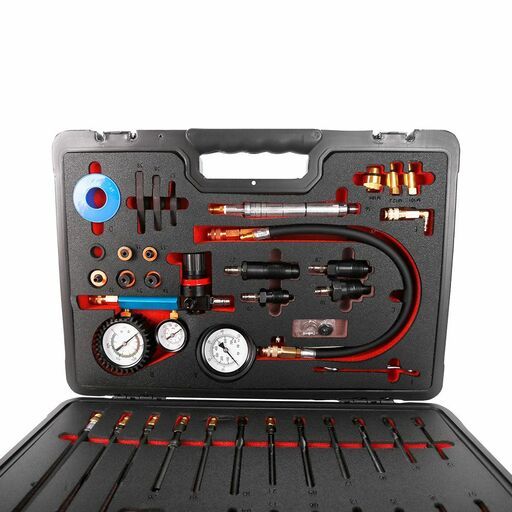

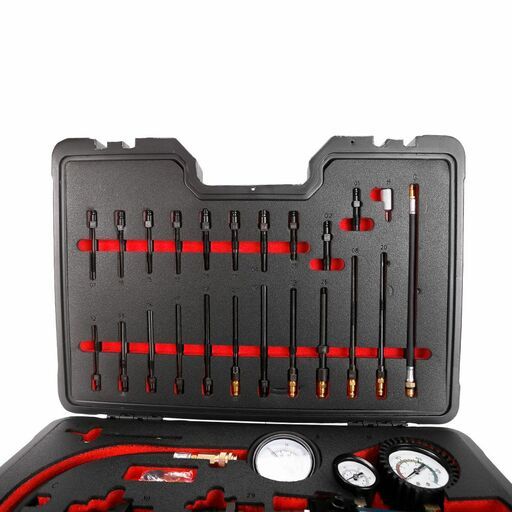

Daytona DCLT46 46pce Petrol & Diesel Engine Compression & Leakage Test Kit

Daytona DCLT46 46pce Petrol & Diesel Engine Compression & Leakage Test Kit

Includes

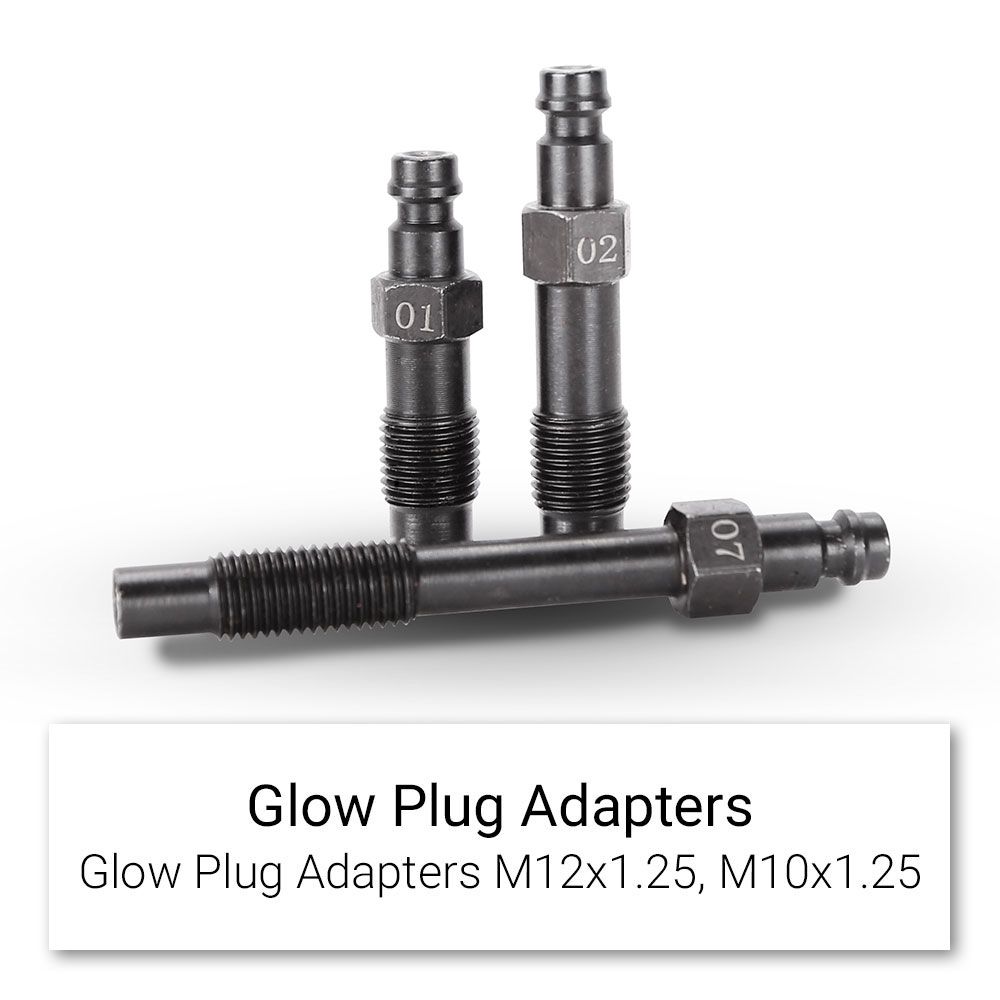

• 1 x Glow Plug Adaptor M12 x 1.25 (Thread Length: 12mm, Lower Shaft Length: 8mm)
• 1 x Glow Plug Adaptor M10 x 1.25(Thread Length: 12mm, Lower Shaft Length: 8mm)
• 1 x Glow Plug Adaptor M12 x 1.25 (Thread Length: 11mm, Lower Shaft Length: 41mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 22.5mm, Lower Shaft Length: 23.5mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 18.5mm, Lower Shaft Length: 10.5mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 28mm, Lower Shaft Length: 16mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 23mm, Lower Shaft Length: 9.5mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 28mm, Lower Shaft Length: 55mm, Lower Shaft Ext. Length: 3mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 26mm, Lower Shaft Length: 59mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 29mm, Lower Shaft Length: 73mm)
• 1 x Glow Plug Adaptor M10 x 1.25 (Thread Length: 15mm, Lower Shaft Length: 27mm)

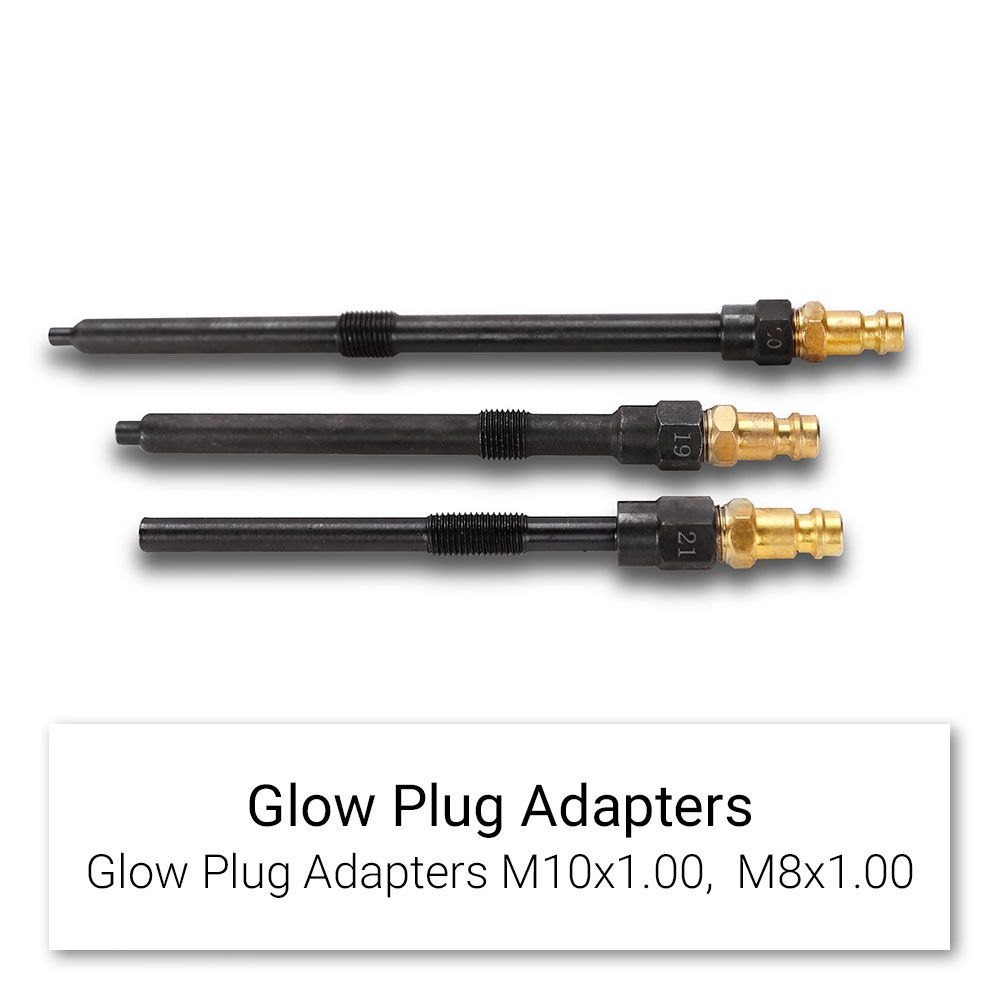

• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 23mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 31mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 14mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 10mm, Lower Shaft Length: 59mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 47mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 42mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 10mm, Lower Shaft Length: 64mm, Lower Shaft Ext. Length: 5mm)
• 1 x Glow Plug Adaptor M10 x 1.00 (Thread Length: 12mm, Lower Shaft Length: 57mm, Lower Shaft Ext. Length: 5mm)
• 1 x Glow Plug Adaptor M8 x 1.00 (Thread Length :12mm, Lower Shaft Length: 52mm)
• 1 x Glow Plug Adaptor (No Thread) (Thread Length:, Lower Shaft Length: 59mm)

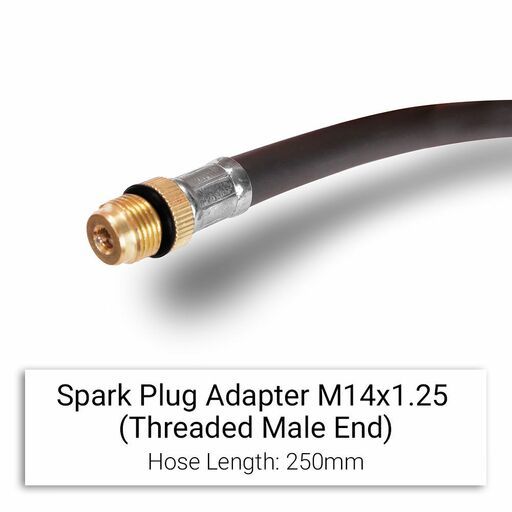

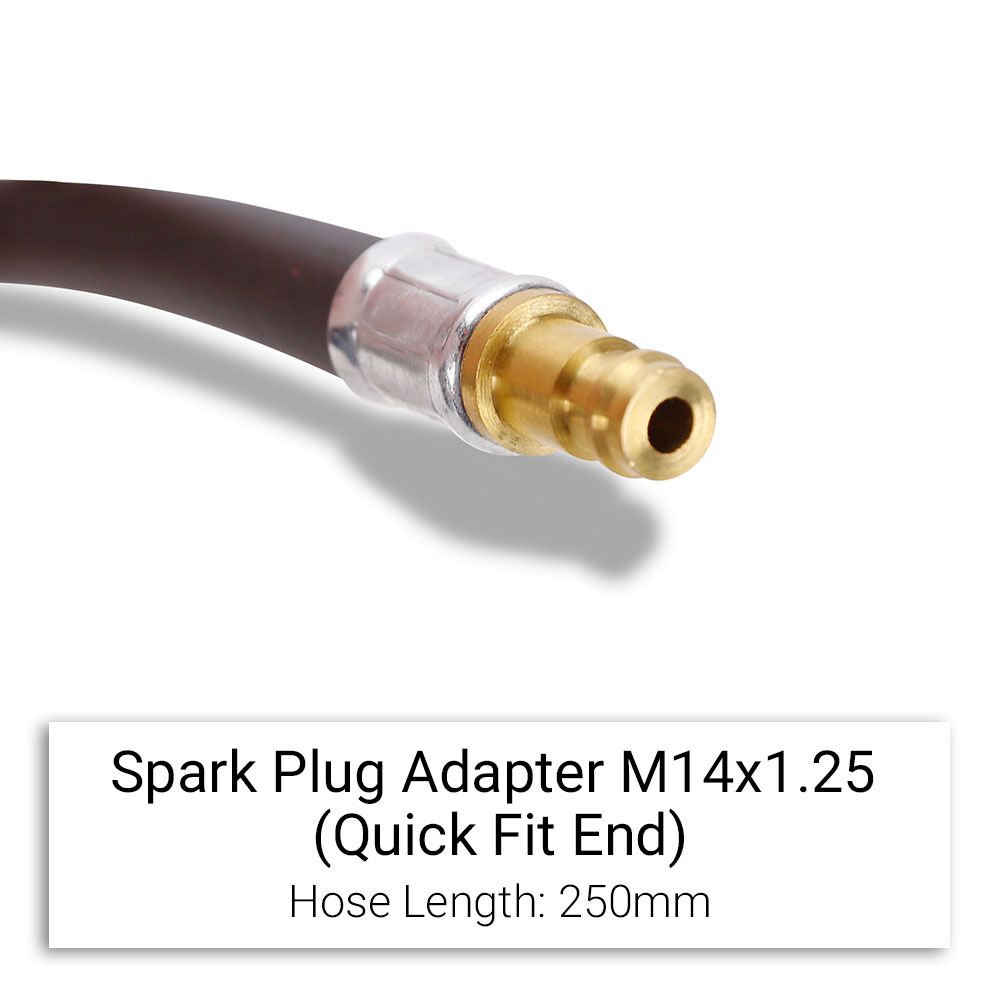

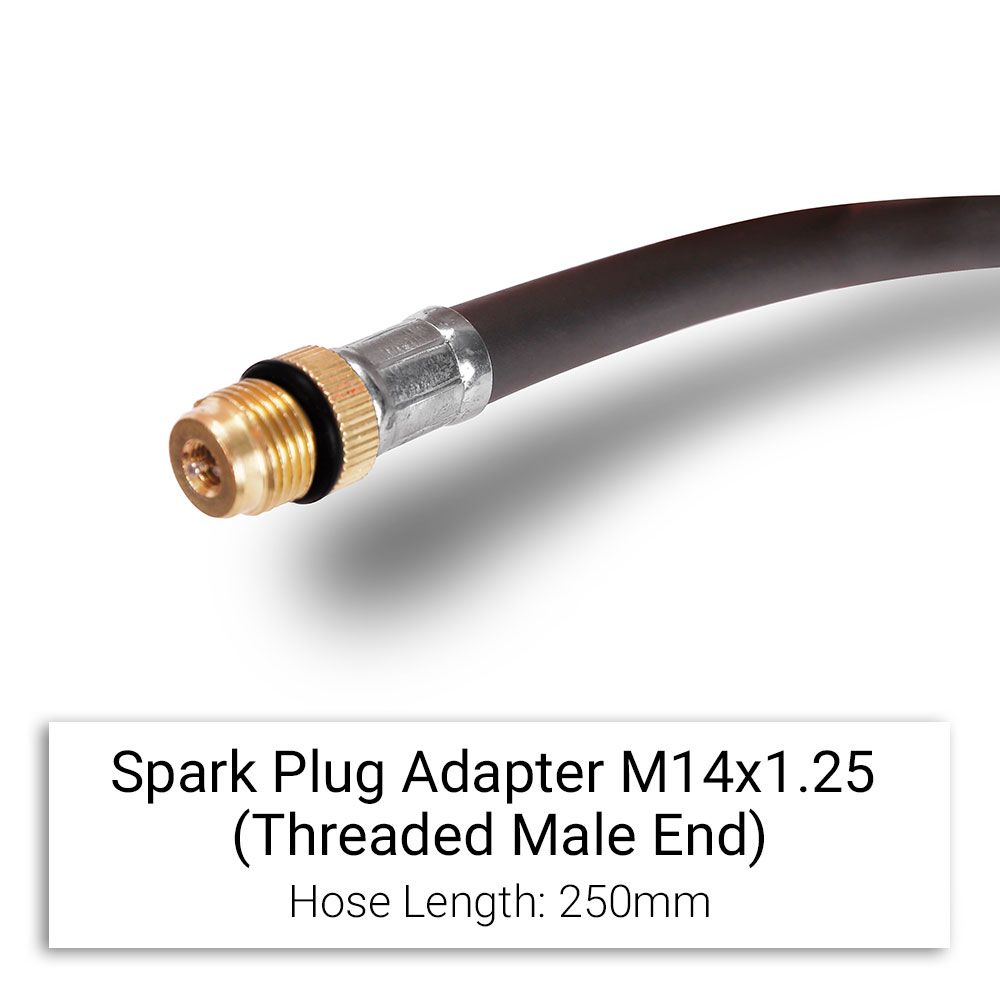

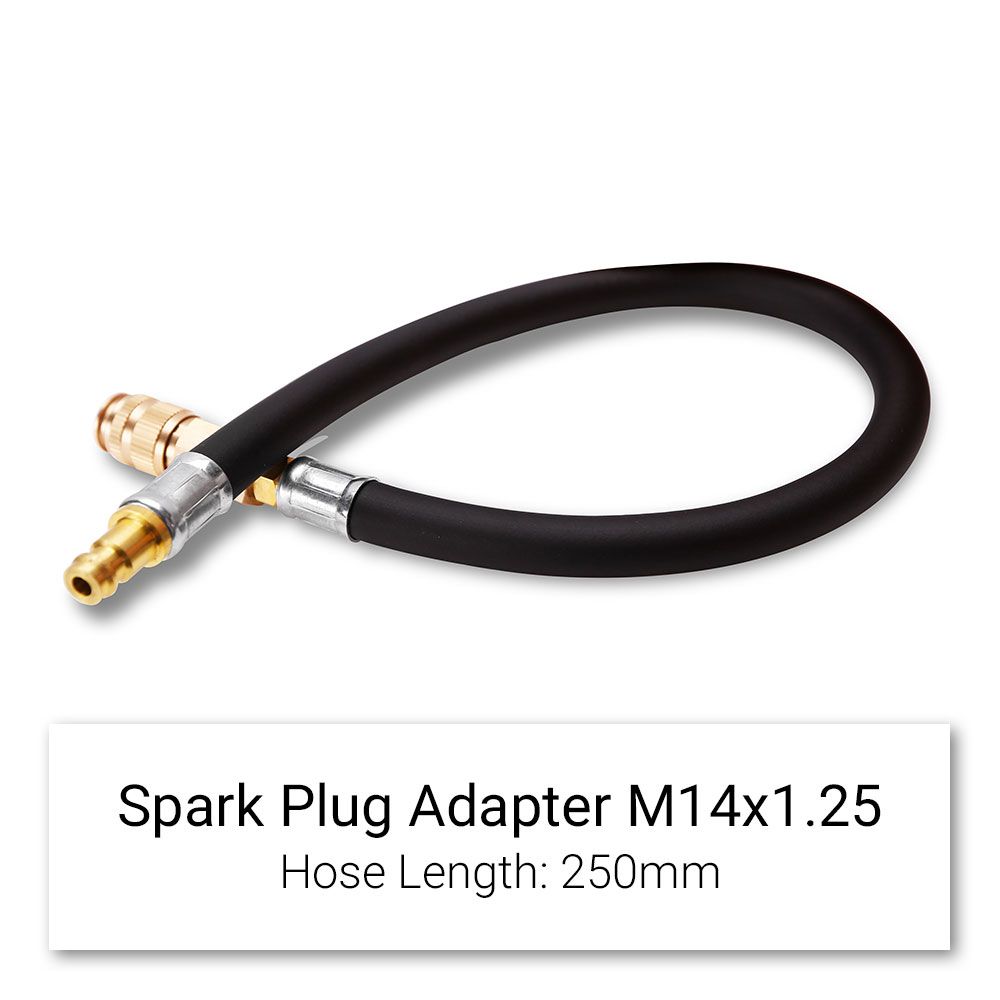

• 1 x Spark Plug Adaptor M14 x 1.25 (Hose Length: 250mm)

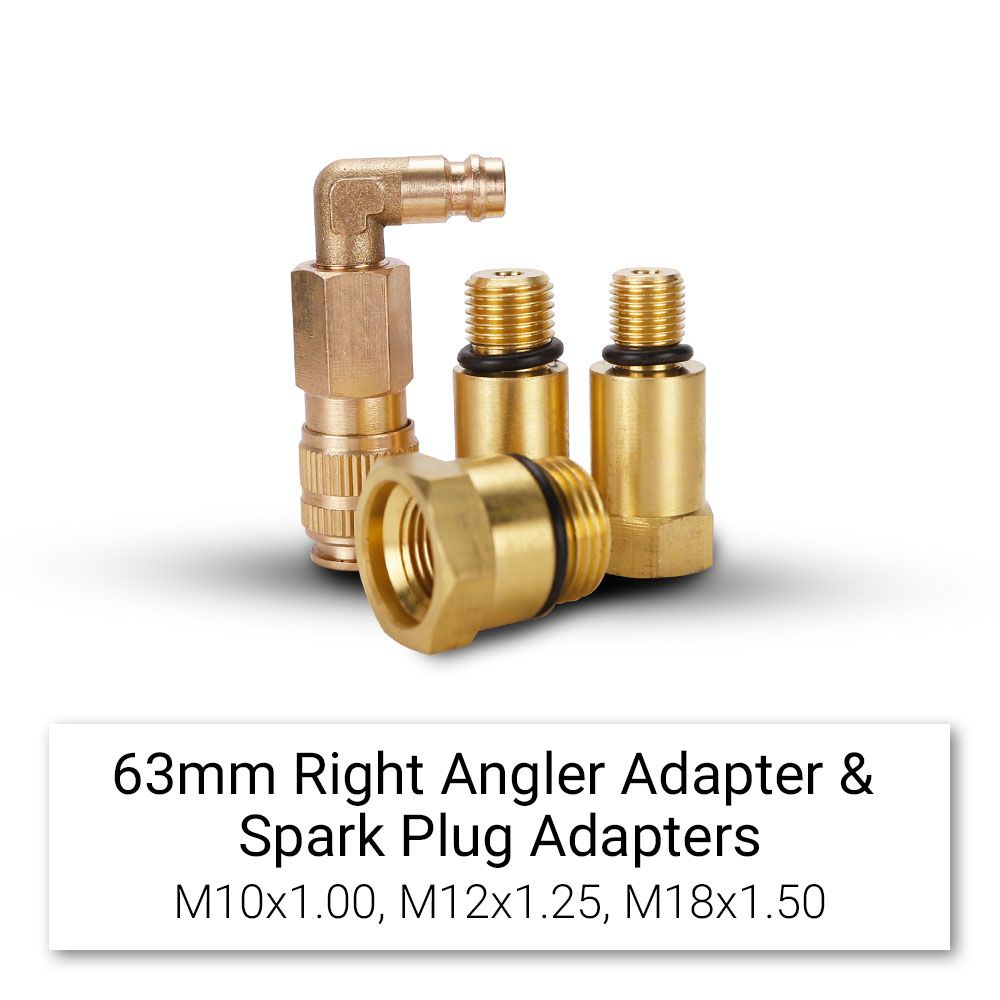

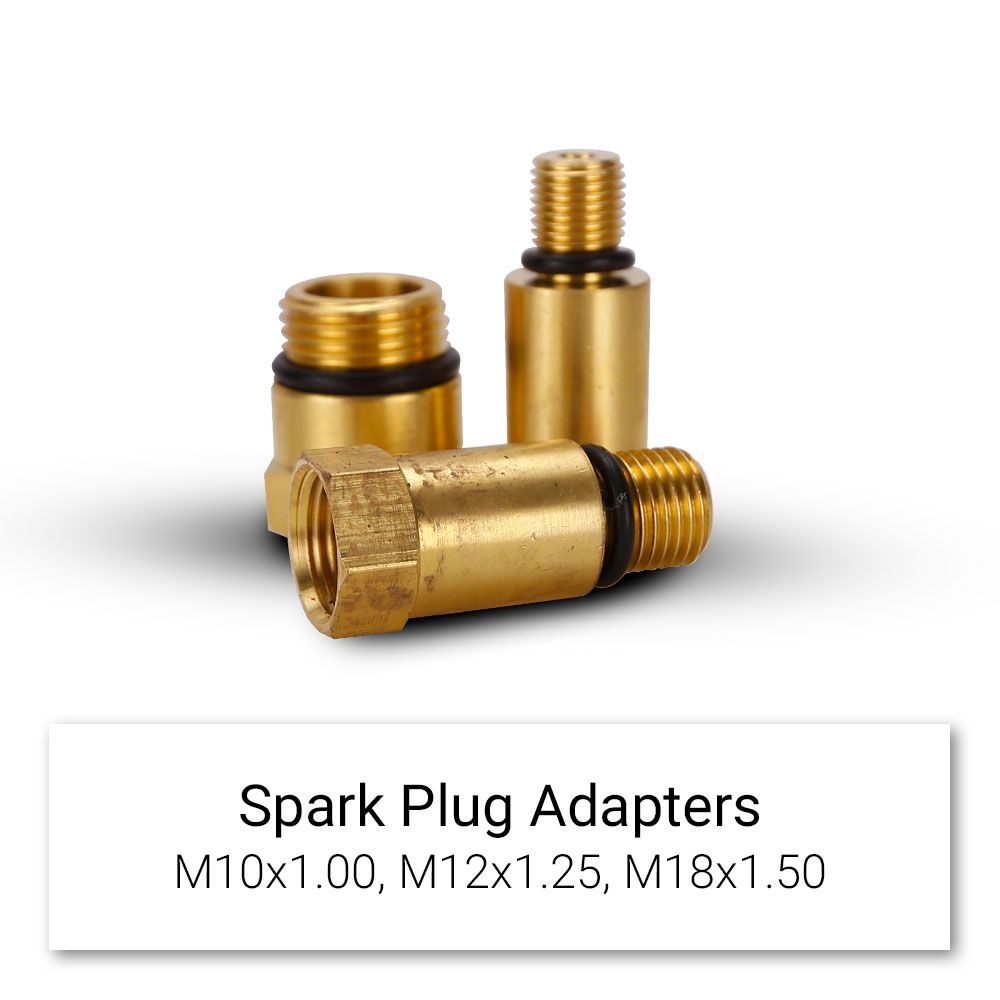

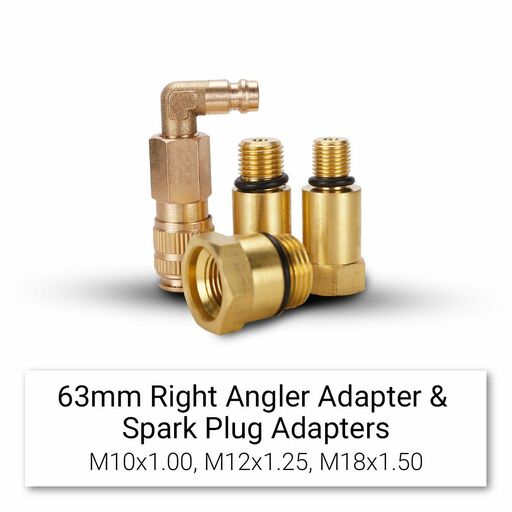

• 1 x Spark Plug Adaptor M10 x 1.00
• 1 x Spark Plug Adaptor M12 x 1.25
• 1 x Spark Plug Adaptor M18 x 1.50

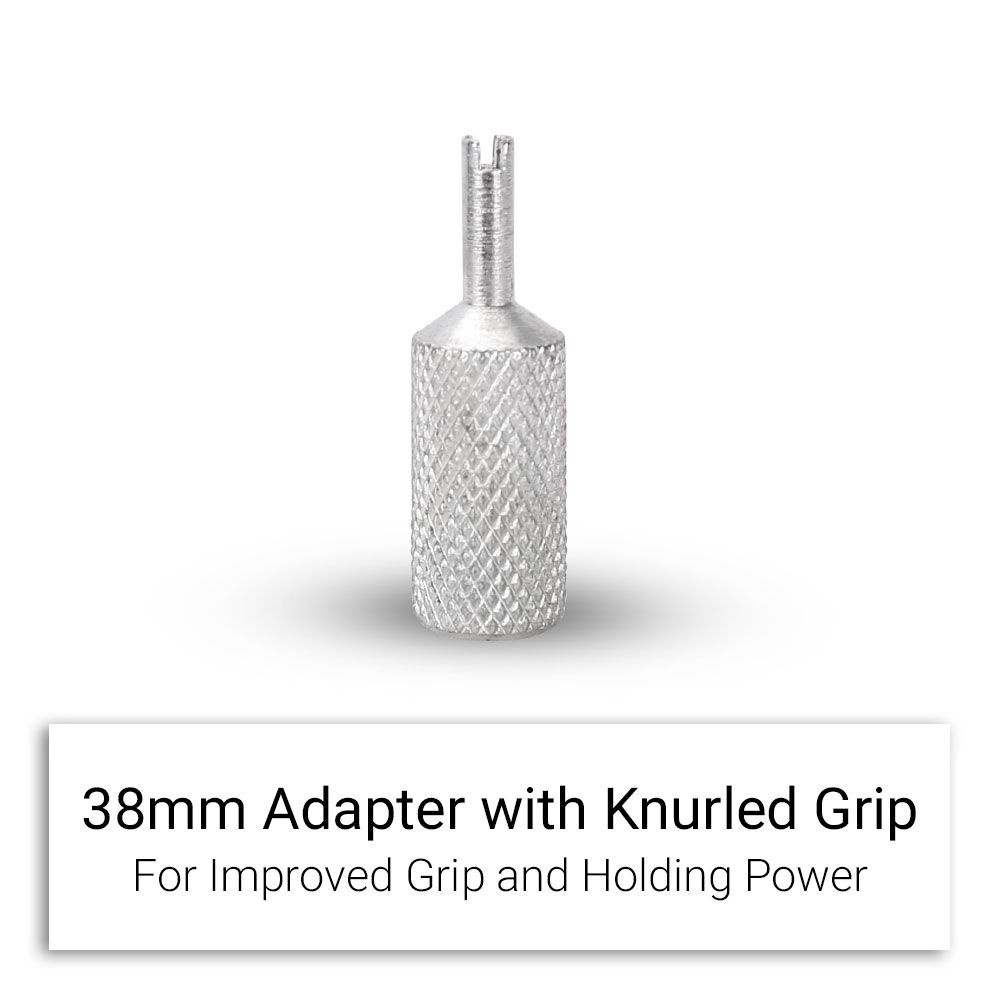

• 1 x 38mm Adaptor with Knurled Grip

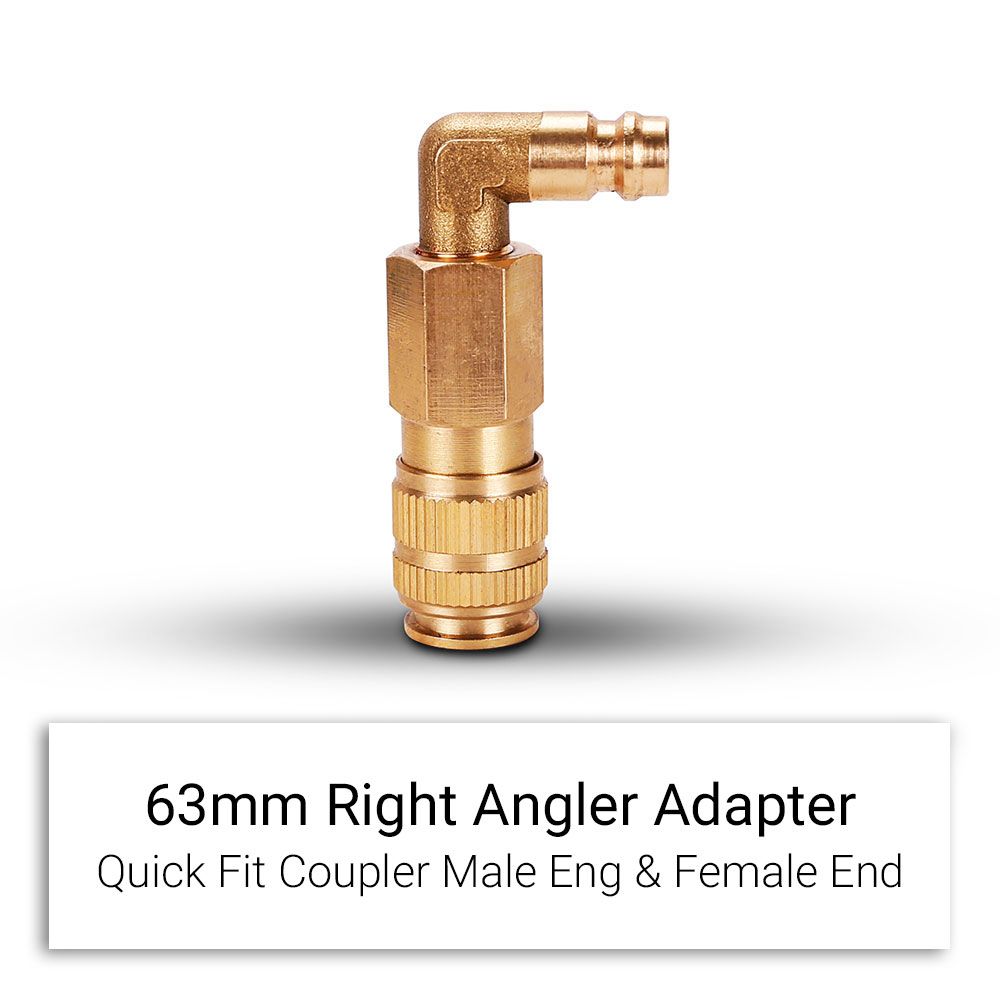

• 1 x 63mm Right Angle Adaptor

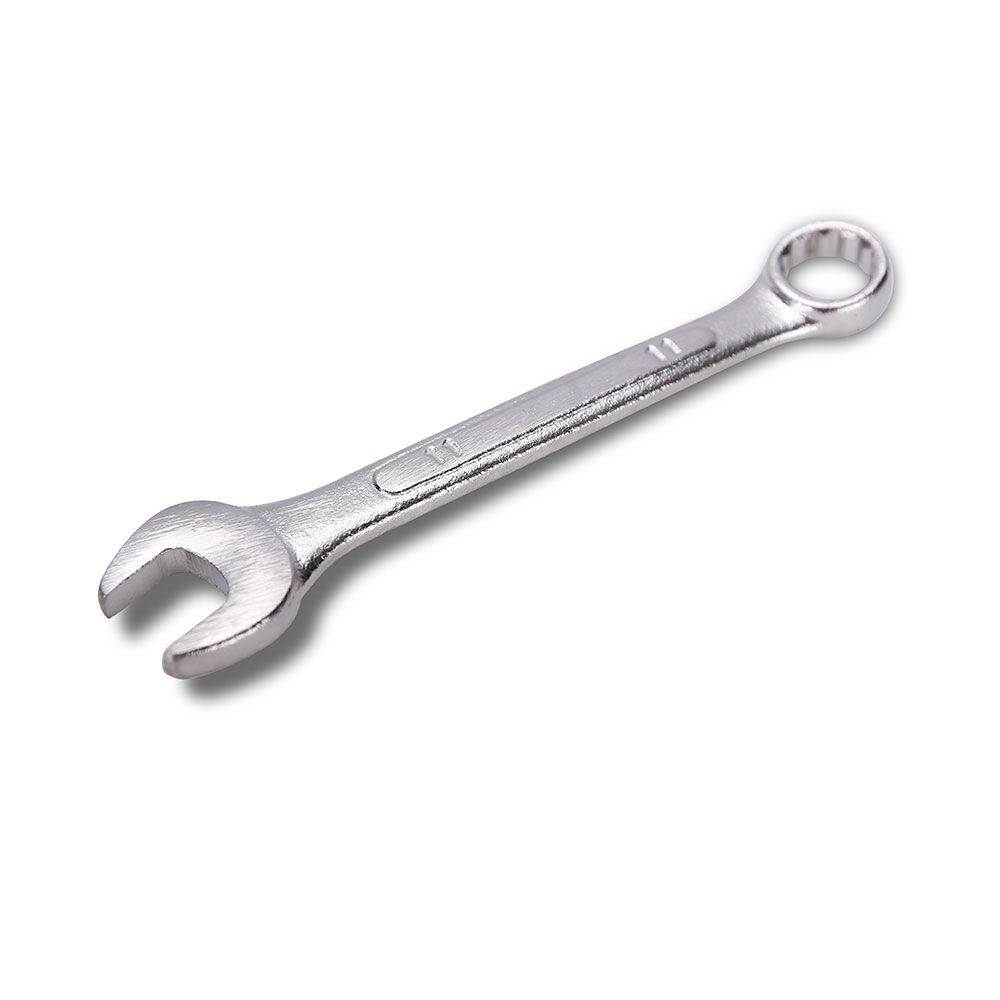

• 1 x Double Offset Ring Spanner 11/12mm

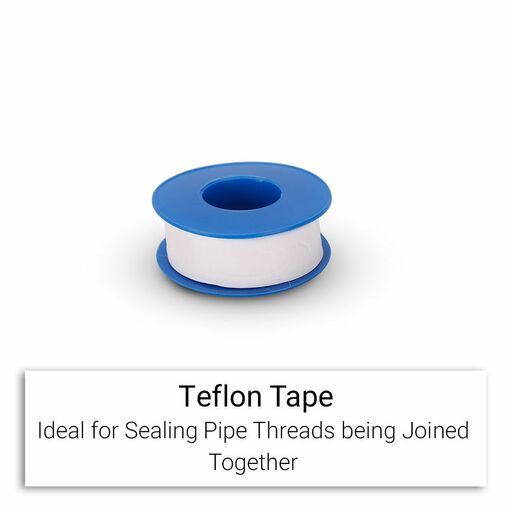

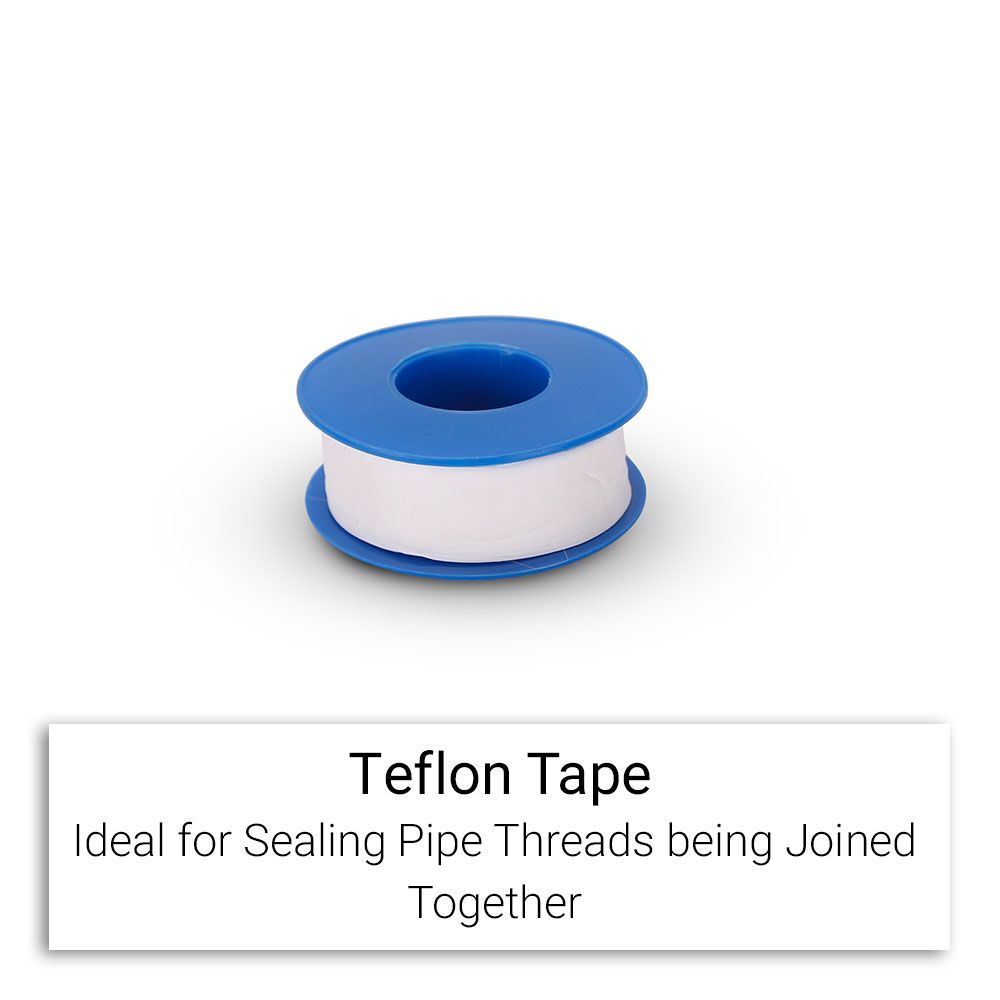

• 1 x Teflon Tape

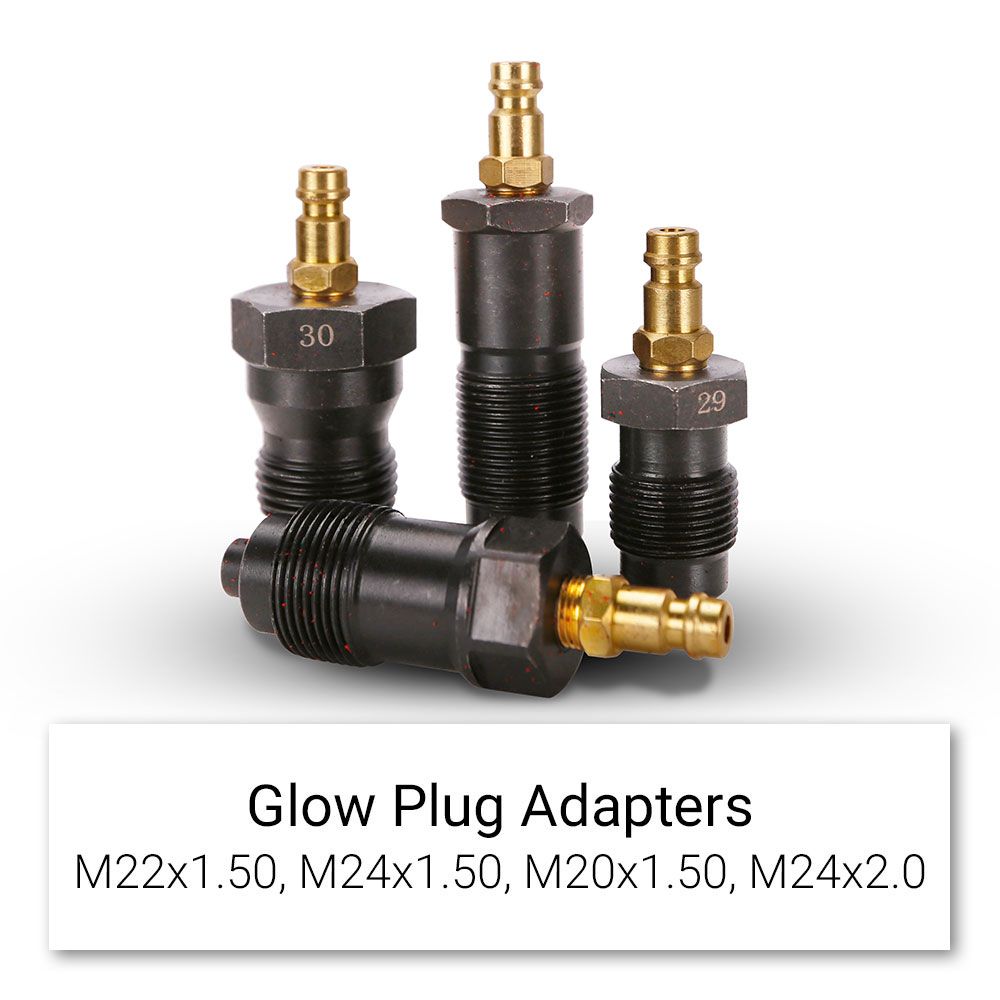

• 1 x Glow Plug Adaptor M22 x 1.50 ((Thread Length: 25mm, Lower Shaft Length: 7mm)
• 1 x Glow Plug Adaptor M24 x 1.50 ((Thread Length: 14mm, Lower Shaft Length: 6mm)
• 1 x Glow Plug Adaptor M20 x 1.50 ((Thread Length: 14mm, Lower Shaft Length: 7mm)
• 1 x Glow Plug Adaptor M24 x 2.00 ((Thread Length: 11mm, Lower Shaft Length: 12.5mm)

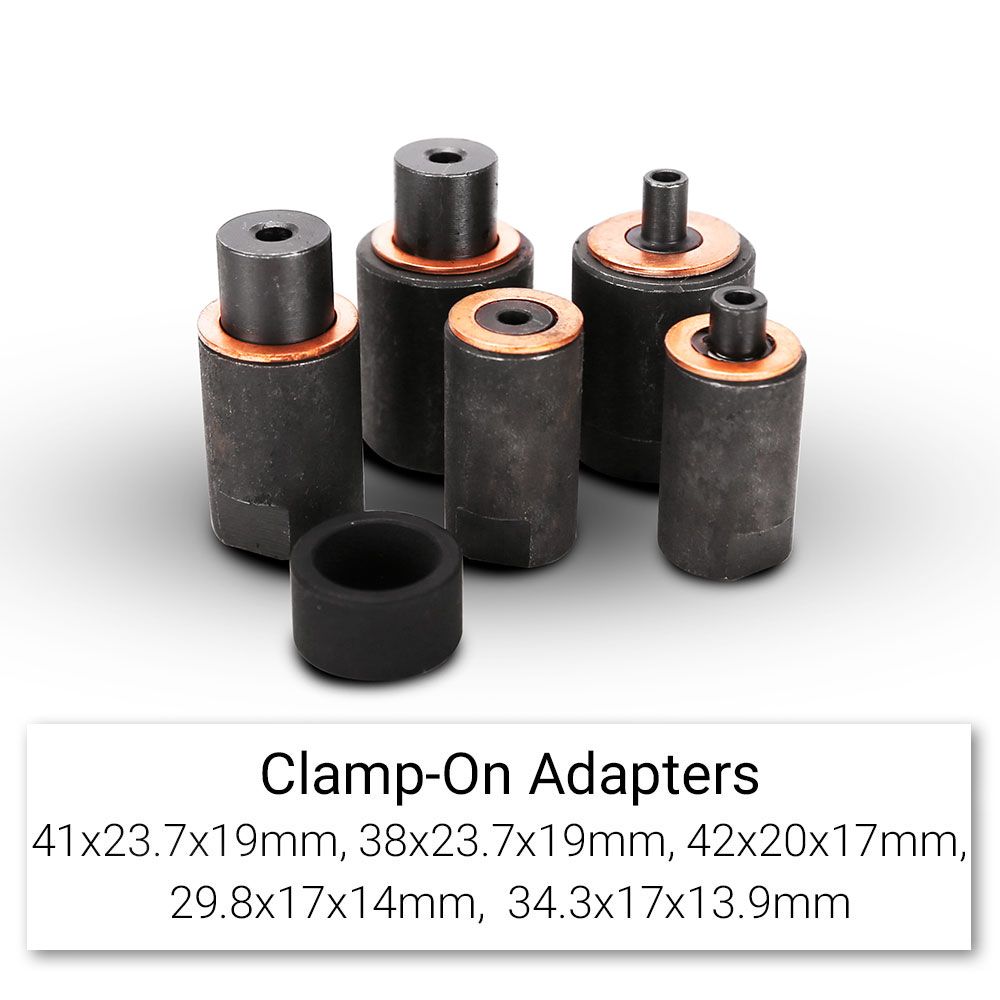

• 1 x Clamp-On Adaptor 1 (Length: 41mm, Diameter: 23.7 x 19mm)
• 1 x Clamp-On Adaptor 2 (Length: 38mm, Diameter: 23.7 x 19mm)
• 1 x Clamp-On Adaptor 3 (Length: 29.8mm, Diameter: 17 x 14mm)
• 1 x Clamp-On Adaptor 4 (Length: 42mm, Diameter: 20 x 17mm)
• 1 x Clamp-On Adaptor 5 (Length: 34.3mm, Diameter: 17 x 13.9mm)

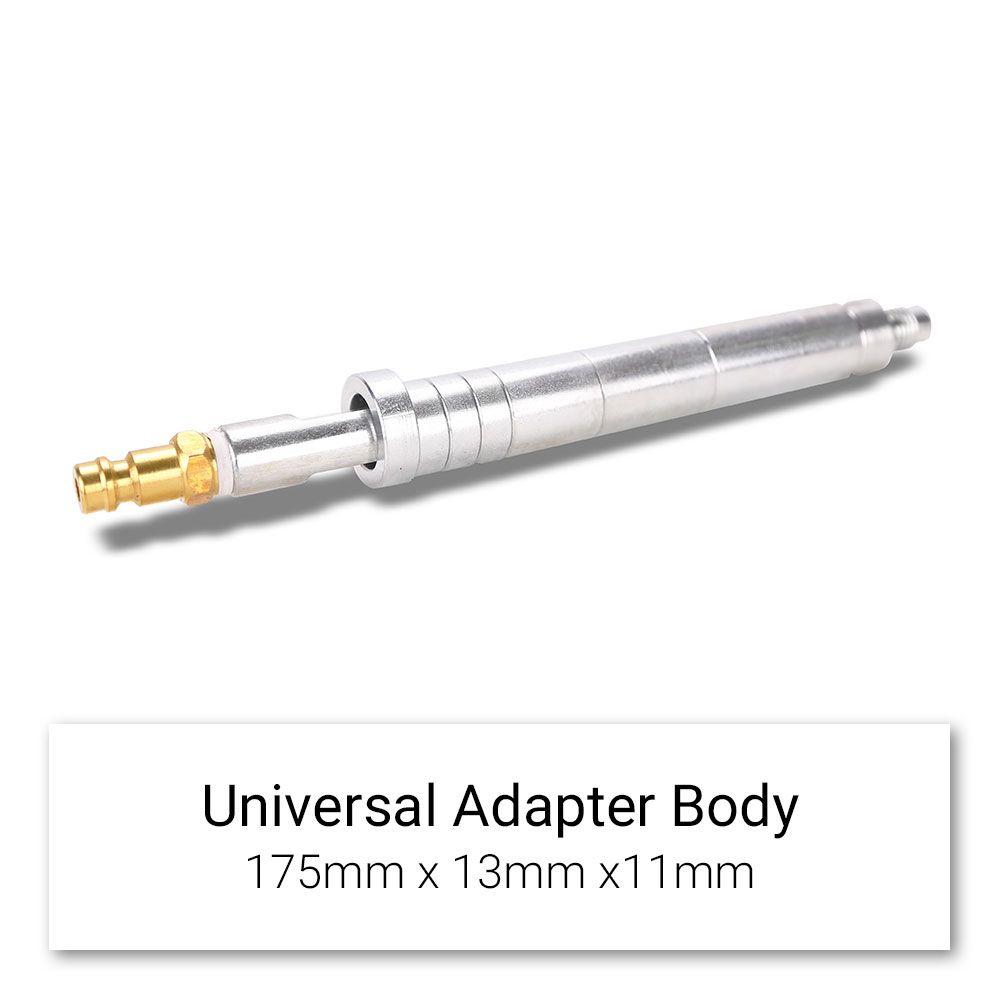

• 1 x Universal Adaptor Body (Length: 175mm, Diameter: 13 x 11mm)

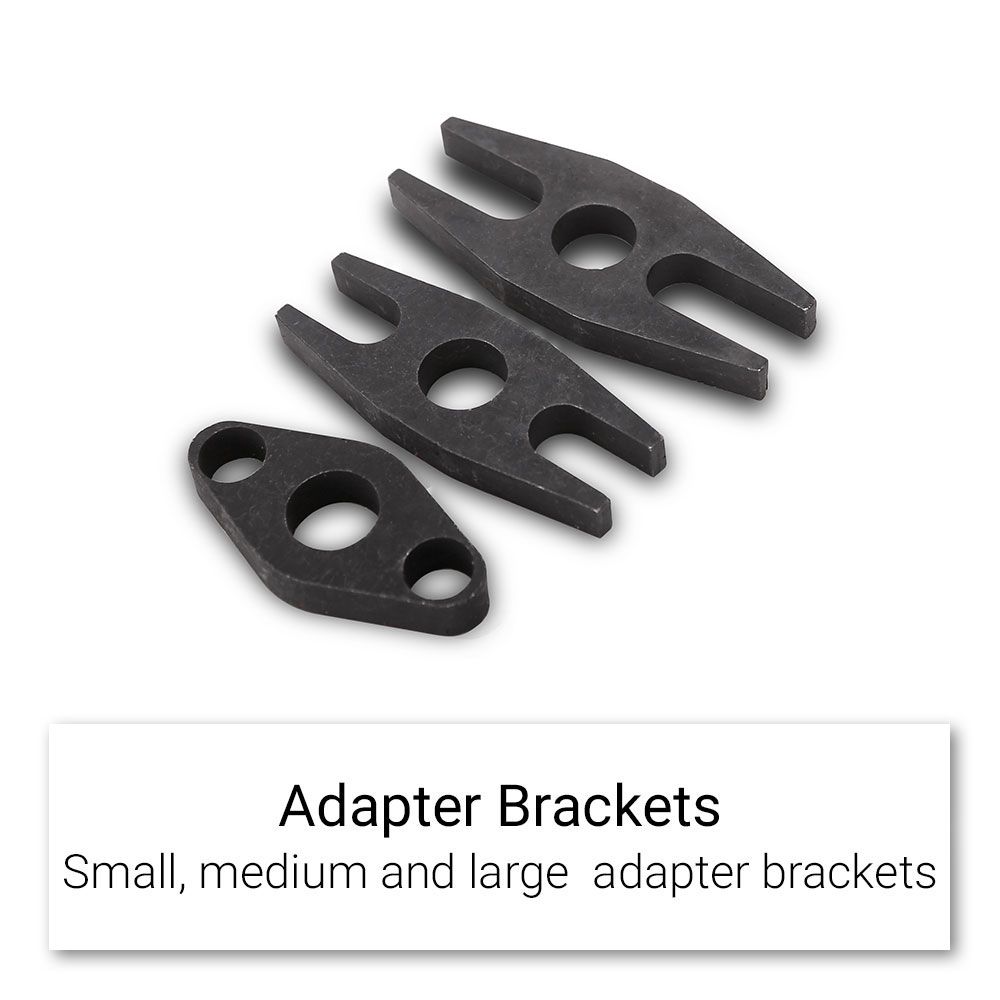

• 1 x Small Adaptor Bracket
• 1 x Medium Adaptor Bracket
• 1 x Large Adaptor Bracket

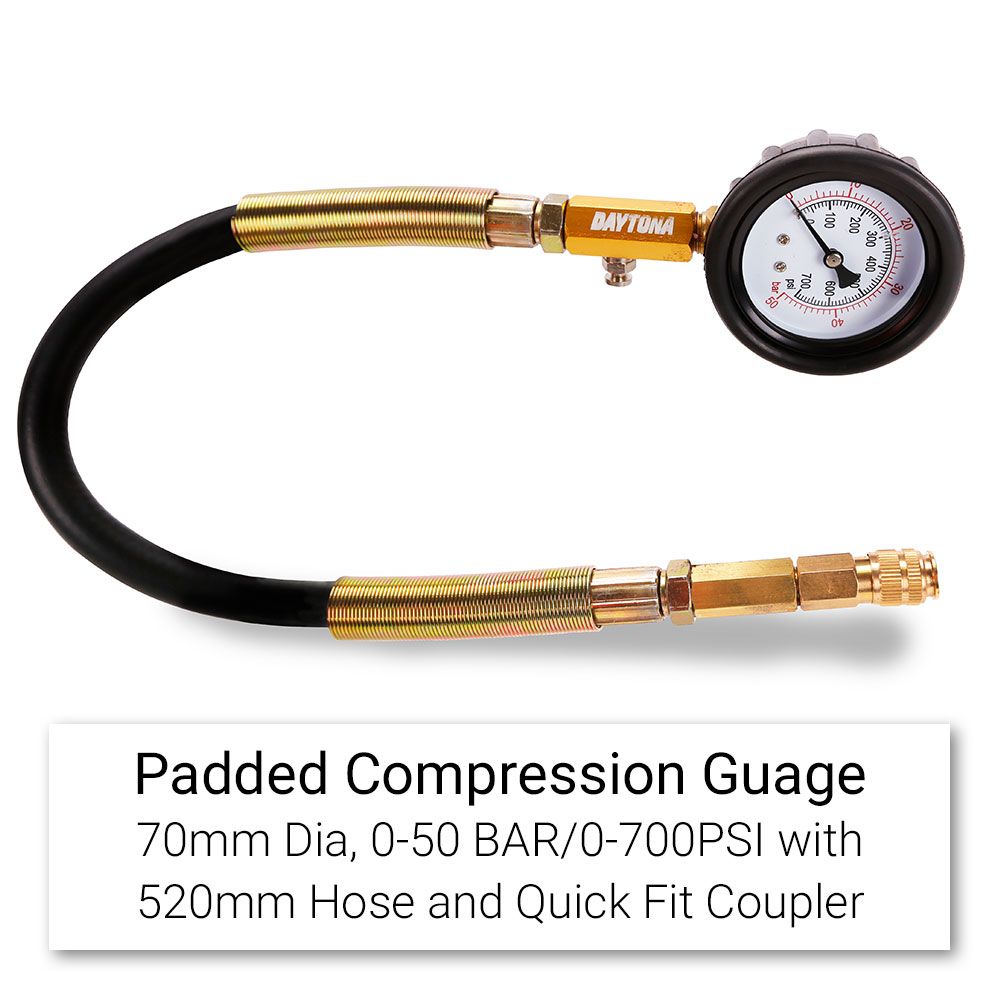

• 1 x Padded Compression Gauge (70mm Diameter,  0-50 BAR/0-700 PSI with 520mm Hose & Quick Fit Coupler)

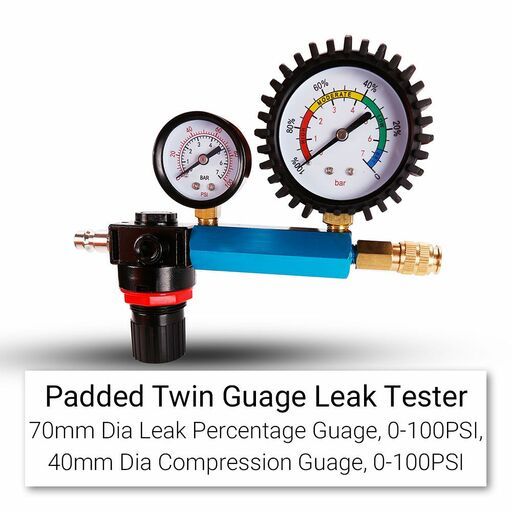

• 1 x Padded Twin Gauge Leak Tester (70mm Diameter Leak Percentage Gauge, 0-7 BAR; 40mm Diameter Compression Gauge, 0-7BAR/0-100PSI
• 1 x Extension Rubber Hose (460mm with Quick Fit Coupler)
• 1 x Accessory Kit
  • Gasket
  • O-Ring
  • Valve Core
  • Round Sleeve

Features:

• Glow plug adaptors for the following brands: Alfa, BMW, Chrysler, Daewoo, Fiat, Ford, Hyundai, Izusu, Land Rover, Mazda, Mercedes-Benz, Mitsubishi, Nissan, Opel, PSA, Renault, Saab, Suzuki, Toyota, VAG, Vauxhall and Volvo
• Compression pressure testing up to 50 bar (725psi)
• Quick coupling in straight or angled version

Suitable for

• Most petrol and modern HDi, TDCi, pump injector and older diesel engines

Specifications:

• Dimensions (L x W x H): 490mm x 360mm x 23mm
• Weight: 1kg
