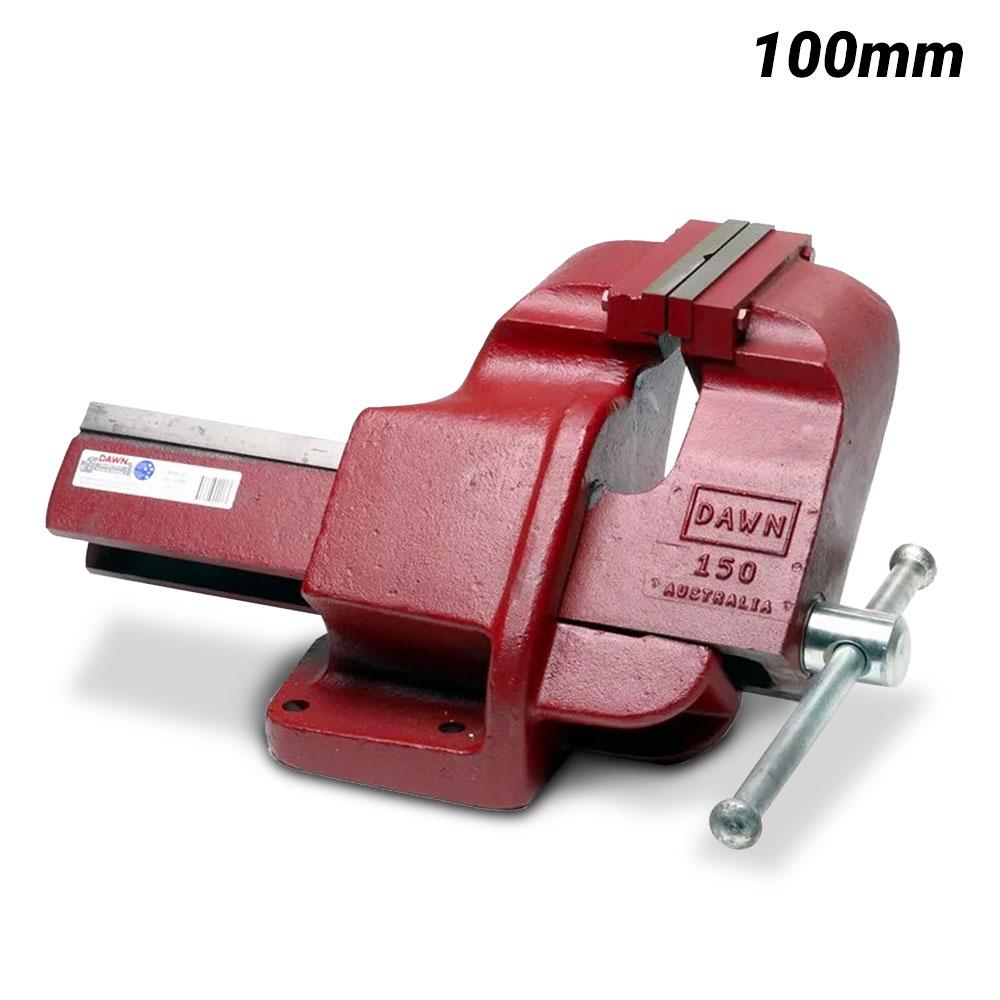

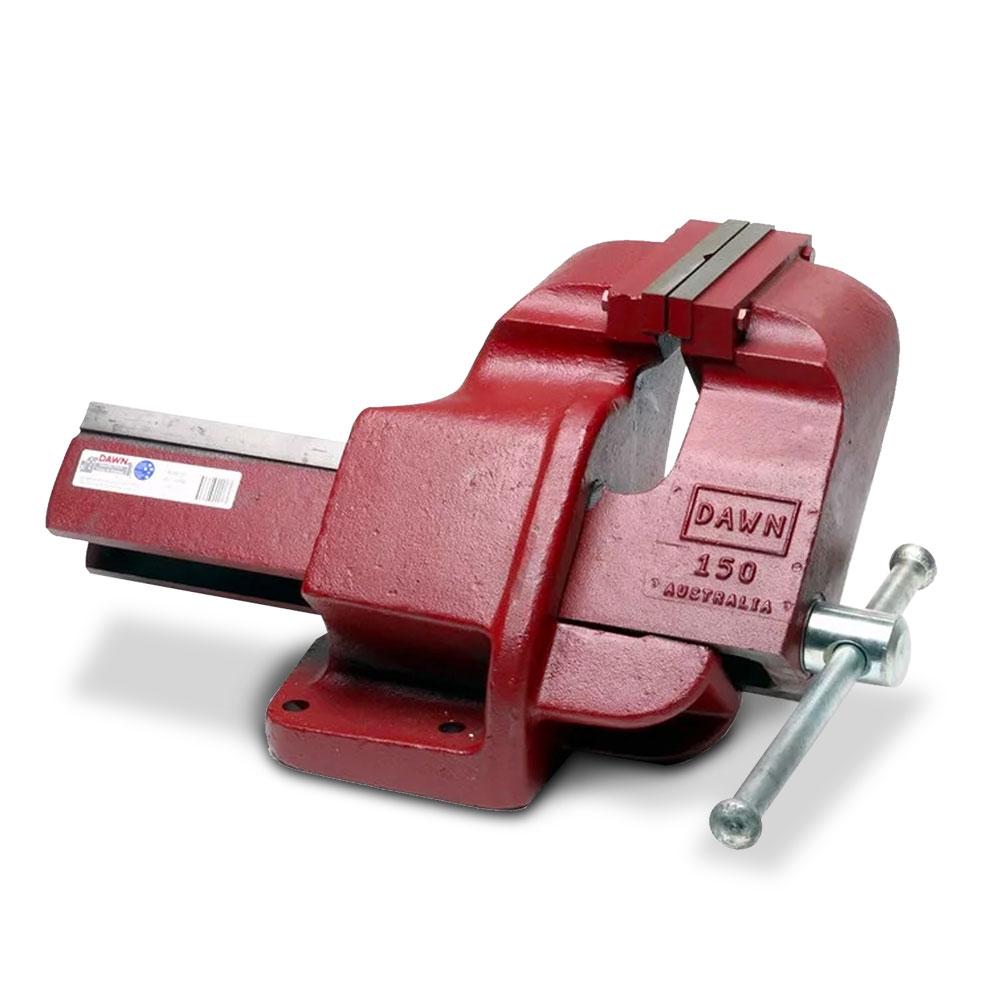

Dawn 60178 100mm Engineers Offset Standard Vices - Cast

Dawn 60178 100mm Engineers Offset Standard Vices - Cast

Features:

• High strength cast iron body and slide produced by an automated foundry ensuring good quality control. Body and slide accurately machined for perfect mating and smooth operation
• Nut is housed in the body and gives long service without wear. Nut is detachable and can be replaced
• Corrosion resistant heavy duty screw and handle. Head of screw and knobs on handle are forged - won't shear off
• Fine pitched Acme thread ensures long life and positive action
• Case hardened steel jaws, serrated to provide good grip, removable and replaceable - thus extends life of vice
• Deflector keeps filings away from moving parts - thus reducing wear
• Facility to hold long vertical work with the full width of the jaws without obstruction from the main body of the vice

Specifications:

• Vice Size Width: 100mm
• Max Jaw Opening: 115mm
• Type: Offset Standard
• Dimensions (L x W x H): 418mm x 267mm x 210mm
• Weight: 26.6kg
