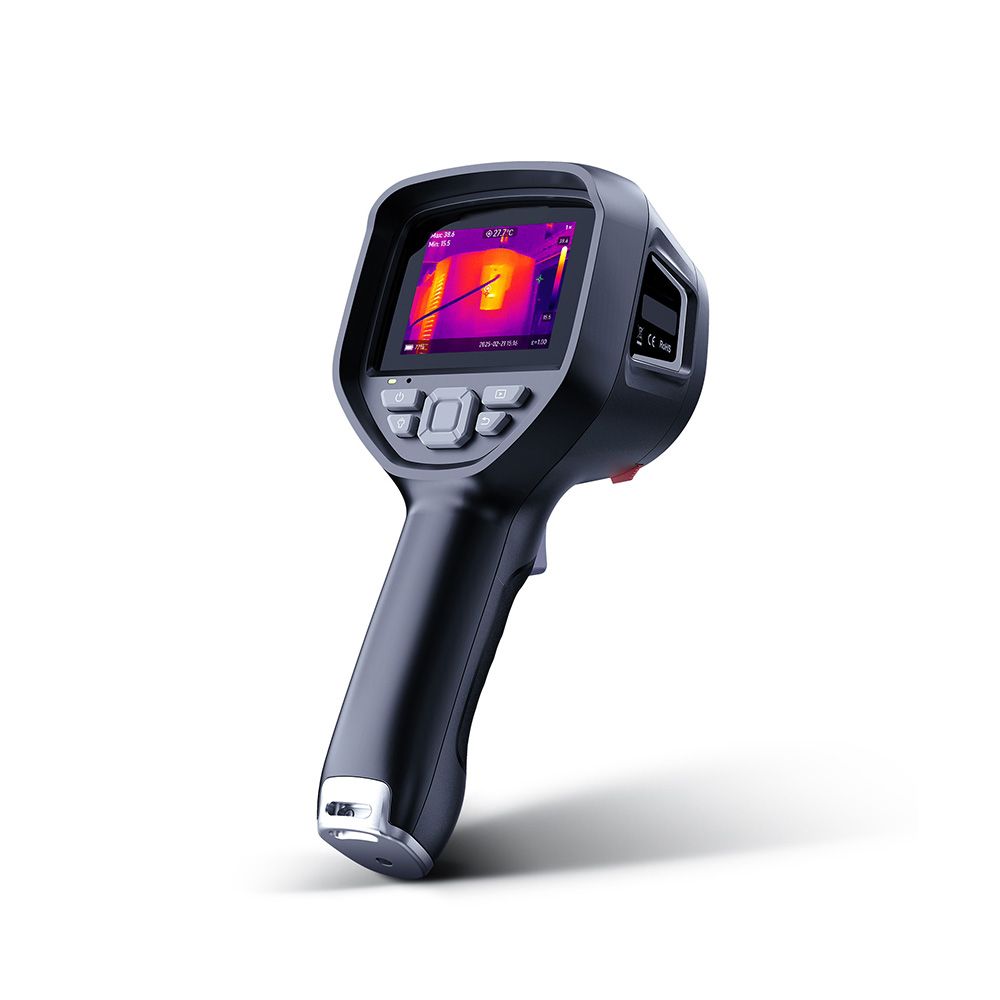

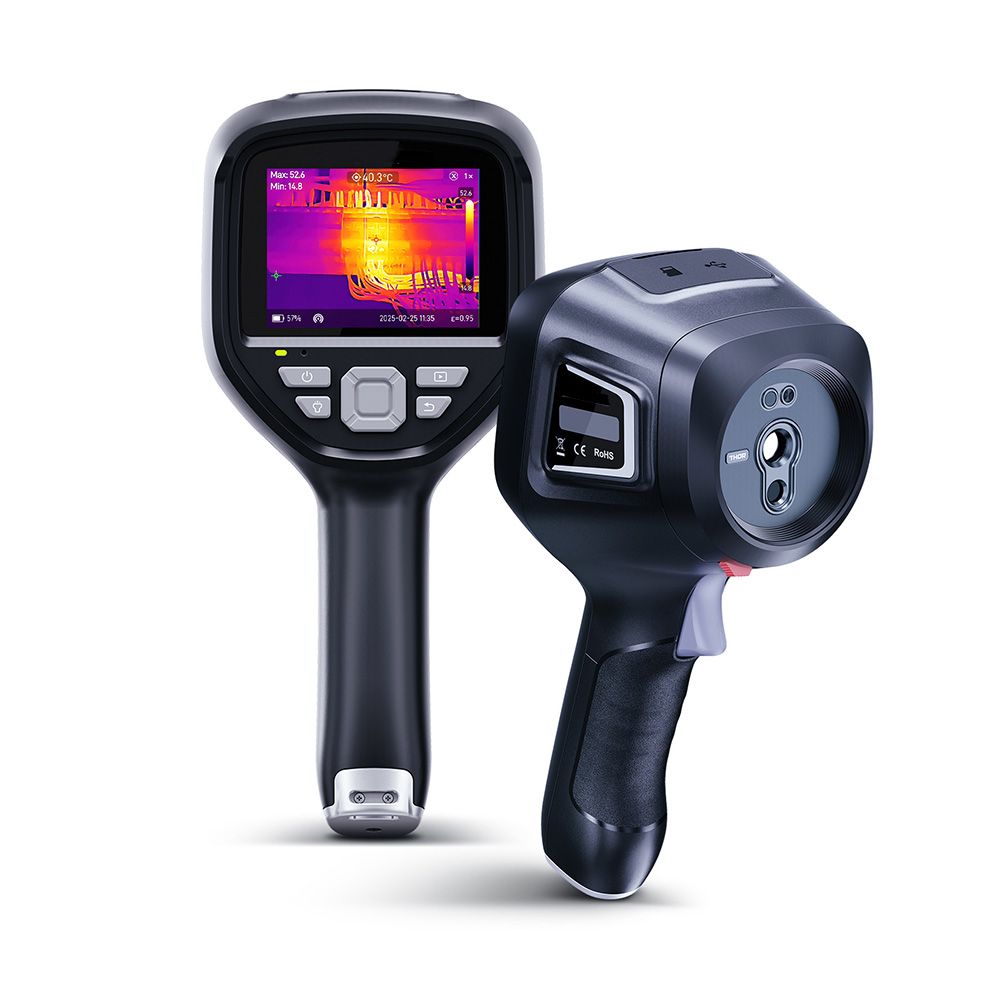

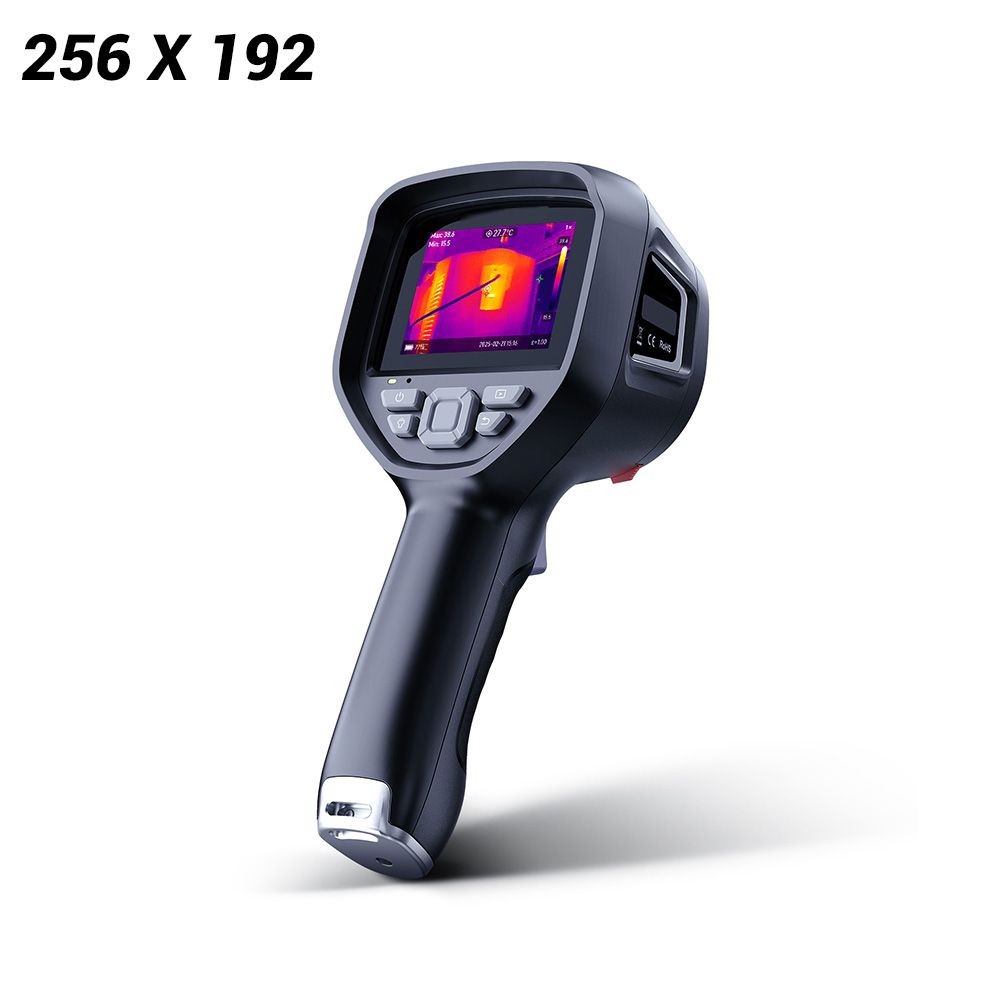

CPI CTHC256 Handheld Thermal Image Camera 256 X 192

CPI CTHC256 Handheld Thermal Image Camera 256 X 192

Professional thermal imager with 512×384 X³ IR resolution, 3.5" 640×480 IPS display, and 60Hz refresh rate for ultra-smooth, detailed inspections.  Measure temperatures from -4℉ to 1022℉ with ±3.6℉ accuracy, six-point analysis, and customizable emissivity. Supports WiFi & USB transmission, real-time PC monitoring, voice notes, and QR-coded reports for efficient on-site documentation. Built with a 5000mAh battery offering 10.5h runtime, 18W fast charging, and laser positioning, it’s drop-tested to 2m and IP54-rated for durability. Ideal for HVAC, electrical, mechanical, and building diagnostics, with photo/video recording and a 4.3mm lens + 4X zoom extending your field range by 34%.

Features:

• 3.5'' 640×480 IPS Hard Screen, 60Hz, 5X Faster Leak Detection
• X³ Super Resolution 512×384 – 4x Image Sharpness
• ±1.5°C (± 2.7°F), Double the Accuracy; 1022°F Pro High-Temp
• Extended Lens – 34.4% Longer Detection Range
• Visible Light & Fusion Imaging — Multi-Range Clarity with PiP
• 9-Point Temperature Scanning + Auto Alerts
• Wireless to Phone + PC Thermal Reporting
• Thermal Master High Sensitivity Sensor: NETD <35mK with RazorX Algorithm (delivers $3,000 professional-grade imaging）
• Laser Targeting System — Achieve 100% Faster Inspections
• Noise-Reducing Mic: Add Voice Notes to Videos
• Alloy Base + Reinforced ABS Ergonomic Body + Quick-Shield Lens – Ultimate Protection, 2m Drop Resistance, Built for Harsh Environments

Specification:

• Temperature Range: ±2℃ or ±2% of the reading
• IR Resolution:256×192
• Super IR Resolution: 512×384
• Lens Focal Length: 4.3mm
• Digital Zoom: 2/4×
• Display: 3.5 inch IPS（640x480）
• Point Measurement: Center spot/Max/Min/3 Custom Spots/Temperature difference
• NETD/Thermal Sensitivity: ＜40mk
• Image Mode: Fusion, IR（default), PIP, Visual
• Digital Camera: 2MP
• Wireless connection
• PC-based Analysis Software
• Supports 13 languages (English by default)
• Laser Indicator
• Microphone
• Flash Shield
• Lens cap for protection
• Alloy Metal Base
• Razor X thermal technology
• Flash rate: 25Hz
• FOV: 40°×30°
• IFOV: 2.79mrad
• Pixel Pitch: 12μm
• Focus Mode: Fixed focus
• Min Focus Distance: 30cm
• Screen Refresh Rate: 60Hz
• Fast Charge: 18W
• Battery: 5000mAh rechargeable lithium battery
• Charging Time: 4h
• Operating Time: 8h
