FREE SHIPPING
Item ID: 1627010
Model: CPI3TGCD
$379.00
This product does not incur bonus points
Humm
|
Zip Pay
|
Afterpay
Check StockCheck Stock Availability
Enter a Suburb or Postcode

ShippingDelivery
| FREE Shipping over $99*

Shipping cost and delivery time
Enter a Suburb or Postcode
Best Prices Guaranteed

The CPI CDETG2 Laser Detector is a small, compact device with a highly accurate reading for laser aligning applications. It is compatable with the many laser models including:

  • CL101
  • CPIG2
  • CPI106G
  • CPI106
  • CUBE
  • CPI4D
  • CPI4DG
  • Most Bosch Line Lasers
  • Most Dewalt Line Lasers
  • Any Laser with 5k frequency

Features:

  • Brightness indicators located on the front and back side to indicate the position of the laser line
  • Automatically switches off after 6 minutes of inactivity
  • Low power alarm with flash to indicate the battery power is low
  • Precision mode provides high accuracy when switched on, and coarse mode when switched off
  • Magnetic points located on the top and left side of the laser allowing it to easily attach to metal surfaces
  • Small, compact and portable design
  • User friendly interface and controls

Specifications:

  • Accuracy:
    • High: ±1.5mm
    • Low: ±2.5mm
  • Avaliable distance:
    • Red beam: 1 - 35m horizontal, 1 - 20m vertical
    • Green beam: 1 - 45m horizontal, 1 - 35m vertical
  • Modulating frequency: 5k
  • Auto switch off: after 6 minutes
  • Power supply: 2 x AAA Alkaline batteries
  • Dimensions (L x W x D): 111mm x 61mm x 23mm
  • Weight: 0.14kg

Warranty:

  • 12 Month Warranty Covered By CPI Australia

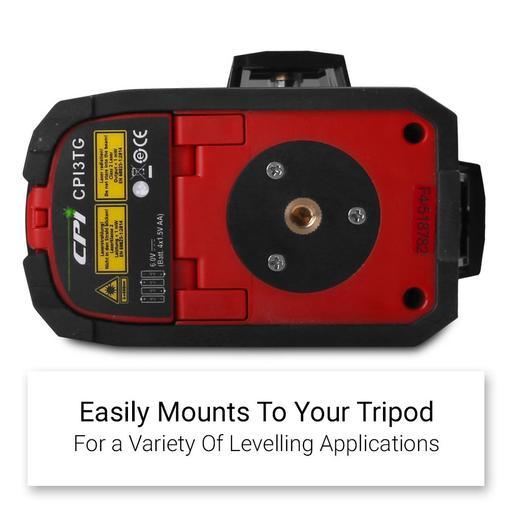

The CPI3TG All Function Laser is perfect for a variety of levelling applications, including light placement, door fittings, window fittings and decking. The CPI3TG is cased as a small compact unit with a soft rubber framing for extra drop protection! The Laser features a mounting hole on the bottom of the device to fit a tripod!

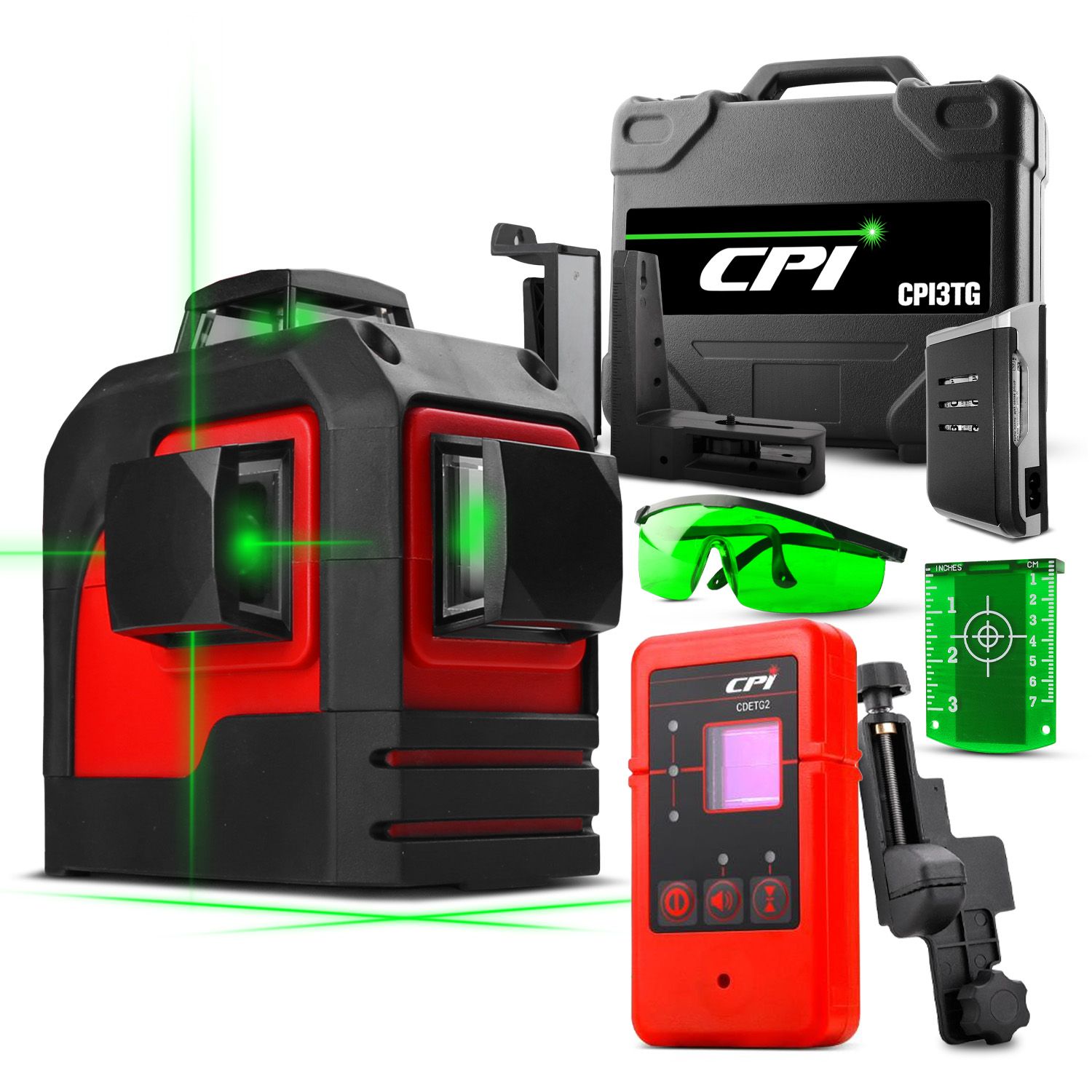

Includes:

  • Instrument (CPI3TG Laser)
  • Laser Target
  • Wall mount

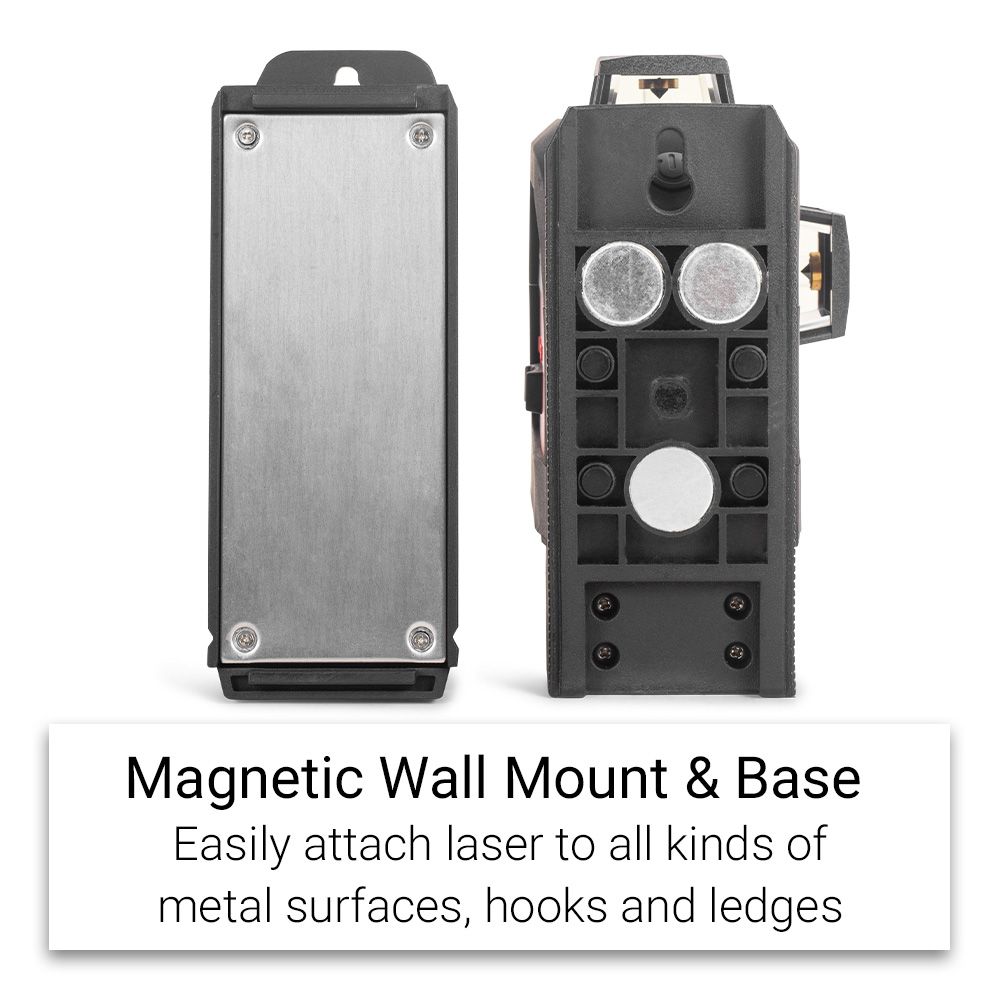

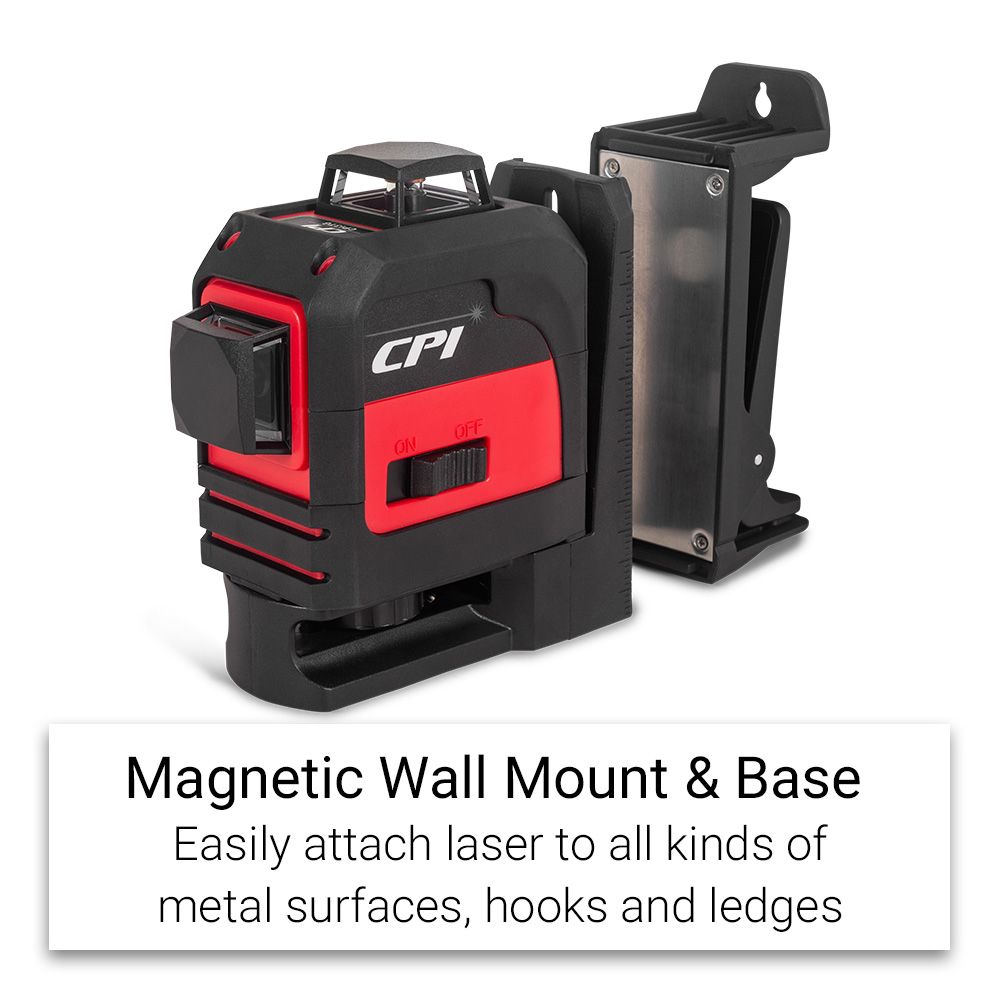

  • Magnetic wall mount & base
  • Protection glasses
  • 4 x AA Rechargeable Batteries
  • Battery Charger
  • User manual
  • BMC case

Features:

  • Highly visible Green laser!
  • Precision 360° full plane coverage
  • Auto shut off at 4V

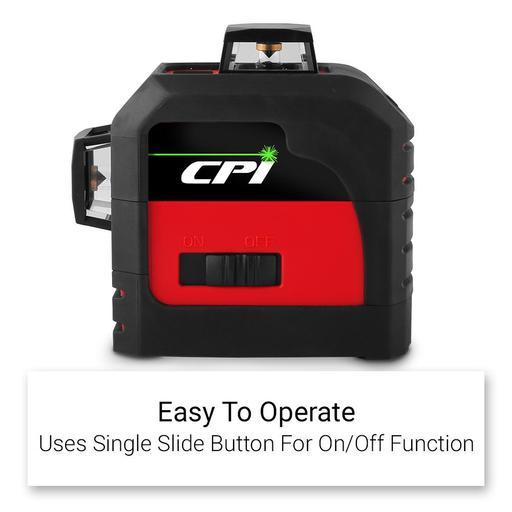

  • Single-operation button
  • Appreciated and used by: Tradesmen, electricians, plumbers, caprenters and more!

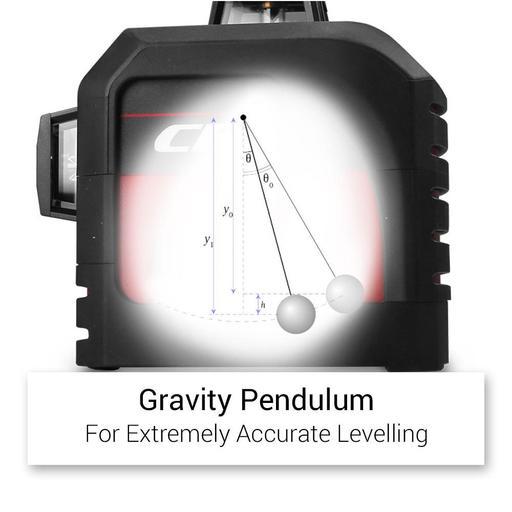

  • Gravity pendulum for precise leveling!
  • Extremely accurate!
  • Pendulum lock
  • Magnetic bracket included

Applications:

  • Carpentry: Level and set cabinets and counter tops. Install trim and millwork
  • Stair layout; level and plumb decks; plumb framing and partition walls; plumb window and door frames.
  • Concrete: set forms and footings.
  • Electrical: Level electrical outlets; transfer lighting layout from floor to ceiling.
  • Plumbing: Layout piping, sewer lines, drainage and feed lines; transfer sprinkler system layout from floor to ceiling.

Specifications:

  • Working Range: Radius 50m (with receiver)
  • Accuracy: ±1.5mm/7m
  • Leveling range: ±3.5°
  • Adopt Levelling: Gravity Pendulum
  • Wavelength: 510-535nm
  • Laser Class: Class II
  • Working Temperature: -10° -- +45°
  • Dust & Water Proof: IP54
  • Power supply: 4XAA Rechargeable Batteries
  • Continuous Working Time: Approx. 5 Hours
  • Dimensions (L x W x H): 115mm x 68mm x 107mm
  • Screw Thread: 1/4"
  • Weight: 5.2kg

Warranty:

  • 12 Month Warranty Covered By CPI Australia
