CPI CPI125G Green Beam Pipe Laser

CPI CPI125G Green Beam Pipe Laser

Maximize productivity and lay pipe with absolute precision using this heavy-duty, fully automatic pipe laser. Engineered specifically to tackle demanding residential, commercial, and civil drainage projects, this powerhouse tool takes the guesswork out of pipeline construction. Built with a rugged metal housing and an IP68 waterproof rating, it is completely sealed and guaranteed to survive the harshest trench and jobsite conditions.

Stop wasting time on complicated manual setups. The intelligent self-leveling system and one-touch automatic direction centering get you aligned and working in seconds. Boasting a massive 600-meter operating range, a highly adaptable grade range of -20% to +30%, and crystal-clear readouts via a high-contrast OLED display, this laser ensures pinpoint accuracy on every run.

Take full control from a distance with the included 150-meter infrared remote, and power through your longest work weeks with a massive 8000mAh lithium battery delivering up to 36 hours of continuous runtime. Complete with an anti-tamper security lock to protect your settings, a manual override for steep custom slopes, and a comprehensive kit of support legs and targets, this is the ultimate precision system designed to keep your site moving fast, flawlessly, and profitably.

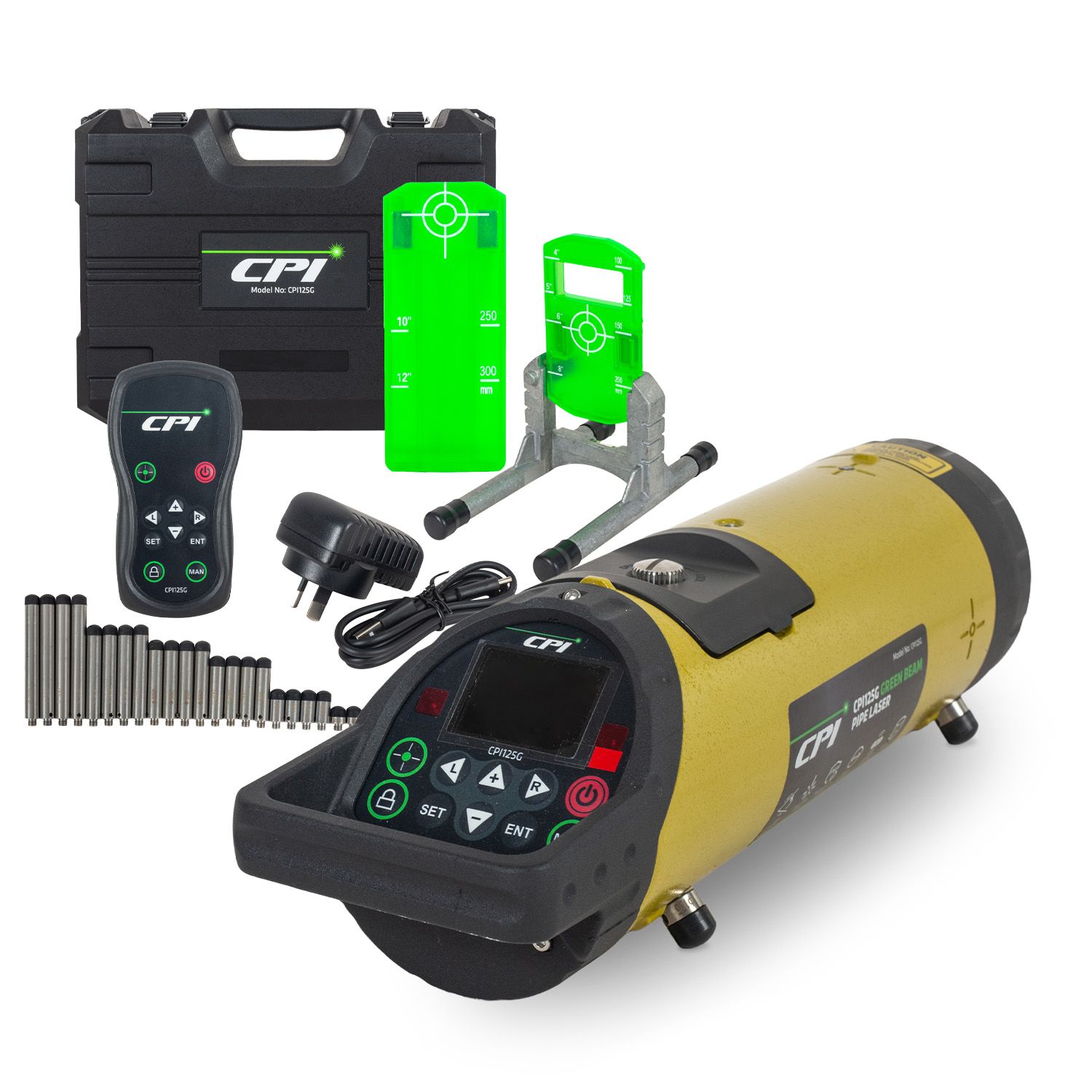

Includes:

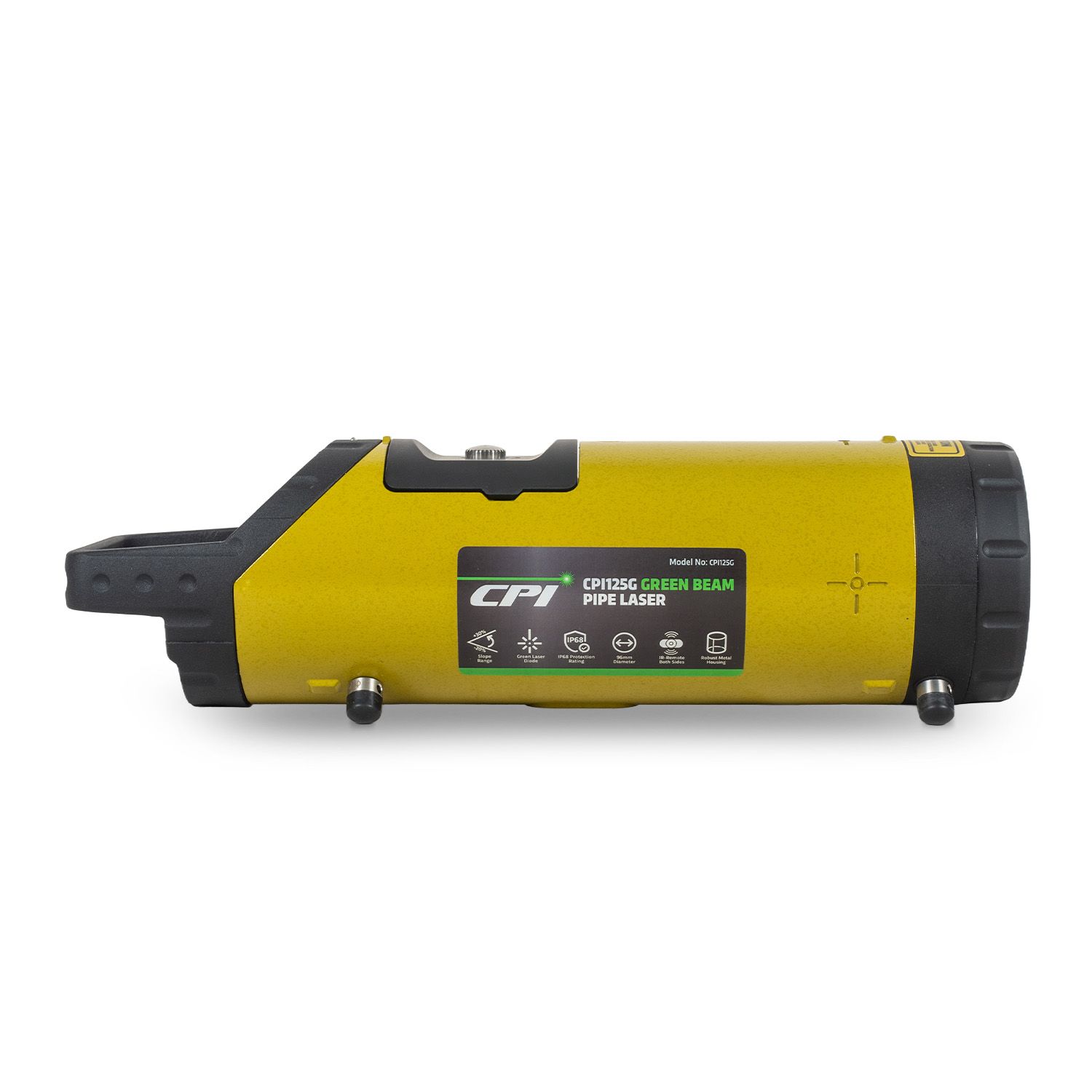

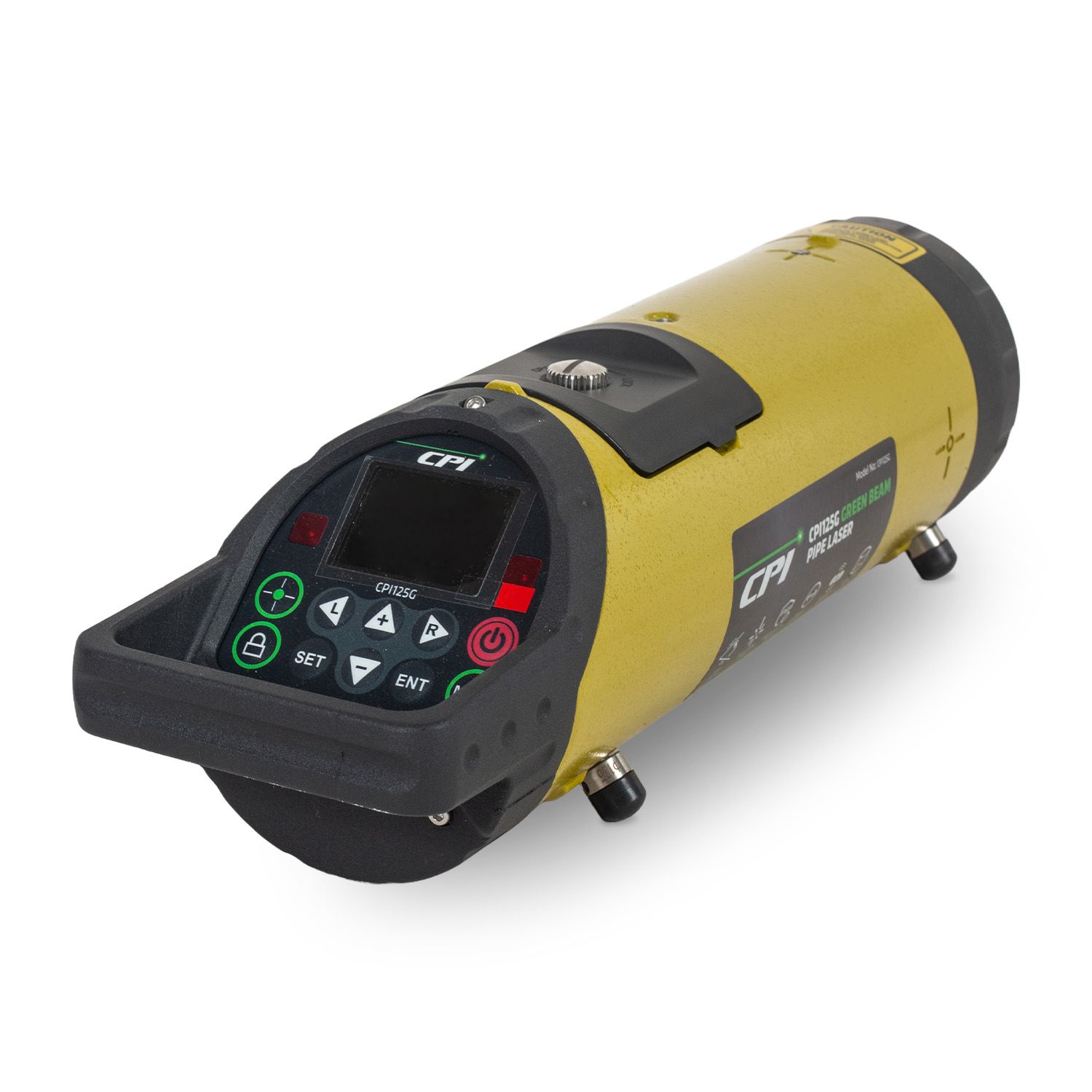

• 1 x Laser Unit
• 1 x Lithium Battery Box

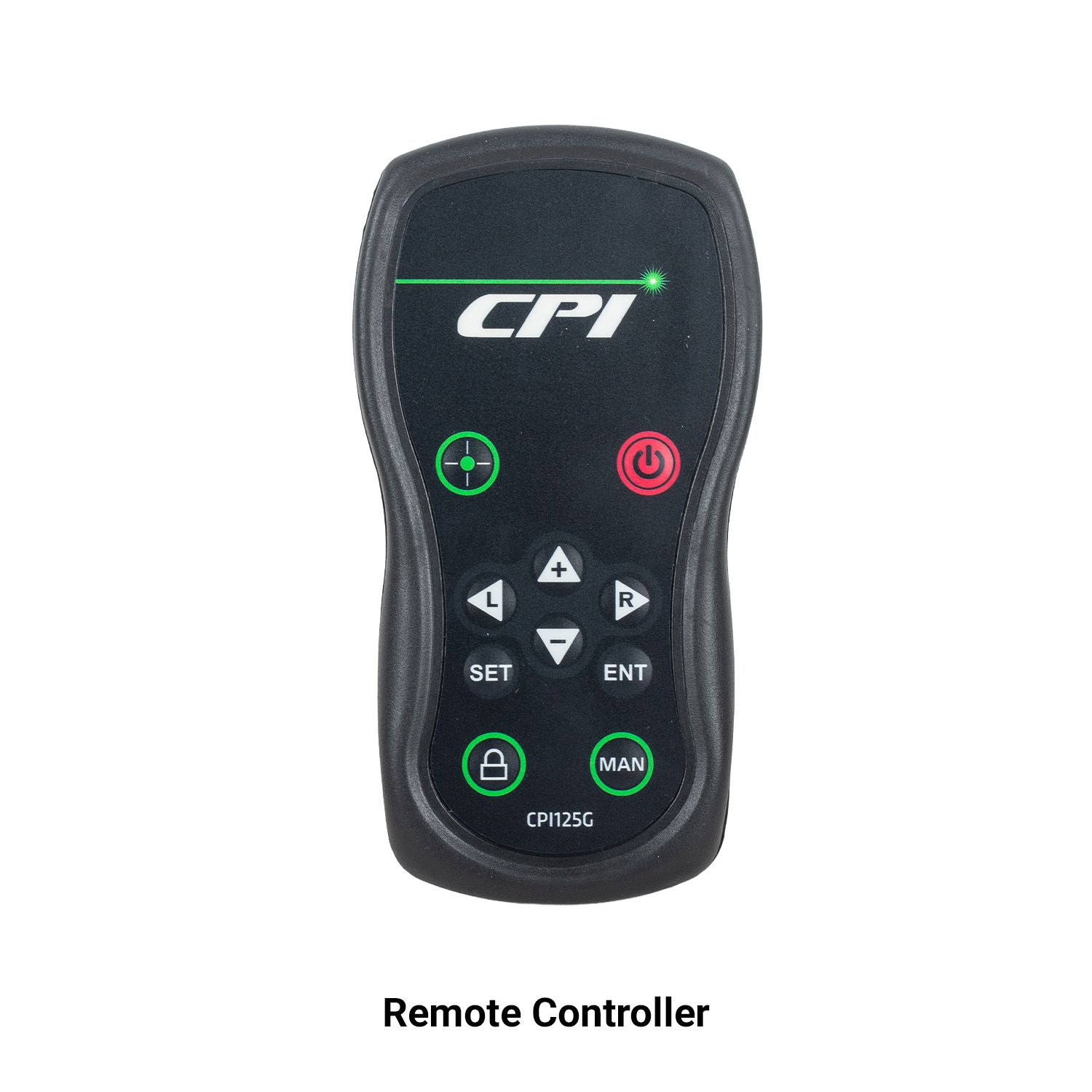

• 1 x Remote Controller

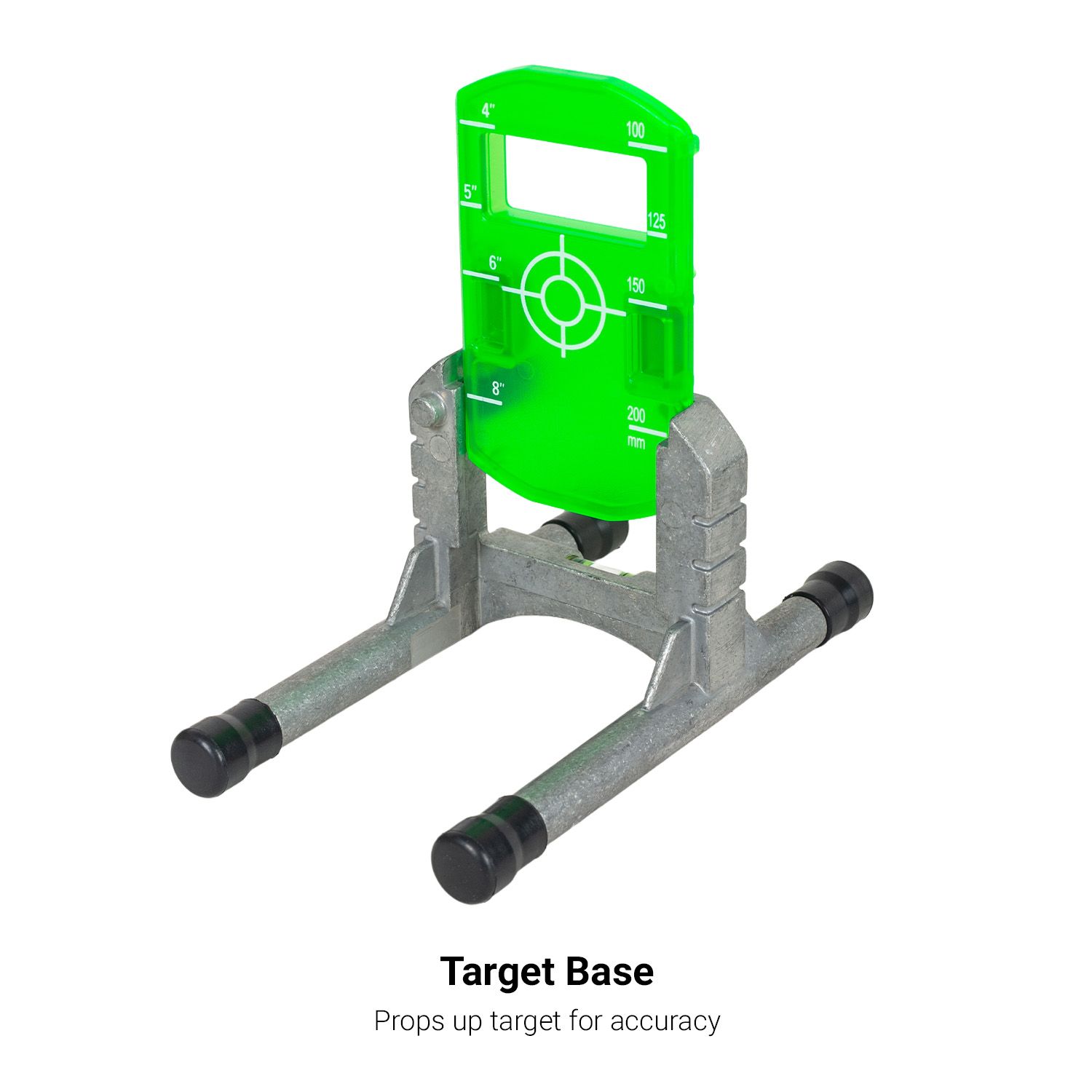

• 1 x Target Base

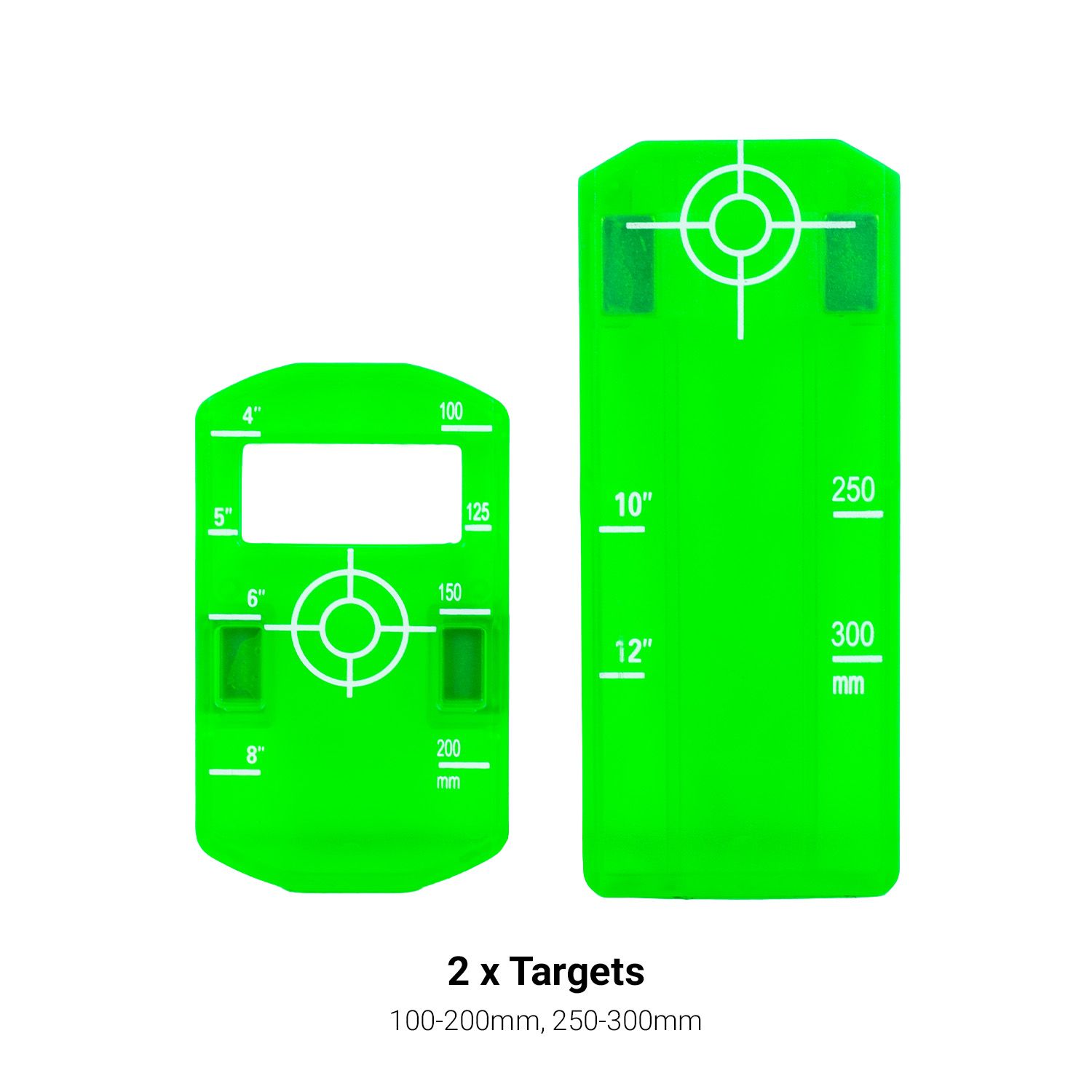

• 2 x Targets (100-200mm, 250-300mm)

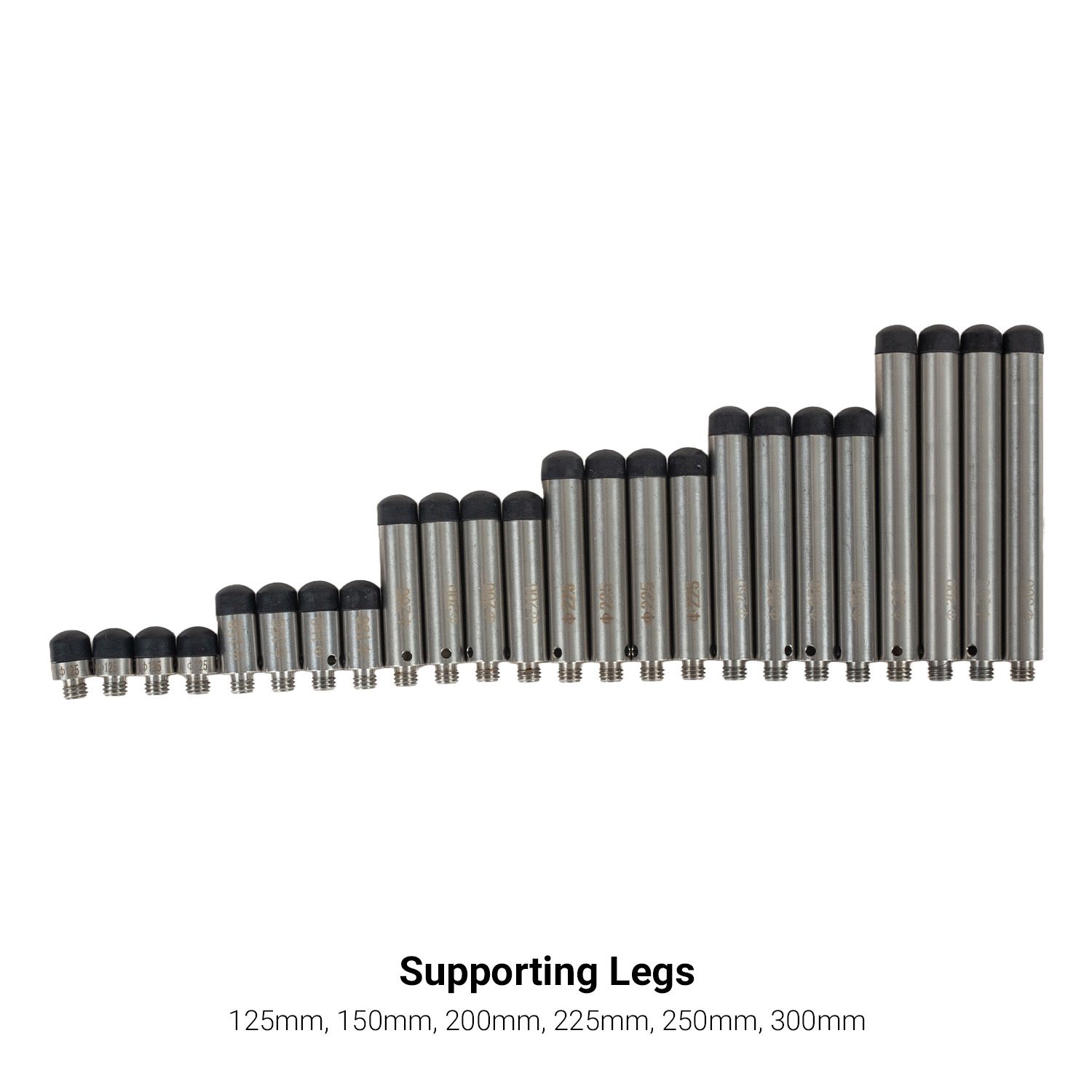

• 24 x Support Legs
  • 4 x 125mm
  • 4 x 150mm
  • 4 x 200mm
  • 4 x 225mm
  • 4 x 250mm
  • 4 x 300mm

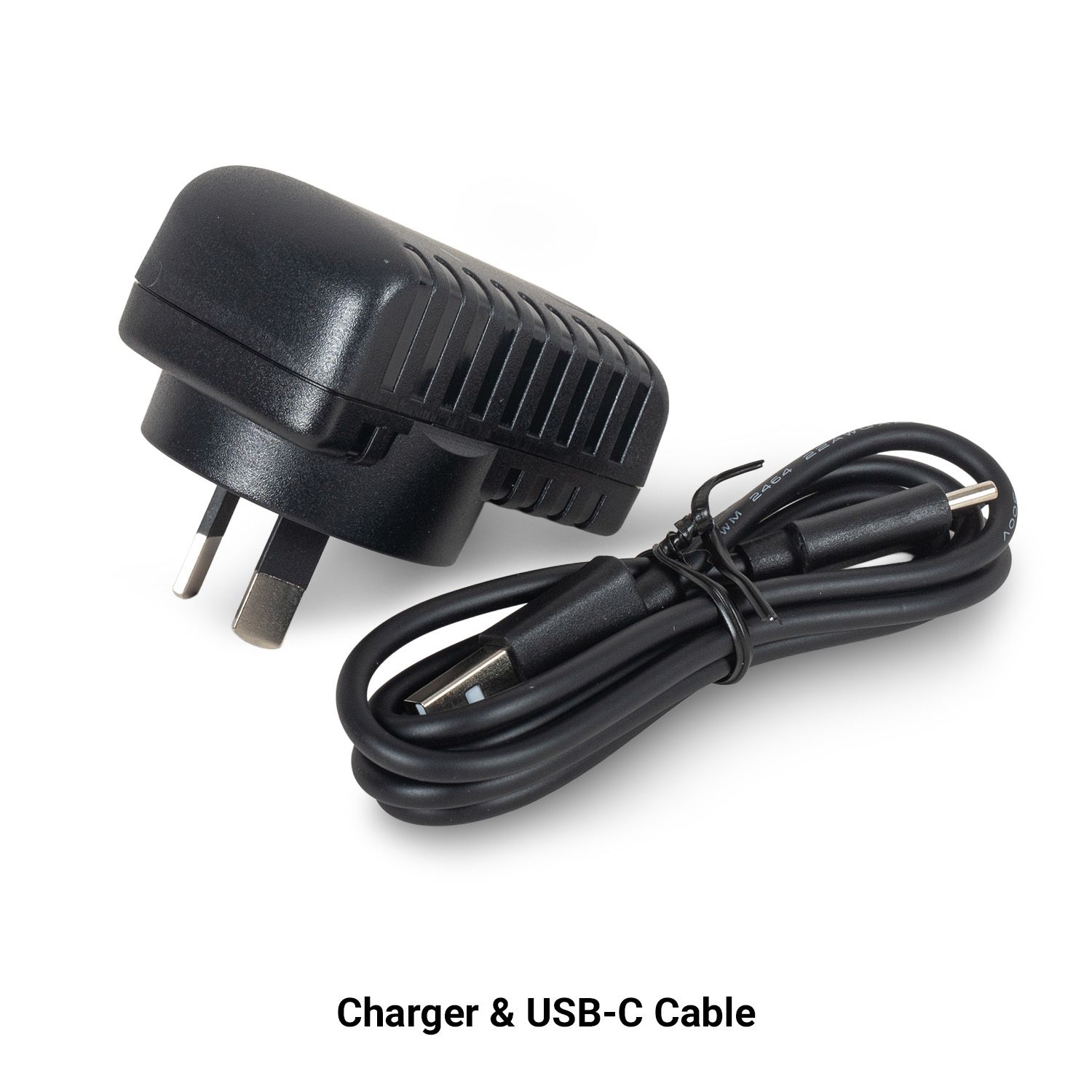

• 1 x Charger & USB-C Cable

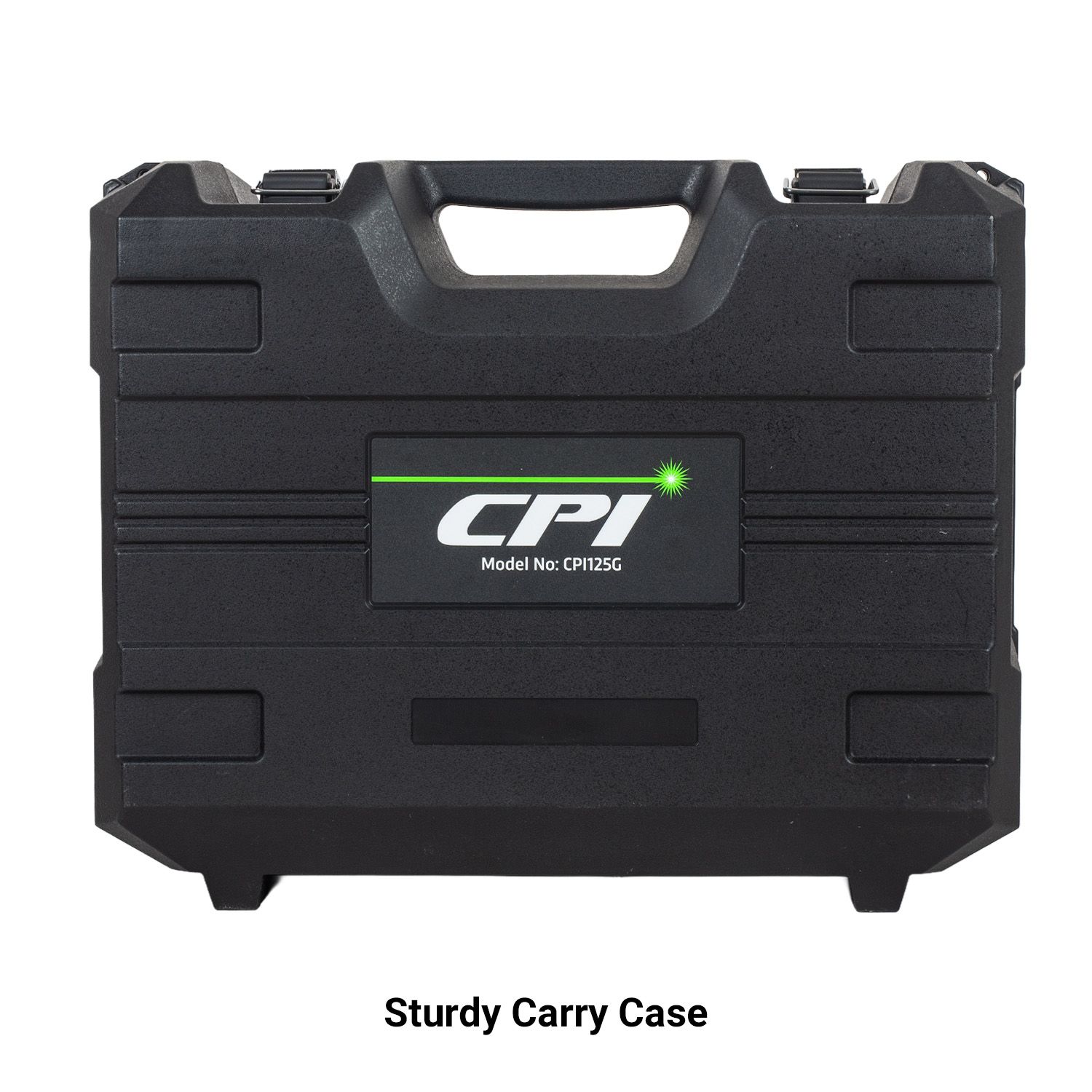

• 1 x Carrying Case

Features:

• Fully automatic smart self-leveling system for fast, reliable setups
• Manual slope mode quickly adjust verical slopes ar the touch of a button
• One touch automatic direction centering saves time during alignment
• Rapid beam adjustment for swift horizontal positioning
• Rugged metal housing built to withstand harsh job side conditions

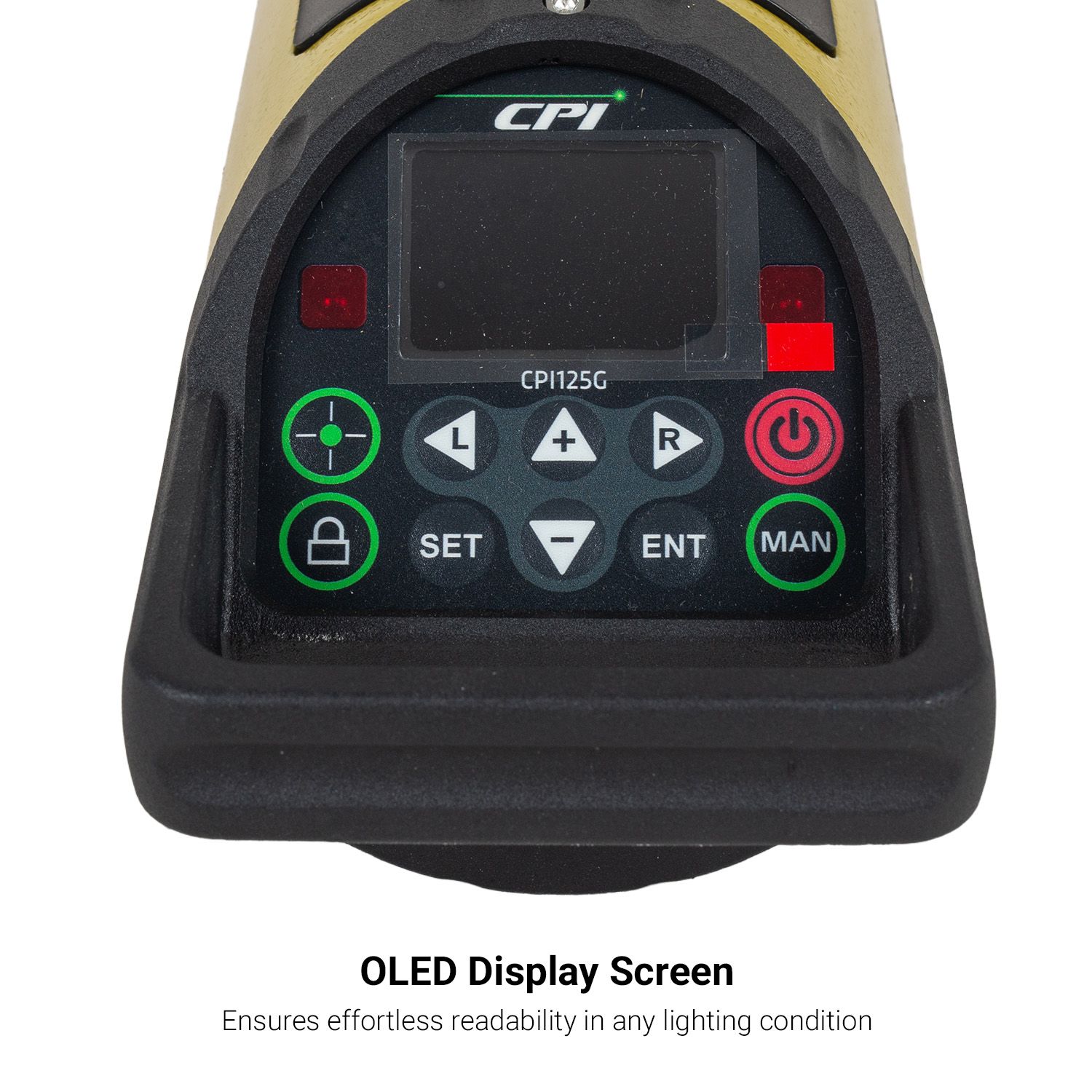

• High contrast OLED display ensures effortless readability in any lighting situation
• Laser output indicator provides immediate visual confirmation when laser is active
• Long range infrared remote with an impressive range of up to 150 meters
• Manual override decatives self leveling at the push of a button to allow custom, steep slope setups
• Security lock locks individual settings or all functions entirely to prevent accidental changes on site

Suitable for:

• For installing drainage systems and pipelines in residential, commercial and building construction

Specifications:

• Laser Wavelength: 510nm - 530nm
• Laser Class: 3R
• Output Range: 600m
• Remote Controlling Distance (Front): 150m
• Grade Range: -20% - +30%
• Horizontal Accuracy: ±0.05mm/m
• Grade Accuracy: ±0.15mm/m
• Leveling Range: ±10°
• Max Output Power: 5mW
• Nominal Ocular Hazard Distance (NOHD): 70m
• Working Temperature: -20° - +50°C

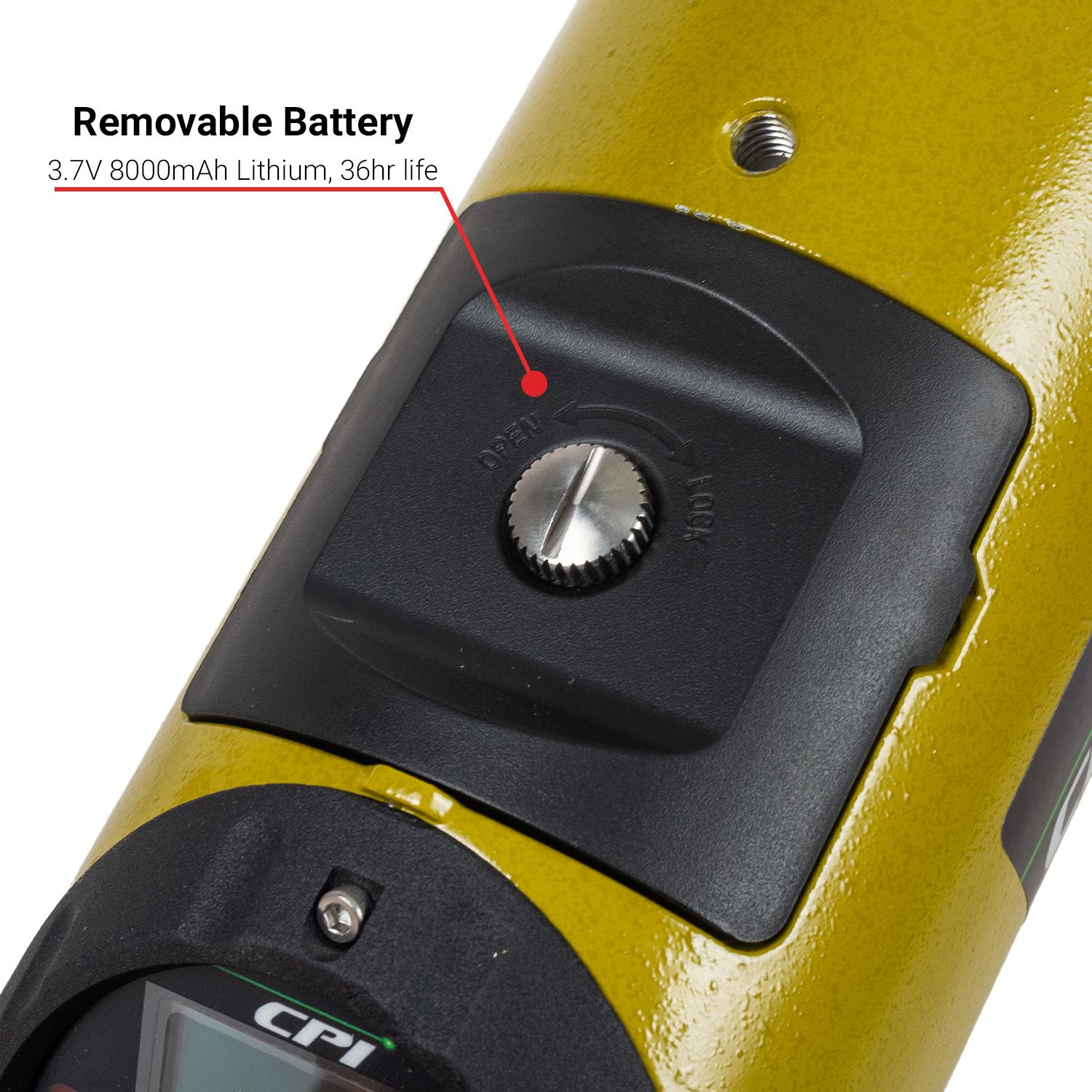

• Power: 3.7V/8000mAh Li Battery Pack
• Battery Life: 36 hours
• Display: OLED
• Protection Class: IP68
• Dimensions (L x W x H): 380mm x 92mm x 92mm
• Weight: 4kg
