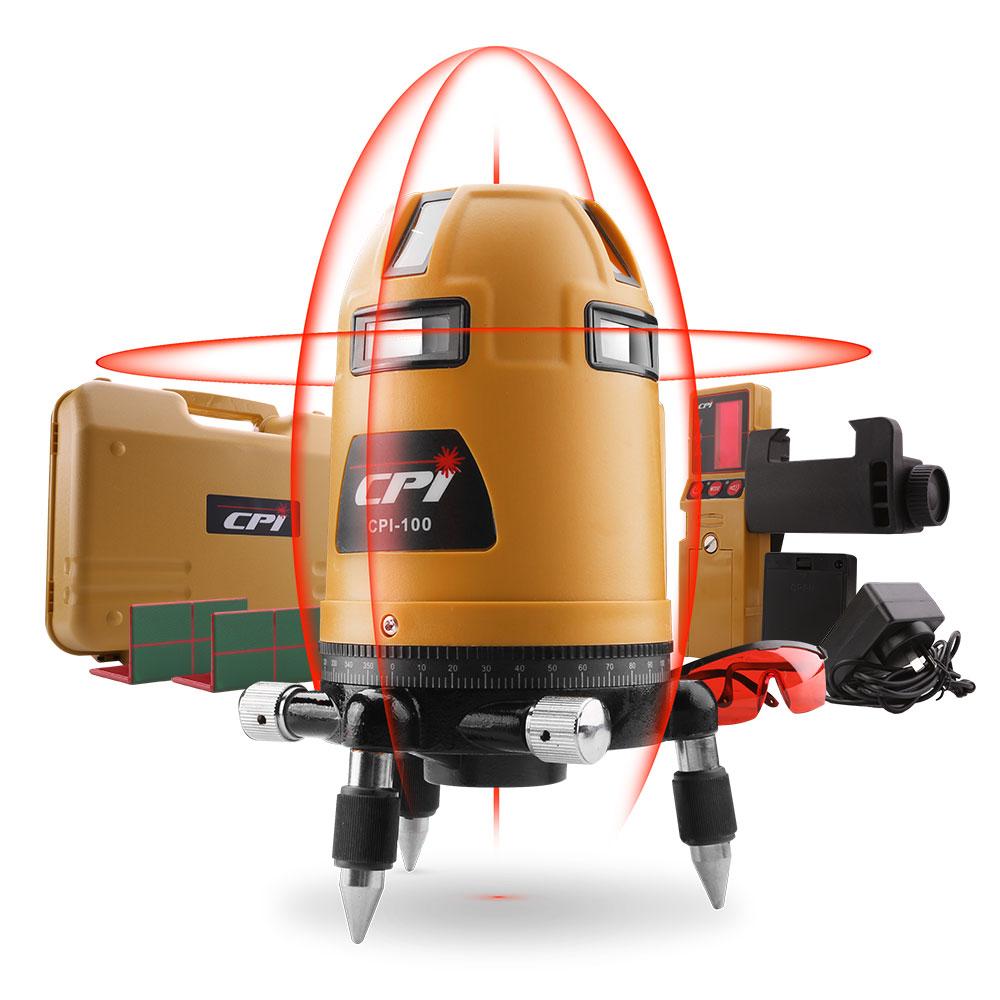

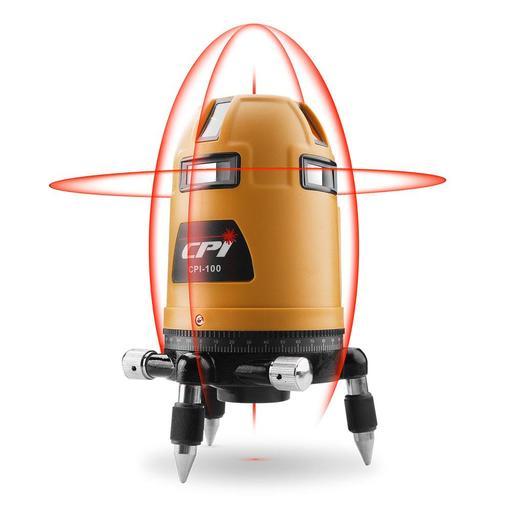

CPI CPI100 Industrial Multi Line Laser Level Kit

CPI CPI100 Industrial Multi Line Laser Level Kit

The CPI100 Industrial Multi Line Laser Level Kit is perfect for a variety of levelling applications, including light placement, door fittings, window fittings and decking.

Includes:

• Instrument (CPI100 Laser)
• Bracket
• Target Plate
• Red Laser Glasses
• Batteries
• User Manual
• BMC case

Features:

• 4 Vertical lines and 4 Horizontal lines with one down point
• Rotating function with a fine major adjustment mechanism
• Outdoor and indoor use
• Brightest laser in its class
• Lithium Ion Batteries

Applications:

• Carpentry: Level and set cabinets and counter tops. Install trim and millwork;Stair layout; level and plumb decks; plumb framing and partition walls; plumb window and door frames.
• Concrete: set forms and footings.
• Electrical: Level electrical outlets; transfer lighting layout from floor to ceiling.
• Plumbing: Layout piping, sewer lines, drainage and feed lines; transfer sprinkler system layout from floor to ceiling.

Specifications:

• Laser wave length: Vertical laser and Horizontal laser: 635nm down point: 650nm
• Working Distance: indoor: radius: approx. 10m; using laser detector: approx 50m
• Leveling Range: approx +-4degrees
• Emitting Angle: Approx 110 degrees
• Horizontal accuracy: +-1mm/10m
• Vertical accuracy: +-1mm/10m
• Down point Accuracy: +-1mm/1.4m
• Perpendicular Accuracy: 90degrees +-1
• Zenith Accuracy: +-1mm/3m
• Power Supply: 4.8-6V (4pcs NI-MH rechargeable batteries)
• Continuous Working Time: Approx 8hrs
• Dimensions: 140 x 190mm
• Weight: 3kg

Warranty:

• 12 Months Warranty Covered By CPI
