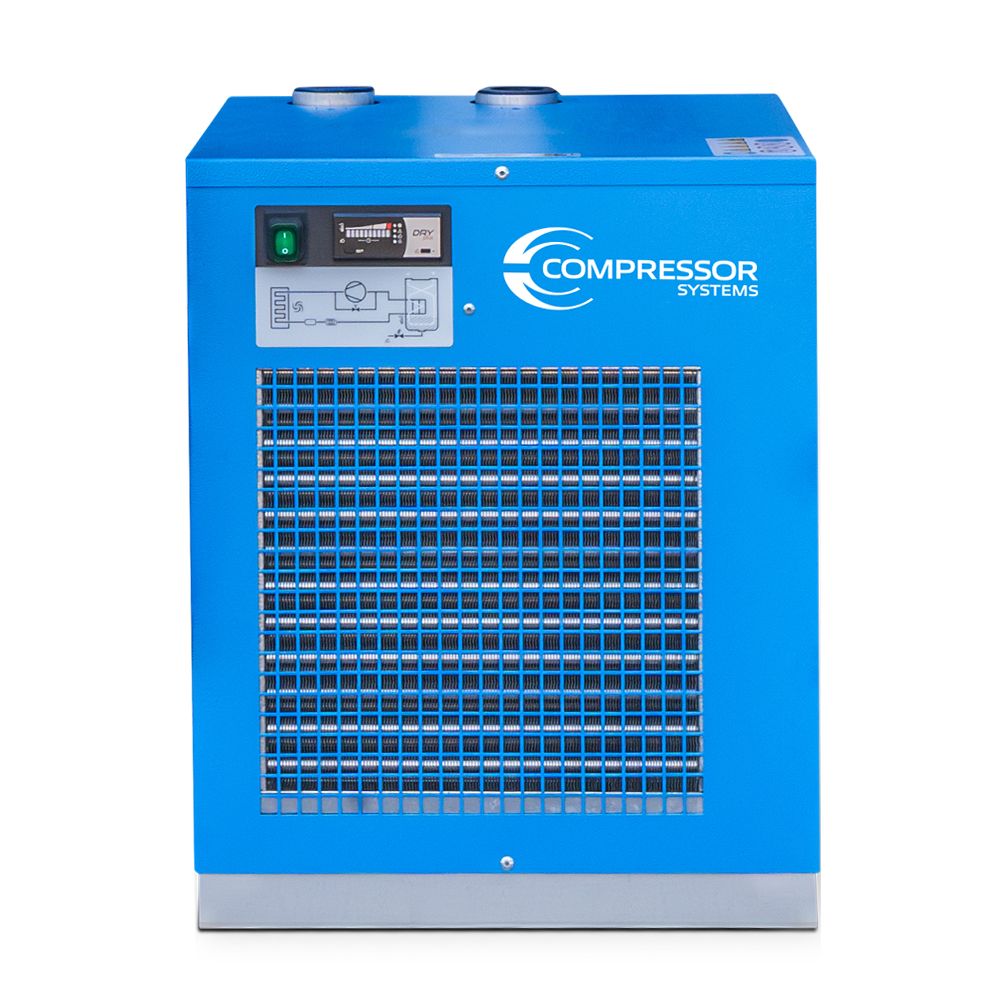

Compressor Systems WSD23 Refrigerated Dryer WSD23 to Suit Piston & Screw Air Compressor

Compressor Systems WSD23 Refrigerated Dryer WSD23 to Suit Piston & Screw Air Compressor

The WSD Series air dryers are reliable and a cost-effective solution to remove condensation from your compressed air system. The WSD series is a simple refrigerant dryer with quality components at an affordable price. If you are in need of a refrigerant dryer with outstanding reliability then look no further!

Features:

• Pressure dew point between 3-7°C
• High efficiency plate-fin heat exchanger
• Low relative humidity in outlet air
• 50% less energy consumption compared to shell-and tube type dryers
• Optimized refrigeration system
• Professional Energy efficiency
• Low (GWP) global warming potential
• Low (ODP) ozone depletion potential
• Industrial grade refrigeration compressor
• Digital controller & PDP display
• Reliable structure due to a robust canopy ensuring a safe installation independently of the environment
• Monitor the operations and dew point of your WSD dryer with the electronic controller
• Capacity drain will allow you to save money by discharging only water
• The highly efficient heat exchanger safeguards your optimized cooling power and lowers pressure drops
• Reliable timer drain with adjustable drain interval and discharge time

Specifications:

• Capacity: 85cfm
• Operating pressure:
  • Standard: 7 bar (100psi)
  • Max: 16 bar (232psi)
• Operating temperate:
  • Standard: 40°C
  • Max: 55°C
• Room temperature:
  • Min: 5°C
  • Standard: 30°C
  • Max: 45°C
• Refrigerant: R134A
• Dimensions (L x W x H): 351mm x 450mm x 491mm
• Weight: 38kg
