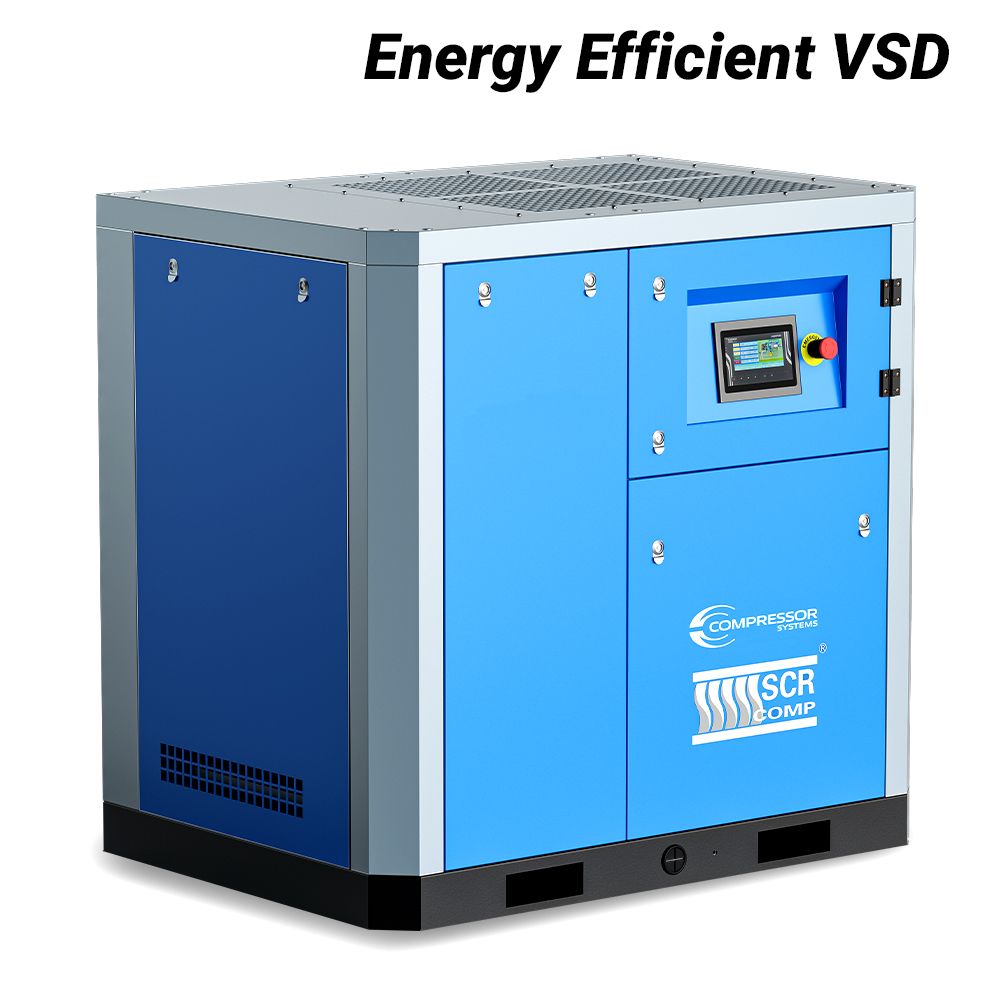

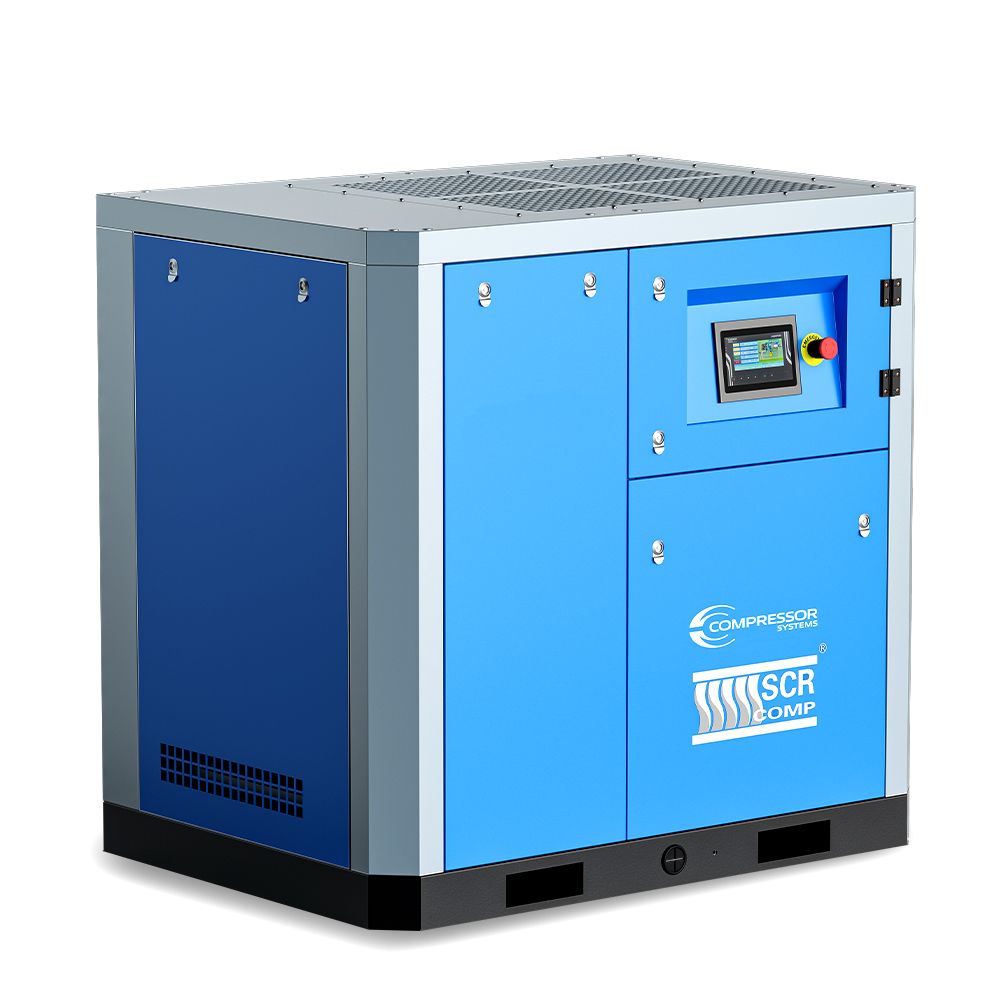

Compressor Systems SCR30 APM Basemount 22kW (30HP) Variable Speed Drive Rotary Screw Compressor

Compressor Systems SCR30 APM Basemount 22kW (30HP) Variable Speed Drive Rotary Screw Compressor

The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

Features:

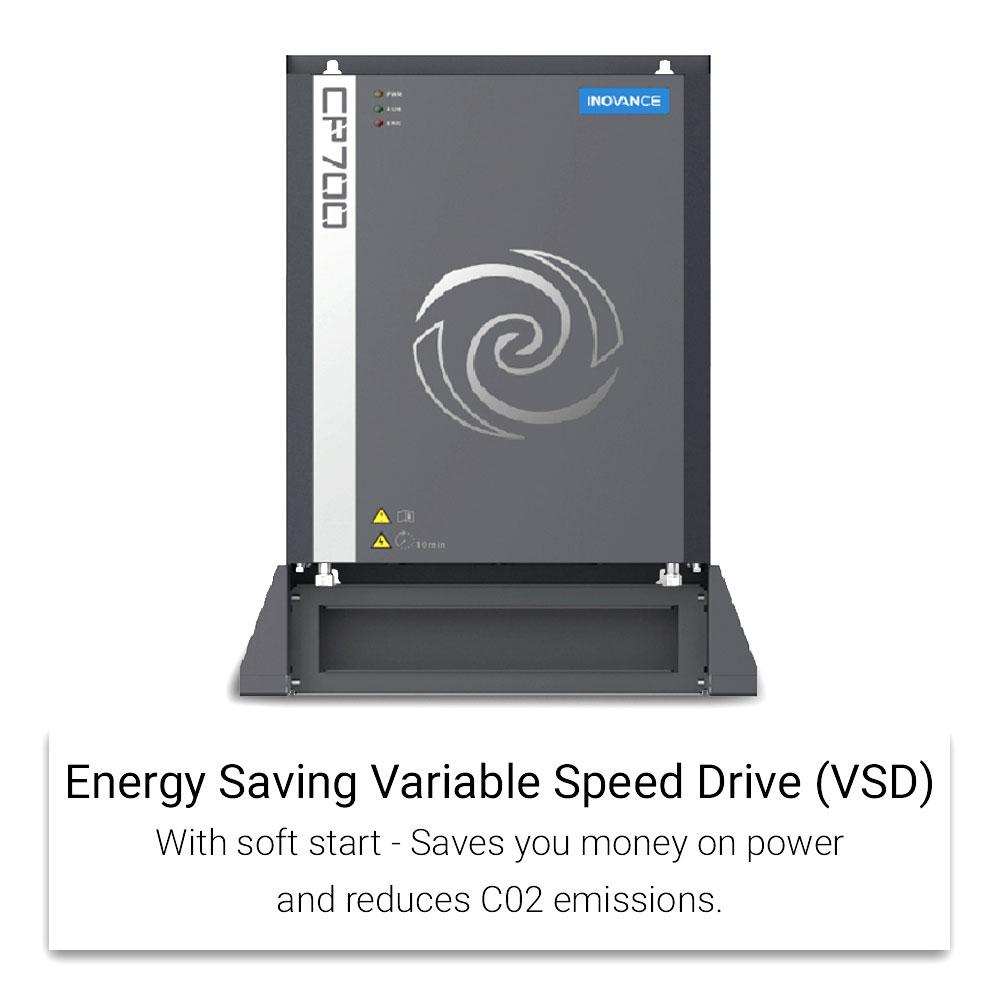

• Variable Speed with Inverter Drive for main and fan motors

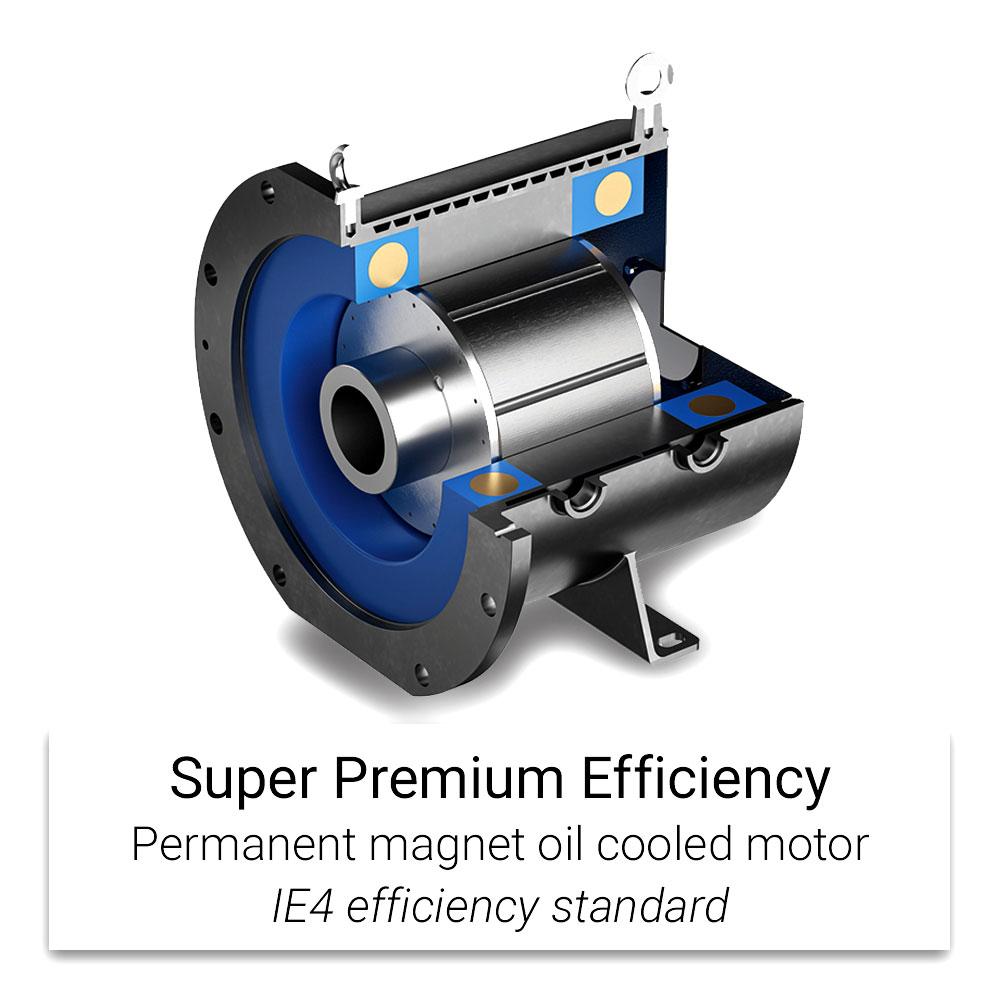

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)

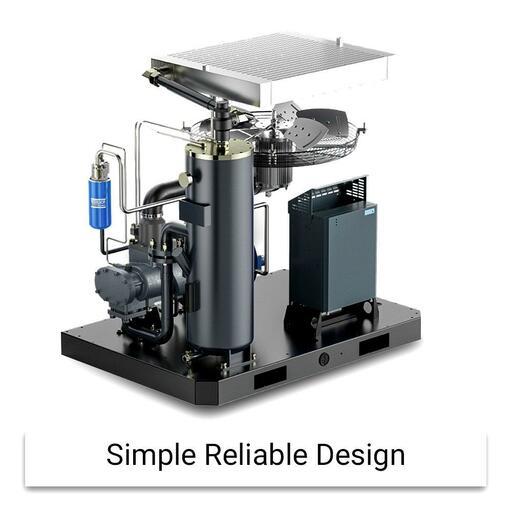

• Compact Footprint for more efficient usage of your valuable floor space

Specifications:

• Power: 22kw (30hp)
• Compressor type: Screw
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 120 cfm @ 8 bar
• Air Outlet: RC 1”
• Air Receiver Size: NA
• Noise Level: 70 dBa
• Dimensions (L x W x H): 1200mm x 800mm x 1100mm
• Weight: 350 kg

Warranty:

• Standard 2 Years Warranty on Compressor
