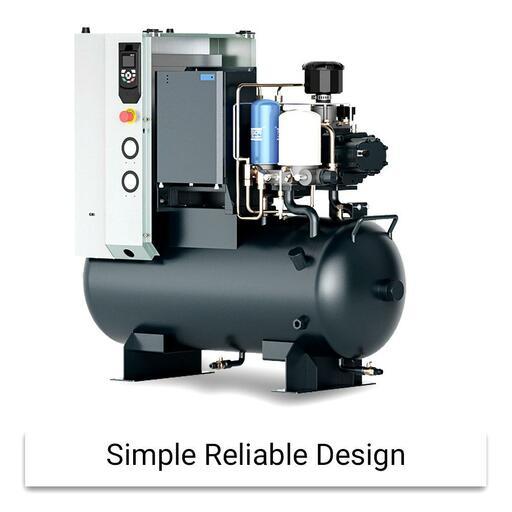

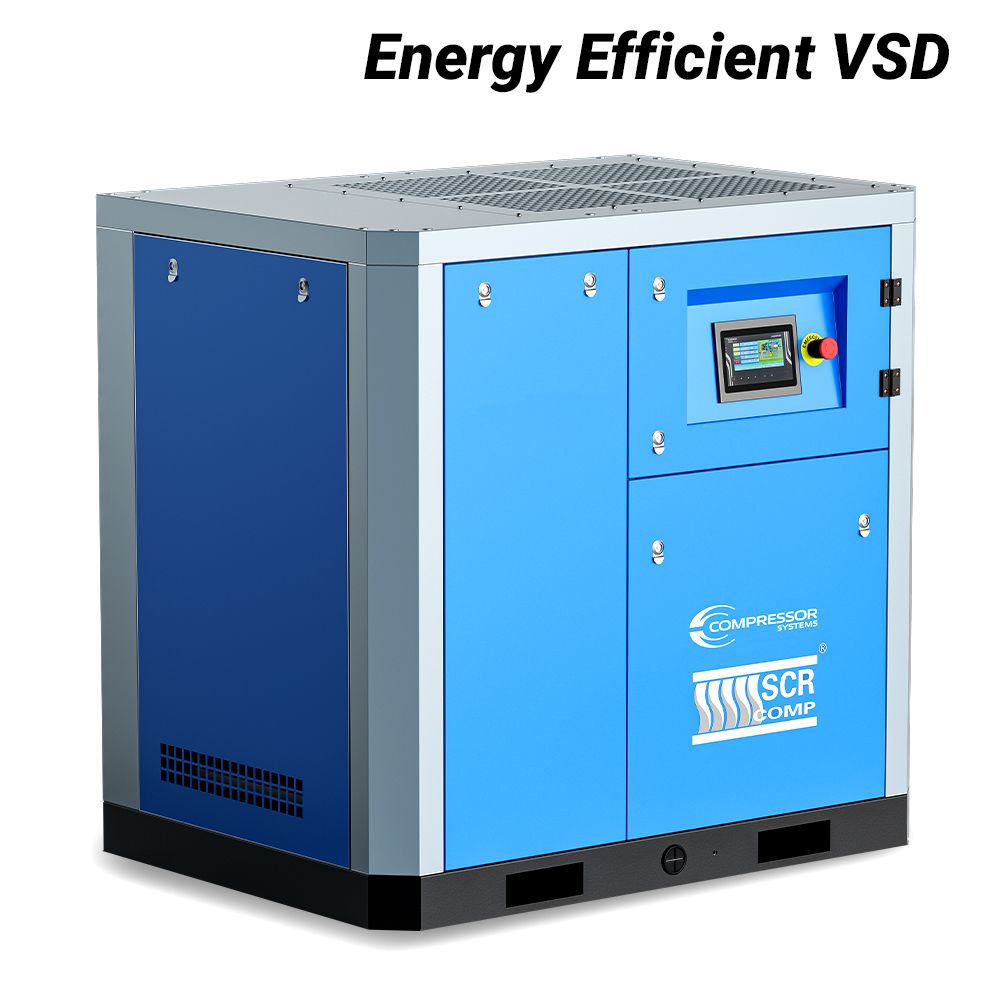

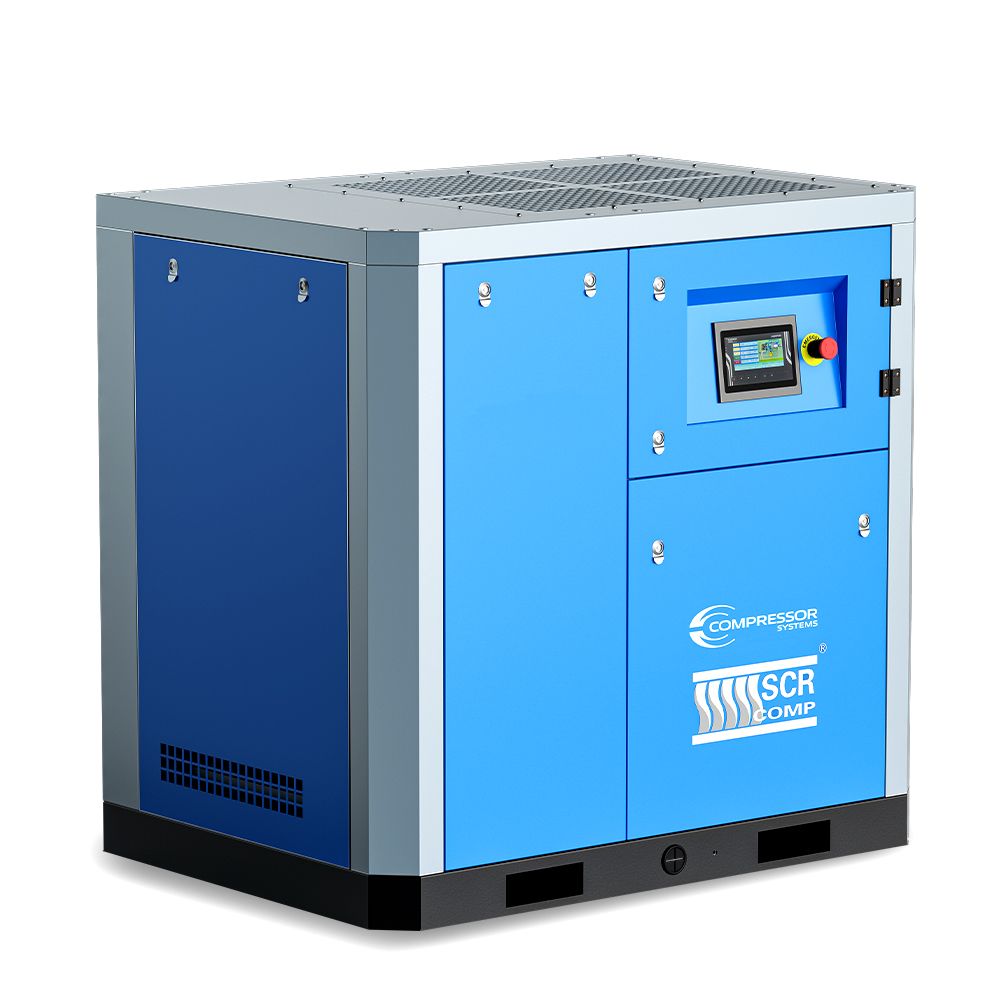

Compressor Systems SCR20 PM2 15kW (20HP) Variable Speed Drive Rotary Screw Compressor with Air Receiver

Compressor Systems SCR20 PM2 15kW (20HP) Variable Speed Drive Rotary Screw Compressor with Air Receiver

The PM2 series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR PM2’s goal is to keep the compressor continually on load and avoid running time offload. PM2 compressors have a wide variable range of 40-100%, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions

Features:

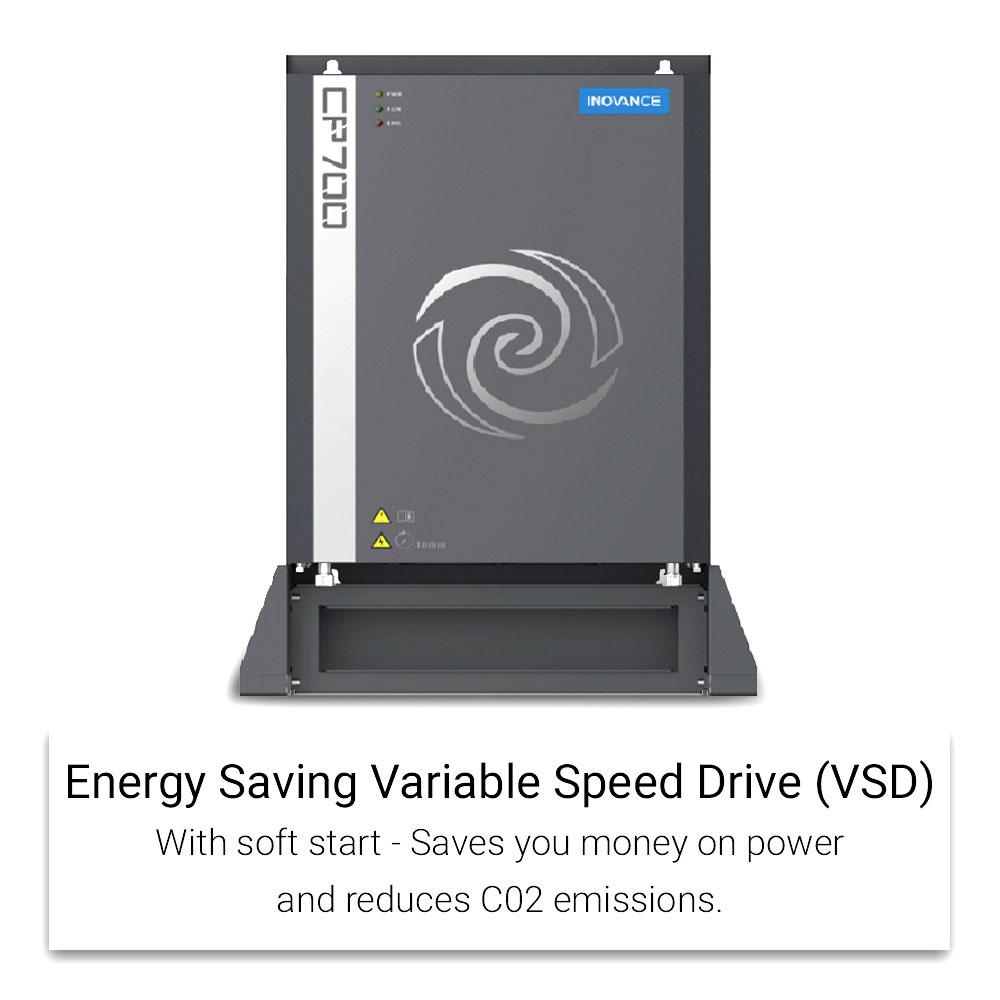

• Variable Speed with Inverter Drive

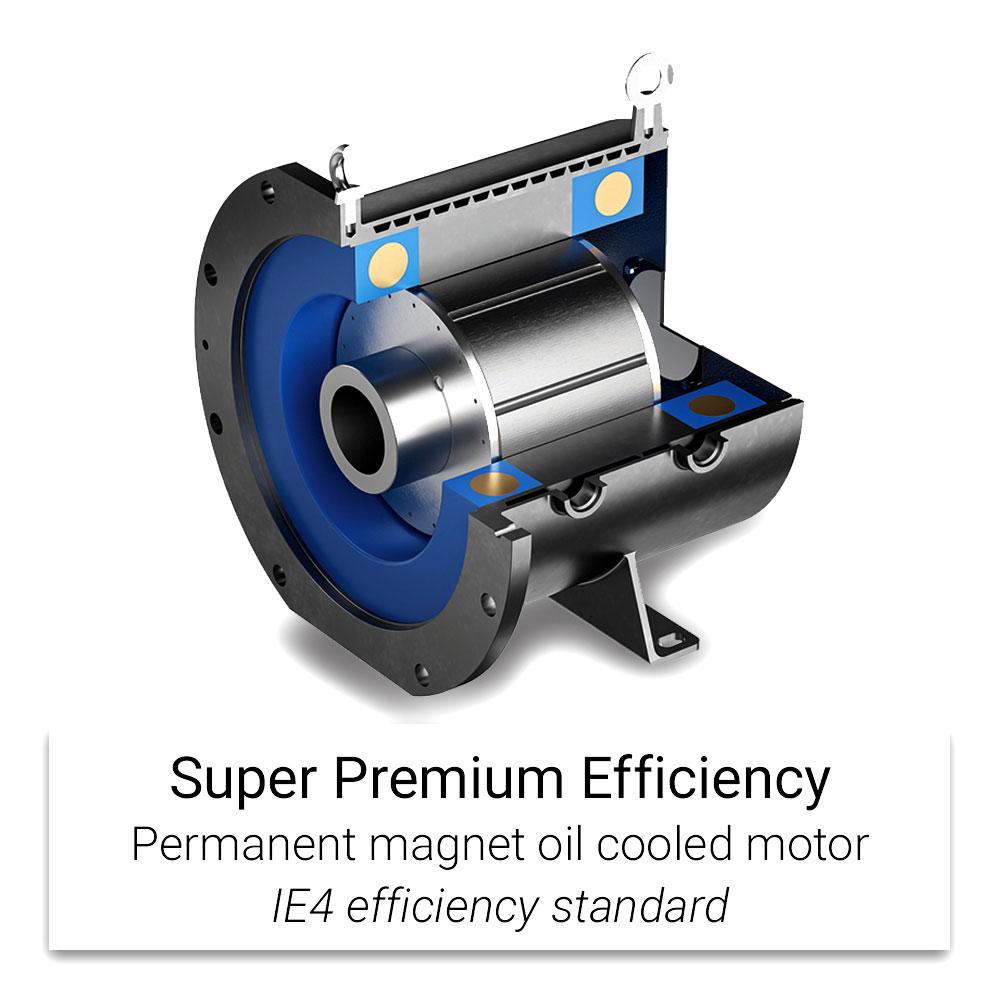

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
• The small, compact design frees up valuable floor space
• The unique flip-top design minimises the space required around the compressor and allows easy maintenance.

Specifications:

• Power: 15kw (20hp)
• Compressor type: Screw
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 81 cfm @ 8 bar
• Air Outlet: RC 1”
• Air Receiver Size: 160L
• Noise Level: 71 dBa
• Dimensions (L x W x H): 1245mm x 605mm x 1115mm
• Weight: 340 kg

Warranty:

• Standard 2 Years Warranty
