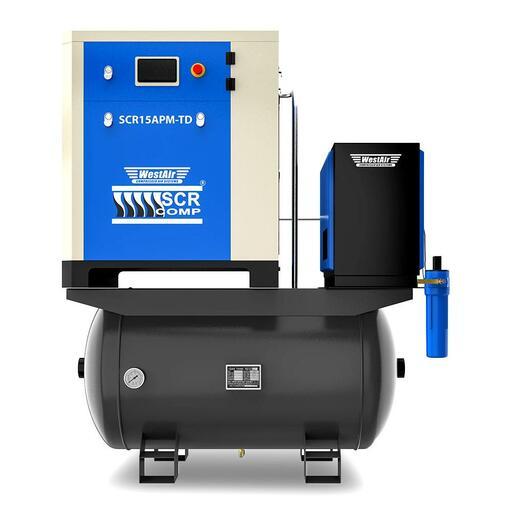

Compressor Systems SCR15 APM TD 11kW (15HP) Variable Speed Drive Rotary Screw Compressor with Integrated Air Receiver, Dryer and Pre/Post Filters

Compressor Systems SCR15 APM TD 11kW (15HP) Variable Speed Drive Rotary Screw Compressor with Integrated Air Receiver, Dryer and Pre/Post Filters

The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

Features:

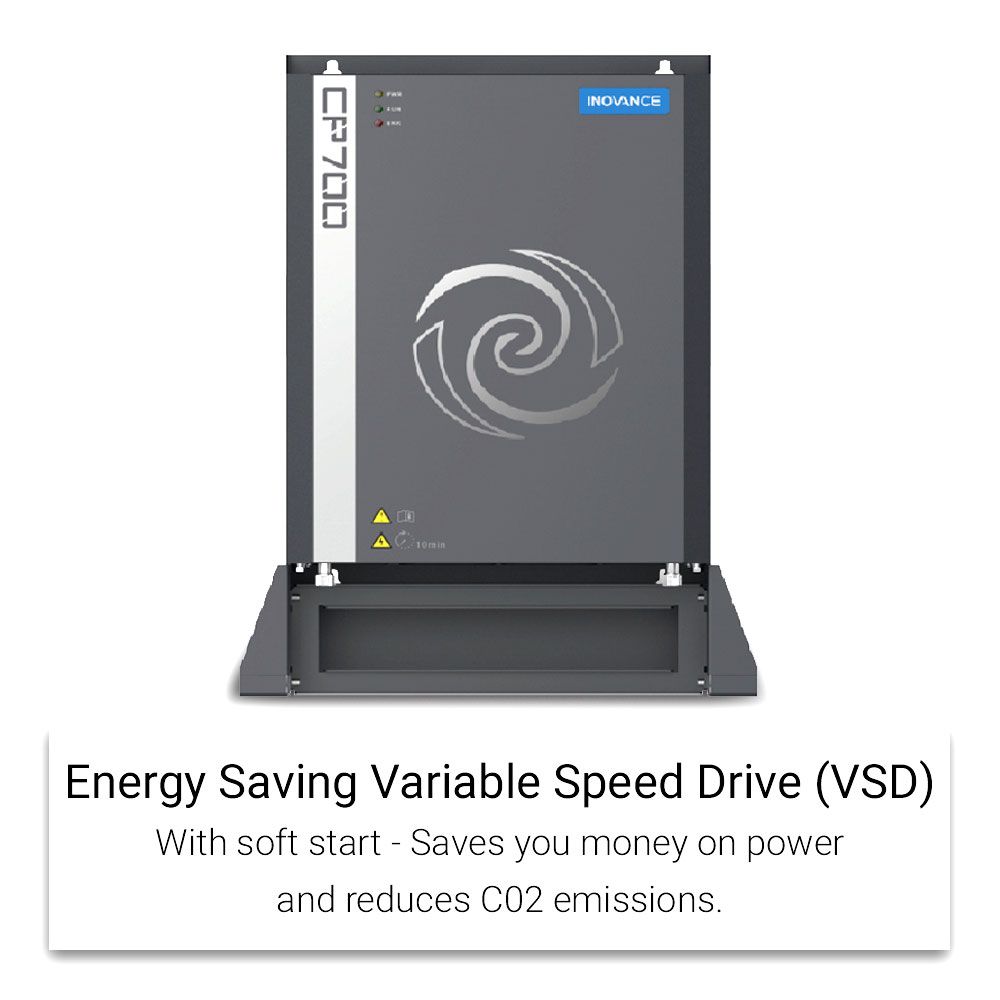

• Variable Speed with Inverter Drive

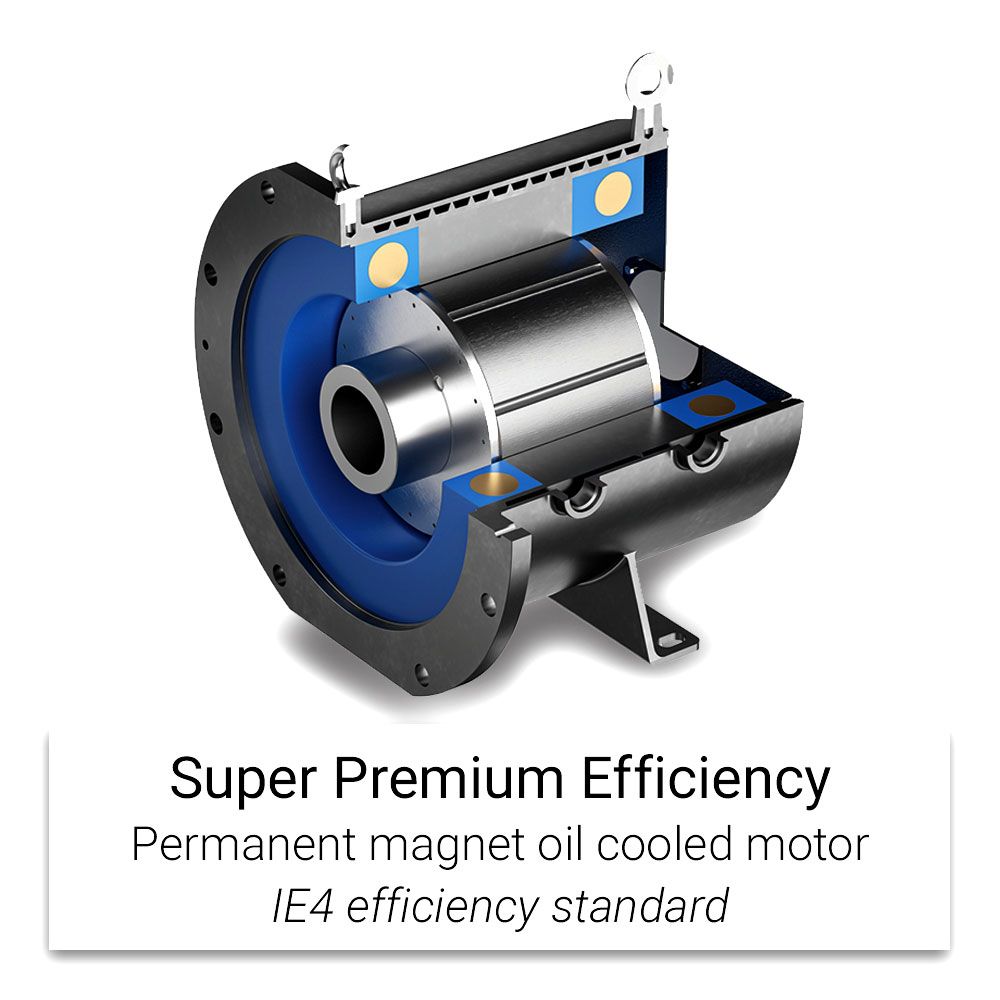

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
• Compact Footprint for more efficient usage of your valuable floor space
• Standard Pre & Post Filtration of particles down to 0.01 micron and oil removal.
• Standard Refrigeration Air Dryer keeping the dew point down to 3-6ºC, removing moisture from the compressed air
• Standard 2 years Warranty on compressor and 1 year on dryer

Specifications:

• Power: 11 kw (15 hp)
• Max pressure: 8 bar
• Free Air Delivery (FAD): 60 cfm @ 8 bar
• Air Outlet: RC ¾ “
• Air Receiver Size: 500L
• Noise Level: 66 dBa
• Dimensions (L x W x H): 1664mm x 966mm x 1883
• Weight: 534 kg
