Compressor Systems SCR10 APM TD 7.5kW (10HP) Variable Speed Drive Rotary Screw Compressor with Air Receiver, Dryer and Filters

Compressor Systems SCR10 APM TD 7.5kW (10HP) Variable Speed Drive Rotary Screw Compressor with Air Receiver, Dryer and Filters

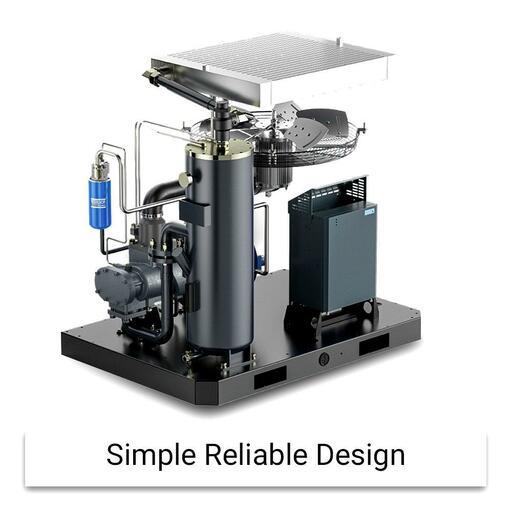

The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

Features:

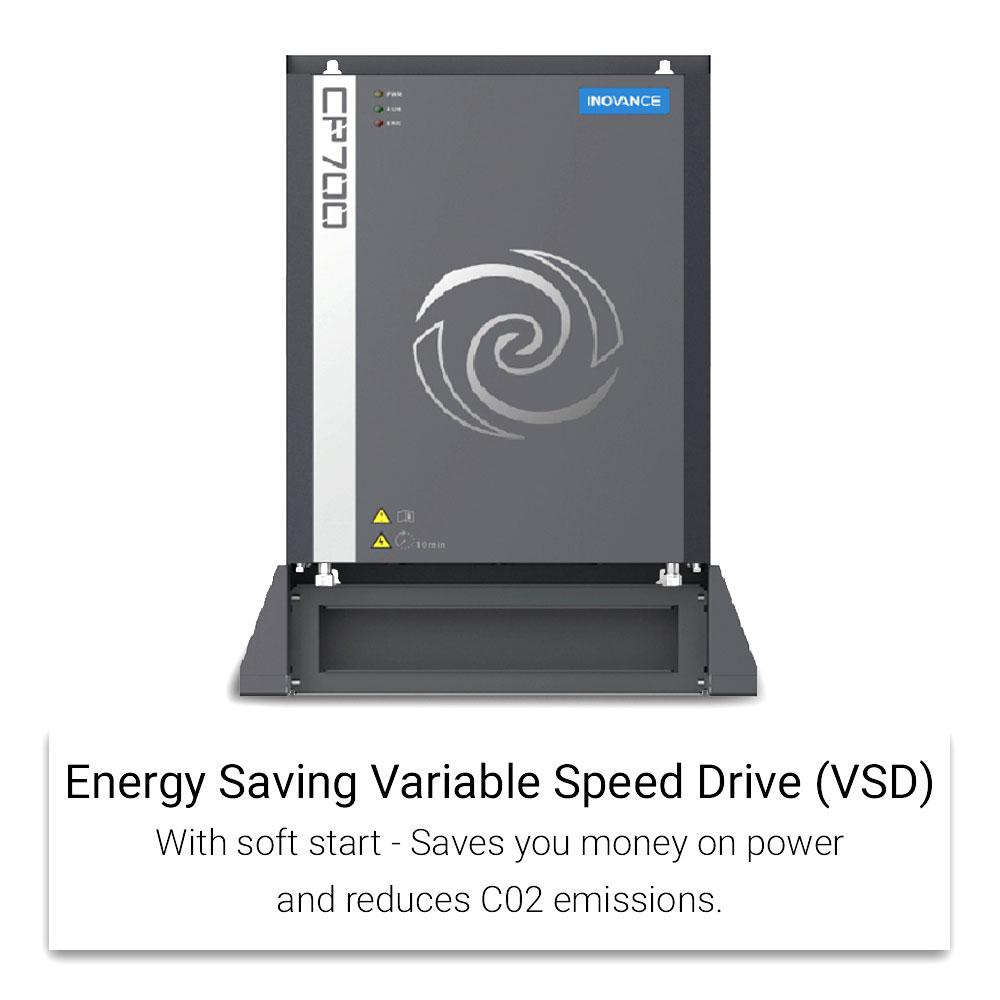

• Variable Speed with Inverter Drive

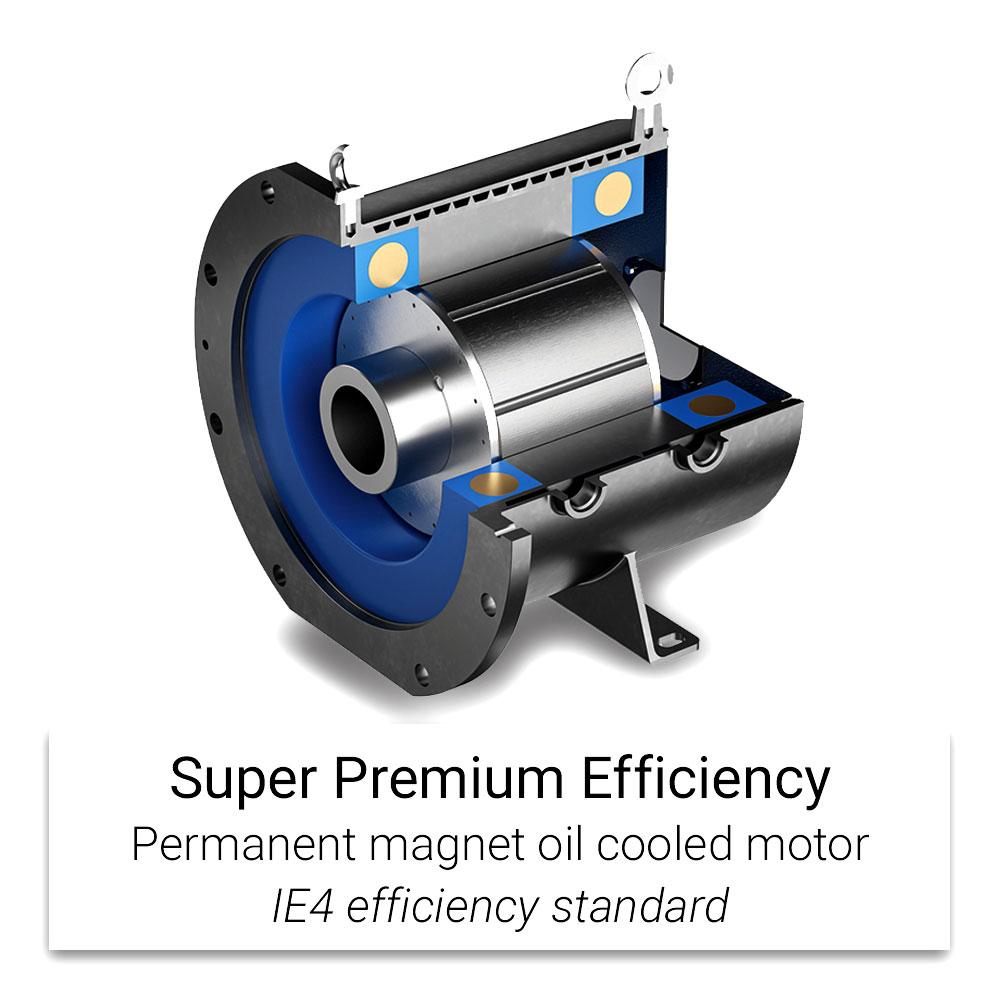

• Super Premium Efficiency oil cooled Permanent Magnet Electric motor (IE4 equivalent)
• Compact Footprint for more efficient usage of your valuable floor space
• Standard Pre & Post Filtration of particles down to 0.01 micron and oil removal.
• Standard Refrigeration Air Dryer keeping the dew point down to 3-6ºC, removing moisture from the compressed air

Specifications:

• Power: 7.5kw (10hp)
• Compressor type: Screw
• Air Receiver Size: 300L
• Noise Level: 64 dBa
• Max pressure: 8 bar (Available in 10 bar as well)
• Free Air Delivery (FAD): 39 cfm @ 8 bar
• Air Outlet: RC ½ “
• Dimensions (L x W x H): 1480mm x 895mm x 1722mm
• Weight: 471 kg

Warranty:

• Standard 2 years Warranty on Compressor and 1 Year on Dryer
