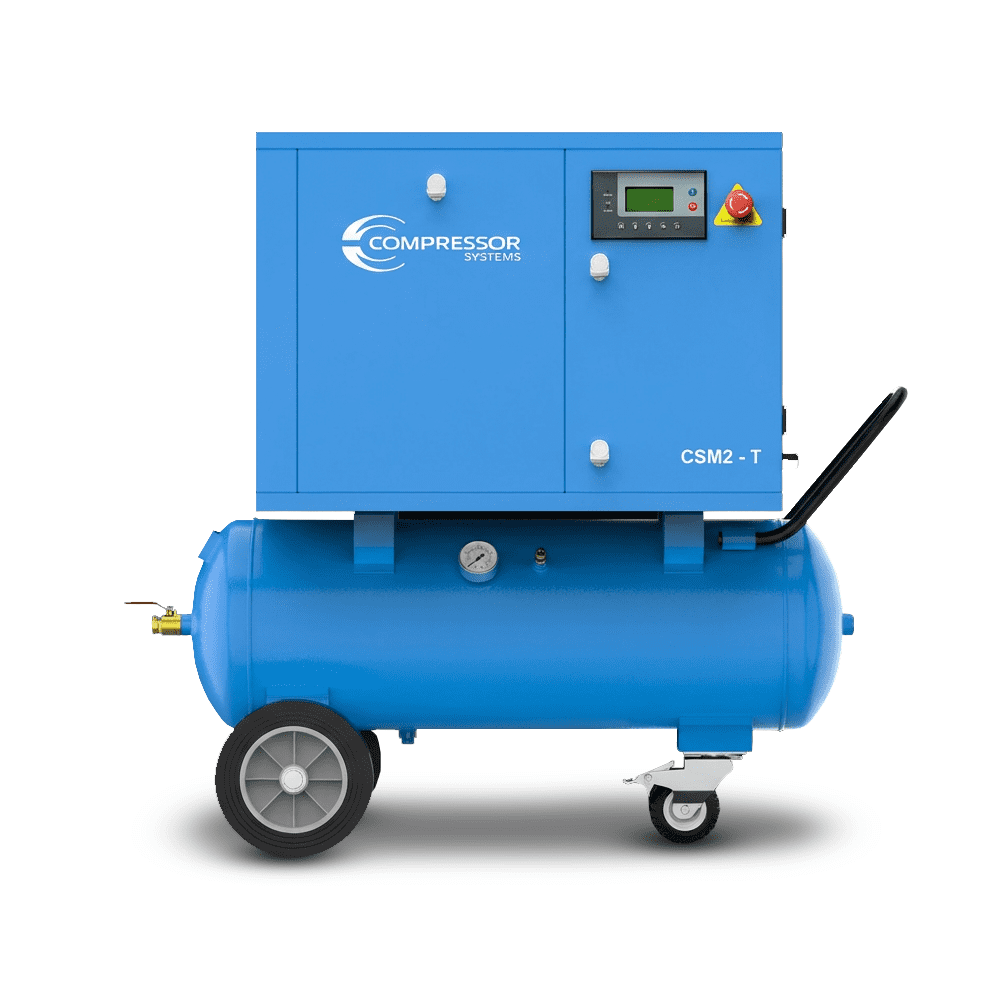

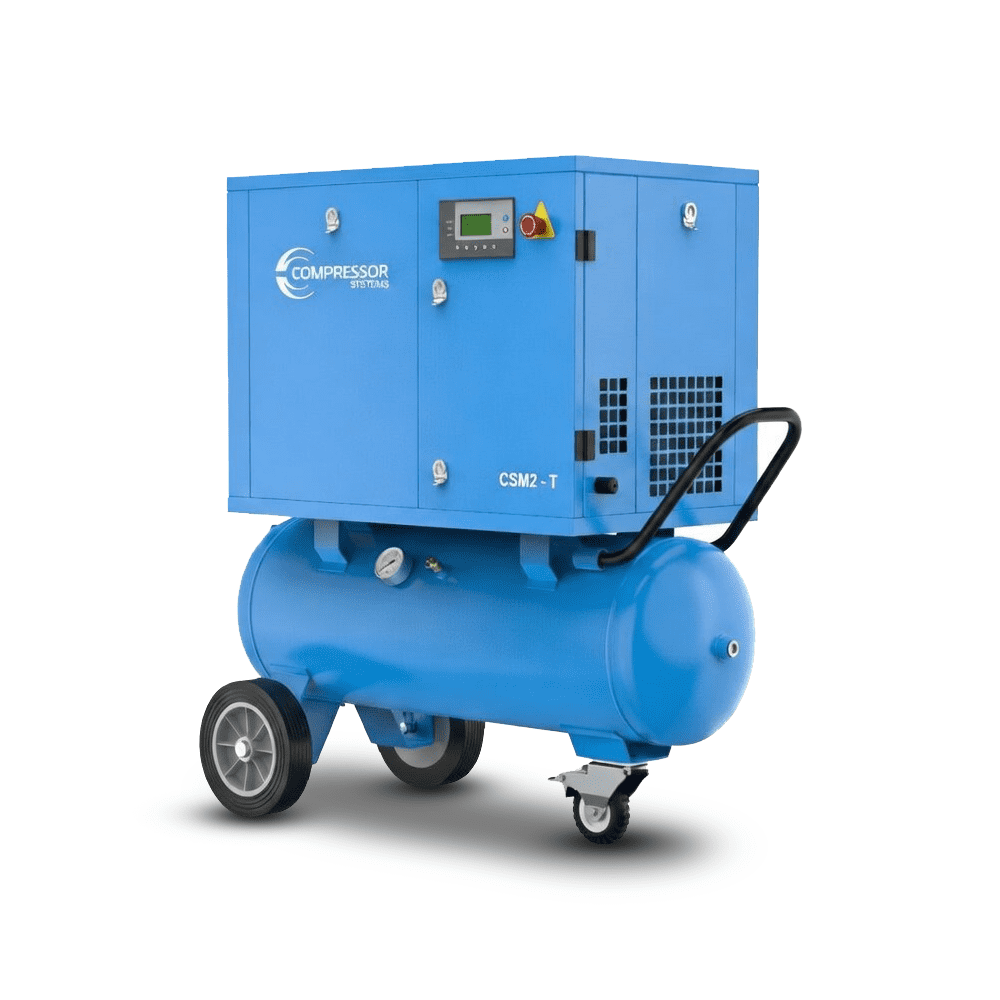

Compressor Systems CSM2-T 240V 15 Amp 3HP 100L Tank Single Phase Super Quiet Screw Air Compressor

Compressor Systems CSM2-T 240V 15 Amp 3HP 100L Tank Single Phase Super Quiet Screw Air Compressor

Compressor Systems is pleased to introduce the latest in advanced compressed air technology. Our new direct drive rotary screw CSM (Mini) range offers reliable, quiet, performance at an affordable price. The smallest model we provide in both size and kW is compact and space-efficient, making it ideal for applications with limited space. The CSM is also portable and easy to move around as needed. The range consists of 2.2kW (15amp) and 3KW (20amp) single-phase units operating at 240V. All CSM models operate at a maximum 10 bar working pressure.

Features:

• 2.2kw 15amp / 3kw 20amp 240v Direct Drive Rotary Screw
• 10 bar max pressure
• 10CFM Flow (FAD)
• Direct drive (no belts)
• Energy saving intelligent micro controller
• Schneider electrical components
• SKF bearings in airend and motor
• Australian design registered air receiver
• Overload, pressure and temperature safety protection

Specifications:

• Power: 2.2kw (3 hp)
• Max pressure: 10 bar
• Free Air Delivery (FAD): 10 cfm (283 l/m) @ 10 bar
• Air Outlet: Rc 3/4”
• Air Receiver Size: 100L
• Noise Level: 59 dBa
• Dimensions (L x W x H): 1226mm x 500mm x 1120mm
• Weight: 135kg
