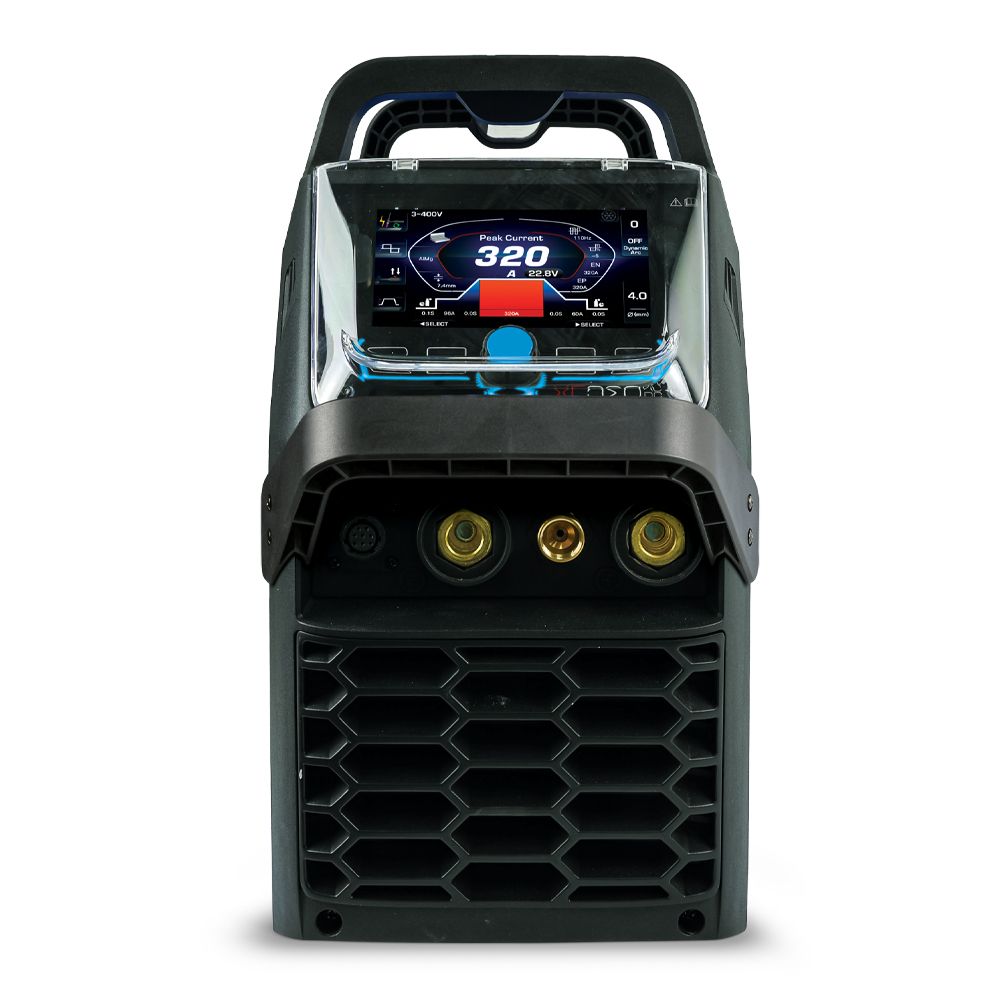

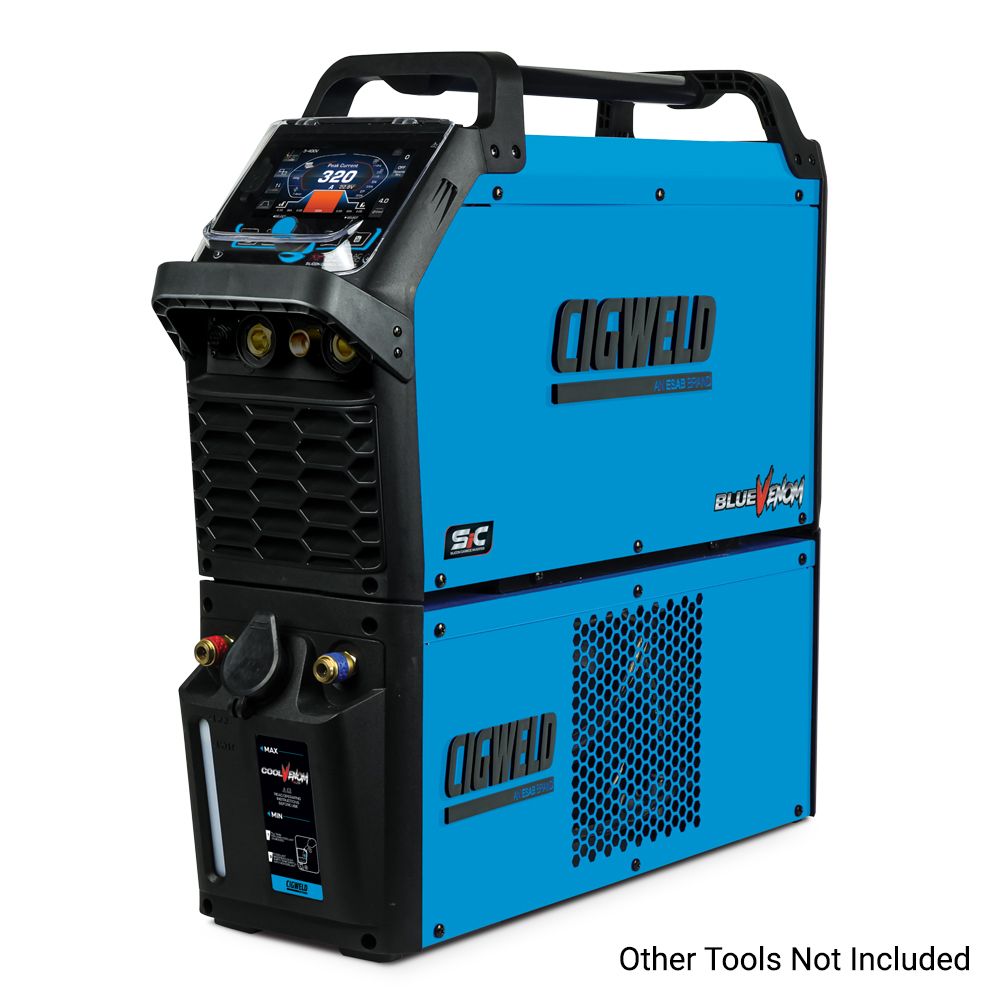

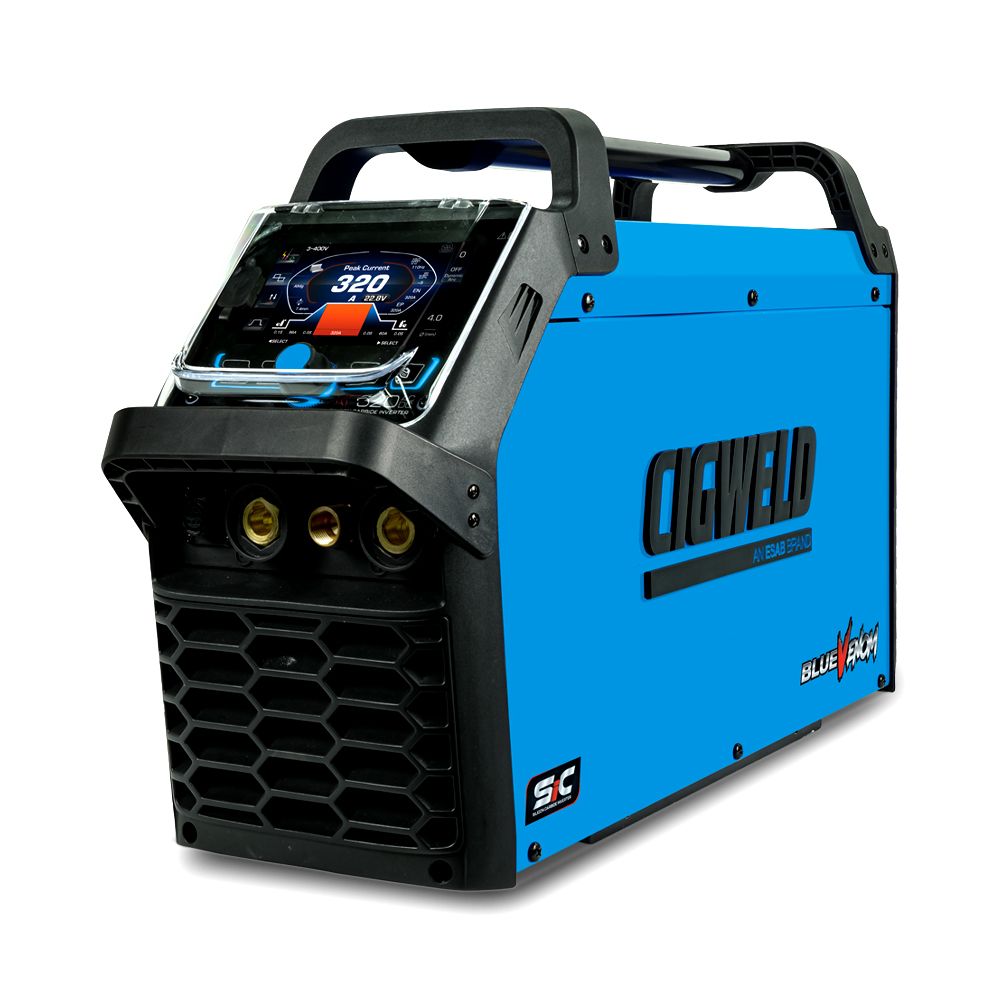

Cigweld XF320-AC/DC-SIC (W1300320) BlueVenom AC/DC SiC TIG & ARC Inverter Welder

Cigweld XF320-AC/DC-SIC (W1300320) BlueVenom AC/DC SiC TIG & ARC Inverter Welder

Built for heavy-duty fabrication and industrial welding, the BlueVenom XF320 AC/DC SiC delivers 320 amps of advanced AC/DC TIG performance powered by Silicon Carbide (SiC) inverter technology. Combining outstanding arc stability, advanced pulse features, Dynamic Arc Control, and comprehensive parameter adjustment, it provides the precision, versatility, and reliability demanded by professional welders.

Featuring AC TIG, DC TIG, Mixed AC + DC TIG, synergic controls, advanced waveform customisation, and a comprehensive range of parameter adjustments, the XF320 AC/DC SiC is designed to deliver consistent, high-quality welding performance across aluminium, mild steel, and stainless steel applications.

Incldues:

• 1 x BlueVenom XF320 AC/DC SiC Power Source
• 1 x DIMEX ELITE 8m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• 1 x TIG Kit
• 1 x 400A Twist lock Electrode Holder with 3m Lead
• 1 x 3m Quick Connect Gas Hose
• 1 x 300A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 1 x Operating Manual

Features:

• Advanced Silicon Carbide (SiC) Technology: Next-generation Silicon Carbide (SiC) inverter technology delivers superior efficiency, enhanced arc stability, reduced heat generation, and extended machine life
• 320A AC/DC TIG Performance: Powerful 320A AC TIG, DC TIG, and Mixed AC + DC TIG modes deliver exceptional control across aluminium, mild steel, and stainless steel applications
• 100% Duty Cycle Performance: Designed for continuous operation with a 100% duty cycle, making it ideal for demanding fabrication and industrial welding applications
• Silicon Carbide (SiC) Mosfet: Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density
• Advanced Dynamic ARC Control: Dynamic Arc Control continuously monitors and adjusts current in real time to maintain a stable TIG arc and precise heat management
• Ultimate AC/DC TIG Performance. Uncompromising Control: AC TIG with up to nine selectable waveforms, synergic controls, and advanced parameter adjustment provides exceptional welding flexibility
• Intuitive Touchscreen & Memory Control: The intuitive 5-inch full colour touchscreen provides easy access to welding parameters, while 100 memory programs enable quick and seamless switching between jobs

Specifications:

• Brand: Cigweld
• Welder Type: AC/DC TIG Inverter Power Source
• Pulse & High Frequency Capable: Yes
• Number of Phases: Three Phase
• Nominal Supply Frequency: 50/60Hz
• Standards / Certifications: AS 60974.1:2020 EN IEC 60974-10:2021
• Welding Current Range (TIG Mode): 5-320A (DC) 10-320A (AC)
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 85V
• Maximum Input Current (I1max): 18.5 Amps (400VAC)
• STICK (MMAW) Welding Output, 40°C, 10 min: 320A @ 100%, 32.8V
• TIG AC/DC (GTAW) Welding Output, 40°C, 10 min: 320A @ 100%, 22.8V
• Protection Class: IP23S
• Cooling: Fan Cooled
• Welding Processes: AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG, Stick
• Nominal Supply Voltage: 400 VAC ± 10%
• Welding Current Range (Stick mode): 10-320A
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Effective Input Current (I1eff): 18.5 Amps (400VAC)
• Minimum Three Phase Generator Recommendation: [email protected]
• Power Source Dimensions (L x W x H): 660mm x 190mm x 370mm
• Power Source Weight: 20kg

Warranty:

• 5 Years Warranty covered by Cigweld
