Cigweld XF250-AC/DC-SIC (W1300250) BlueVenom AC/DC SiC Compact High Performance TIG & ARC Inverter Welder

Cigweld XF250-AC/DC-SIC (W1300250) BlueVenom AC/DC SiC Compact High Performance TIG & ARC Inverter Welder

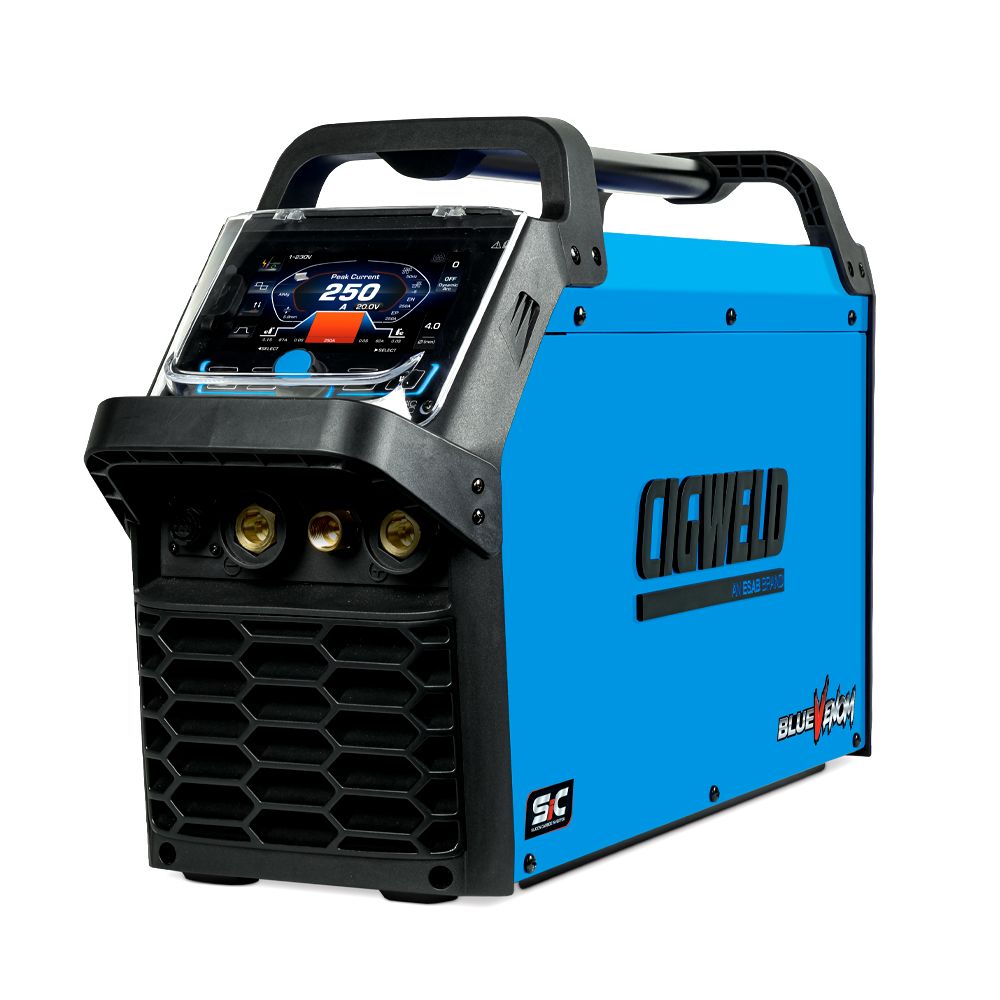

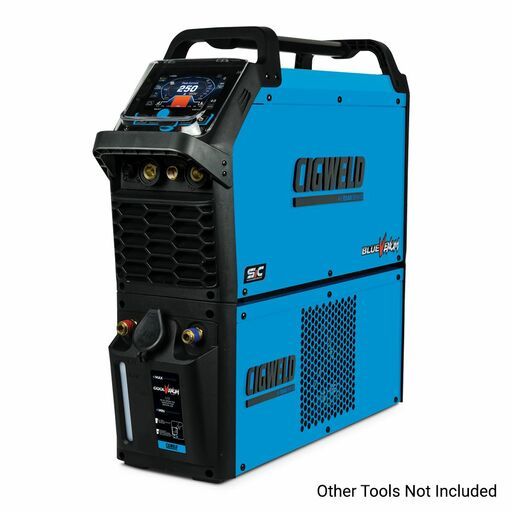

The BlueVenom XF250 AC/DC SiC is a compact, high-performance 250 Amp TIG inverter powered by advanced Silicon Carbide (SiC) inverter technology. Designed for welders who demand precision and flawless results, it delivers exceptional arc stability and thermal efficiency across a wide range of applications.

Featuring AC TIG, DC TIG, multiple AC waveforms, High Frequency Start, synergic controls, and a 5-inch full-colour touchscreen, the XF250 AC/DC SiC provides the control and flexibility needed to produce high-quality welds on aluminium, mild steel, and stainless steel.

Includes:

• 1 x BlueVenom XF250 AC/DC SiC Power Source
• 1 x DIMEX ELITE 8m 26F ‘Flex Head’ TIG Torch with Trigger Button and Remote Current Control
• 1 x TIG Kit
• 1 x 250A Twist lock Electrode Holder with 3m Lead
• 1 x 3m Quick Connect Gas Hose
• 1 x 250A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 1 x Operating Manual

Features:

• Advanced SiC Inverter Technology: Next-generation Silicon Carbide (SiC) inverter technology delivers superior efficiency, enhanced arc stability, optimised thermal performance, and extended machine life
• 250A AC/DC TIG Performance: Delivers up to 250A output across AC TIG, DC TIG, and Mixed AC + DC TIG modes, providing the power required for demanding aluminium, mild steel, and stainless steel welding applications
• Silicon Carbide (SiC) Mosfet: Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density
• High Frequency Start: High Frequency (HF) Start provides clean, non-contact arc ignition, eliminating tungsten contamination and delivering reliable, consistent arc starts for precise TIG welding
• Advanced TIG Welding Modes: Customise your weld with advanced AC frequency, balance control, Pulse TIG, and Cold Weld TIG functions, giving greater control over arc characteristics, heat input, and precision welding results
• 15A Power Input: Designed with a 15A plug for increased power availability and reliable welding performance

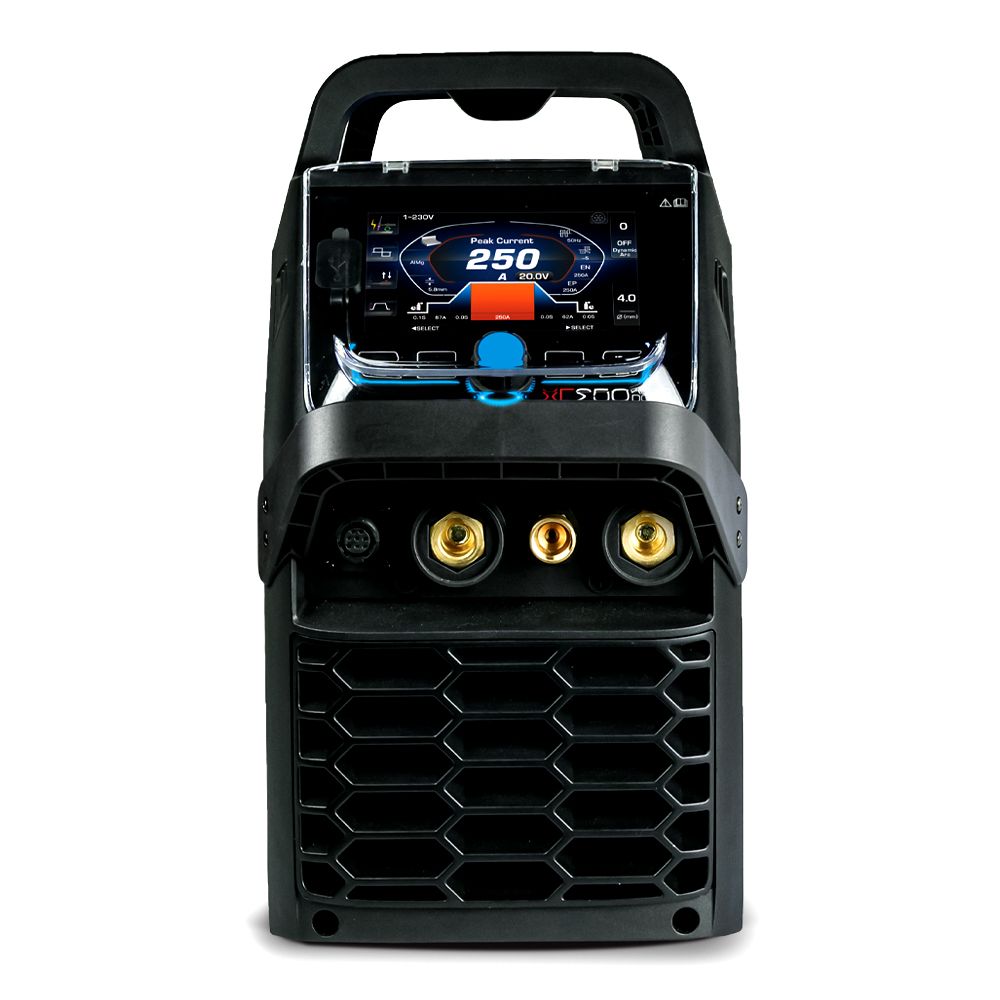

• Ultimate AC/DC TIG Performance, Uncompromising Control: The intuitive 5" Full Colour Touchscreen provides quick access to all welding parameters, while synergic controls and 100 memory programs help reduce setup time and deliver repeatable results

Specifications:

• Brand: Cigweld
• Welder Type: AC/DC TIG Inverter Power Source
• Pulse & High Frequency Capable: Yes
• Number of Phases: Single Phase
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range (TIG Mode): 5-250A (DC) 10-250A (AC)
• Open Circuit Voltage (VRD Off) Stick Weld Mode: 76V
• Maximum Input Current (I1max): 29.0 Amps (230VAC)
• STICK (MMAW) Welding Output, 40°C, 10 min: 200A @ 25%, 28.0V 130A @ 60%, 25.2V 100A @ 100%, 24.0V
• TIG AC (GTAW) Welding Output, 40°C, 10 min: 250A @ 33%, 20.0V 185A @ 60%, 17.4V 145A @ 100%, 15.8V
• TIG DC (GTAW) Welding Output, 40°C, 10 min: 250A @ 28%, 20.0V 170A @ 60%, 16.8V 130A @ 100%, 15.2V
• Protection Class: IP23S
• Standards / Certification: AS 60974.1:2020 EN IEC 60974-10:2021
• Minimum Single Phase Generator Recommendation: [email protected]
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
• Welding Current Range (Stick mode): 10-200A
• Nominal Supply Voltage: 230 VAC ± 10%
• Welding Processes: AC TIG, DC TIG, AC+DC TIG, Cold Weld TIG & STICK
• Cooling: Fan Cooled
• Power Source Dimensions (L x W x H) 660mm x 190mm x 370mm
• Power Source Weight: 17.5kg

Warranty:

• 5 Years Warranty covered by Cigweld
