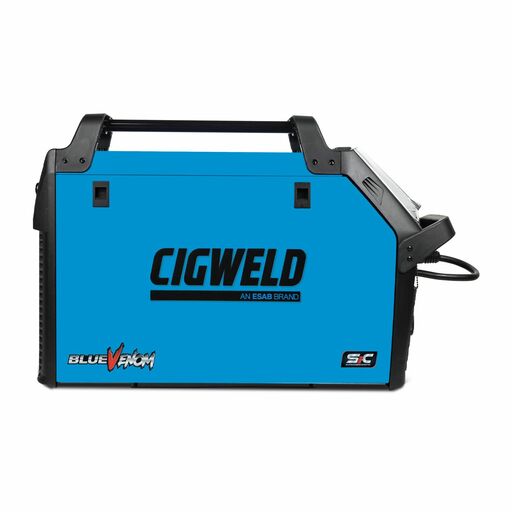

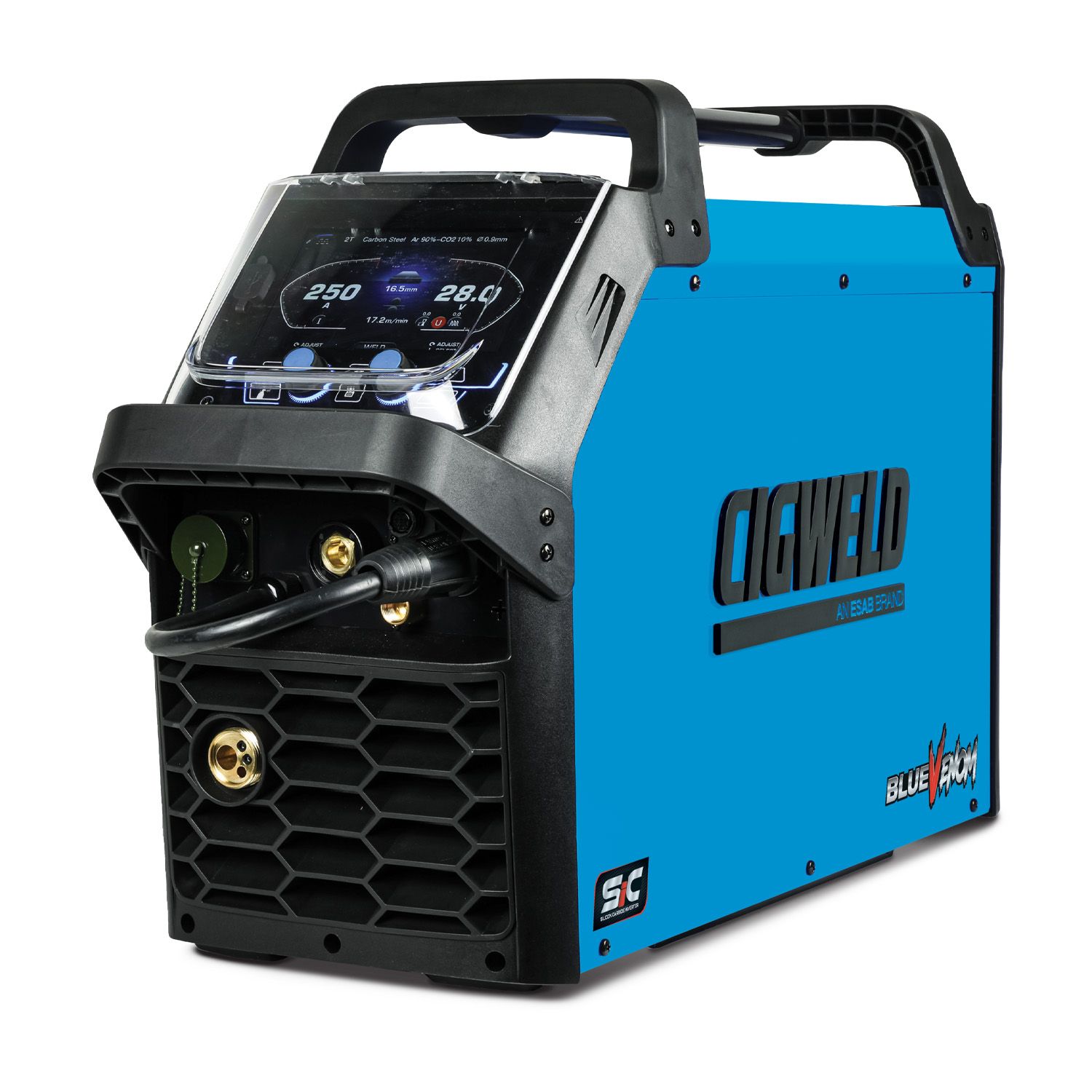

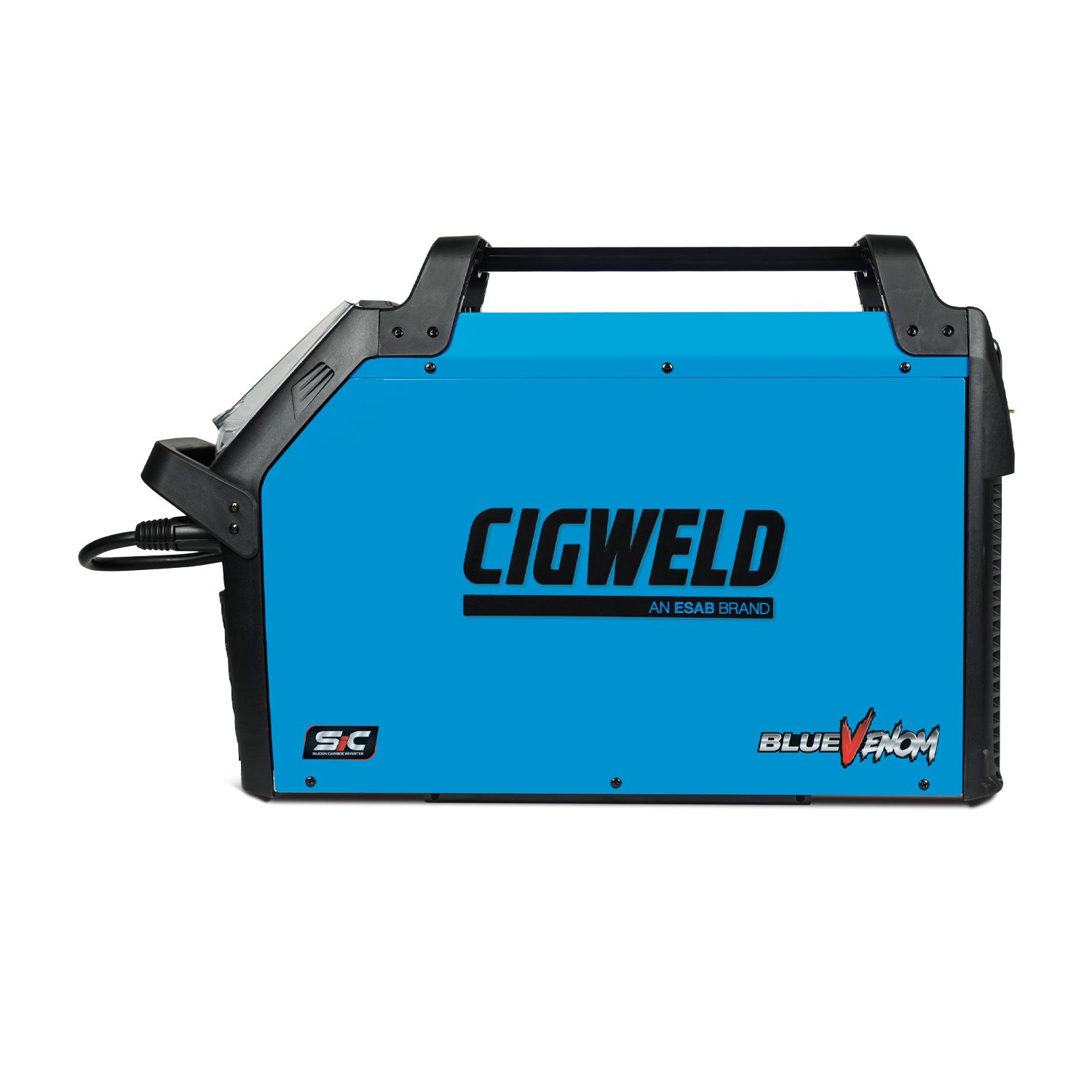

Cigweld XF2506-SIC (W1400254) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

Cigweld XF2506-SIC (W1400254) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

The BlueVenom XF250 6-in-1 SiC is a multi-process welding system engineered to deliver exceptional performance, versatility, and control. Featuring advanced Silicon Carbide (SiC) inverter technology and up to 250 amps of output, it supports MIG, Pulse MIG, Double Pulse MIG, AC TIG, DC TIG, Mixed TIG, TIG Cold Weld, and STICK welding in a single platform. Featuring a 7-inch full colour touchscreen, synergic controls, advanced waveform customisation, and compatibility with a wide range of accessories, the XF250 6-in-1 SiC provides the precision, flexibility, and performance required for demanding fabrication, aluminium welding, and industrial applications.

Includes:

• 1 x BlueVenom XF250-6 SiC Power Source
• 1 x 3m NEXARC DGX36 MIG Gun with 4-Button Control, BZ36 Style
• 1 x DIMEX ELITE 4m 26F ‘Flex Head’ Trigger Button Remote Control TIG Torch
• 1 x Fitted MIG Consumables, Spare Tip & TIG Kits
• 1 x 250A Twist lock Electrode Holder with 3m Lead
• 1 x 3m Quick Connect Gas Hose
• 1 x 250A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 1 x Mild Steel & Nylon Liner, Inlet/Outlet Guides
• 2 x Feedrolls:
  • 0.8/0.9mm Knurled (Fitted)
  • 0.8/0.9mm V-Groove
  • 1.0/1.2mm U-Groove

Features:

• Up to 250A output with Silicon Carbide inverter technology for exceptional efficiency, arc stability, thermal performance and high-duty cycle reliability
• MIG, Pulse MIG, Double Pulse MIG, AC/DC TIG, Mixed TIG, TIG Cold Weld, and STICK with Pulse provide outstanding versatility across a wide range of welding applications
• Optimise arc performance with intelligent parameter control, enabling precise adjustment to suit material thickness and welding preferences while delivering exceptional accuracy, stability, and repeatability across multiple welding processes
• Pulse TIG provides outstanding control for precision welding, while Single Pulse and Double Pulse MIG combine TIG-style weld appearance with the speed and productivity of MIG. Pulse STICK enhances control for demanding applications and difficult welding positions
• Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density

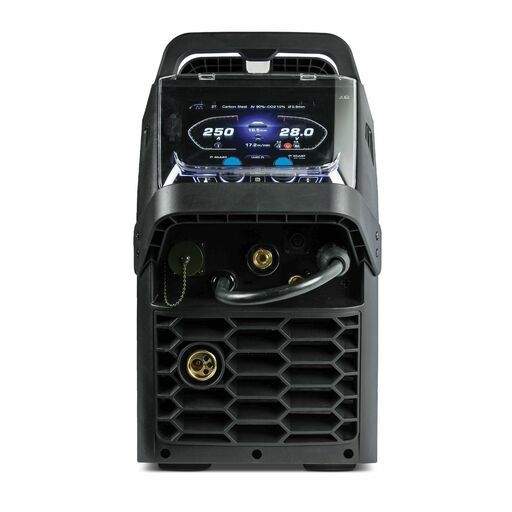

• The 7-inch Full Colour Touchscreen, NEXARC DGX 36 OLED MIG Gun, and 100-job memory bank provide quick parameter adjustment, reduced setup time, and seamless switching between jobs
• Integrated wire feed system accommodates both 5kg (200mm) and 15kg (300mm) wire spools for increased flexibility across workshop and industrial applications
• IP23S-rated with PFC, VRD, a 4-gear wire drive system, and compatibility with spool guns, push-pull guns, water coolers, and external wire feeders

Specifications:

• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, MIG Single Pulse, MIG Double Pulse, HF DC TIG, Stick, Cold Weld Tig
• Cooling: Fan Cooled
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020 EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range
  • MIG mode: 30-250A
  • STICK mode: 10-250A
  • TIG Mode: 5-250A (DC) 10-250A (AC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 78V
• Open Circuit Voltage Stick Weld Mode:
  • VRD On: <35V
  • VRD Off: 78V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 39.0 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: 11.5kVA @ 0.8PF
• Welding Output, Welding Output 40°C, 10 min:
  • MIG (GMAW): 250A @ 17%, 26.5V 135A @ 60%, 20.8V 105A @ 100%, 19.3V
  • Stick (MMAW): 250A @ 14%, 30.0V 120A @ 60%, 24.8V 95A @ 100%, 23.8V
  • TIG AC (GTAW): 250A @ 34%, 20.0V 190A @ 60%, 17.6V 145A @ 100%, 15.8V
  • TIG DC (GTAW): 250A @ 29%, 20.0V 175A @ 60%, 17.0V 135A @ 100%, 15.4V
• Protection Class: IP23S
• Wire Spool Size(s): 5kg (200mm) & 15kg (300mm)
• Spool Gun Compatible: Yes, MIG Manual/Synergic modes only
• Push-Pull Gun Compatible: Yes, all MIG modes
• Water Cooler Option: Yes
• Remote Feeder Option: Yes
• Dimensions (L x W x H): 750mm x 260mm x 480mm
• Weight: 31.2kg

Warranty:

• 5 Years Warranty covered by Cigweld
