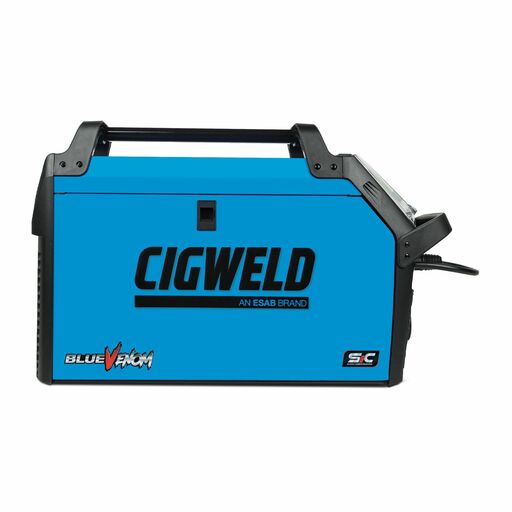

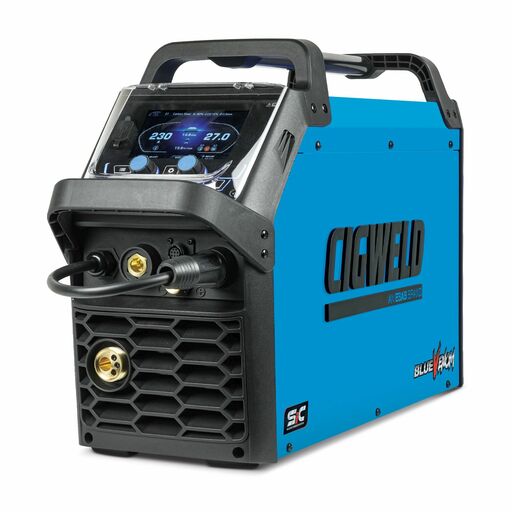

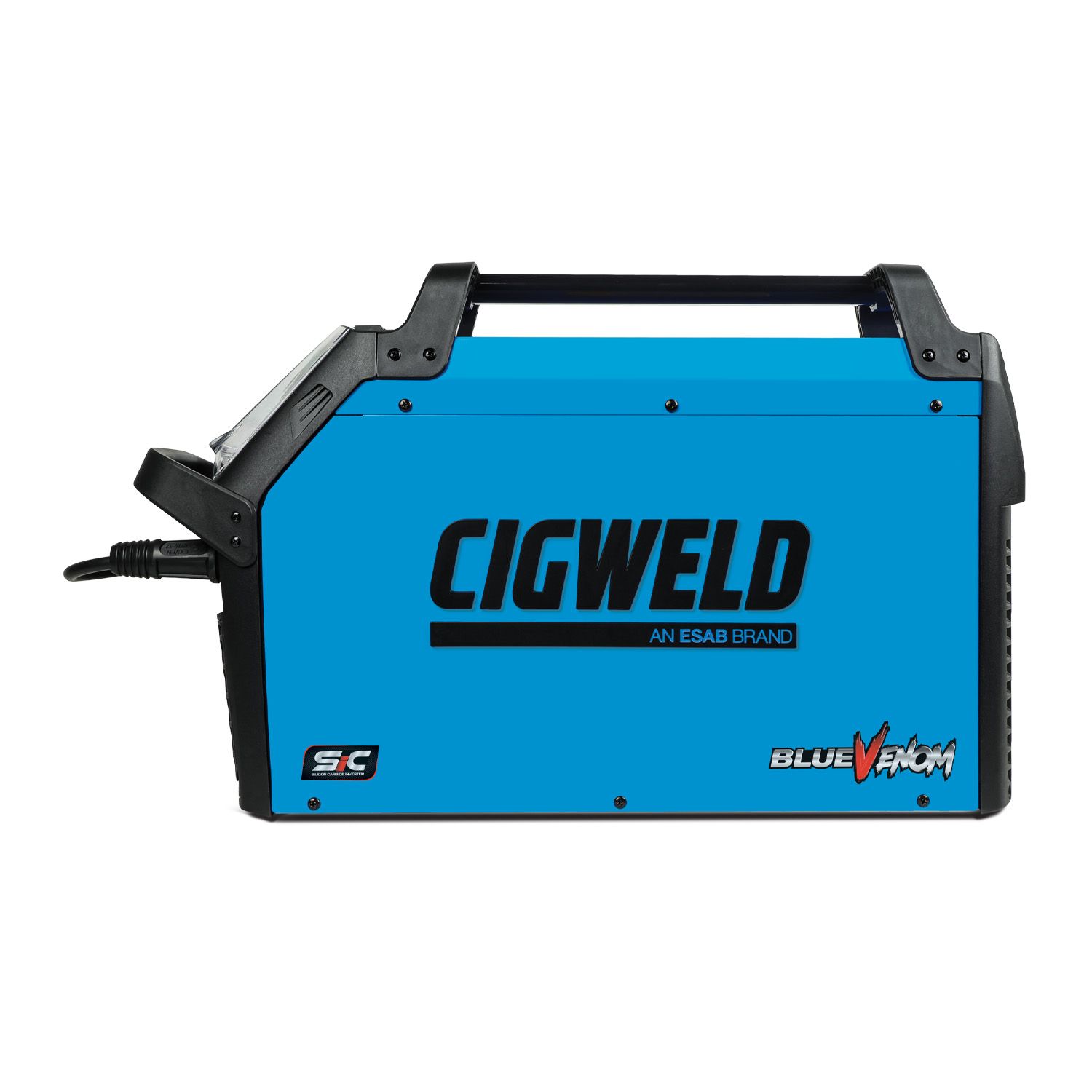

Cigweld XF2306-SIC (W1400230) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

Cigweld XF2306-SIC (W1400230) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

The BlueVenom XF230 6-in-1 SiC is a premium multi-process welding platform built for professional fabrication, aluminium welding, and industrial applications. Powered by advanced Silicon Carbide (SiC) inverter technology, it delivers exceptional arc stability, efficiency, and performance across MIG, TIG, and STICK welding processes. Featuring AC TIG, Mixed AC + DC TIG, advanced pulse technologies, Dynamic Arc Control, and intelligent synergic operation, the XF230 6-in-1 SiC provides the versatility, precision, and control required for demanding welding applications. Combined with an intuitive 5-inch full colour touchscreen, professional-grade accessories, and advanced welding functionality, it is designed to deliver consistent, high-quality results across a broad range of materials and applications.

Includes:

• 1 x BlueVenom XF230-6 SiC Power Source
• 1 x 3m NEXARC DGX24 MIG Gun with 4-Button Control, BZ36 Style
• 1 x DIMEX ELITE 4m 26F ‘Flex Head’ Trigger Button Remote Control TIG Torch
• 1 x Fully Equipped with Fitted MIG Consumables, Spare Tip & TIG Kits
• 1 x 250A Twist lock Electrode Holder with 3m Lead
• 1 x 3m Quick Connect Gas Hose
• 1 x 250A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 1 x Mild Steel & Nylon Liner, Inlet/Outlet Guides
• 2 x Feedrolls:
  • 0.8/0.9mm Knurled (Fitted)
  • 0.8/0.9mm V-Groove
  • 1.0/1.2mm U-Groove

Features:

• Next-generation Silicon Carbide (SiC) inverter technology delivers superior efficiency, enhanced arc stability, optimized thermal performance, and extended machine life

• Produce smooth, high-quality aluminium welds with the appearance of TIG and the productivity of MIG. Perfect for applications where both speed and finish matter
• Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density
• Six intuitive operating modes include MIG, Single Pulse MIG, Double Pulse MIG, HF DC TIG, HF AC TIG, and Stick, plus advanced Mixed AC + DC TIG, Cold Weld TIG, and Pulse modes
• Advanced AC TIG, Mixed AC + DC TIG, and Cold Weld TIG modes provide exceptional versatility and control across a wide range of TIG welding applications
• Designed with a 15A plug for increased power availability and reliable welding performance
• Dynamic Arc Control and advanced pulse technologies provide enhanced welding control across a broad range of applications
• Synergic MIG, TIG, and STICK controls simplify setup, while the 5-inch full colour touchscreen and 100 memory programs help deliver repeatable results

Specifications:

• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, MIG Single Pulse, MIG Double Pulse, HF DC TIG, Stick, Cold Weld Tig
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020 EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range
  • MIG mode: 30-230A
  • STICK mode: 10-200A
  • TIG Mode: 5-230A (DC) 10-230A (AC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 78V
• Open Circuit Voltage Stick Weld Mode:
  • VRD On: <35V
  • VRD Off: 78V
• Effective Input Current (I1eff): 14.9 Amps (230VAC)
• Maximum Input Current (I1max): 31.7 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: [email protected]
• Welding Output, Welding Output 40°C, 10 min:
  • MIG (GMAW): 230A @ 22%, 25.5V 140A @ 60%, 21.0V 110A @ 100%, 19.5V
  • Stick (MMAW): 200A @ 25%, 28.0V 130A @ 60%, 25.2V 100A @ 100%, 24.0V
  • TIG AC (GTAW): 230A @ 35%, 19.2V 175A @ 60%, 17.0V 135A @ 100%, 15.4V
  • TIG DC (GTAW): 230A @ 35%, 19.2V 175A @ 60%, 17.0V 135A @ 100%, 15.4V
• Protection Class: IP23S
• Spool Gun Compatible: Yes, MIG Manual/Synergic modes only
• Push-Pull Gun Compatible: Yes, all MIG modes
• Dimensions (L x W x H): 650mm x 220mm x 410mm
• Weight: 21.7kg

Warranty:

• 5 Years Warranty covered by Cigweld
