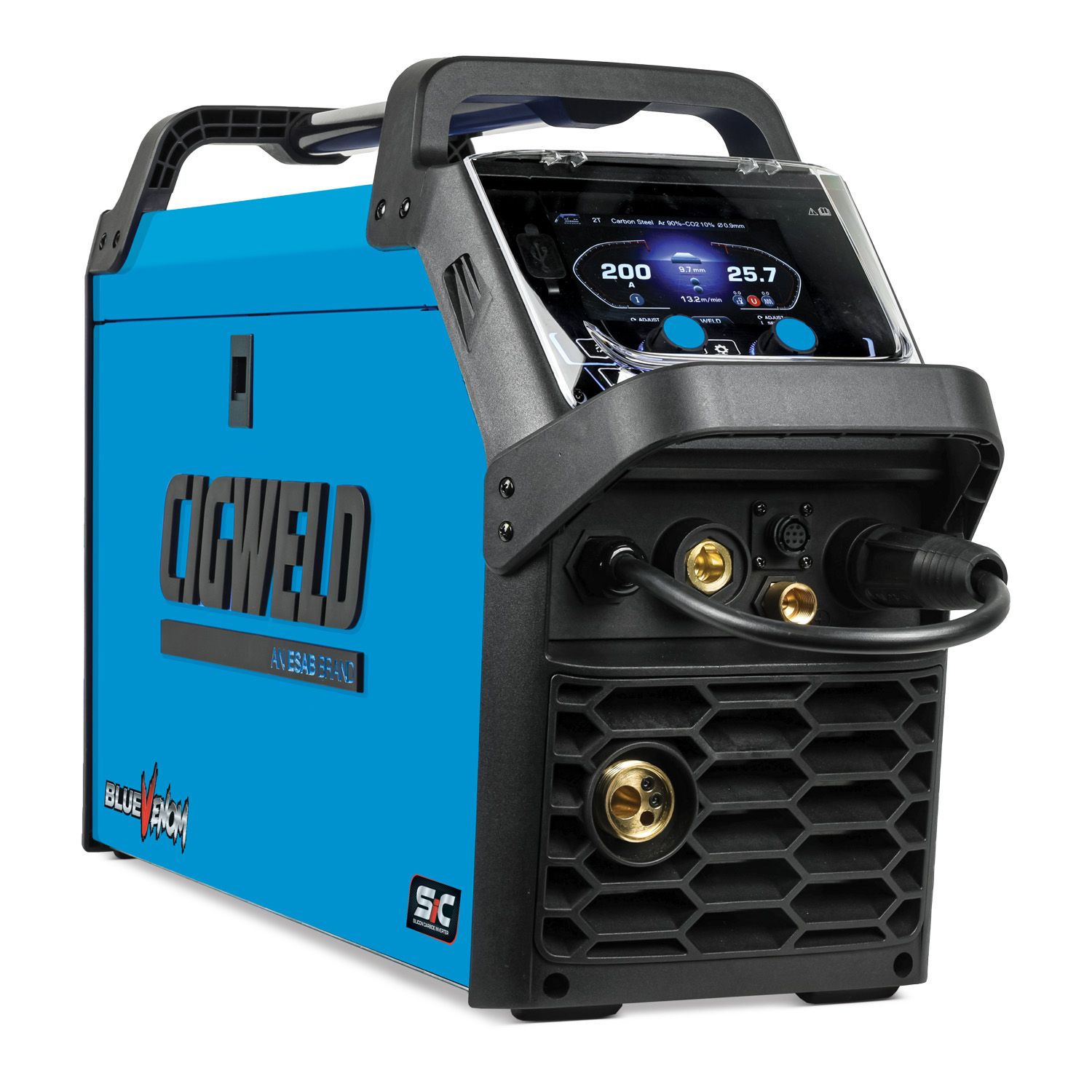

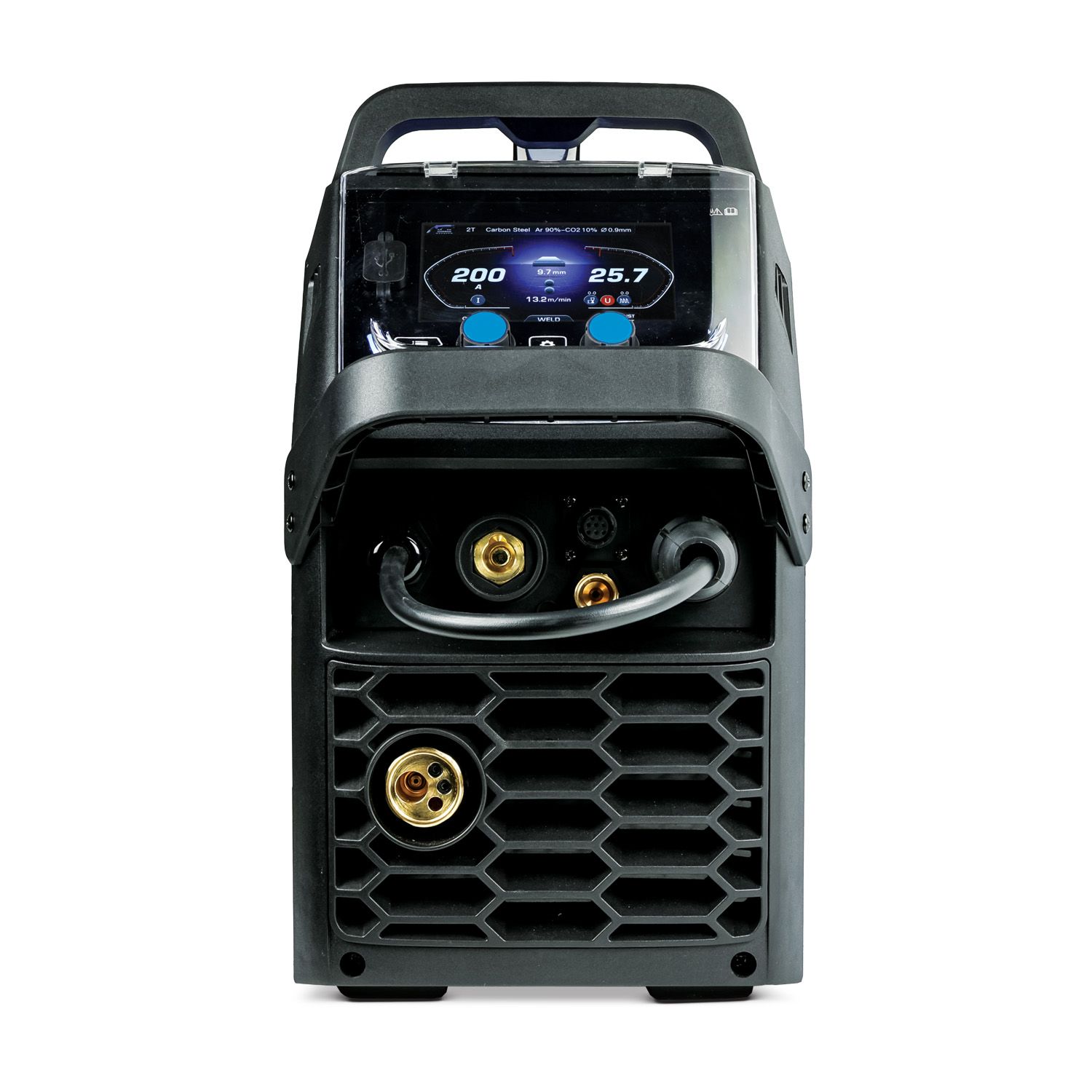

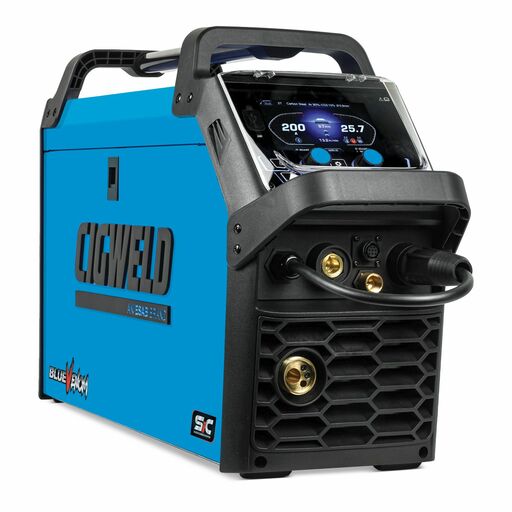

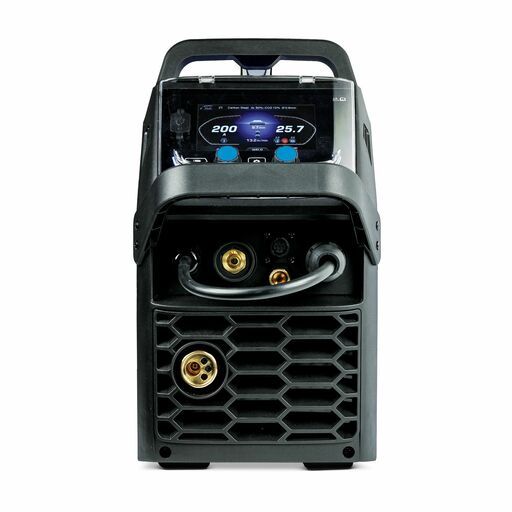

Cigweld XF2006-SiC (W1400202) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

Cigweld XF2006-SiC (W1400202) BlueVenom 6-in-1 Professional MIG/TIG/STICK Multi-Process Welder

The BlueVenom XF200 6-in-1 SiC is a professional multi-process welding platform designed for fabrication, aluminium welding, and workshop applications. Powered by advanced Silicon Carbide (SiC) inverter technology, it delivers exceptional efficiency, arc stability, and performance across MIG, TIG, and STICK processes. Featuring AC TIG, Mixed AC/DC TIG, advanced pulse technologies, Dynamic Arc Control, and intelligent synergic operation, the XF200 6-in-1 SiC provides the versatility, precision, and control needed for demanding welding applications.

Includes:

• 1 x BlueVenom XF200-6 SiC Power Source
• 1 x 3m NEXARC DGX24 MIG Gun with 4-Button Control, BZ24 Style
• 1 x DIMEX ELITE 4m 26F ‘Flex Head’ Trigger Button Remote Control TIG Torch
• 1 x MIG Consumables, Spare Tip & TIG Kits
• 1 x 200A Twist lock Electrode Holder with 3m Lead
• 1 x 3m Quick Connect Gas Hose
• 1 x 200A Earth Clamp with 3m Lead
• 1 x BlueJet Regulator/Flowmeter
• 1 x Mild Steel & Nylon Liner, Inlet/Outlet Guides
• 2 x Feedrolls:
  • 0.8/0.9mm Knurled (Fitted)
  • 0.8/0.9mm V-Groove
  • 1.0/1.2mm U-Groove

Features:

• Next-generation Silicon Carbide (SiC) inverter technology delivers greater efficiency, enhanced arc stability, improved thermal performance, and extended machine life in a compact, reliable package
• Produce smooth, high-quality aluminium welds with the appearance of TIG and the productivity of MIG. Perfect for applications where both speed and finish matter
• MIG, Single Pulse MIG, Double Pulse MIG, HF AC TIG, HF DC TIG, and Stick deliver exceptional versatility across a wide range of welding applications
• Advanced SiC semiconductors have a thermal conductivity 3x greater, and power losses 15-25% lower than conventional welders, improving temperature resistance, and increasing power density
• A 50% TIG duty cycle, made possible by advanced SiC inverter technology, supports demanding welding applications and extended welding periods
• AC TIG, Mixed AC+DC TIG, Cold Weld TIG, and Pulse modes provide greater control across a wide range of aluminium and precision welding applications
• Designed with a 15A plug for increased power availability and reliable welding performance
• Synergic MIG, TIG, and STICK controls simplify setup, while the 5-inch full colour touchscreen and 100 memory programs help deliver repeatable results
• Compatible with spool guns, push-pull guns, and foot pedals to support a wide range of welding applications

Specifications:

• Welder Type: Multi Process Inverter Power Source
• Welding Processes: MIG, MIG Single Pulse, MIG Double Pulse, HF DC TIG, Stick, Cold Weld Tig
• Pulse & High Frequency Capable: Yes
• Standards: AS 60974.1:2020 EN IEC 60974-10:2021
• Number of Phases: Single Phase
• Nominal Supply Voltage: 230 VAC ± 10%
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range
  • MIG mode: 30-200A
  • STICK mode: 10-200A
  • TIG Mode: 5-200A (DC) 10-200A (AC)
• Nominal DC Open Circuit Voltage MIG Weld Mode: 78V
• Open Circuit Voltage Stick Weld Mode:
  • VRD On: <35V
  • VRD Off: 78V
• Effective Input Current (I1eff): 14.8 Amps (230VAC)
• Maximum Input Current (I1max): 29.4 Amps (230VAC)
• Minimum Single Phase Generator Recommendation: [email protected]
• Welding Output, Welding Output 40°C, 10 min:
  • MIG (GMAW): 200A @ 32%, 24.0V 145A @ 60%, 21.3V 115A @ 100%, 19.8V
  • Stick (MMAW): 200A @ 25%, 28.0V 130A @ 60%, 25.2V 100A @ 100%, 24.0V
  • TIG AC (GTAW): 200A @ 50%, 18.0V 185A @ 60%, 17.4V 145A @ 100%, 15.8V
  • TIG DC (GTAW): 200A @ 35%, 18.0V 155A @ 60%, 16.2V 120A @ 100%, 14.8V
• Protection Class: IP23S
• Spool Gun Compatible: Yes, MIG Manual/Synergic modes only
• Push-Pull Gun Compatible: Yes, all MIG modes
• Dimensions (L x W x H): 650mm x 220mm x 410mm
• Weight: 21.7kg

Warranty:

• 5 Years Warranty covered by Cigweld
