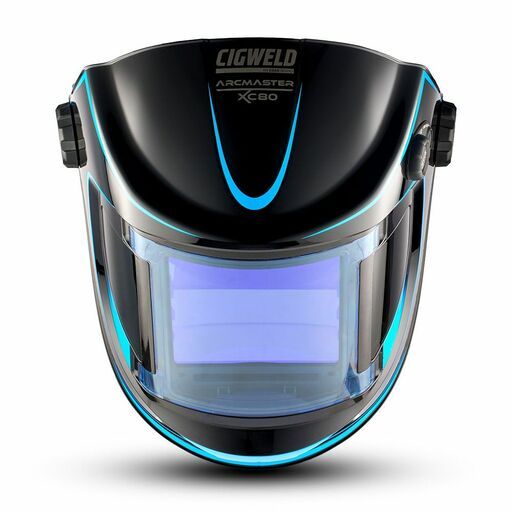

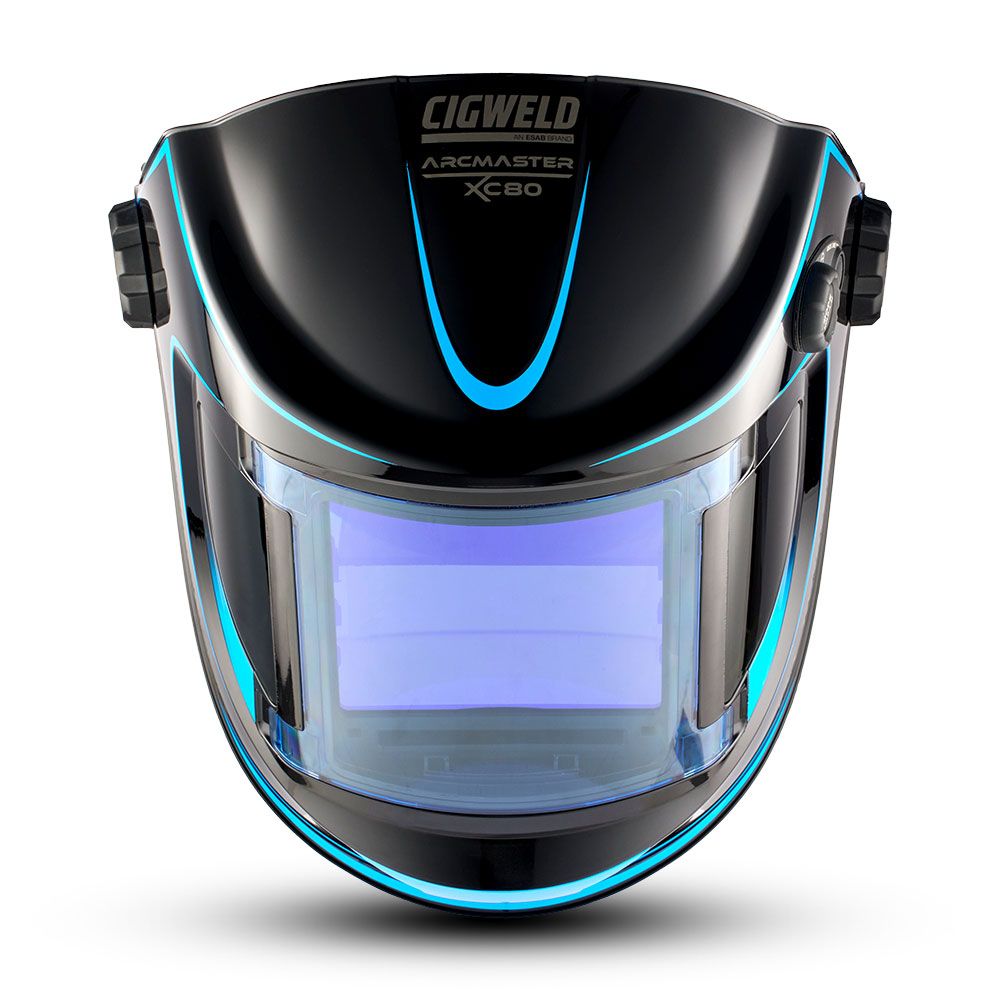

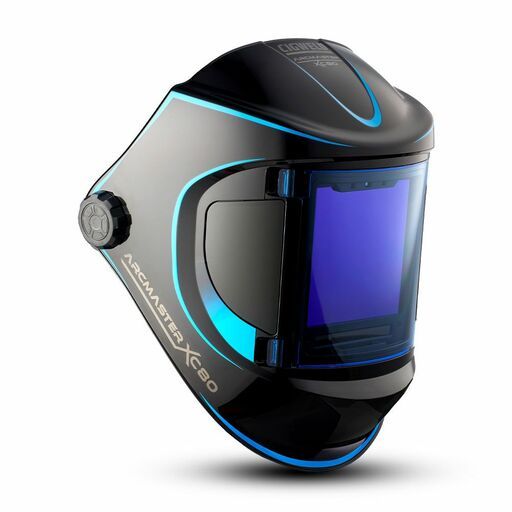

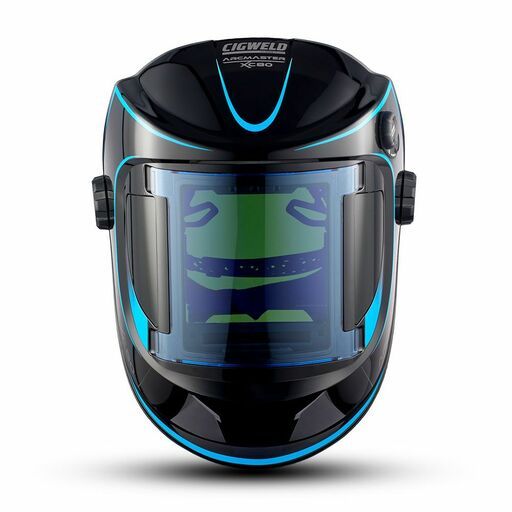

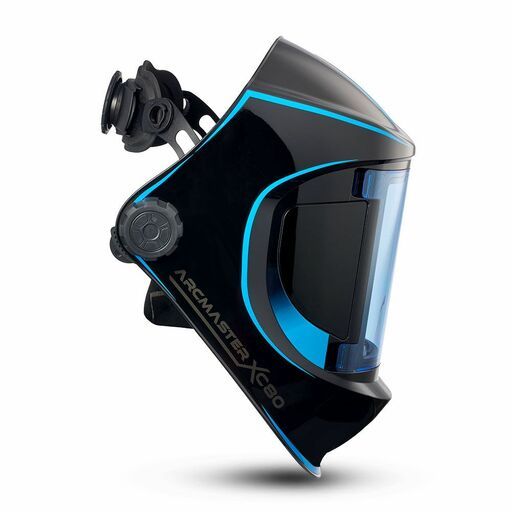

Cigweld WHAMXC080 Arcmaster XC80 BLAX Auto-Darkening Welding Helmet

Cigweld WHAMXC080 Arcmaster XC80 BLAX Auto-Darkening Welding Helmet

Experience each weld with CIGWELD’s largest viewing area yet, which coupled with passive windows gives the welder an extraordinary panoramic view of the weldment. The ARCMASTER XC80 boasts a sleek design, 5-point head harness and high-impact rated lightweight shell for superior comfort and a tactile external control module that enables the welder to choose or adjust most settings without having to take the helmet off!

Includes:

• Front Cover Lens Clear - WHCL145F (x 2) Fitted on the Fallout
• Front Cover Lens Blue - WHCL145FB (x 1) Fitted on the BLAX
• Rear Cover Lens - WHCL108R (Spares x 1)
• Sweatband - WHSB04 (Fitted)
• ARCMASTER XC Series Helmet Bag
• Operating Manual

Features:

• Quad-1, High-Definition optical viewing rating to the latest ISO 16321-2:V1 Standard (Old Standard EN379: 1/1/1/1) also approved to AS/NZS: 1338:1
• High-impact rating for grinding to AS/NZS: 1337:1
• 5 Arc sensors, excellent for all welding processes including TIG down to 2 amps, including Pulse TIG
• Variable shade ranges 4-8/9-14 in 0.5/half shade increments
• Grinding Shade = 3
• Digital sensitivity and delay controls, fast reaction time
• Magnification Frame (can be fitted with an optional CIGWELD magnification lens)
• Suitable for Plasma Cutting & Oxy-Welding Operations
• Optional Bluelight outer lens - improves vision in low light areas, and reduces eye fatigue

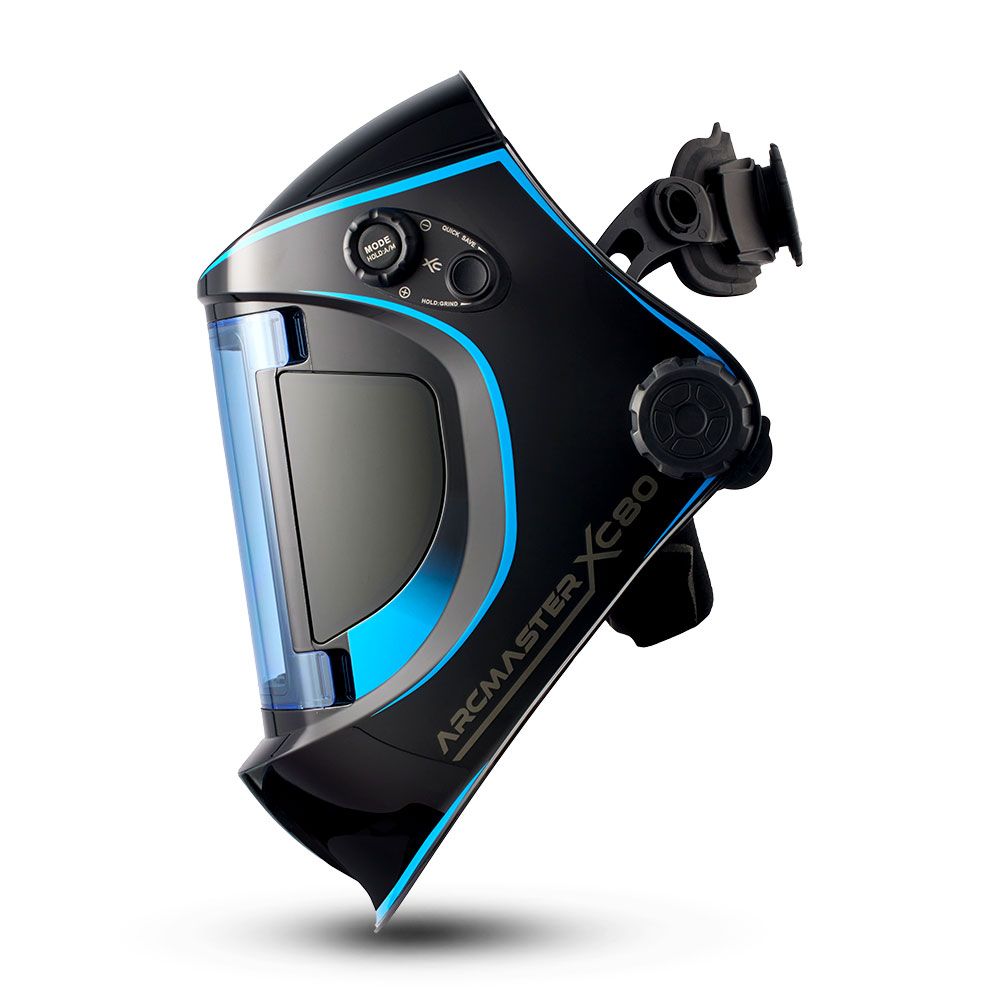

• Tactile external control module

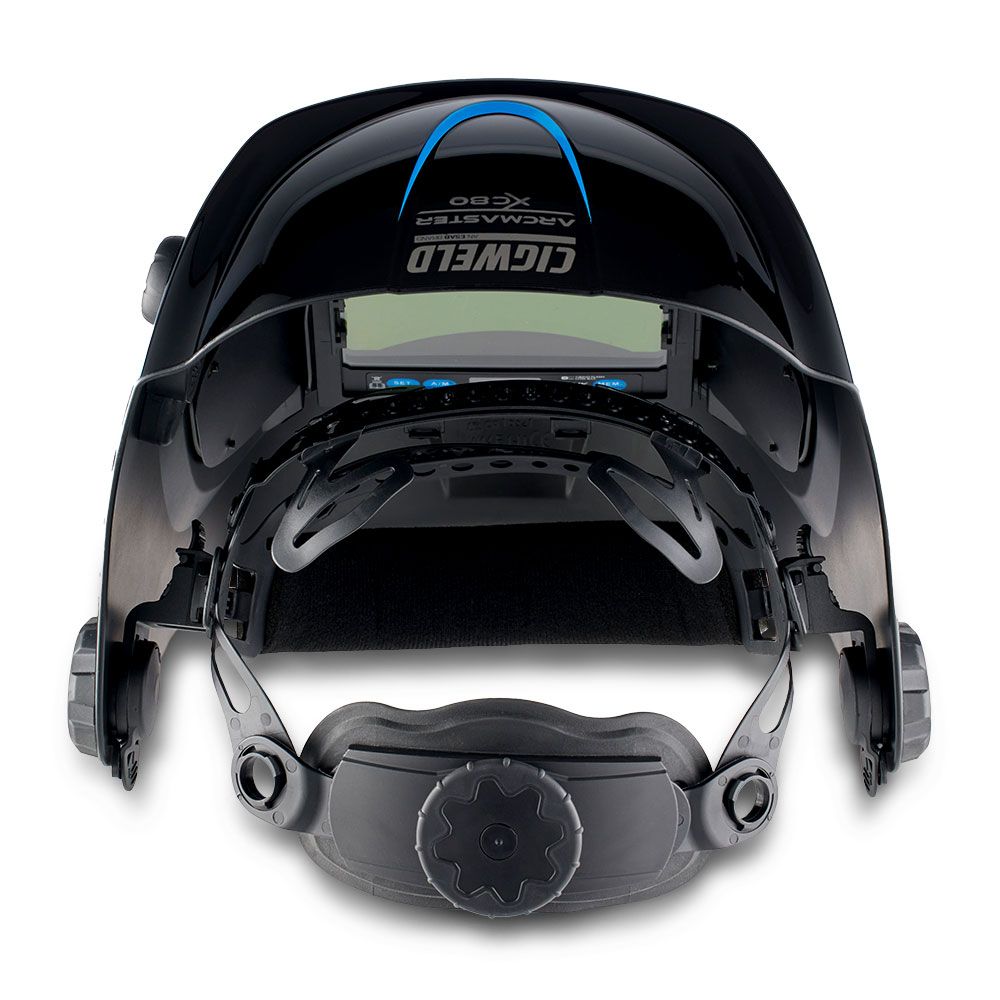

• Positive lock-up 5-point head harness mechanism

Specifications:

• Viewing Area: 104mm x 104mm = 104mm²
• Arc Sensors: 5
• Approved to AS/NZS: AS/NZS 1337.1 & 1338.1
• ISO 16321 Rating: V1 (Previously EN379: 1/1/1/1)
• Shade Range: 4-8/9-14
• Grinding Shade: 3
• OptiShade Technology: User Adjustable +/- 2 Shades
• Gradual Mode: Yes (Dark to Clear)
• Ultra View: Yes
• Switching Speed: 0.1ms
• Memory Mode: Yes x 9
• Harness Points: 5
• Digital Controls: Yes
• Impact Rating: High Impact
• Battery: Solar Assist 2 x CR2045 (Replaceable Battery)
• Weight: 0.690kgs

Warranty:

• 3 Years Warranty Covered by Cigweld
