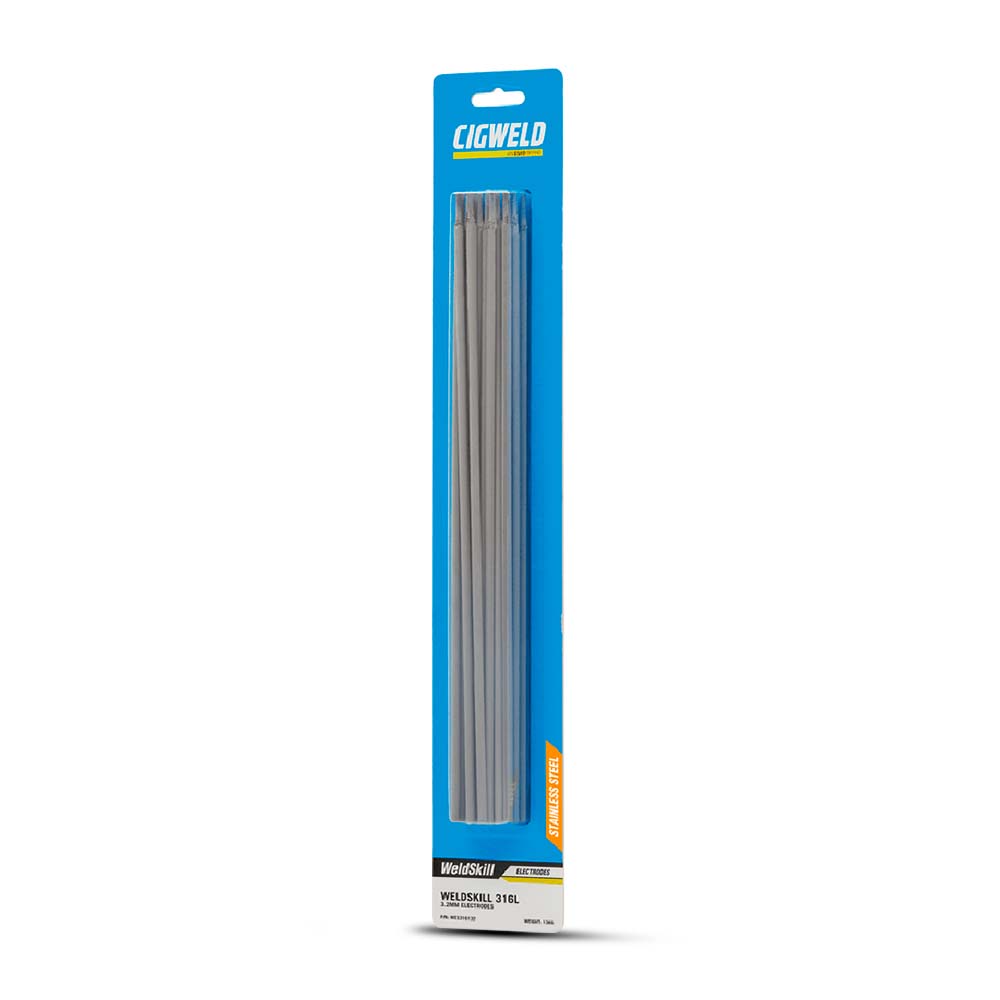

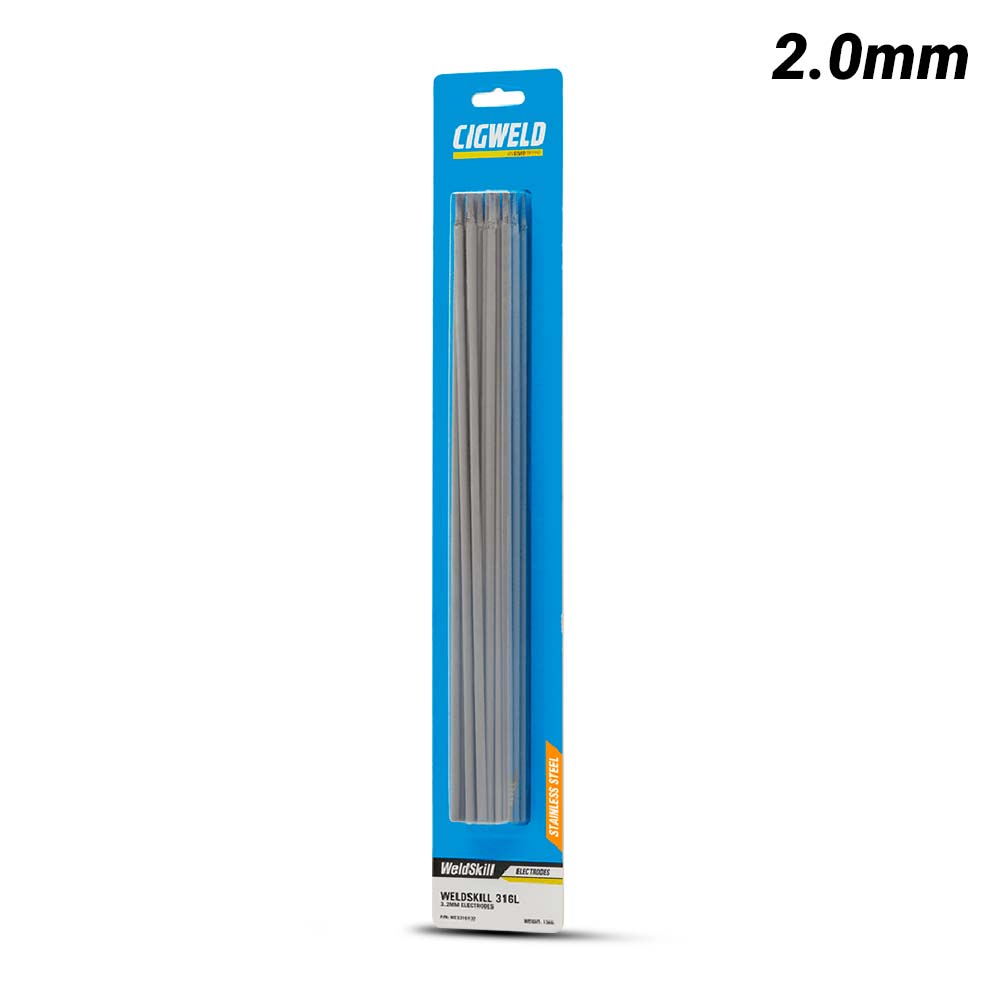

Cigweld WES316020 10-Pack 316L 2.0mm Weldskill Stainless Steel Electrode

Cigweld WES316020 10-Pack 316L 2.0mm Weldskill Stainless Steel Electrode

Weldskill 316l stainless steel electrode for the all positional (except vertical-down) fillet and butt welding of stainless steels.

Features:

• E316L-16 type stainless steel electrode
• Designed for fillet & butt welding in all positions except vertical-down
• Produces low spatter levels as well as smooth running
• For the welding of matching 316 and 316L stainless steel grades

Suitable For:

• Single and multi-pass welding of matching molybdenum bearing stainless steel, 316 and 316L
• General purpose welding of other 300 series austenic stainless steels
• General welding of 400 series stainless steel

Specifications:

• Diameter: 2.0mm
• Current Range:
  • Min: 30Amps
  • Max: 60Amps
• Yield Stress: 490MPa
• Tensile Strength: 620MPa
• Elongation: 40%
• CVN Impact Values: 35J av@-196ºC
