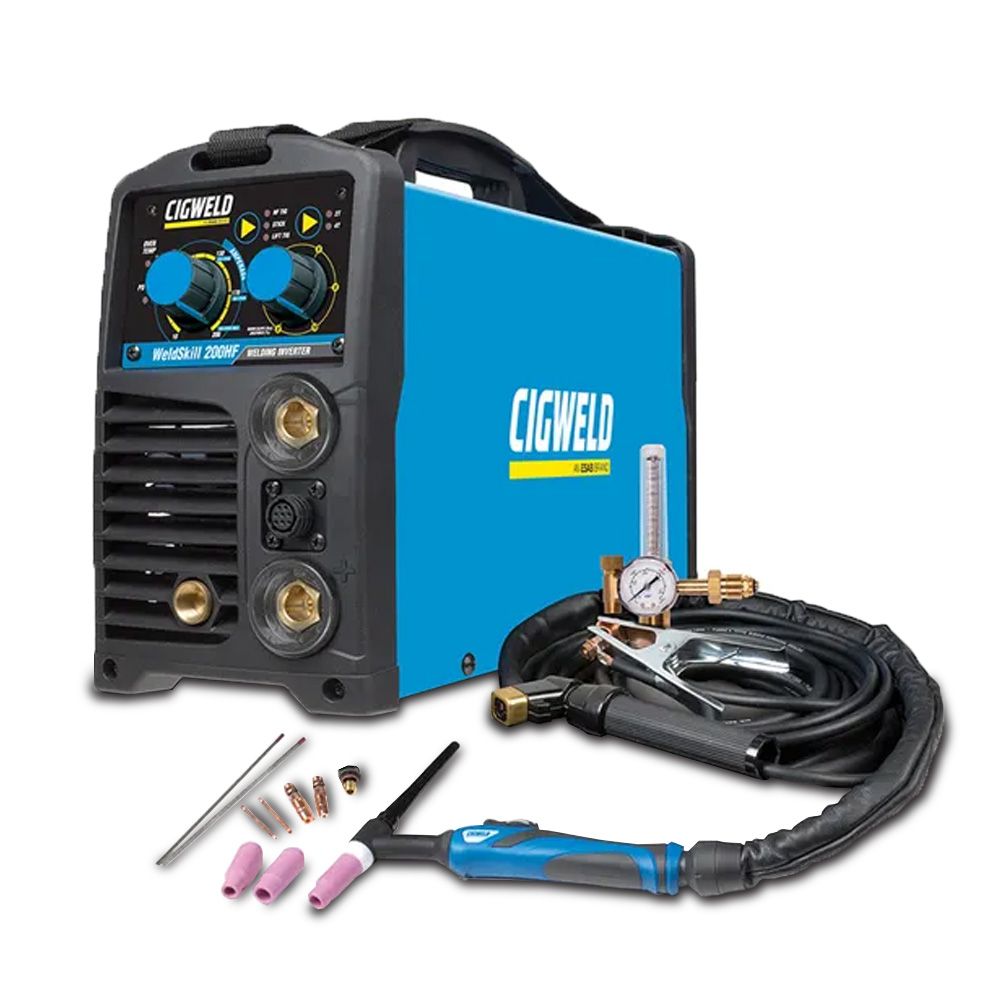

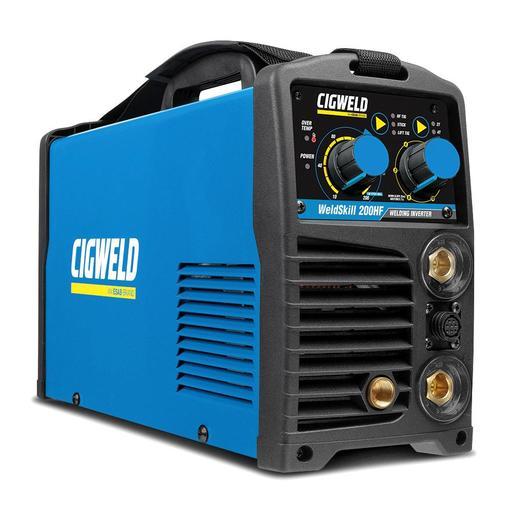

Cigweld W1008200 (WeldSkill 200HF) 200A HF TIG, Lift TIG and Stick Multi Process Inverter Welder

Cigweld W1008200 (WeldSkill 200HF) 200A HF TIG, Lift TIG and Stick Multi Process Inverter Welder

The WeldSkill 200HF is a single phase welding inverter with a user-friendly control panel, practical push button operation for mode selection, clearly visible LED indicators and sturdy large control knob.

Compact and light-weight, this unit is a great addition to the workshop ensuring the ultimate portability in light TIG fabrication and stainless steel work for the Tradesman or Maintenance Worker.

The WeldSkill 200HF is supplied standard with features such as Arc Force, Down Slope Control (2T & 4T), Hot Start, Post Gas Flow and Anti-Stick. In addition to its appealing design and functional features, the WeldSkill 200HF provides the added reassurance of a high quality welding inverter that complies to Australian Standards. Simply plug it into any standard 15 Amp power point and get welding right away!!

Features:

• 240 Volt, 15 Amp Supply Lead & Plug Fitted to Power Source
• Fully compliant to AS 60974.1-2006
• Max. Electrode Size 4.0mm. Suitable for All Electrode Types Except AWS E6010 Cellulose
• Over Temperature Cut Out Protection has been fitted to Power Source
• Anti Stick. Helps to prevent the stick electrode from sticking to the work piece
• Hot Start. Improves the arc start characteristics of stick electrodes
• Arc Force. Assists when stick welding in a tight corner or joint fit-up
• Current Range for this Power Source is 10A to 200A (TIG mode) of DC Welding Output
• DC Lift TIG function. Provides smooth starting and running characteristics across a broad range of applications
• Power source is fitting with HF Start Function in TIG mode for non contact TIG welding
• Rugged case with carry handle and carry strap
• 4m Long Electrode Holder & Work Leads
• Twistlock Electrode Holder. Allows the electrode to be locked securely in place

Specifications:

• Nominal Supply Frequency: 50/60Hz
• Nominal Supply Voltage: 240V AC ± 10%
• Cooling: Fan Cooled
• Australian Standard: AS 60974.1-2006 / IEC 60974-1
• Number of Phases: Single Phase
• Welding Current Range: 10 - 200A
• Nominal DC Open Circuit Voltage: 75V
• Factory Fitted Supply Plug Rating: 15Amps
• Effective Input Current (I1eff ): 15Amps
• Maximum Input Current (I1max): 33.9Amps
• Minimum Single Phase Generator Recommendation: 7.6kW (9.5kVA @ 0.8PF)
• STICK (MMAW) Welding Output, 40ºC, 10 min: 180Amps @ 20% Duty Cycle
• TIG (GTAW) Welding Output, 40ºC, 10 min: 200Amps @ 30% Duty Cycle
• Protection Class: IP21S
• Dimensions (L x W x H): 420mm x 145mm x 245mm
• Weight (without cable): 8.2kg

Warranty:

• 3 Years Warranty on Power Source covered by Cigweld Australia
