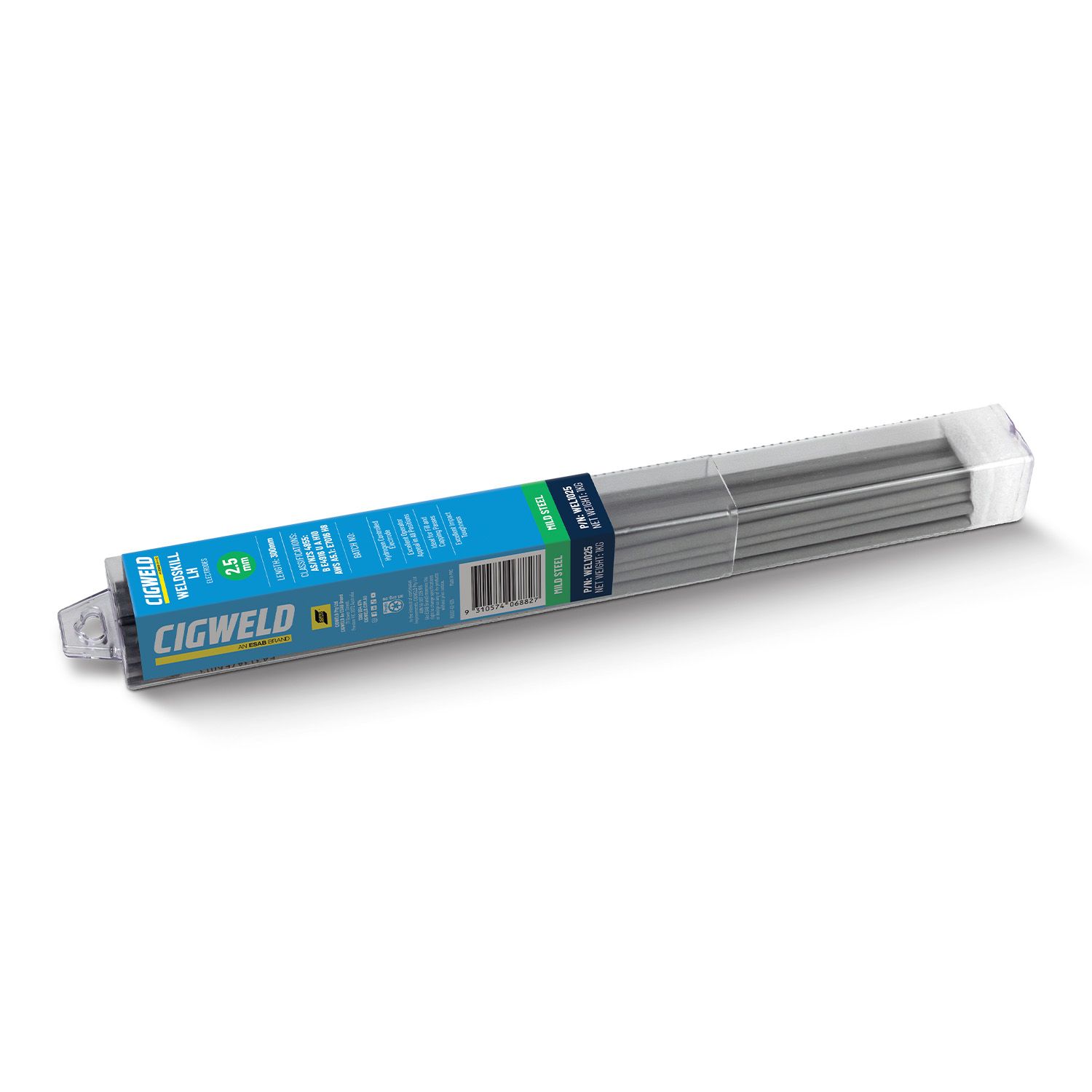

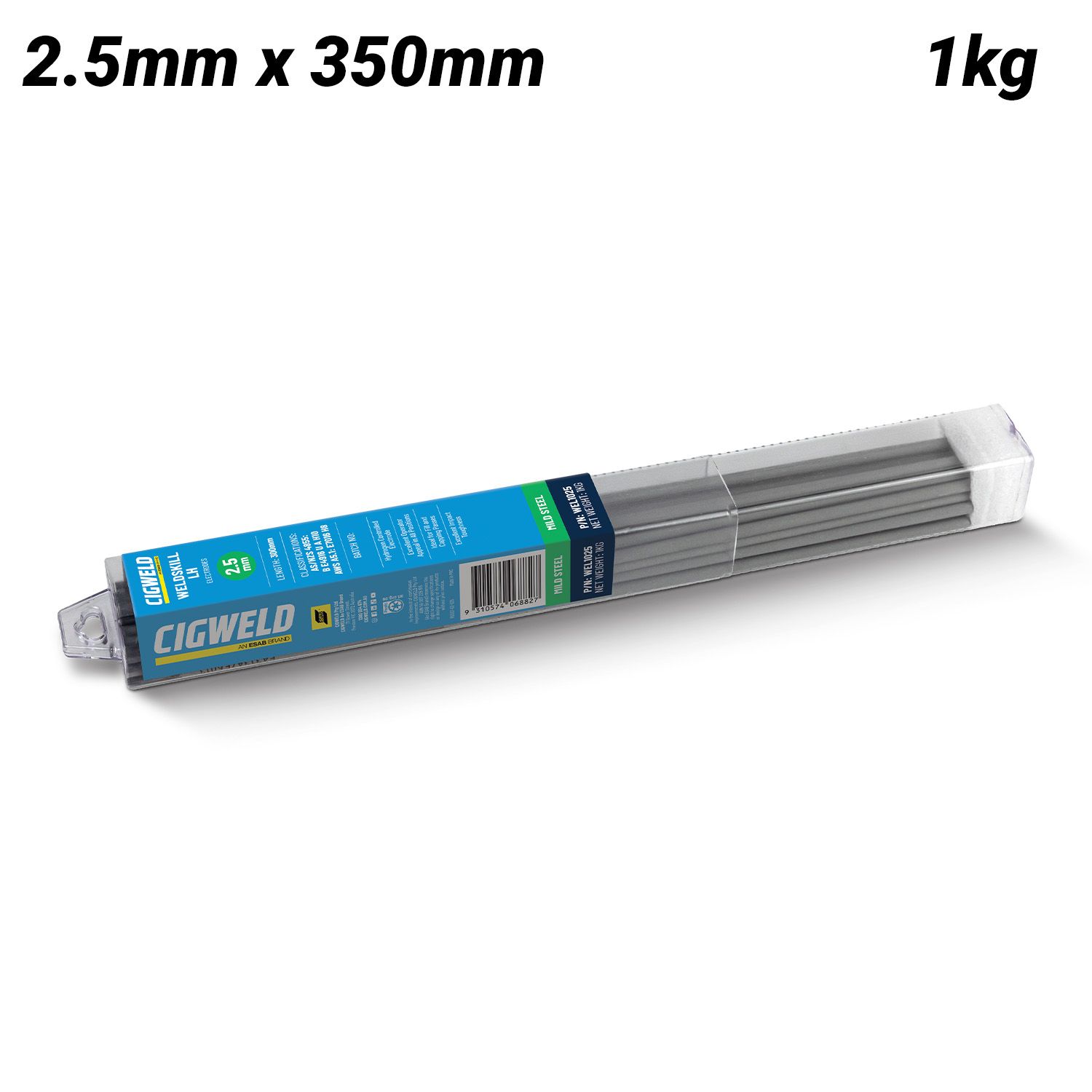

Cigweld WEL1025 1kg 2.5mm x 350mm BlueStrike LH Electrodes

Cigweld WEL1025 1kg 2.5mm x 350mm BlueStrike LH Electrodes

The WELDSKILL 16HS is a fully basic, hydrogen controlled E7016 type electrode designed for reliable performance in critical applications. It produces weld metal in the 550 MPa class with excellent impact toughness down to -30 °C, making it suitable for demanding structural and fabrication work. With smooth arc characteristics, easy slag control, and outstanding operator appeal in all positions (except vertical-down), it ensures high-quality, consistent results across a wide range of welding applications. Versatile and dependable, WELDSKILL 16HS is ideal for fillet and butt welding jobs requiring hydrogen control, including pressure vessel fabrication, bridge and ship building, and equipment repair and maintenance.

Features:

• Fully basic, hydrogen controlled E7016 type electrode for structural-grade welding
• Provides excellent operator appeal with smooth arc and clean bead appearance
• Performs well in all welding positions except vertical-down
• Delivers excellent impact toughness to -30 °C, ensuring reliability in low-temperature conditions
• Ideal for fill and capping passes with easy-to-control, fully covering slag
• Suitable for critical applications requiring hydrogen control and consistent mechanical properties

Specifications:

• Electrode Type: E7016 Hydrogen Controlled
• Diameter: 2.5 mm
• Current Range: 90 – 130 A
• Yield Stress: 480 MPa
• Tensile Strength: 570 MPa
• Elongation: 25%
• Charpy V-Notch Impact Values:
  • 125 J (average) at -20 °C
  • 100 J (average) at -30 °C
