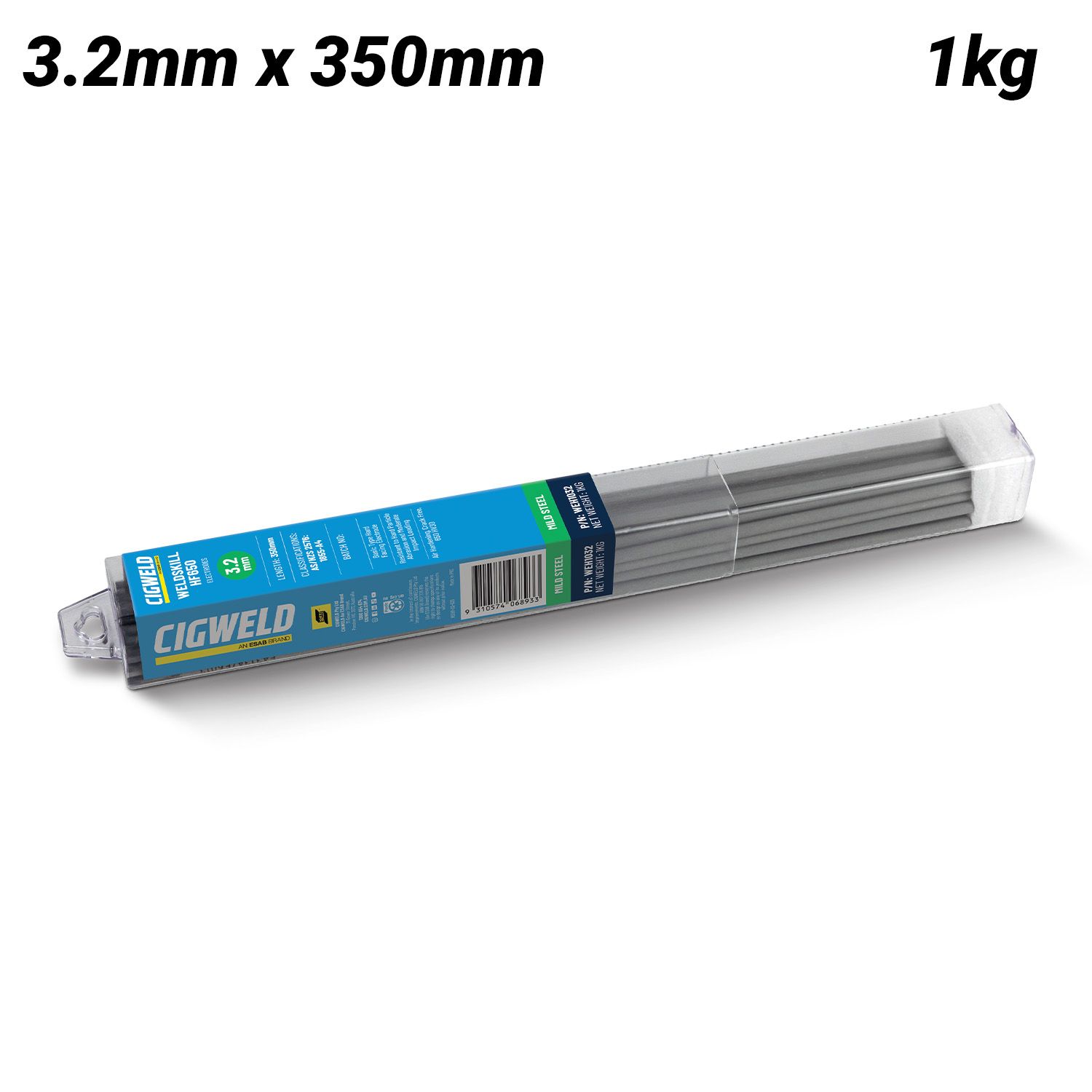

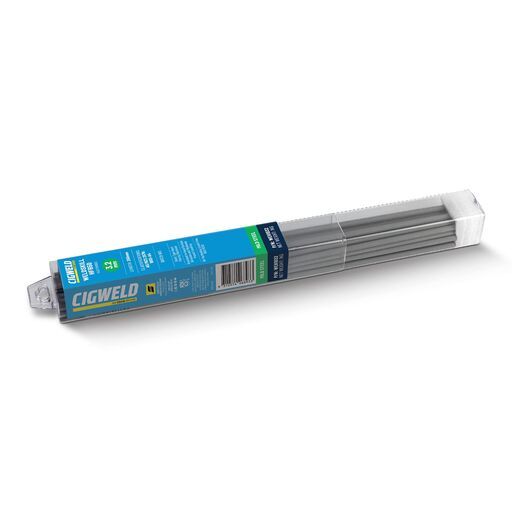

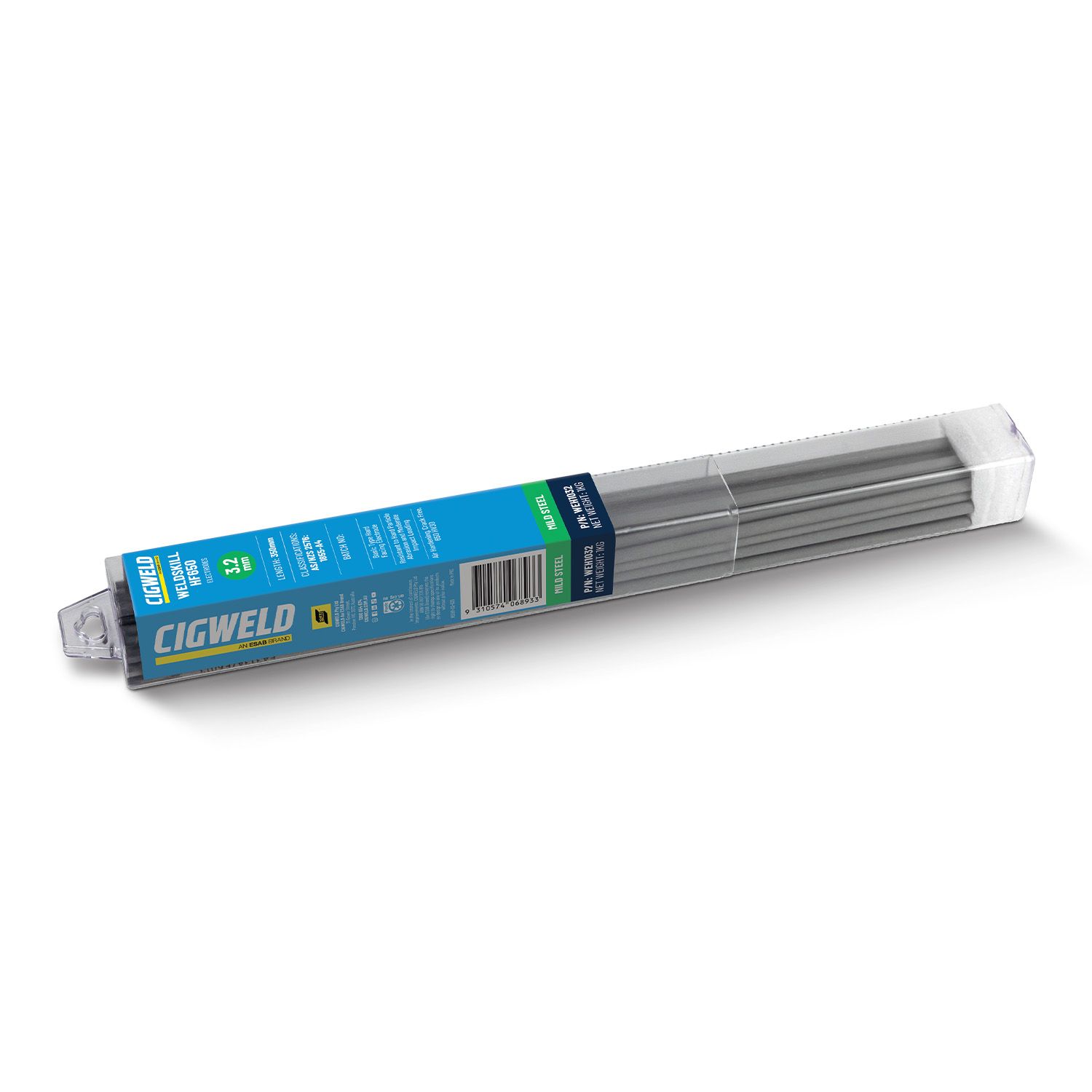

Cigweld WEH1032 1kg 3.2mm x 350mm BlueStrike HF650 Electrode

Cigweld WEH1032 1kg 3.2mm x 350mm BlueStrike HF650 Electrode

WeldSkill Harda is a basic electrode for the hard surfacing of steel components subjected to wet or dry hard particle abrasion and low to moderate impact loading. The air hardening, low alloy steel deposit of WeldSkill Harda remains crack free on most steels under normal welding conditions and is therefore recommended for hard surfacing components subject to flexing during service.

The basic flux coating gives excellent resistance to rust, mill scale, dirt and oil on the surface being hardfaced.

Features:

• Basic Type Manual Arc Welding Electrode
• Resistant to Hard Particle Abrasion and Moderate Impact Loading
• Air Hardening, Crack Free, Martensitic Steel Deposit – 650 HV30

Suitable For:

• Surfacing of agriculture points, shares and tynes
• Shres and Tynes
• Grader and Dozer Blades
• Conveyor screws and post hole augers

Specifications:

• AS/NZS 2576: 1855-A4
• W.T.I.A Tech Note 4: 1855-A4
• Diameter: 3.2mm
• Current Range:
  • Min: 105Amps
  • Max: 135Amps
• Single Layer of Mild Steel: HRC 55 HV30 600
• All Weld Metal Desposit: HRC 57 HV30 640
