Cigweld W1008162 140A DC Weldskill MicroArc Stick & LIFT TIG Welder

Cigweld W1008162 140A DC Weldskill MicroArc Stick & LIFT TIG Welder

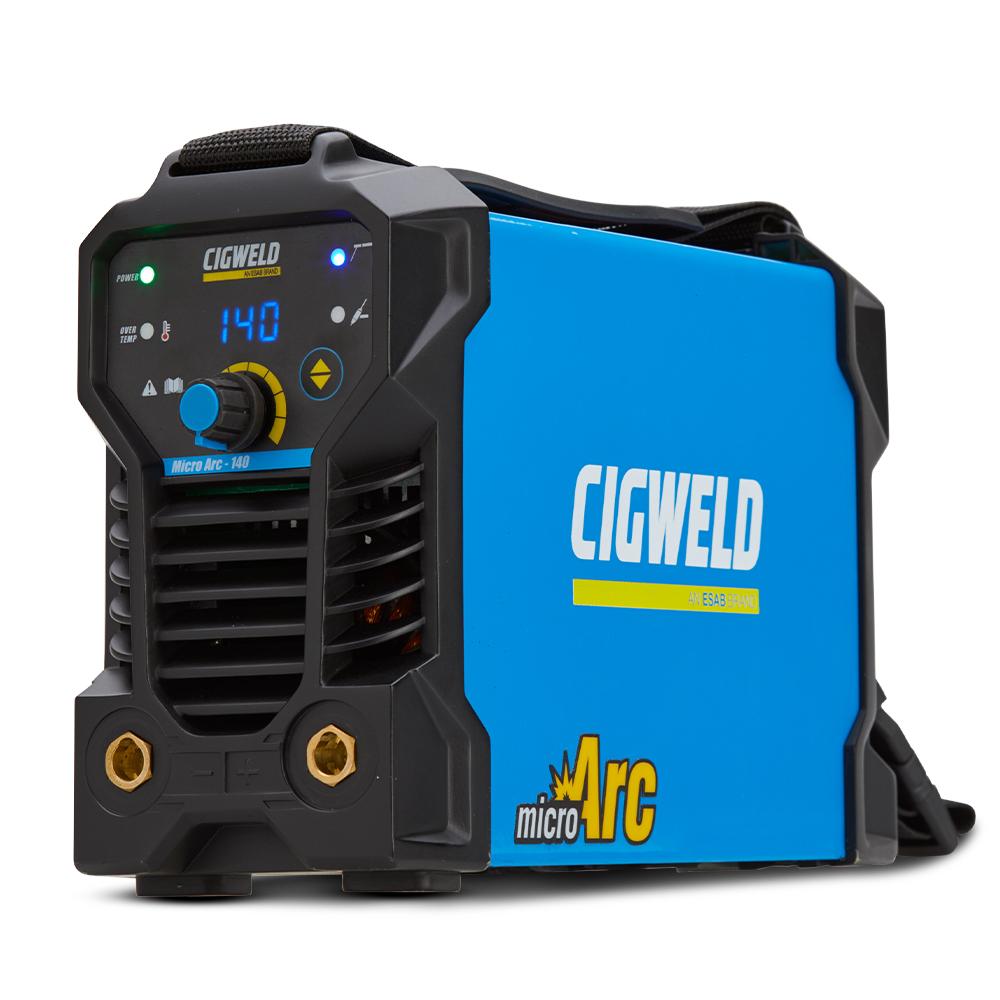

The MicroArc140 as the name suggests, is an extremely neat and compact welding inverter. Weighing in at a slight 3kg in the hand and sized at only 100mm Wide and 185mm High on your bench, this little gem is conveniently thrown over the shoulder and taken wherever you need to go. With adjustable welding current from 10 to 140 amps, and adjustable Hot Start and Arc Force, you have the flexibility to run standard general purpose 2.5mm electrodes for light gauge work (less than 3.0mm plate) and 3.2mm electrodes for heavier metals.

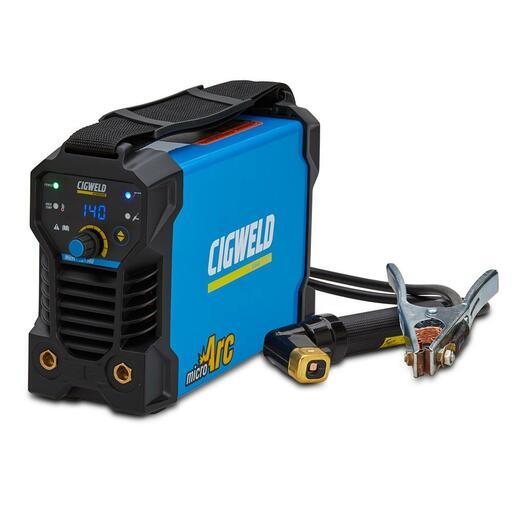

Includes:

• 1 x Weldskill MicroArc 140 Power Source
• 1 x 3m Twistlock Electrode Holder Lead
• 1 x 3m Work Lead
• 1 x Shoulder Strap

Features:

• Power Source is suitable for 2.0mm, 2.5mm, and 3.2mm electrode sizes. Suitable for all electrode types (except AWS E6010 Cellulose)
• Lift TIG function provides smooth starting and running characteristics across a broad range of applications
• Adjustable hot start improves the arc start characteristics of stick electrodes
• Adjustable arc force assists when stick welding in a tight corner or joint fit-up

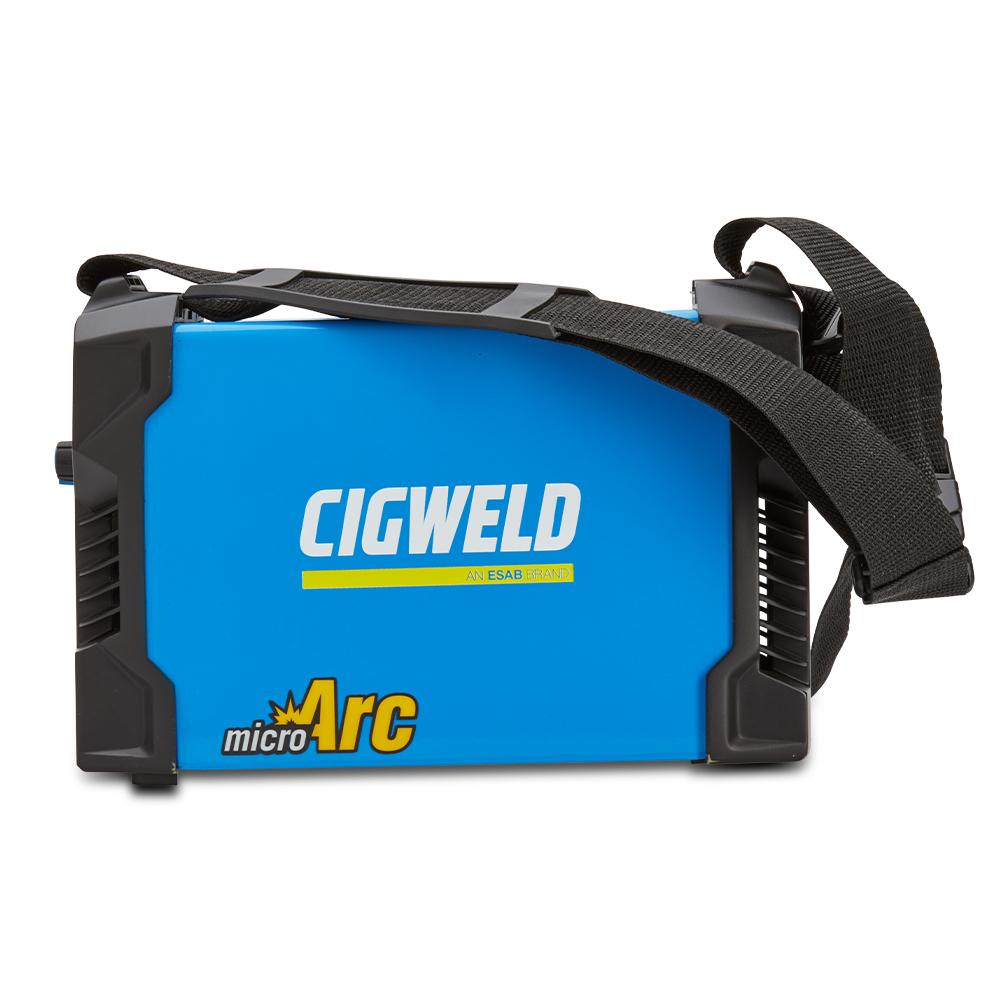

• Micro size & portability, the micro arc is compact and only weighs 3kg and comes with a carry strap for easy transportation.
• Anti-stick, helps to prevent the stick electrode form sticking to the work piece
• Twistlock electrode holder allows the electrode to be locked securely in place
• Over temperature protection, cut out protection has been fitted to the power source

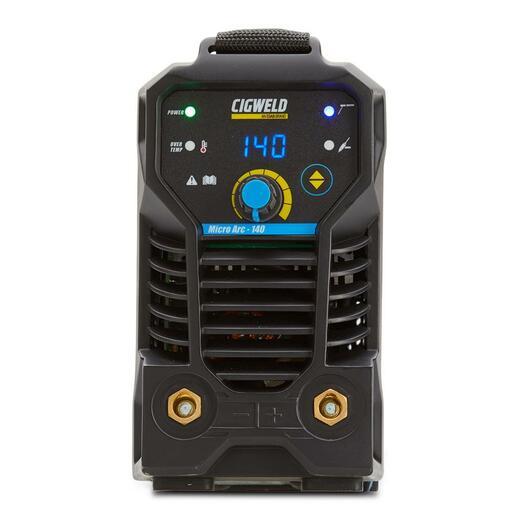

• Bright Blue LED’s allow for accurate setting and improved visibility of the welding amperage even outdoors & in bright light conditions

Specifications:

• Protection Class: IP21S
• Phases: Single phase
• Welder type: Stick and lift TIG multi-process inverter power source
• Cooling: Fan Cooled
• Voltage: 240V +/- 10%
• Nominal DC Open Circuit Voltage: 71V
• Nominal Supply Frequency: 50/60Hz
• Welding Current Range: 10 - 140A
• Effective Input Current (I1eff): 10A
• Maximum Input Current (I1max): 26A
• Minimum Single Phase Generator Recommendation: 6.0kW (7.5kVA @ 0.8PF)
• Stick (MMAW)
  • Welding Output, 40ºC, 10min:
    • 140A @ 15%, 25.6V
    • 70A @ 60%, 22.8V
    • 54A @ 100%, 22.2V
• TIG (GTAW):
  • Welding Welding Output, 40ºC, 10 min:
    • 180A @ 15%, 15.6V
    • 90A @ 60%, 13.2V
    • 70A @ 100%, 12.5V
• Dimesnions (L x W x H): 252mm x 100mm x 185mm
• Weight: 3kg

Warranty:

• 1 Year Warranty (on power source) Covered By Cigweld Australia
