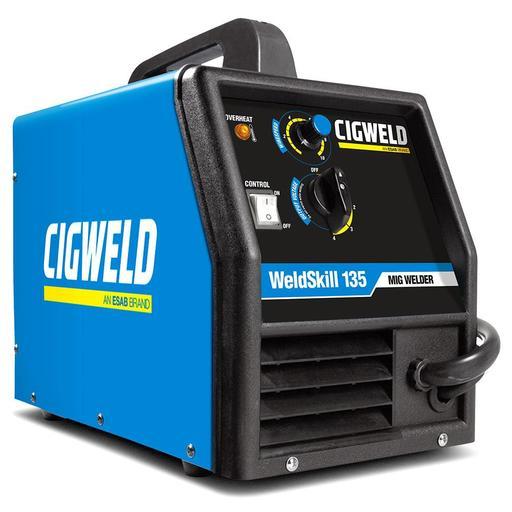

Cigweld W1004135 WeldSkill 135 MIG Welder

Cigweld W1004135 WeldSkill 135 MIG Welder

The Cigweld WeldSkill 135 MIG is single phase compact power source designed for handymen or tradesman that require high-quality welding performance. The constant Voltage power source provides excellent arc performance with solid or flux cored welding wire. It is ideal for welding a wide range of materials including stainless/mild steels and aluminium and suitable for the welding of mild steel up to 5mm thick(when used with the appropriate consumables.

Includes:

• 1x Weldskill 135 Power Source
• 1 x MIG Torch
• 1 x Work Lead
• 1 x 0.8mm Mini Spool Gasless Mild Steel MIG Wire
• 1 x Feed Roll 0.6/0.8mm (spare)
• 1 x Feed Roll 1.0/1.2mm (spare)
• 1 x Contact Tip 0.6mm (spare)
• 1 x Contact Tip 0.8mm (spare)
• 1 x Contact Tip 0.9mm (spare)
• 1 x Contact Tip 1.0mm (spare)
• 1 x Contact Tip 1.2mm (spare)
• 1 x Nozzle (spare)
• 1 x Chipping Hammer
• 1 x Wire Brush
• 1 x Welding Faceshield with Lens

Features:

• 240 Volt, 10 Amp Supply Lead
• Over temperature cut out
• Shielding Gas Operation
• Fan Cooled
• Gasless Operation
• AS Compliant
• Maximum mild steel wire size of 0.8mm

Specifications:

• Input voltage: 240V/15%
• Input frequency: 50Hz
• Output range: 38-120amps (135A max)
• Rated output @ Duty cycle: 120A/20.0V @ 10 Duty cycle
• Generator requirements: 6.5kVa
• Dimensions (L x W x H): 375mm x 245mm x 420mm
• Weight: 25kg

Warranty:

• 1 Year Warranty Covered By Cigweld Australia
